SmallRig 2267 Baseplate voor BMPCC 4K ( Alleen SmallRig Cage 2255 Compatibel)

SmallRig 2267 Plate for BMDPCC 4K/6K(SmallRig2255)

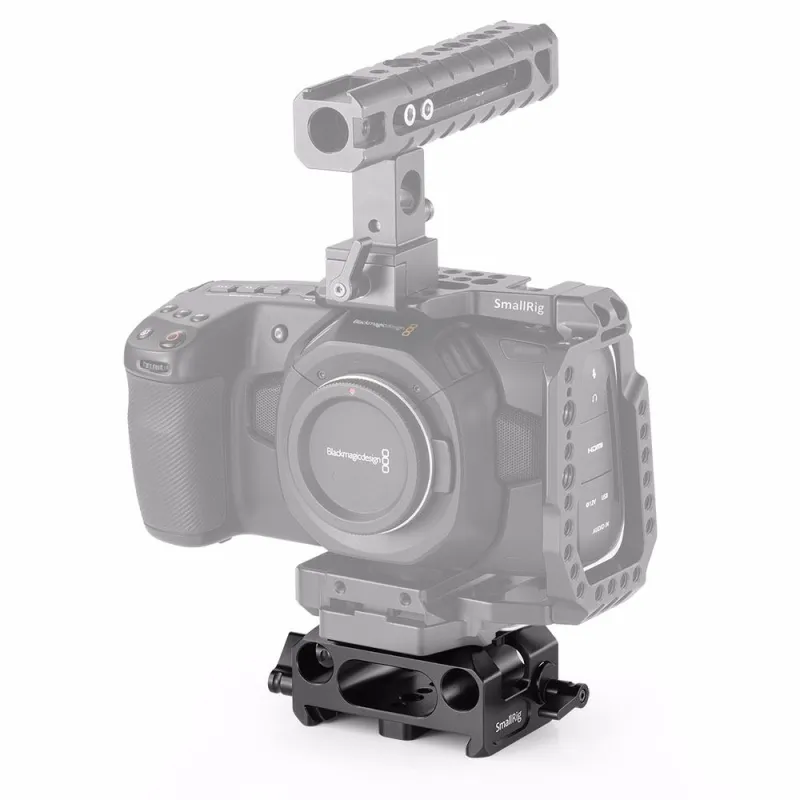

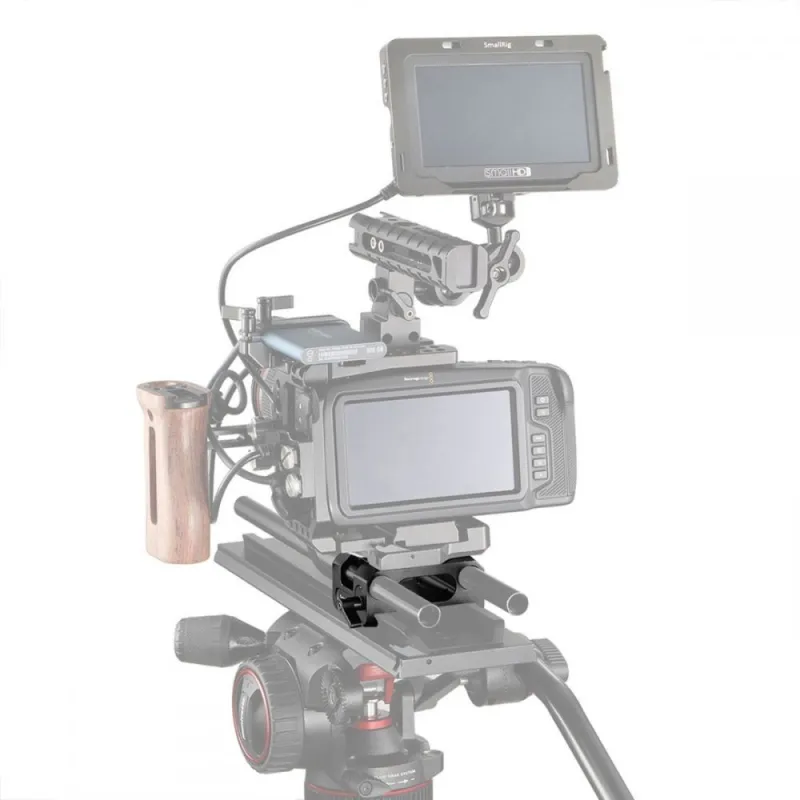

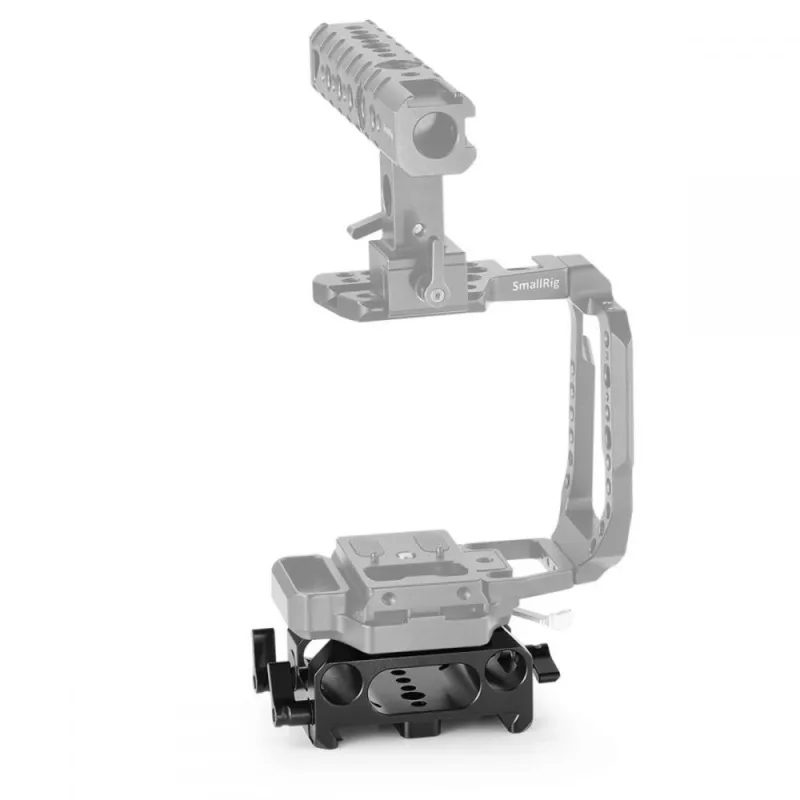

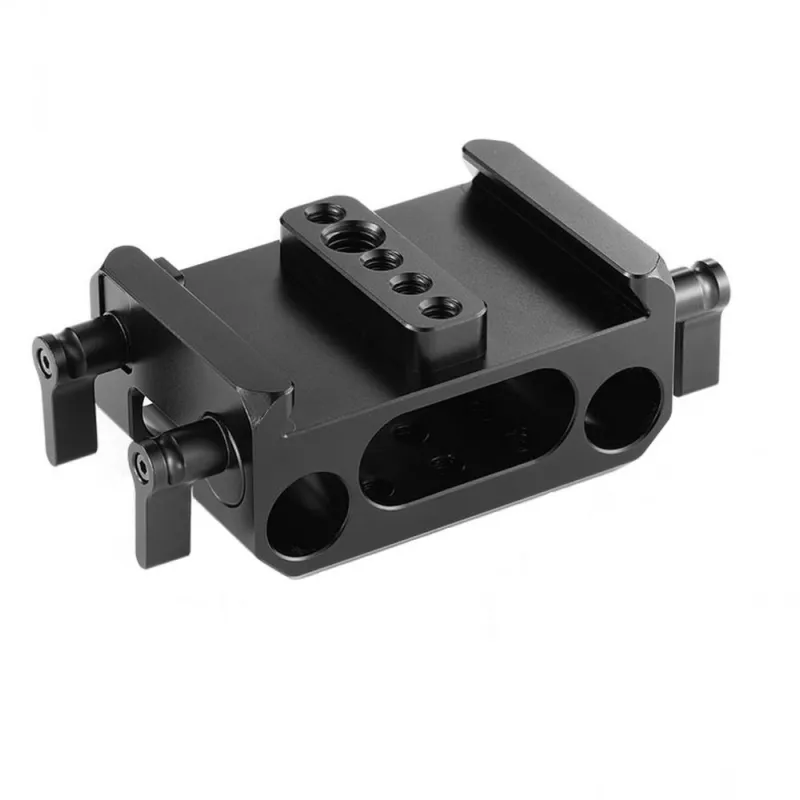

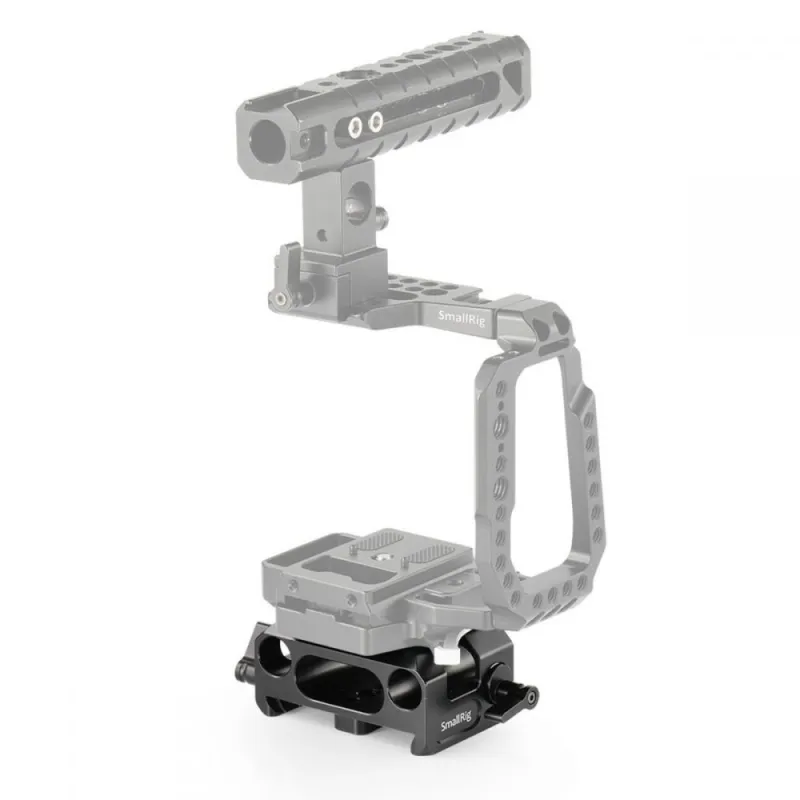

SmallRig Baseplate for Blackmagic Design Pocket Cinema Camera 4K (SmallRig BMPCC Cage 2255 Compatible Only) 2267 is a dedicated baseplate that provides 15mm rail support at 85mm rod height. It mounted to the bottom of the cage by two 1/4 screws. It features a 15mm rail clamp where SmallRig 15mm Rods 1053, accessories like SmallRig Shoulder Pad Kit 2077, SmallRig Lens Support 2152, Matte Box, follow focus and SmallRig Shoulder Rig Handle Kit 998 can be assembled. It comes with an integrated ARRI dovetail on the bottom which can directly mount to SmallRig ARRI Standard Dovetail Plate 1463. Additionally, there are multiple 1/4 and 3/8 threaded holes on the bottom of the baseplate so other tripod plates could be attached.

Key Features:
1.A dedicated baseplate designed to work with SmallRig BMPCC 4K QR Cage 2255;

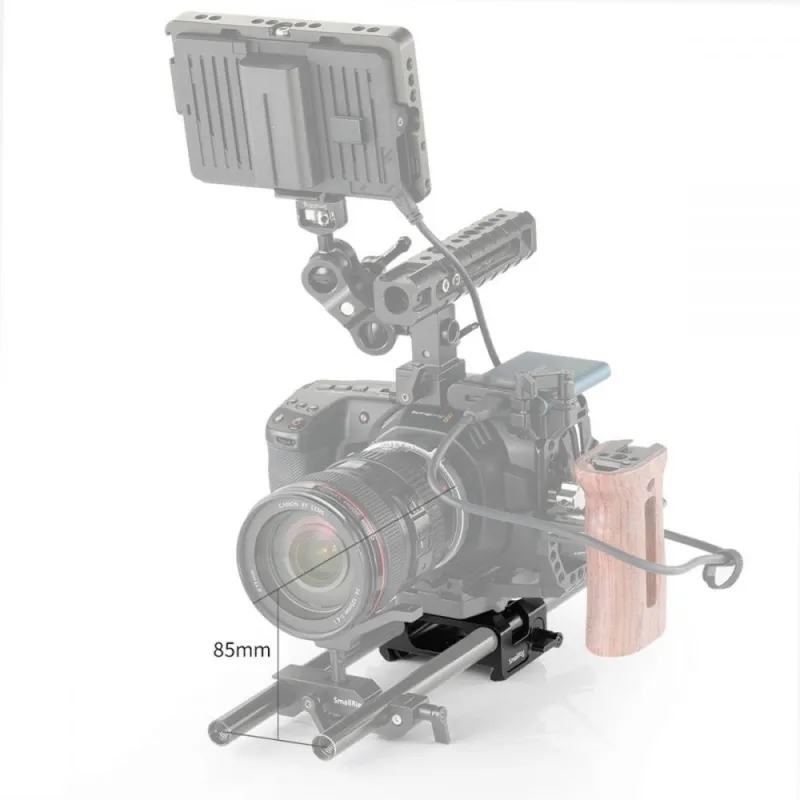

2.15mm rail support at 85mm rod height;
3.Arri standard dovetail on the bottom;
4.1/4’’-20 and 3/8’’-16 threaded holes on the bottom for attachment of other plates;
5.Well-formed and compact design.

Compatibility:
Blackmagic Design Pocket Cinema Camera 4K SmallRig cage 2255

Package Includes:
1 x Baseplate
1 x Hex Spanner
2 x 1/4 Screw

Product Dimensions:108 x 54 x 38 mm
Package Dimensions: 135 x 100 x 50 mm
Net Weight: 205g
Package Weight: 249g
Material(s): Aluminum Alloy

The SmallRig 2267 Baseplate for BMPCC 4K (SmallRig Cage 2255 Compatible Only) is a form fitting cage. It features a Manfrotto 501PL plate in the cage allowing quick release of the camera in 2 seconds and shifts to Manfrotto 501PL compatible tripods. It is securely locked by a 1/4 20 screw on the bottom, with additional locating pins and rubber pads to prevent wiggles and scratches.

Accessory attachment
On the top and left side are built in NATO rails, where you can attach SmallRig NATO Top Handle 1955 and SmallRig Wooden NATO Side Handle 2187 to conduct hand held shooting. Multiple mounting points such as 1/4 20 & 3/816 threaded holes, cold shoe and ARRI locating holes are perfect for attaching accessories. For users who record with SmallRig Samsung T5 SSD Mount 2245 is a good choice. The cage is compatible with SmallRig HDMI & USB C Cable Clamp 2246 to fix the cables. It works with SmallRig Lens Mount Adapter Support 2247 to keep your lens stable. Attach the SmallRig Baseplate for BMPCC 4K 2267 at the bottom of the cage to provide 15mm rail support at 85mm rod height. The cage ensures unobstructed camera grip, button, port, venting and battery access. ,

A dedicated form fitting cage for BMPCC 4K and 6K
Built in Manfrotto 501PL plate allowing quick release of the camera in 2 seconds
Multiple mounting interfaces (NATO rails, 1/4 20 and 3/8 16 threaded holes, ARRI locating holes and cold shoe) for attaching accessories
Form fitting design with unobstructed camera grip, button, port, venting, and battery access
Compatible with SmallRig Mount for Samsung T5 SSD, HDMI & SSD Cable Clamp and Lens Mount Adapter Support and other accessories
Dimensions of 10.8 x 5.4 x 3.8 centimetres
2 year warranty
,

1 x QR Half Cage
1 x Hex Spanner
,

Blackmagic Design Pocket Cinema Camera 4K
Blackmagic Design Pocket Cinema Camera 6K
