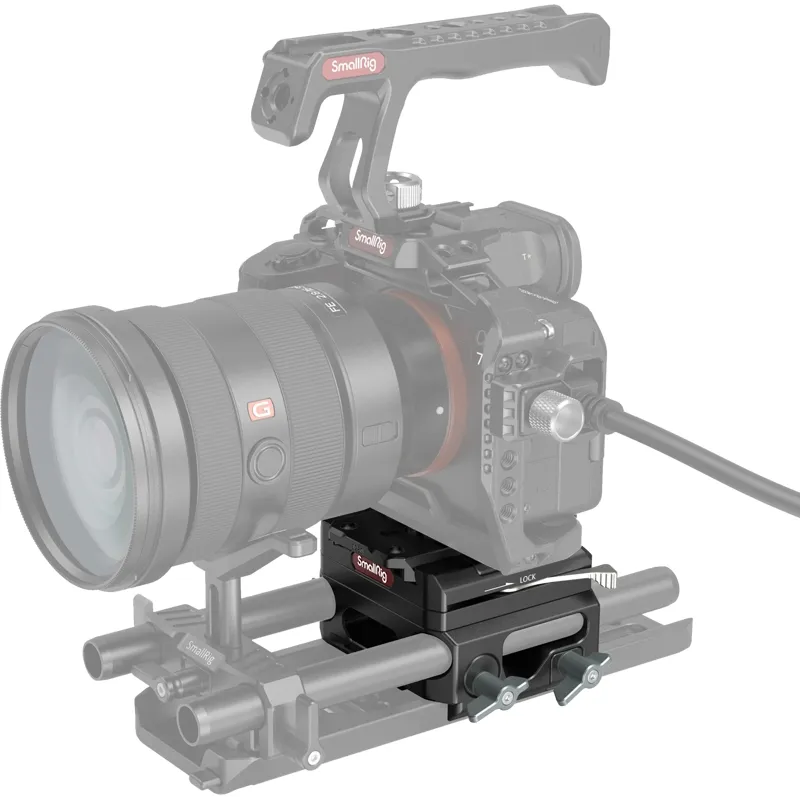

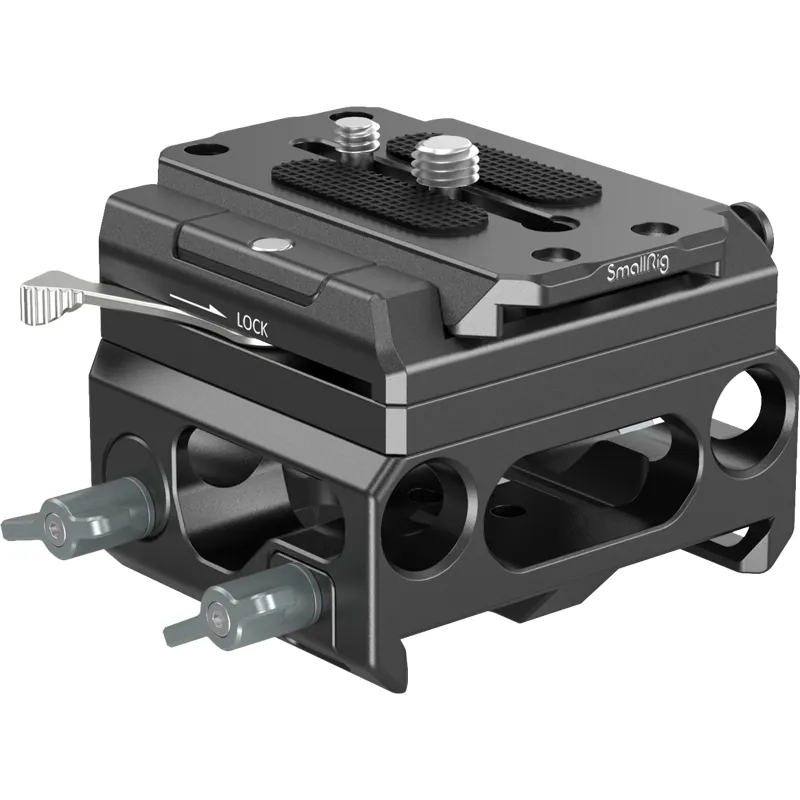

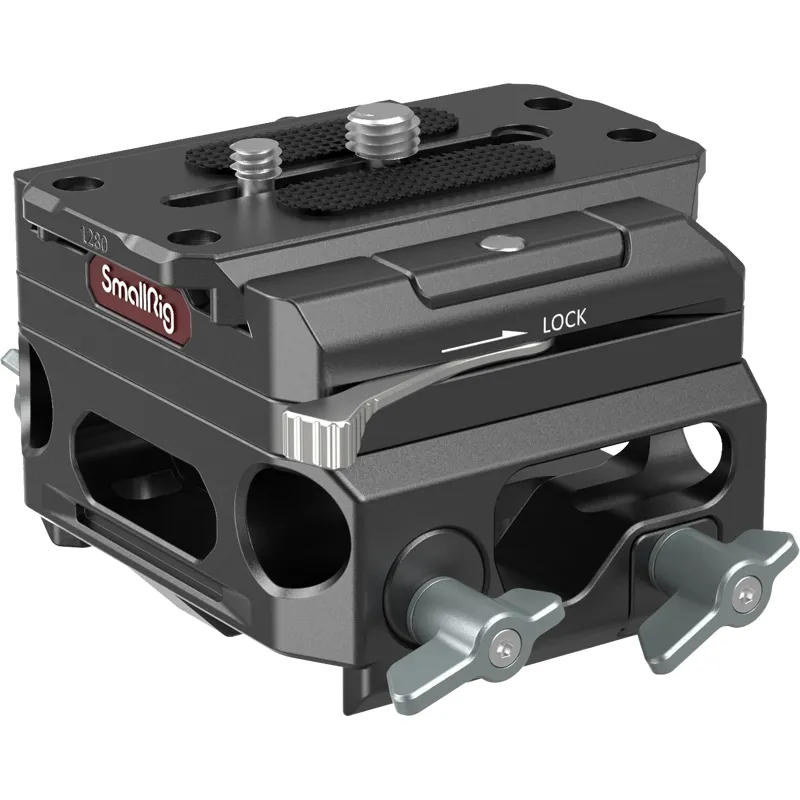

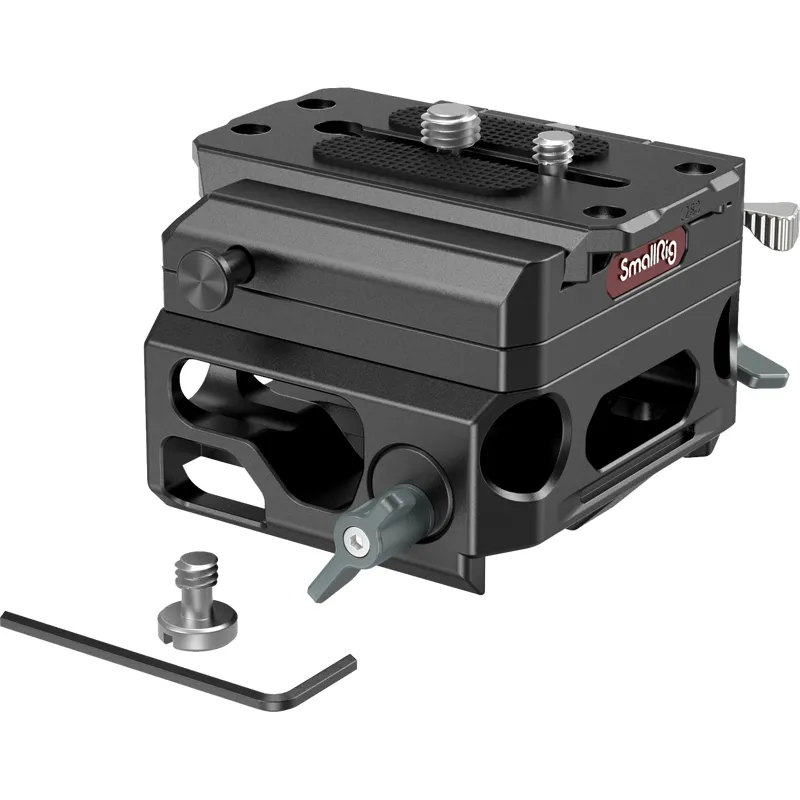

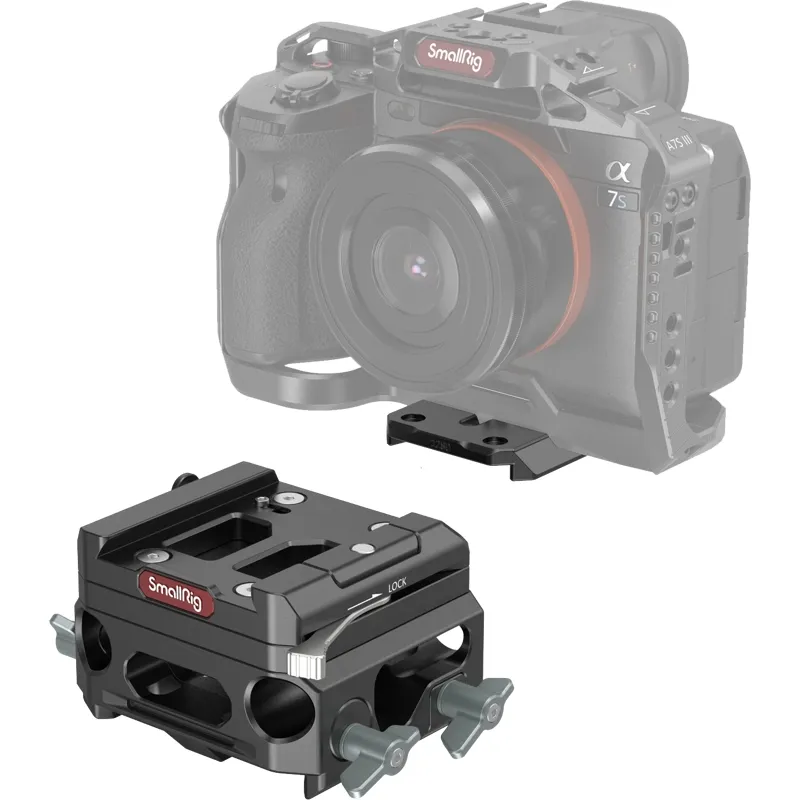

SMALLRIG 3067 BASEPLATE LIGHTWEIGHT WITH DUAL 15MM ROD CLAMP 3067
***Capacitance between conductors.
†Capacitance between conductors to shield.
Canare L-2T2S is our standard diameter 2-conductor microphone cable for general purpose audio applications. The high density braided copper shield and two inner conductors (composed of 60 thin strands of copper wire), allow for maximum flexibility and reduced handling noise. A special compound PVC outer jacket resists cracking and tears even in sub-zero environments.
Applications:
- Microphones
- Portable Applications
- Audio Patch Cords
- PA Systems
Features:
- Braided Copper Shield
- Flexible in Extreme Cold Weather
- Reduced Handling Noise
- Rejects EMI and RFI
| Model | Std. Lng. ft. (m) | Wt Std. Lng. lbs (kgs) | Nom. O.D. in. (mm) | Jacket Nom. Thick. in. (mm) | Brittle Point F° (C°) | No. of Cond. | Insul. Type* Thick mil | Cond-AWG (Qty./mil) Cross Sec. Area mil.? | Pitch Twist Quad in. (mm) | Shield |
| L-2T2S | 656 (200) | 20 (9) | .236 (6.00) | .039 (1.0) | -56 (-49) | 2 | IPE 19.7 | AC - #23 (60/3.15) 465 | Less than 0.79 (less than 20) | greater than 94% TAC Braid |
*Dielectric Strength = 500V AC/1min. Insulation Resistance/3Mft = >1000M ohm.
**Effective AWG of combined twin conductors.
**Effective AWG of combined twin conductors.
| Model | Cond. D.C.R. ohm/1000ft (ohm/100m) | Shield D.C.R. ohm/1000ft (ohm/100m) | Nom. Cap. *** pF/m | Nom. Cap. † pF/m | Nom. Imp. ohm | Nom. Atten. V/1000ft (V/100m) | Group Delay Time nS/ft (nS/m) |
| L-2T2S | less than 19.8 (less than6.5) | less than 9.4 (less than 3.1) | 70 | 106 | 88 | 0.9 (0.3) | 1.83 (6.00) |
†Capacitance between conductors to shield.
| Model | Black | Blue | Brown | Gray | Green | Orange | Purple | Red | White | Yellow | |
| L-2T2S | [+] | [o] | - - | [o] | - - | [o] | - - | [o] | - - | [o] | |
[+]=Standard Color, [o]=Available Color, "- -"=n/a
