Shape Canon C200 Cage 15mm LW ROD

Shape Canon C200 Cage 15mm LW ROD

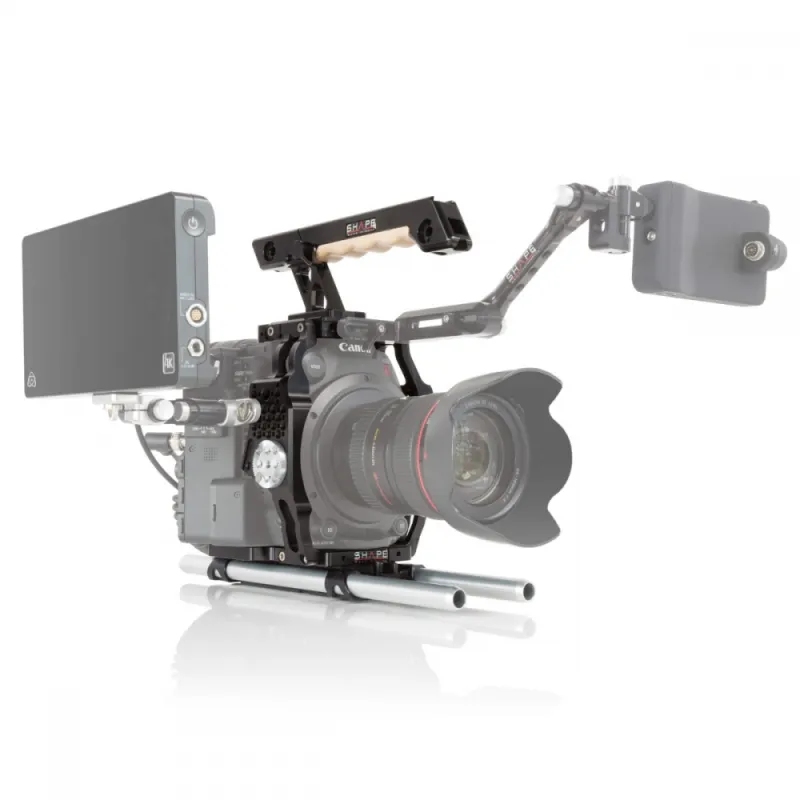

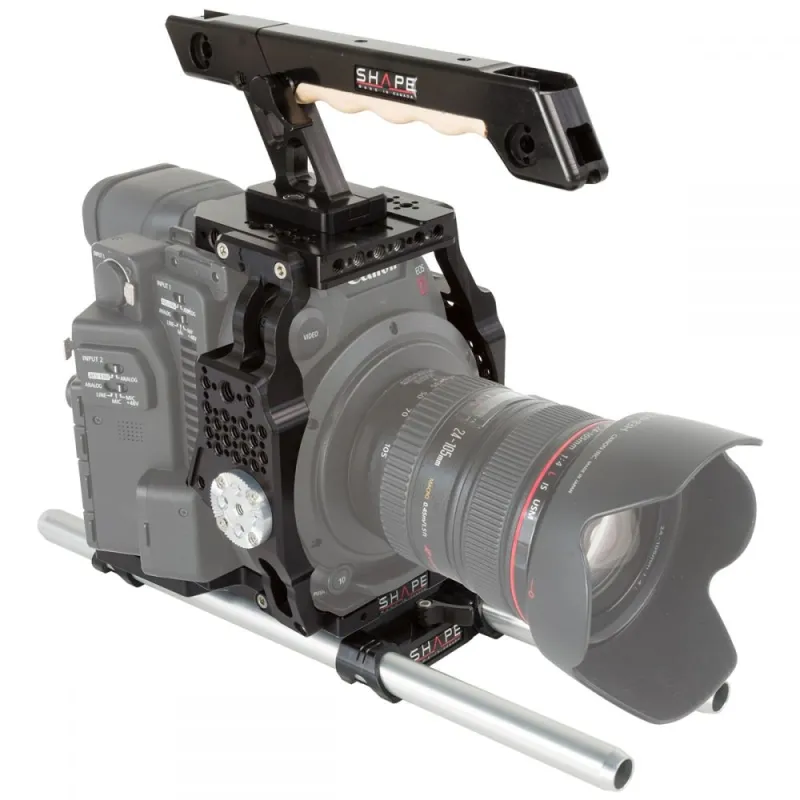

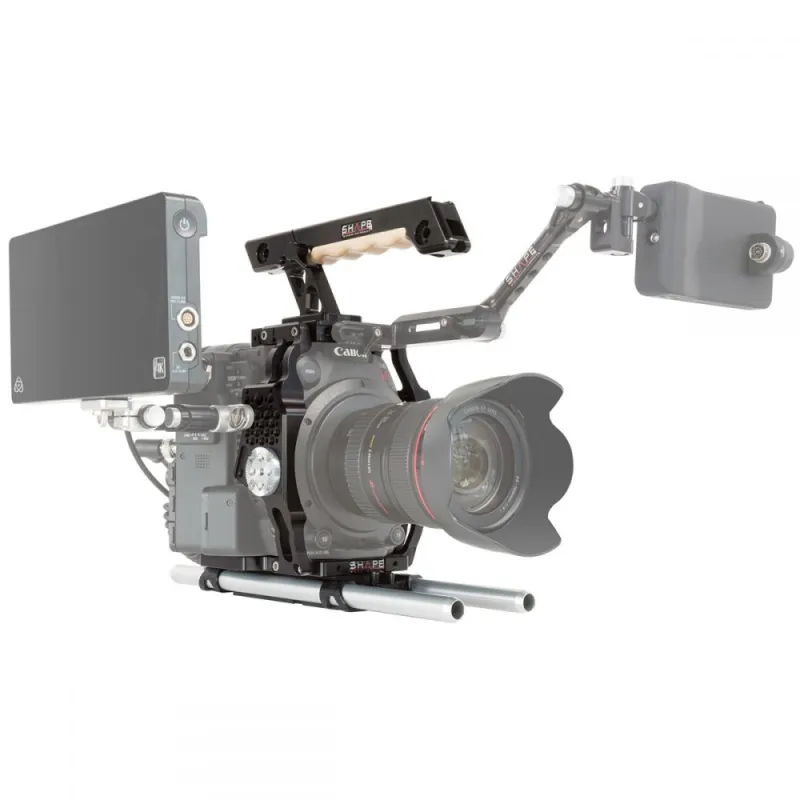

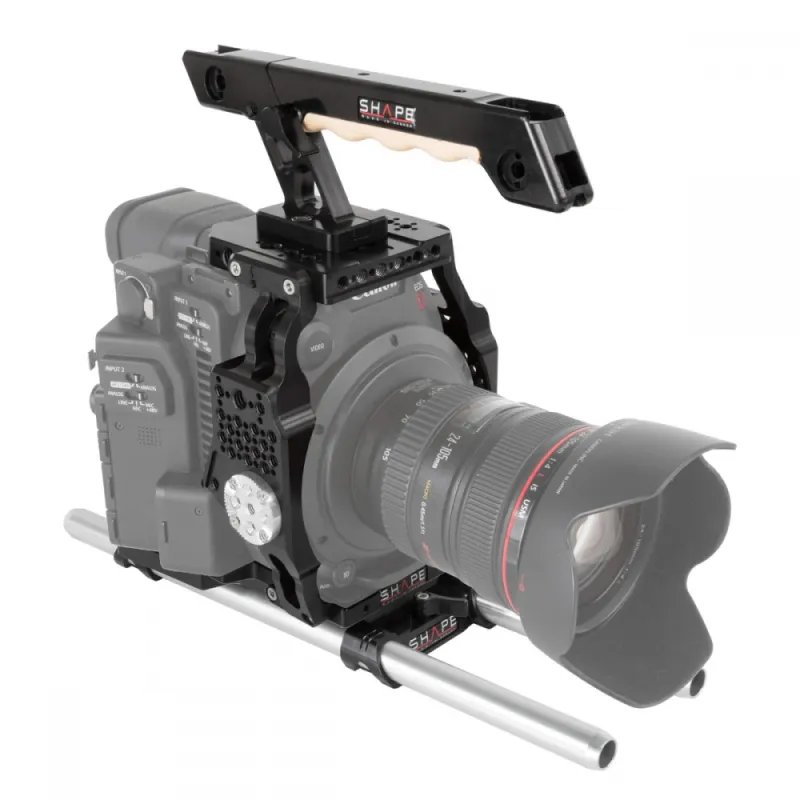

Shape designed this bundle rig specifically for the Canon C200 Camera. It’s a robust and complete solution that will increase the level of control on set.

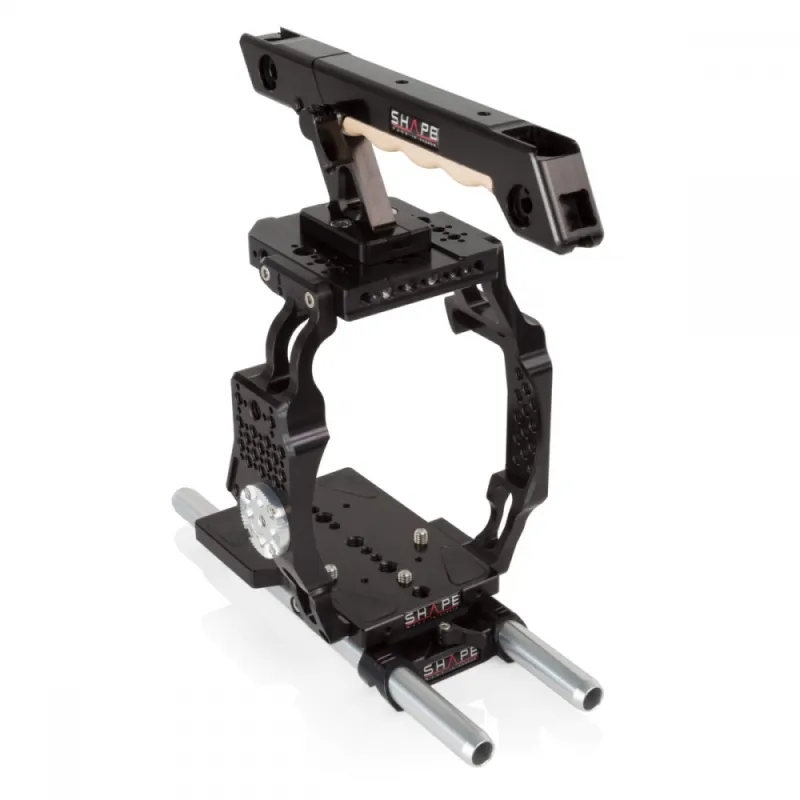

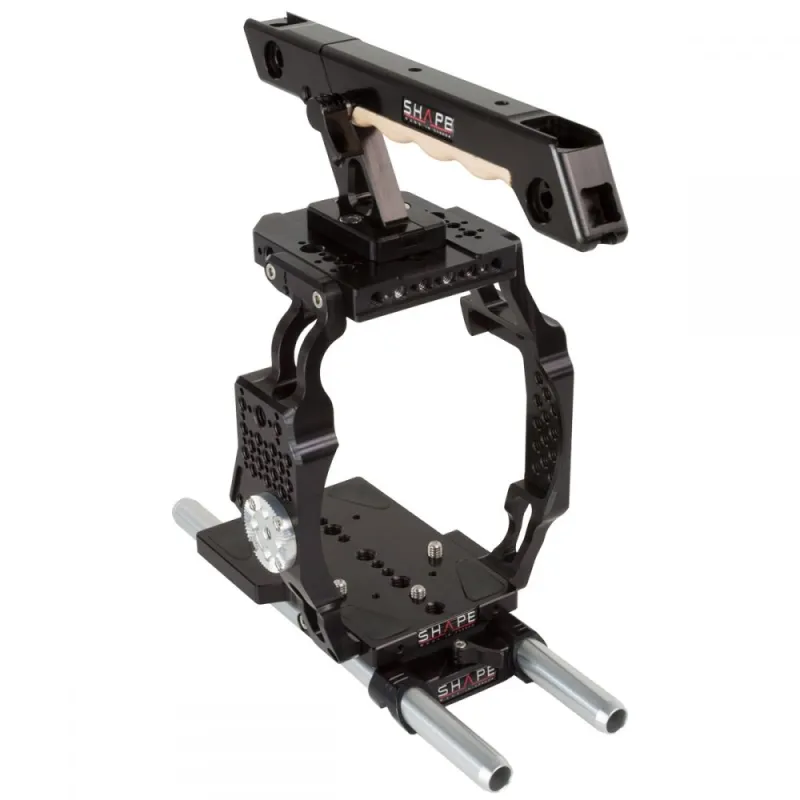

Canon C200 Camera Cage
• Made of solid and robust CNC machined aluminum;
• 4 captive screws (3 x  ¼-20 and 1x  3/8-16) strongly secure your C200 Camera
• Offers several mounting points and threaded holes to attach camera accessories
• Includes an ARRI Rosette on the right side to attach our Remote Extension handle or the C200 Handle
• Locking mechanical system  to secure the cable handle
• The bottom section of the cage features an Adaptor Plate with several ¼-20 and 3/8-16 threaded holes
• Perfect to optimize your C200 camera balance on a Tripod, Gimbal or Drone
• The Top section of the cage features a Top Plate allowing you to mount the C200 Top Handle at different positions in order to optimize your balance when you are in shoulder mode
• Quickly adjust or remove the cage with the help of and Allen Key
• The Allen Key is easily accessible and securely magnet-fixed at the bottom of the cage

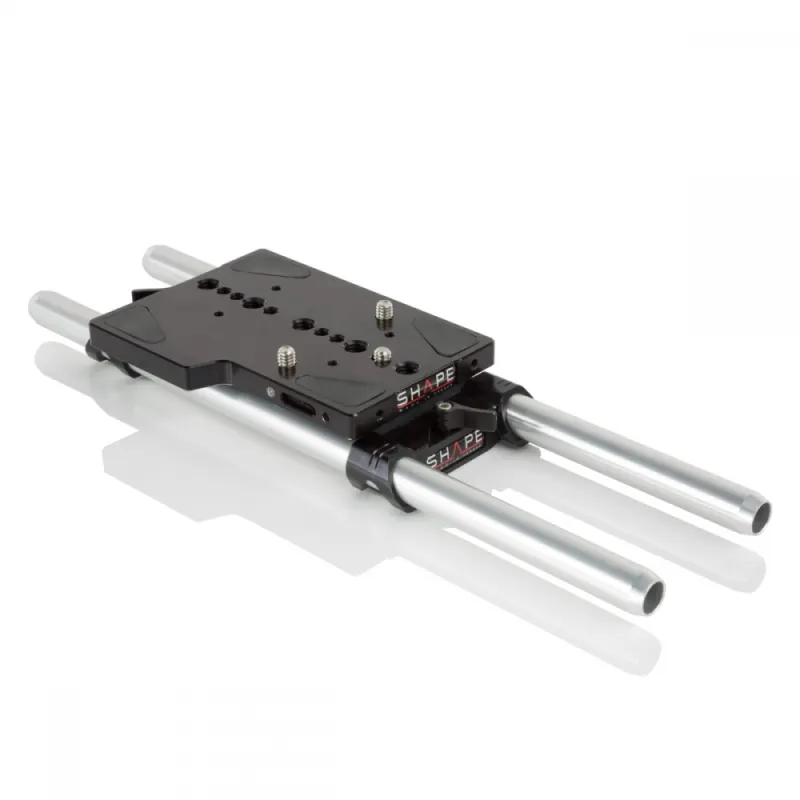

Canon C200 Baseplate with 15 mm Rod System
• Features a pair of 15mm rods that are 12” long through the length of the baseplate
• Attaches underneath the camera with 3/8-16 and ¼-20 screws
• 4 points attachment to strongly secure the camera and  for tripod plate attachment (3 x ¼-20 and 1x 3/8-16)
• Ratchet key knobs to reposition the rod bloc system
• 15mm LW Rod System designed to respect the C200 optical center
• 4 rubber pads at the top of the base to protect and securely sit your C200 Camera
• Quickly unscrew the bottom section of the Baseplate with an Allen Key and you will obtain an Adapter Plate featuring several ¼-20 and 3/8-16 threaded holes, perfect to optimize your C200 camera balance on a Tripod, Gimbal or Drone
• The Allen Key is easily accessible and securely magnet-fixed at the bottom of the Baseplate

Extendable Top Handle
The handle grip frame is made from robust CNC machined aluminum and the finger grip is made from genuine Canadian maple wood for maximum comfort. The Canon C200 top handle is removable and you can quickly adjust and lock the handle length for an extension of approximately 3 inches from its original position in order to optimize the balance of your Canon C200 to your lens type.

Attachment Features of the Top Handle:
• A ‘15 mm Rod Clamp’ (15CTH) can be mounted in the front section of the Top Handle, allowing you to attach our ‘15mm Push Button View Finder Bracket Arm’ or any other 15mm LW stud
• Several threaded holes to optimize your rig with our ‘ REVOLT Push Button Magic Arm Series’, designed to attach and manipulate your camera monitor or other camera accessories
• (4) Four ¼-20 threaded holes (Front). Perfect for more attachment options
• (2) Two Hot Shoe Brackets (Front and Back of Handle)

Delivery Contents:
1 Camera Cage
1 Base Plate with Rod Bloc (B15C200),
1 Pair of 15mm rods 12” (15TUBE12),
1 Extendable Top Handle
