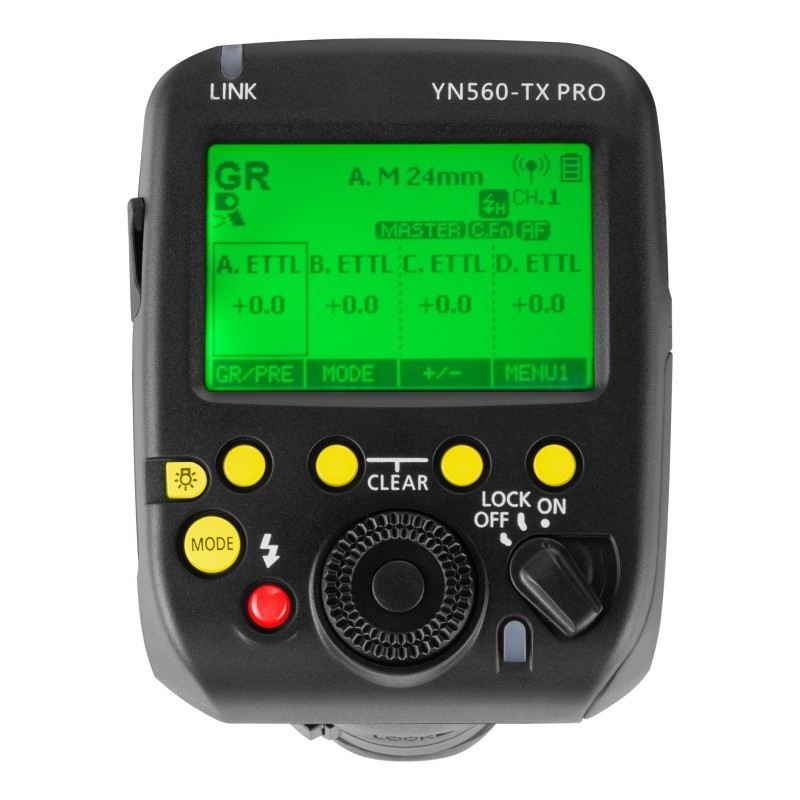

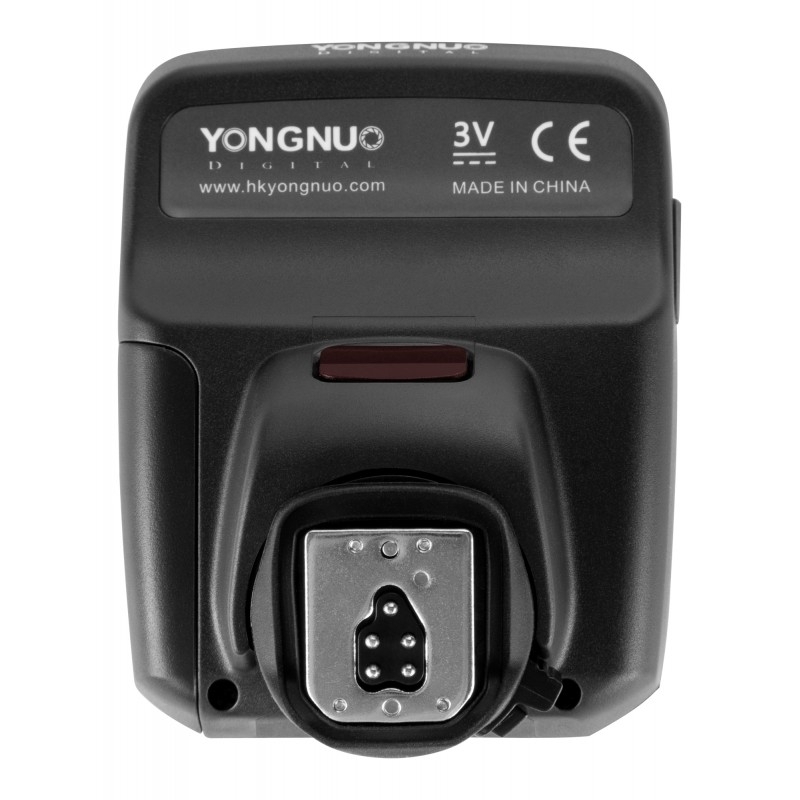

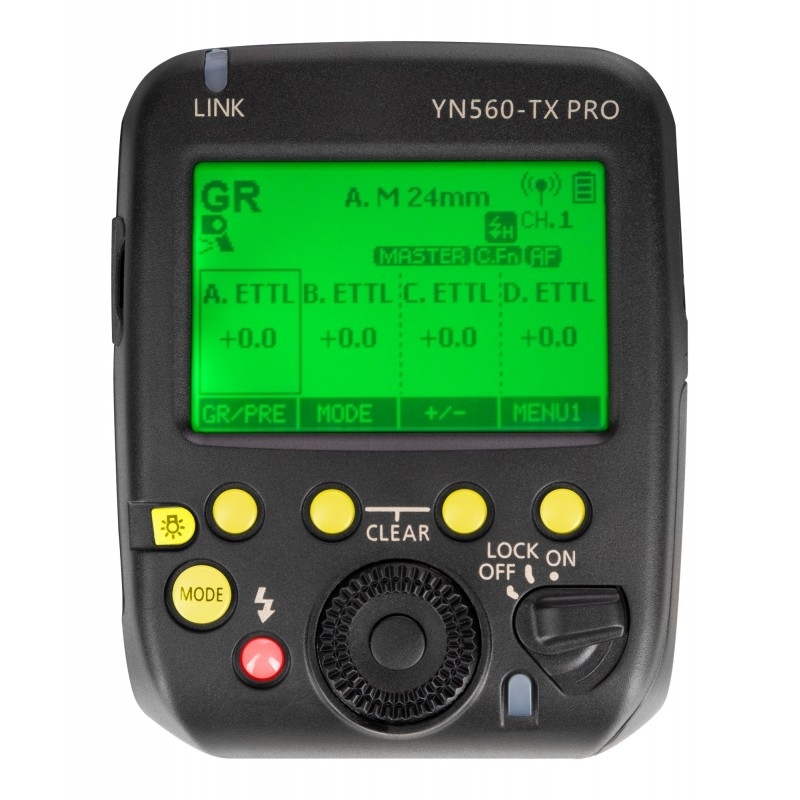

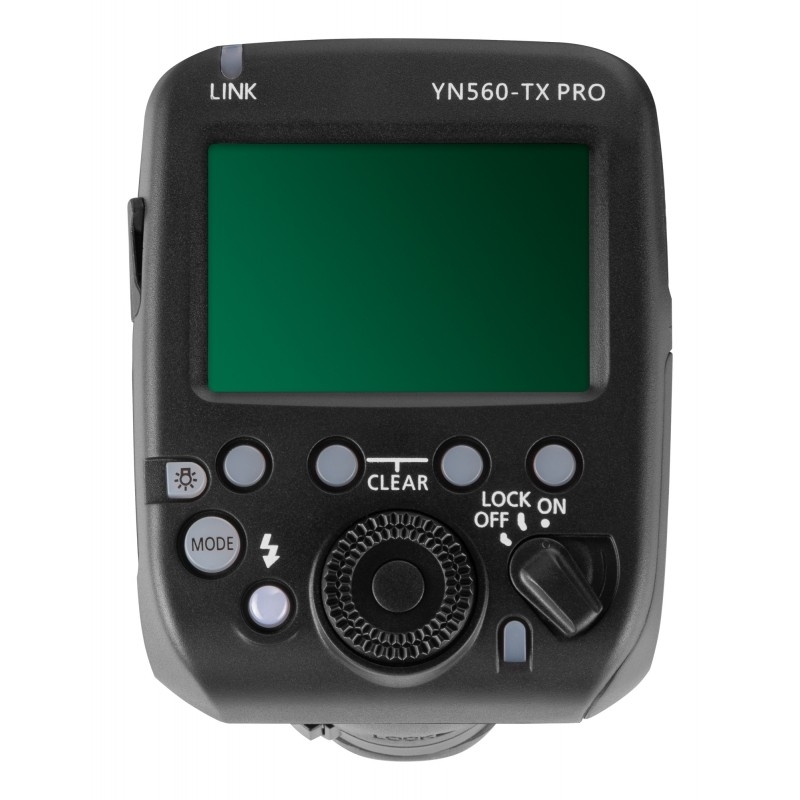

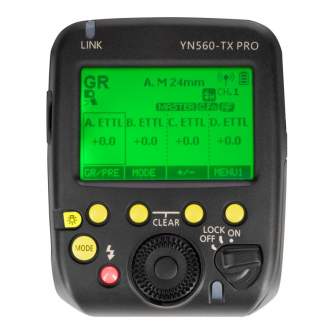

Yongnuo YN560 TX Pro Transmitter for Canon

YN560-TX Pro is a breakthrough radio controller from Yongnuo for remote control of reporter lamps. This developmental version of YN560-TX II in a way unifies older RF602/603/605 and YN622 II wireless triggering systems. Among other things, the device allows control of the lamps in five groups, for flash power adjustment, burner zoom, TTL automation and HSS synchronization. The controller is designed for Canon cameras. Amazing capabilities - Full support for TTL / M / Multi / GR flash modes - 16 work channels, 5 independent groups and 10000 configurable photographer IDs - synchronization for first and second shutter curtain - synchronization with short HSS shutter speeds - possibility to compensate for flash power, exposure blocking and exposure bracketing - operation of remote lamp burner zoom setting - 2.4 GHz radio signal frequency enables communication over a distance of 100 meters! Compatible lamps* The YN560-TX Pro radio controller is able to manage reporter lamps which have a built-in radio receiver. The following models can be triggered in manual mode: - YN560 III - YN560 IV - YN660 - YN720 - YN860Li In automatic mode (TTL): - YN200 - YN685C - YN685N - YN862C - YN968C - YN968N II * the complete list of compatibility and supported functions is presented in a separate table Compatible receivers* Lamps that do not have a built-in, system-compatible radio receiver can be connected to one of the following models. - RF-602-RX - RF-603 II - RF-605 - YN622C II - YN622N II * the complete list of compatibility and supported functions is presented in a separate table You can see it all in the palm of your hand The large, easy-to-read LCD display, backlit buttons and intuitive interface ensure comfort and ease of use. You can easily manage a group of several or even several lamps simultaneously! Quick-connector The quick-lock mechanism of the footer significantly facilitates and speeds up the installation of the device on the camera sled. AF support The controller is equipped with an autofocus assist diode, which significantly facilitates work in low light conditions. Power supply YN560-TX Pro is powered by two alkaline or AA rechargeable batteries. The battery compartment is located on the side of the device to allow quick and convenient battery replacement during operation. Latest firmware The Yongnuo YN560-TX Pro is equipped with a micro USB port. The latest software can be downloaded from the official Yongnuo website. The manufacturer takes care of continuous development of its products, introducing new updates. --- Specification - model: Yongnuo YN560-TX Pro - signal frequency: 2.4 GHz - signal range: up to 100 m - available work channels: 16 - available lamp groups: 5 - available photographer ID: 10000 - TTL flash power compensation: +/-3 EV in 1/3 EV steps - manual flash power adjustment: 1/128 - 1/1 with 1/3 EV increments - Trigger modes: - manual M - Stroboscopic Multi - automatic TTL - group GR - power supply: 2x alkaline battery / AA type rechargeable battery - dimensions: 6.8 x 6.7 x 8.1 cm - weight: 110 g - other features: - large, backlit LCD screen - clear, illuminated buttons - intuitive interface - synchronization to first or second shutter curtain - Synchronization with short shutter speeds (HSS) - AF system support - micro USB socket for software updates Compatibility - Canon cameras - flashing: - YN200 - YN560 III - YN560 IV - YN660 - YN685 - YN720 - YN860Li - YN862C - YN968C - YN968N II - radio triggers: - RF602-RX - RF603 II - RF605 - YN622C II - YN622N II Set contents - Yongnuo YN560-TX Pro radio controller to Canon - sleeve
