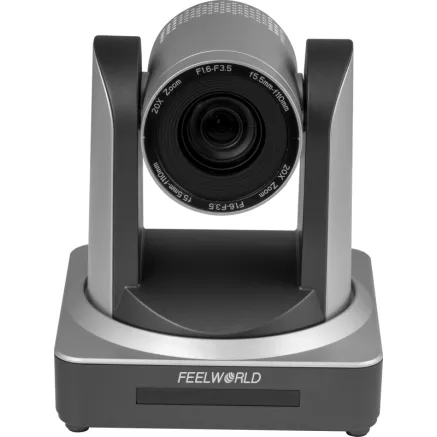

Feelworld POE20X Live Streaming PTZ Camera with 20X Optical Zoom

POE Professional Video Camera
The budget PTZ camera for live streaming
Are you worried about cumbersome network wiring? Are you still spending a high cost to purchase equipment for power supply? FEELWORLD POE20X helps you solve all your worries. It is a full HD PTZ camera with 20x optical zoom, simultaneous 3G-SDI, HDMI, LAN video output interfaces. Suppot PoE, which allows you easily transmit all the informations and power for device only by one cable. It is ideal for video conferencing, education, live broadcasting, broadcasting and churches.

Multiple Video Output
Stream to Your Favorite Platforms
Simultaneous HDMI, 3G-SDI, and IP streaming video output and multiplel network protocol allow POEX20 to easlily live streaming to your favorite platforms, such as YouTube, Fackbook, Twitch, etc. Note: The 3G‐SDI is available for 100m transmission at 1080p60 format.

PoE Support
No more pesky wires
The PTZ camera supports PoE (Power over Ethernet), just one cable can be used for power, video/audio streaming and control.

1080P@60 HD Image Quality + 20X Optical Zoom
Realize a Life-like Video Experience
The high resolution 1080P@60fps, outstanding color reproduction，20X zoom delivers premium optics and life-like video to create the experience of sitting together in the same room, even if you are a thousand miles away.

Auto Focus, Smart Frame Capture Everyone
Take close-ups on characters, details, and there is no need to worry about blurring your image when you're speaking choice.

Accurate, Smooth and Silent PTZ Movement
Capture every person in the room with multi-angle
Built-in two-way high speed and silent pan/tilt, the lens can rotate 340° horizontally (±170°) and 120° vertically (-30°～+90°).

Low Noise and High SNR
Super high SNR image is achieved with low noise CMOS. Advanced 2D/3D noise reduction technology further reduces the noise while ensuring high image clarity.

Up to 255 Preset Positions
The secret to more productive meetings
10 preset positions by IR remote controller, that can save pan, tilt, and zoom settings, and smoothly transitions between them at the touch of a button. Up to 255 preset positions via WEBSEVER.

Multi Ways to Control Your Camera
Operate Nearby or Far Away
You can Pan, tilt, and zoom with the hand-held remote to see everything in your workspace. You can also operate it from a remote location with WBESREVER software or FEELWORLD L2 PLUS video switcher.

Multiple Mounting Options
POE20X can be installed on any wall/ceiling/tripod to capture close-up shots for your every Live Video Production.
Note: Bracket not included.

Multiple Application
POE20X is widely use for church streaming, video confrence, sports events, online education, ect.

• 20X optical zoom professional full HD camera , suitable for larger occasion
• Up to 1080p@60fps, higher quality image
• Simultaneous 3G-SDI, HDMI, IP Streaming video out, easily for professional video production
• PoE(Power over Ethernet) supported
• Double track 3.5mm linear input for audio
• Auto focus, smart frame capture everyone
• Supports H.265/H.264 encoding which makes motion video fluent and clear even with less than ideal bandwidth conditions.
• Advanced 2D/3D noise reduction technology further reduces the noise while ensuring high image clarity
• High speed and silent pan/tilt, capture all the actions
• Multiple control protocol and network protocol
• Low-power sleep function
• Ideal for church live streaming, video confrence, sports events, online education, ect.

In the box:

• POE20X PTZ Camera
• Remote Control
• RS232 Control Cable
• RS485 Terminal Block
• Power Adapter
• Standard Power Cable
• User Manual

Feelworld POE20X Live Streaming PTZ Camera with 20X Optical Zoom
The budget PTZ camera for live streaming
Are you worried about cumbersome network wiring? Are you still spending a high cost to purchase equipment for power supply? FEELWORLD POE20X helps you solve all your worries. It is a full HD PTZ camera with 20x optical zoom, simultaneous 3G SDI, HDMI, LAN video output interfaces. Suppot PoE , which allows you easily transmit all the informations and power for device only by one cable. It is ideal for video conferencing, education, live broadcasting, broadcasting and churches.


Stream to Your Favorite Platforms
Simultaneous HDMI, 3G SDI, and IP streaming video output and multiplel network protocol allow POEX20 to easlily live streaming to your favorite platforms, such as YouTube, Fackbook, Twitch, etc.
Note: The 3GSDI is available for 100m transmission at 1080p60 format.


No more pesky wires
The PTZ camera supports PoE (Power over Ethernet), just one cable can be used for power, video/audio streaming and control.


Realize a Life like Video Experience
The high resolution 1080P@60fps, outstanding color reproduction20X zoom delivers premium optics and life like video to create the experience of sitting together in the same room, even if you are a thousand miles away.


Low Light Correction
The low light performance technology can automatically adjust the brightness level. Every moment can be seen clearly even in dark or back light condition. Outstanding performance and video quality make live recording extremely convenient.


More Smooth and Clear Video motion
IP live streaming supports H.264&H.265 video compression, which makes motion video more fluent and clear under low bandwidth conditions.


Auto Focus, Smart Frame Capture Everyone
Take close ups on characters, details, and there is no need to worry about blurring your image when youre speaking choice.


Capture every person in the room with multi angle
Built in two way high speed and silent pan/tilt, the lens can rotate 340 horizontally
(170) and 120 vertically ( 30+90).


Low Noise and High SNR
Super high SNR image is achieved with low noise CMOS. Advanced 2D/3D noise reduction technology further reduces the noise while ensuring high image clarity.


The secret to more productive meetings
10 preset positions by IR remote controllerthat can save pan, tilt, and zoom settings, and smoothly transitions between them at the touch of a button. Up to 255 preset positions via WEBSEVER


Operate Nearby or Far Away
You can Pan, tilt, and zoom with the hand held remote to see everything in your workspace. You can also operate it from a remote location with WBESREVER software or FEELWORLD L2 PLUS video switcher.


Multiple Mounting Options
POE20X can be installed on any wall/ceiling/tripod to capture close up shots for your every Live Video Production.
Note: Bracket not included,
Camera Parameters



 Model: POE20X
 Sensor: 1/2.9 inch high quality CMOS sensor
 Effective Pixels: 2.07 megapixel, 169
 Output Resolutions: 720p25/29.97/30/50/59.94/60 | 1080p25/30/29.97/30/50/59.94/60
 View Angle: 3.3 54.7
 Focus Length: f5.5110mm
 AV: F1.6 F3.5
 Optical Zoom: 20X
 Minimum Illumination: 0.5 lux F1.8, AGC ON
 DNR: 2D & 3D
 White Balance: Auto / Manual/ One Push/3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K
 Focus: Auto / Manual/ One Push Focus
 Exposure:  Auto / Manual
 BLC: On/Off
 WDR: OFF/Dynamic level adjustment
 Video Adjustment: Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
 SNR:  >55dB

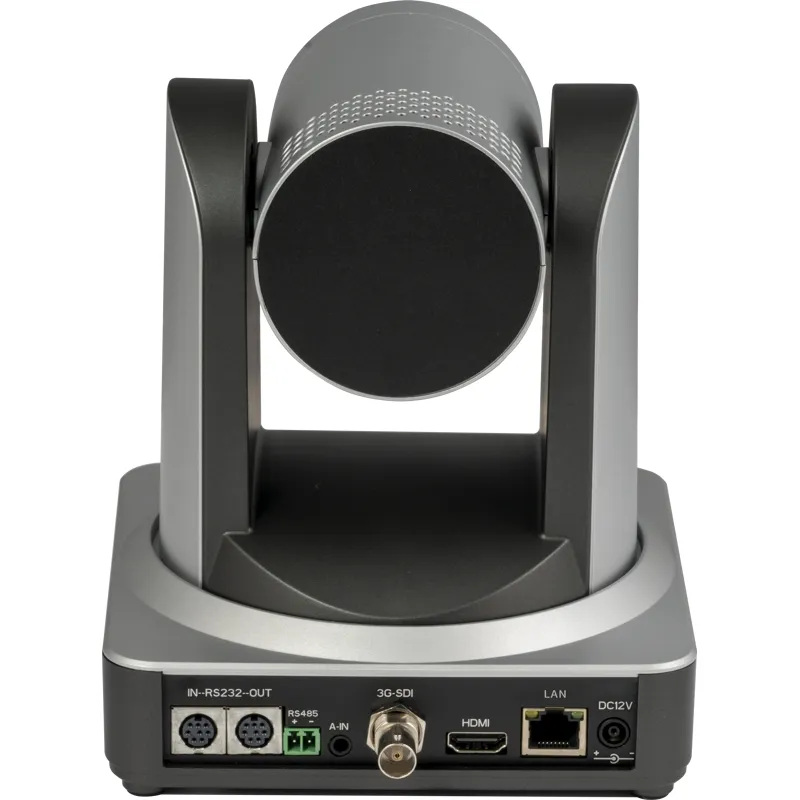

Input/output Interface

Video Interface: HDMI, 3G SDI, LAN(support PoE)
Image Code Stream: Double stream outputs simultaneously
Video Compression Format: H.264, H.265
Audio Interface: Double track 3.5mm linear input
Audio Compression Format: AACMP3G.711A
Control Interface: RS232 (IN/OUT), RS485
Control Protocol: VISCA/Pelco D/Pelco P
HD IP Interface: 100M IP port10/100BASE TX)
Network Protocol: RTSP, RTMP, ONVIF, GB/T28181, VSICA
Power Interface: HEC3800 outlet (DC12V)
PTZ Parameters


Pan Rotation:  170+170
 Tilt Rotation: 30+90
Pan Control Speed: 0.1 60/sec
Tilt Control Speed: 0.130/sec
Preset Speed: Pan: 60/sec, Tilt: 30/sec
Preset Number: 255 presets (10 presets via remote control)


Other Parameters

Input Voltage: 12V/1.5A
Power Consumption: Maximum: 12W
Stored Temperature:  40+70
Storage Humidity: 20%90%
Working Temperature: 10+50
Working Humidity: Working Humidity
Dimension (W*H*D): 150mm150mm167.5mm
Unit Weight:  1.4kg
,

1 Video Camera
1 Remote Control
1 RS232 Control Cable
1 RS485 Terminal Block
1 Power Adapter
1 EU Standard Power Cable
1 US Standard Power Cable
1 Manual
