Blackmagic Design Blackmagic Studio Camera 4K Plus

Rated 4.3/5 based on 1 customer reviews

132545 ar PVN

Piegādes laiks parasti 7 - 9 darba dienas

Ir piegādātāja noliktavā: 1 vienība

27625
CINSTUDMFT/G24PDD
9338716007589

Jauns

Delivery Instore
01.01 - 12.01.2025
Saņemt veikalā
Bezmaksas
Delivery Postbox
02.01 - 14.01.2025
Pakomāts (Omniva, DPD, Venipak)
Bezmaksas
Delivery
02.01 - 14.01.2025
Kurjers (DPD, Omniva)
no 10 €
Delivery Bycicle
01.01 - 12.01.2025
Velokurjers (tikai Rīga)
no 7 €
1325.45
Līzinga kalkulators
Termiņš, mēn.
3
6
12
24
36
Pirmā iemaksa,,
Men.maksājums,
no
Produkta veidsStudijas Aksesuāri
BajoneteCanon EF
Kameras komplektācijabez objektīva (body)
CMOS Sensor4K (3840 x 2160) QFHD

Oriģinālais preces apraksts no ražotāja (oriģinālā valodā)

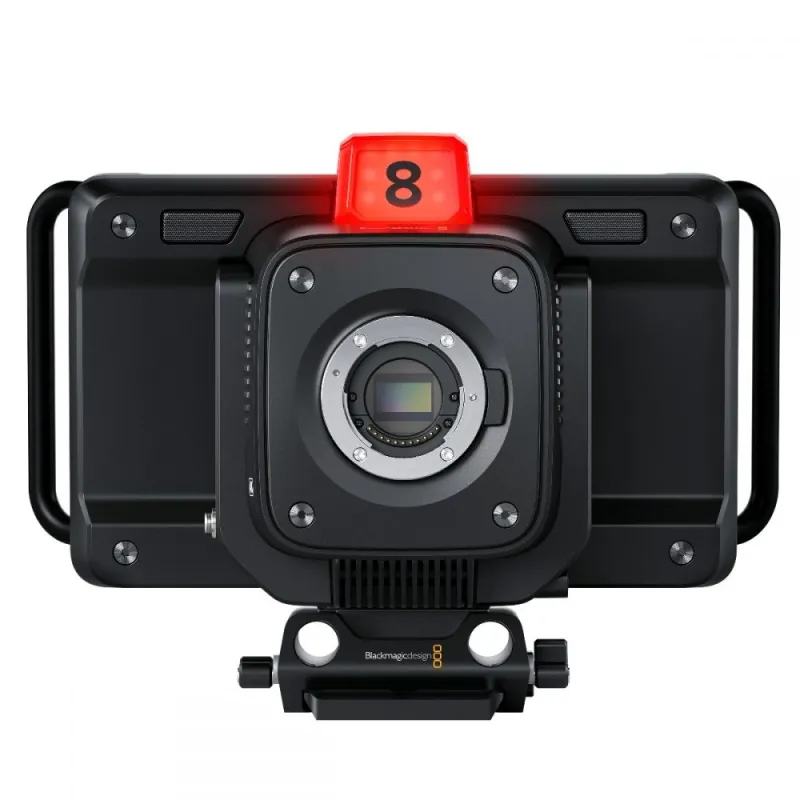

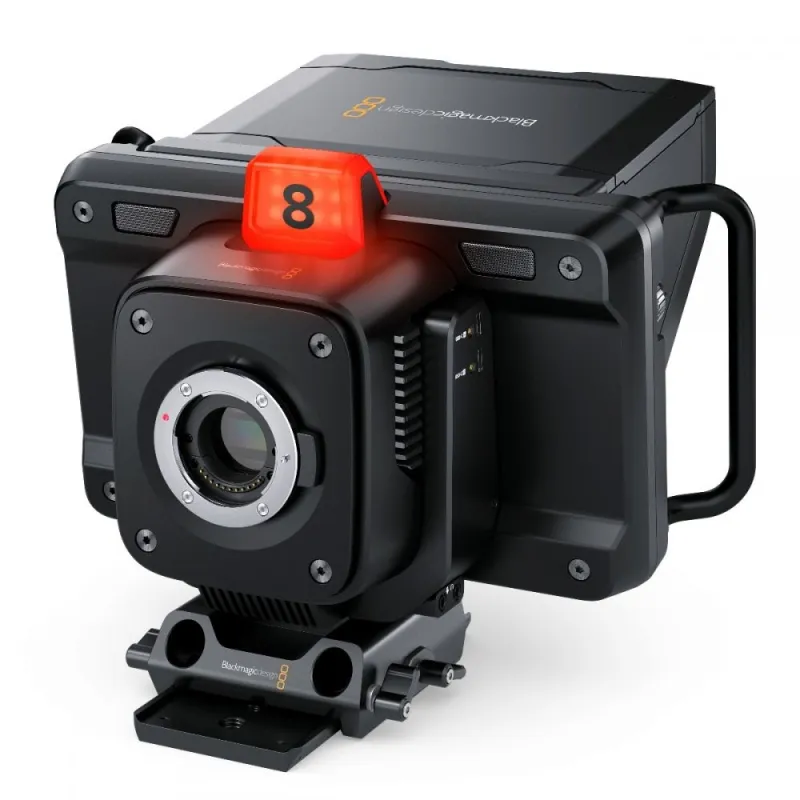

Blackmagic Studio Camera 4K Plus

The Blackmagic Studio Camera 4K Plus has been specifically designed as the perfect camera for ATEM Mini. It's the same high quality broadcast camera, but the HDMI centric design removes all the expensive broadcast connections so it's much lower cost. The HDMI is incredibly powerful as it connects video to the ATEM Mini, while at the same time camera control, tally and the remote record trigger is sent to the camera using the same HDMI connection. That makes it very fast to set up for a job.

Features

  • Native 4K sensor with 13 stops of dynamic range.
  • 3840 x 2160 (Ultra HD) up to 60 fps.
  • Designed specifically for live production.
  • Compatible with a wide range of popular MFT lenses.
  • Up to 25,600 ISO for incredible low light performance.
  • Large 7 inch high with 600 nits
  • Includes HDMI connection.
  • USB-C port allows recording directly to external disks.
  • Features incredible quality Blackmagic RAW recording.
  • Built in stereo microphones with wide separation.
  • Includes tripod mount for quick location setup.
  • Optional focus and zoom demands for lens control.

Designed for Live Production
While Blackmagic Studio Camera is designed for live production, it’s not limited to use with a live switcher! That’s because it records Blackmagic RAW to USB disks, so it can be used in any situation where you use a tripod! The large 7" viewfinder makes it perfect for work such as chat shows, television production, broadcast news, sports, education, conference presentations and even weddings! The large display with side handles, touch screen and physical controls makes it easy to track shots while being comfortable to use for long periods of time. Because it’s so lightweight, it’s perfect when you're constantly changing locations and doing different kinds of work.

Exceptional Low Light Performance
In advanced cameras, ISO is a measurement of the image sensor’s sensitivity to light. This means the higher the ISO the more gain can be added so it’s possible to shoot in natural light, or even at night! The Blackmagic Studio Camera features gain from -12dB (100 ISO) up to +36dB (25,600 ISO) so it's optimized to reduce grain and noise in images, while maintaining the full dynamic range of the sensor. The primary native ISO is 400, which is ideal for use under studio lighting. Then the secondary high base ISO of 3200 is perfect when shooting in dimly lit environments. The gain can be set from the camera, or remotely from a switcher using the SDI or Ethernet remote camera control.

Get Cinematic Images in Live Production!
The amazing 4K sensor combined with Blackmagic generation 5 color science gives you the same imaging technology used in digital film cameras. That means you can now use cinematic images for live production! Plus, when combined with the built in DaVinci Resolve primary color corrector you get much better images than simple broadcast cameras. The color corrector can even be controlled from the switcher. With 13 stops of dynamic range, the camera has darker blacks and brighter whites, perfect for color correction. The sensor features a resolution of 4096 x 2160 which is great for both HD and Ultra HD work. Plus, all models support from 23.98 fps up to 60 fps.

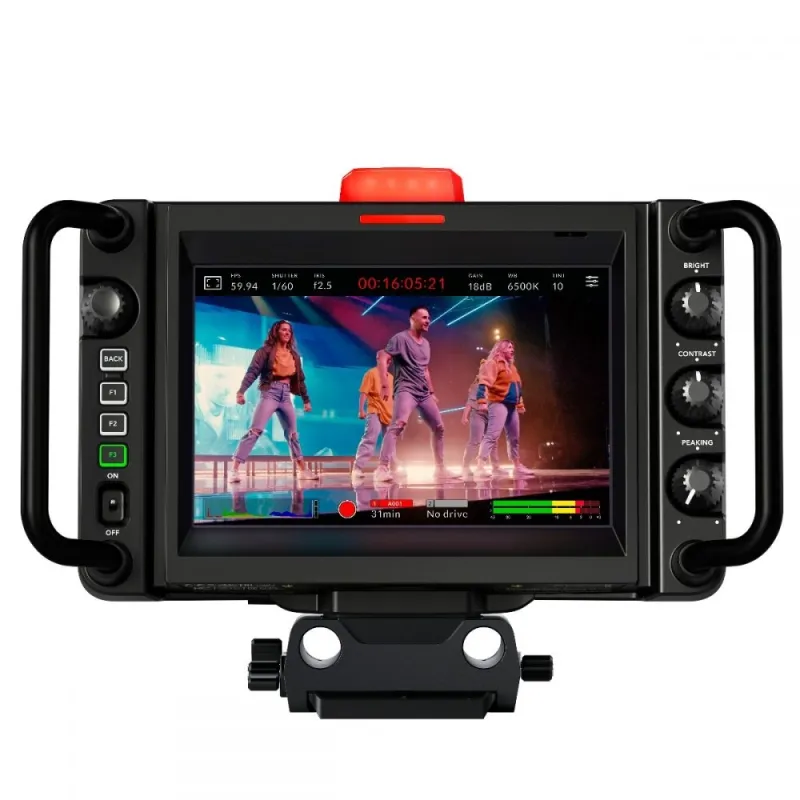

Frame Shots with Large 7" Viewfinder
The large 7" high resolution screen will totally transform how you work with the camera because it's big enough to make framing shots much easier. The Pro model features a HDR display with extremely high brightness, perfect outdoors in sunlight! On screen overlays show status and record parameters, histogram, focus peaking indicators, levels, frame guides and more. You can even apply 3D LUTs for monitoring shots with the desired color and look. The touchscreen also has menus and you can load and customize presets for different jobs. The included sun shade can be folded to protect the screen for transport plus it's compatible with sun shades from the Blackmagic Studio Viewfinder!

Physical and Touchscreen Controls
Blackmagic Studio Cameras feature physical buttons and knobs as well as controls on the touchscreen. Knobs on the right side of the camera allow adjusting of the brightness, contrast and focus peaking. The focus peaking knob is incredibly useful as it lets you fine tune the detail highlight so you can get perfect focus as you zoom. The 3 function buttons on the left can have functions assigned to them, such as zebra, false color, focus peaking, LUTs and more! Plus you can change the function assigned to each button in the menus. The touchscreen also includes a heads up display with the most important shooting information, as well as menus for all camera settings, LUTs and custom presets.

Built-in Tally for On Air Status
Blackmagic Studio Cameras feature a very large tally light that illuminates red for on air, green for preview and orange for ISO recording. The tally light also includes clip on transparent camera numbers, so it's easy for talent to see camera numbers from up to 20 feet away! The Blackmagic Studio cameras support the HDMI tally used on ATEM Mini switchers.

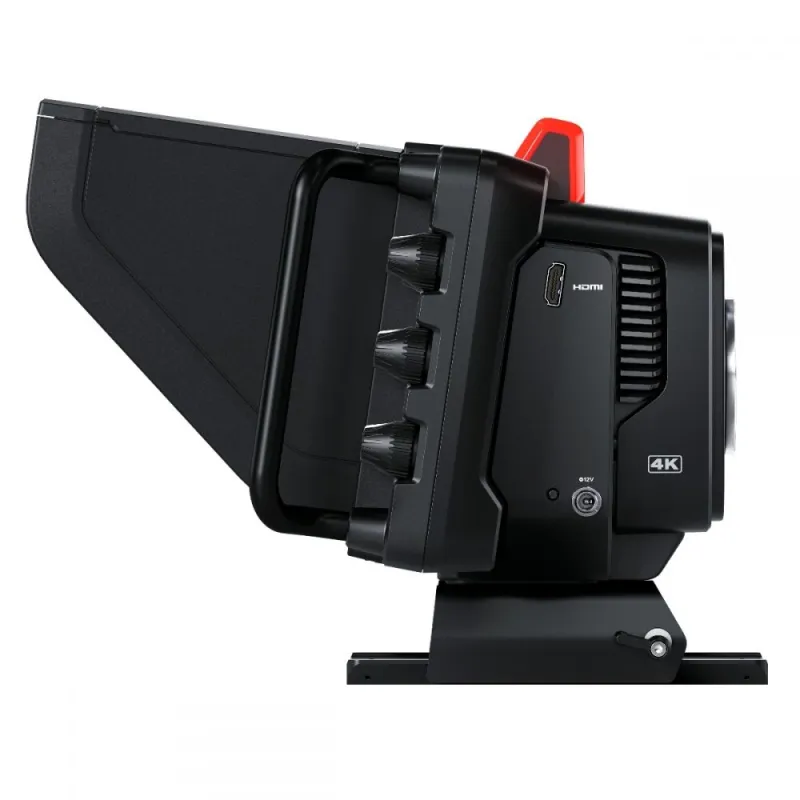

Ways to Connect
Connect via HDMI - Using the HDMI output, you can connect to switchers such as ATEM Mini! Plus the HDMI connection supports sending tally, color corrector control and record trigger back to the camera from the switcher.
Connect via USB Disk - You can even shoot without a switcher as the large screen makes the camera fantastic for shooting while recording to Blackmagic RAW on a USB flash disk. The big screen makes framing shots very easy!

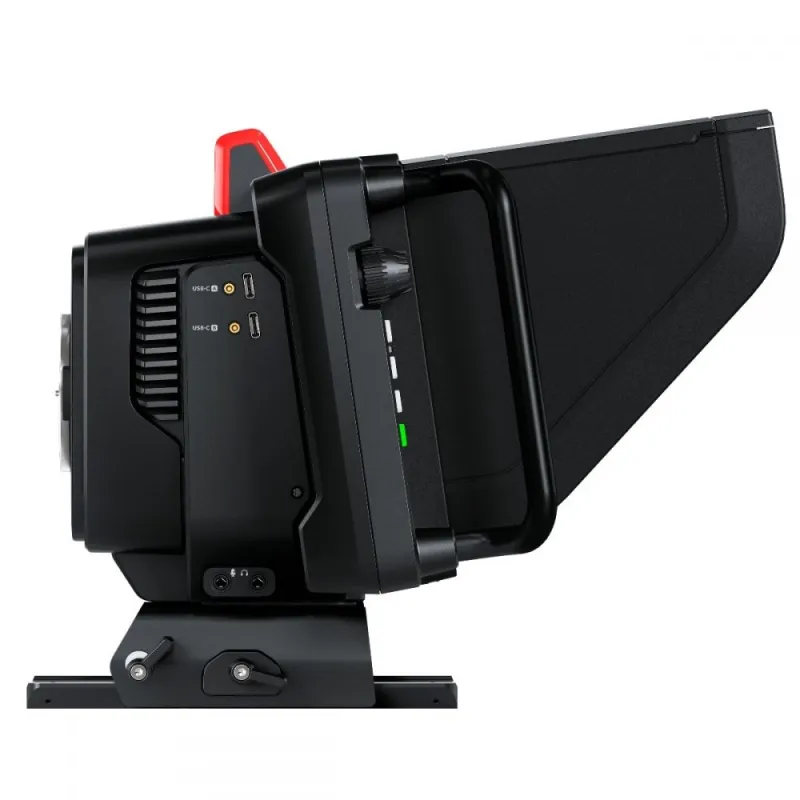

USB Expansion Port for Accessories
The Blackmagic Studio Camera features a high speed USB-C expansion port that allows you to record to external disks or connect to a wide range of accessories. Plug in an external USB flash disk and the camera can record high quality 12-bit Blackmagic RAW files for later editing and color correction. That means you can just move the disk to a computer to work, and you don't need to waste time with file copying. You can even plug in optional focus and zoom demands to allow full lens control. Plus the USB port will power any phone or disk that’s plugged in!

Includes Built-in Microphones
Blackmagic Studio Cameras include built in microphones so you get sound included in the design making setup much faster. Plus the built in microphones are shock and wind resistant, so you get great sound even in tough conditions! With each microphone placed at the edges of the screen, you get the advantage of the studio camera design for better stereo separation than what is possible on a regular video camera. There’s also a 3.5mm audio input for connecting video camera microphones as well as a 3.5mm headphone jack. On the Blackmagic Studio Camera Pro model you get professional XLR audio inputs and a built in speaker for listening to the program return audio.

Delivery Content
• Blackmagic Studio Camera 4K Plus
• Blackmagic Studio Camera Sun Shade
• Tripod Mount compatible with 15mm lightweight rails
• Turret Dust Cap
• External 12V DC power supply with locking connector and international sockets adapters for most countries.

A new family of Blackmagic Studio Cameras for live production. The new compact all-in-one design will help a wider range of live production customers who need cameras with professional features that are also fast to setup on location. The new Blackmagic Studio Cameras include design features such as carbon fiber reinforced polycarbonate and large integrated 7" viewfinders so they are very light weight making them much easier to transport and setup than large traditional studio cameras.

Blackmagic Studio Cameras have the same features as large studio cameras, miniaturized into a single compact and portable design. Plus with digital film camera dynamic range and color science, the cameras can handle extremely difficult lighting conditions while producing cinematic looking images. The sensor features an ISO up to 25,600 so customers can create amazing images even in dimly lit venues. Advanced features include talkback, tally, camera control, built in color corrector, Blackmagic RAW recording to USB disks and much more.

While Blackmagic Studio Camera is designed for live production, it’s not limited to use with a live switcher. That’s because it records Blackmagic RAW to USB disks, so it can be used in any situation where customers use a tripod. The large 7" viewfinder makes it perfect for work such as chat shows, television production, broadcast news, sports, education, conference presentations and even weddings. The large bright display with side handles, touch screen and physical controls makes it easy to track shots while being comfortable to use for long periods of time.

Large broadcasters use expensive studio cameras that are extremely large, so they’re not very portable. It features a lightweight carbon fiber reinforced polycarbonate body with innovative technology in a miniaturized design. The camera is designed for live production so it’s easy to track and frame shots with its large 7" viewfinder. The touchscreen has menus for camera settings, and there's knobs for brightness, contrast and focus peaking. Plus a tripod mount with mounting plate is included for fast setup.

The Blackmagic Studio Camera features gain from -12dB (100 ISO) up to +36dB (25,600 ISO) so it's optimized to reduce grain and noise in images, while maintaining the full dynamic range of the sensor. The gain can be set from the camera, or remotely from a switcher using the SDI or Ethernet remote camera control.

The amazing 4K sensor combined with Blackmagic generation 5 color science gives customers the same imaging technology used in digital film cameras. The color corrector can even be controlled from the switcher. With 13 stops of dynamic range, the camera has darker blacks and brighter whites, perfect for color correction. The sensor features a resolution of 4096 x 2160 which is great for both HD and Ultra HD work. Plus, all models support from 23.98 fps up to 60 fps.

With the popular MFT lens mount, Blackmagic Studio Cameras are compatible with a wide range of affordable photographic lenses. Photographic lenses are incredible quality because they're designed for use in high resolution photography. To eliminate the need to reach around to adjust the lens zoom and focus, the optional focus and zoom demands let customers adjust the lens from the tripod handles just like a large studio camera. It gives customers the same feel as an expensive B4 broadcast lens.

The large 7" high resolution screen will totally transform how customers work with the camera because it's big enough to make framing shots much easier. On screen overlays show status and record parameters, histogram, focus peaking indicators, levels, frame guides and more. Customers can even apply 3D LUTs for monitoring shots with the desired color and look.

Unlike consumer cameras, the Blackmagic Studio Camera 4K Pro model has SDI connections that include talkback so the switcher operator can communicate with cameras during live events. That means the director can talk to the camera operators to guide shot selection, eliminating the problem where all cameras could have the same shot, at the same time. The talkback connector is built into the side of the camera and supports standard 5 pin XLR broadcast headsets.

Blackmagic Studio cameras have lots of connections for connecting to both consumer and broadcast equipment. All models feature HDMI with tally, camera control and record trigger, so are perfect for ATEM Mini switchers. Customers also get headphone and mic connections, and 2 USB-C expansion ports. The advanced Blackmagic Studio Camera 4K Pro model is designed for broadcast workflows so has 12G-SDI, 10GBASE-T Ethernet, talkback and balanced XLR audio inputs. The 10G Ethernet allows all video, tally, talkback and camera power via a single connection, so setup is much faster. That's just like a SMPTE fiber workflow, but using standard Category 6A copper Ethernet cable so it's much lower cost.

The Blackmagic Studio Camera 4K Pro model supports connecting cameras via a single Ethernet cable. Traditional broadcast studio cameras use SMPTE fiber to communicate and power cameras, however SMPTE fiber is very expensive. Blackmagic Studio Camera 4K Pro model has 10G Ethernet as an alternative to SMPTE fiber so it's much lower cost. The Ethernet includes all camera video, program return feeds, tally, talkback, camera control and also power. The Blackmagic Studio Converter handles all video conversions at the switcher end plus adds power to the Ethernet cable. That means customers don't need to connect power to the camera.

The Blackmagic Studio Camera features a high speed USB-C expansion port that allows customers to record to external disks or connect to a wide range of accessories. Plug in an external USB flash disk and the camera can record high quality 12-bit Blackmagic RAW files for later editing and color correction. That means customers can just move the disk to a computer to work, and customers don't need to waste time with file copying. Plus the USB port will power any phone or disk that’s plugged in.

Some file formats such as H.264 are highly compressed, so add noise and artifacts, causing sensor detail to be lost forever. Blackmagic RAW eliminates this problem so customers get stunning images with incredible detail and rich color throughout the whole post production pipeline. Blackmagic RAW also saves camera settings as metadata so customers can change ISO, white balance and exposure later in DaVinci Resolve. Plus the files are small and fast, so editing responsiveness is incredible.

Blackmagic Studio Cameras include built in microphones so customers get sound included in the design making setup much faster. Plus the built in microphones are shock and wind resistant, so customers get great sound even in tough conditions. There’s also a 3.5mm audio input for connecting video camera microphones as well as a 3.5mm headphone jack.

Because the most common location to place microphones is near to cameras, the Pro model includes the best audio ever designed into a studio camera. The professional 2 channel balanced XLR inputs support +24 dBu line level and have an ultra low noise microphone preamplifier with P48 phantom power alongside an equivalent input noise (E.I.N.) of -131 dBV(A). That's followed by two 117 dB high dynamic range analog to digital converters, so customers get the high end audio demanded by broadcasters and audio engineers. This means any microphone plugged into the XLR inputs will have a higher level of noise than the camera's audio.

To allow quick mounting onto tripods and faster setup, all Blackmagic Studio Camera 4K models include a tripod mount with a machined metal design and quick mounting plate. The quick mounting plate allows the camera to slide onto the tripod and customers get forward and rear adjustment of the camera so customers can adjust the position to get the perfect camera balance.

Blackmagic Studio Cameras have lots of different power options. All models have a common 12V DC locking power connector so the cable won't be accidentally pulled out. However if users are using a single Ethernet cable to connect to the Blackmagic Studio Camera 4K Pro model, then the whole camera and its accessories can be powered from the Ethernet connection. The Blackmagic Studio Converter has a large power supply that adds PoE power to the Ethernet cable so customers don't need any power connection to the camera. That’s a great solution when there's no power available where the cameras are placed.

The optional zoom and focus demands can be added to turn affordable photography lenses into amazing broadcast lenses. The focus and zoom demands have USB-C connections so they work with all Blackmagic Studio Camera 4K models. Each zoom and focus demand has 2 USB-C ports, so customers can daisy chain them then connect to the camera with a single USB connection. The design has an incredibly precise feel and so customers get very fine lens control, and customers can frame and adjust the lens without taking their hands off the tripod handles.

With 10G Ethernet on the Pro model, customers can connect all signals to the camera with the one Ethernet IP link connection. That means the camera feed, return program feed, timecode, reference, tally, talkback and control are all sent down the single cable. That's the same benefits of SMPTE fiber, but the standard 10G copper Ethernet cable is much lower cost. The Blackmagic Studio Converter allows breakout of all the video, audio and talkback connections at the studio end. It also includes a massive power supply that powers the camera down the Ethernet cable, so customers don't need a power source near the camera.


Blackmagic Studio Camera 4K Plus

Blackmagic Studio Camera Sun Shade

Tripod Mount compatible with 15mm lightweight rails

Turret Dust Cap

External 12V DC power supply with locking connector and international sockets adapters for most countries




Camera Features

Effective Sensor Size

17.78mm x 10mm (Four Thirds)

Lens Mount

Active MFT Mount.

Lens Control

Iris, focus, zoom on supported lenses.

Dynamic Range

13 Stops.

Dual Native ISO

0dB and 18dB gain.

Sensitivity at 0dB Gain

f11 with 2160p59.94.

f12 with 2160p50.

at 2,000 lux with 89.9% reflectance.

Signal to Noise Ratio

63dB for 2160p.

Shooting Resolutions

3840 x 2160 (Ultra HD) up to 60 fps.

Frame Rates

23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 frames per second.

Off-speed frame rates up to 60 fps in Ultra HD.

Focus

Auto focus available using compatible lenses.

Screen Dimensions

7 inch 1920 x 1200

Screen Type

LCD capacitive touchscreen.

Screen Brightness

600 nits

Controls

Touchscreen camera settings and menus with rotary settings dial, program button, F1, F2 and F3 assignable function buttons, brightness contrast and peaking dials.

Mounting Options

2 x 1/4 inch tripod mount.

1 x 3/8 inch tripod mount.

Connections

HDMI 2.0 Video Outputs

1

Analog Audio Input

1 x 3.5mm Stereo Input. Can also be used for Timecode input.

Analog Audio Output

1 x 3.5mm mini jack for headphones.

Remote Control

Remote camera control over HDMI.

Computer Interface

2 x USB Type‑C 3.1 Gen 1 (up to 5Gb/s) expansion ports for external recording and focus / zoom demand connection. Software updates using USB‑C Port A.

Blackmagic Studio Camera 4K Plus

Audio

Microphone

Integrated stereo microphone.

Built in Speaker

1 x mono speaker.

Standards

SD Video Standards

None

HD Video Standards

1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

Ultra HD Video Standards

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

HDMI Audio Sampling

Television standard sample rate of 48 kHz and 24‑bit.

Media

Media

2 x USB-C 3.1 Gen 1 expansion ports for externalmedia for recording Blackmagic RAW.

Media Format

Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.

Supported Codecs

Codecs

Blackmagic RAW Constant Bitrate 3:1,
Blackmagic RAW Constant Bitrate 5:1,
Blackmagic RAW Constant Bitrate 8:1,
Blackmagic RAW Constant Bitrate 12:1,
Blackmagic RAW Constant Quality Q0,
Blackmagic RAW Constant Quality Q1,
Blackmagic RAW Constant Quality Q3,
Blackmagic RAW Constant Quality Q5

Storage Features

Storage Type

2 x USB‑C 3.1 Gen 1 expansion ports for external media.

Recording Formats

Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 in Ultra HD 3840 x 2160 at the selected frame rate.

Storage Rates

Storage rates based on 30 frames per second.

3840 x 2160 (Ultra HD)

Blackmagic RAW 3:1 - 127 MB/s
Blackmagic RAW 5:1 - 77 MB/s
Blackmagic RAW 8:1 - 48 MB/s
Blackmagic RAW 12:1 - 32 MB/s
Blackmagic RAW Q0 - 96 to 190 MB/s
Blackmagic RAW Q1 - 64 to 153 MB/s
Blackmagic RAW Q3 - 43 to 109 MB/s
Blackmagic RAW Q5 - 26 to 64 MB/s

Constant Quality storage rates quoted are indicative only.

Actual storage rates are entirely dependent on image subject matter.

Control

External Control

Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling your camera and lens from tripod handles.

Blackmagic Control Protocol over HDMI for external control when used with a compatible ATEM switcher with ATEM Software Control or ATEM Camera Control Panel. Includes control of some camera settings, focus, iris and zoom with compatible lenses, color corrector, tally and record start and stop to external media via USB expansion port.

Color Corrector

DaVinci YRGB

Tally

Live Tally Indicator

1 x front facing for talent,

1 x rear facing for operator.

Software

Software Included

Blackmagic Camera Setup for Mac and Windows.

Operating Systems

Mac icon

Mac 10.15 Catalina,
Mac 11.1 Big Sur or later.

Windows Icon

Windows 10, 64-bit.

Power Requirements

Power Supply

1 x External 12V DC 60W power supply.

Power Inputs

1 x 12V DC locking 5.5 mm barrel connector.

Power Usage

15 ‑ 22 W.

Optional Accessories

Blackmagic Focus Demand

Blackmagic Zoom Demand

ATEM Mini switchers

ATEM Television Studio HD and HD Pro switchers

Physical Specifications

Blackmagic Studio Camera 4K Plus

Environmental Specifications

Operating Temperature

0° to 40° C (32° to 104° F)

Storage Temperature

-20° to 45° C (-4° to 113° F)

Relative Humidity

0% to 90% non-condensing

Warranty

12 Month Limited Manufacturer's Warranty.

Produkta veidsStudijas Aksesuāri
BajoneteCanon EF
Kameras komplektācijabez objektīva (body)
CMOS Sensor4K (3840 x 2160) QFHD
