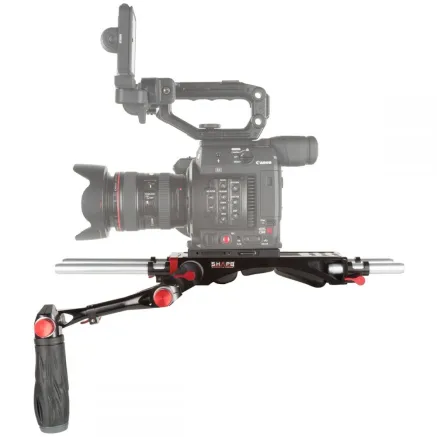

Shape Canon C200 Bundle Rig

Shape Canon C200 Bundle Rig

Canon C200 Baseplate with shoulder mount and 15 mm Rod System
The Canon C200 Baseplate features a Quick Handle Grip compatible with all standard ARRI rosettes. The Adapter Plate is designed to be mounted at the bottom of the Camera and let you quickly attach your C200 camera to the Baseplate with shoulder mount. Made of slip-free material, the shoulder pad produces maximum comfort and stability and will increase your level of control on set. If you want to use the Tripod option, the Baseplate also includes a delta plate and can be quickly mounted to a VCT Tripod Plate.

The sophisticated Rod Bloc System of the Baseplate features 2 ratchet knob devices to adjust the length and height of your rods. The 15 mm lightweight rod blocs can be fixed to the Canon C200 Baseplate, allowing you to install more camera accessories (8” rods at the front and 4” at the back).

Canon C200 Adapter Plate
The Adapter Plate let you quickly attach your C200 camera to the Baseplate. The position of the captive screws perfectly matches the threaded holes of the Canon C200 camera base.
• Made of solid and robust CNC machined aluminum
• Features several ¼-20 and 3/8-16 threaded holes
• Perfect to optimize your C200 camera balance on a Tripod, Gimbal or Drone

Pair of Telescopic Handles with Push-Button Technology
Our Telescopic Handles with ARRI Rosettes are left and right handgrips that can be attached to cameras and camera support hardware that has standard ARRI rosettes. Each arm features three points of articulation, combined with the approximately two inches of arm extension allowing you to adjust the arms for your comfort. The arms attach to your camera or support via an ARRI compatible rosette with spring-loaded locking levers, which allow you to lock your arms in place without having a full 360° of rotation.

By simply pressing the button, you are allowed a 360 degree rotation to place the handle in the best position for your use. The Push-button system on the Handle articulating joint provides additional articulation near the rosette, while a second push-button articulation joint allows you to rotate and precisely position the rubber handgrips. A second spring-loaded locking lever along the arms allows you to extend the arms up to two inches and rotate the handgrips throughout 360°. The arms are indexed for extension and rotation, so you can quickly move between known setups.

Features of the Telescopic Handles
• Quick release handgrips with multiple points of adjustment;
• Compatible with ARRI Rosettes;
• Patented push-button technology (Push, adjust, release, and then its lock);
• 1 Ratchet knob for extensible arm (1.5" additional length) and rotating handle for multiple positions (360° axis);
• Ergonomic handles with rubber handgrips for stability and precision;
• Stainless steel locking mechanism for durability;
• CNC machined parts and hard anodized aluminum for resistance.

Delivery Contents:
1 Base Plate with Shoulder Mount and Rod Bloc (BP0008)
1 Adapter Plate
1 pair of 15mm rods 8”
1 pair of 15mm rods 4”
1 Telescopic Handle with Push-button
