Blackmagic SmartView Duo 2

Rated 3.9/5 based on 1 customer reviews

66545 ar PVN

Piegādes laiks parasti 5 - 7 darba dienas

39196
HDL-SMTVDUO2
9338716004465

Jauns

Delivery Instore
31.12 - 09.01.2025
Saņemt veikalā
Bezmaksas
Delivery Postbox
01.01 - 10.01.2025
Pakomāts (Omniva, DPD, Venipak)
Bezmaksas
Delivery
01.01 - 10.01.2025
Kurjers (DPD, Omniva)
no 10 €
Delivery Bycicle
31.12 - 09.01.2025
Velokurjers (tikai Rīga)
no 7 €
665.45
Līzinga kalkulators
Termiņš, mēn.
3
6
12
24
36
Pirmā iemaksa,,
Men.maksājums,
no

Apskatīt līdzīgus produktus

Apskatīt līdzīgus produktus

LCD monitorimonitori

Oriģinālais preces apraksts no ražotāja (oriģinālā valodā)

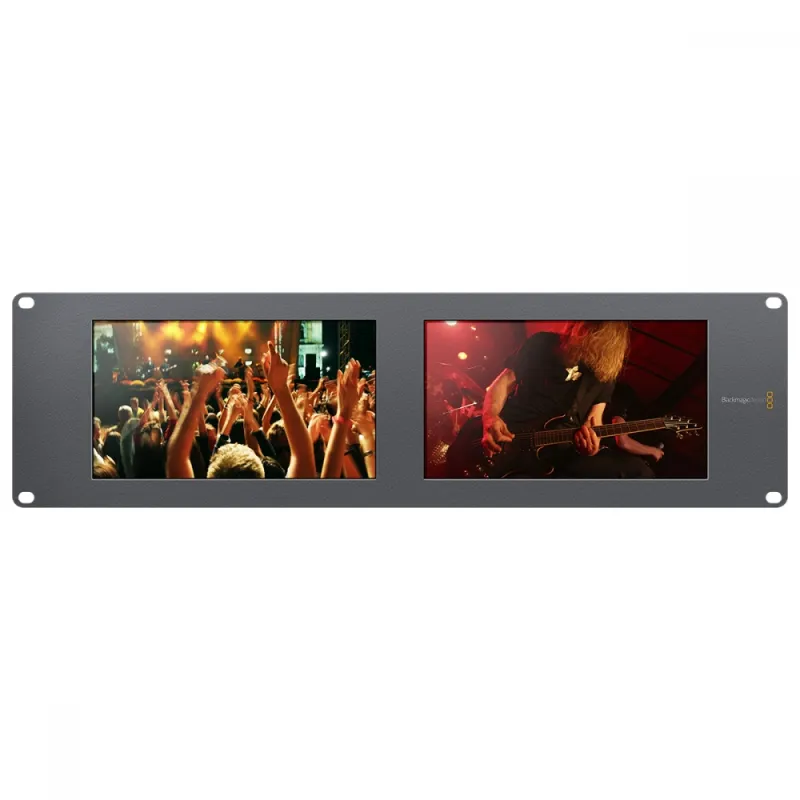

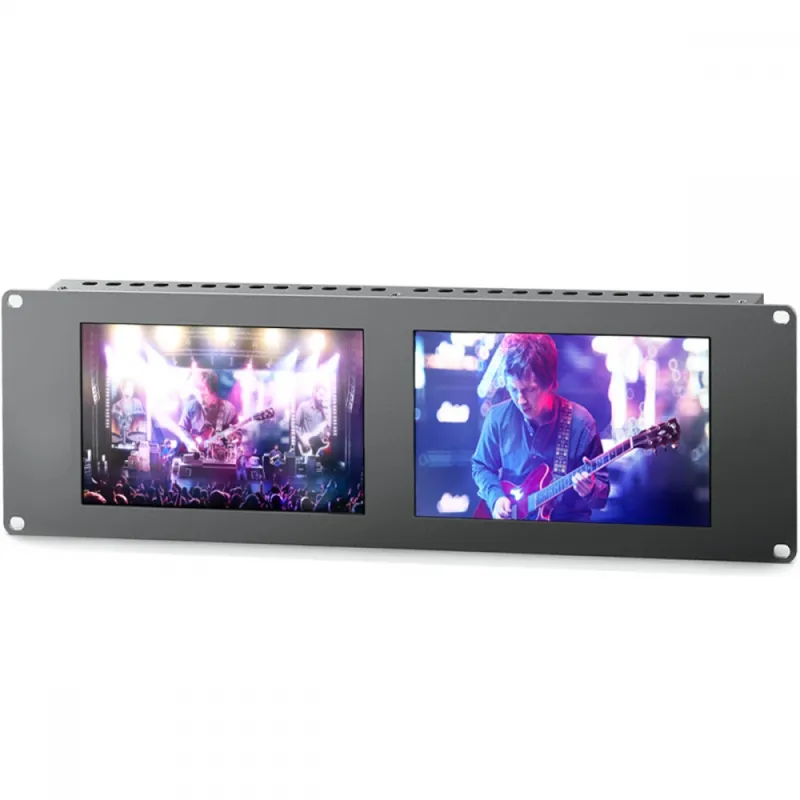

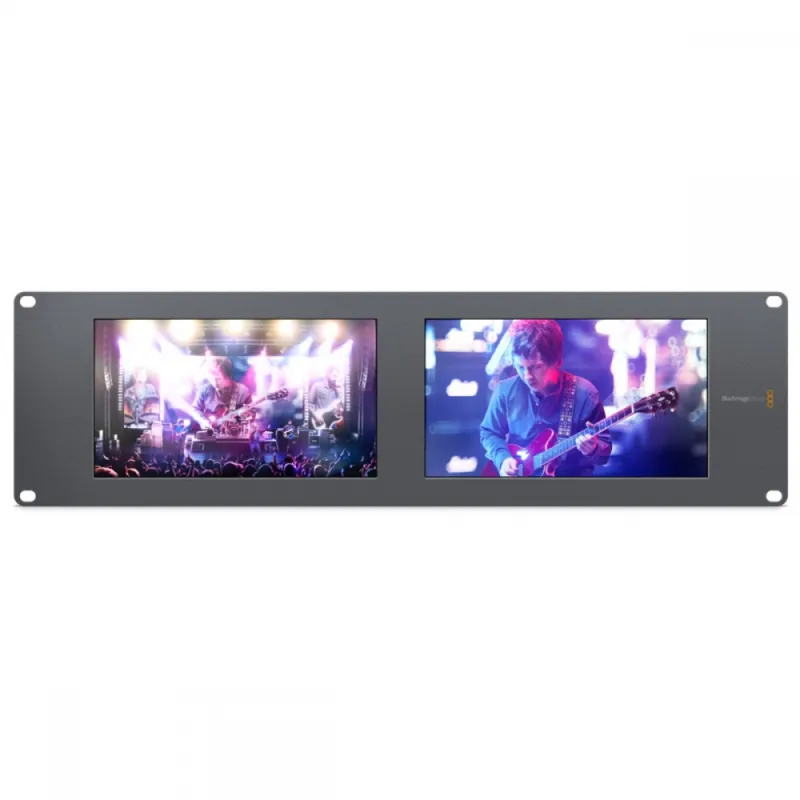

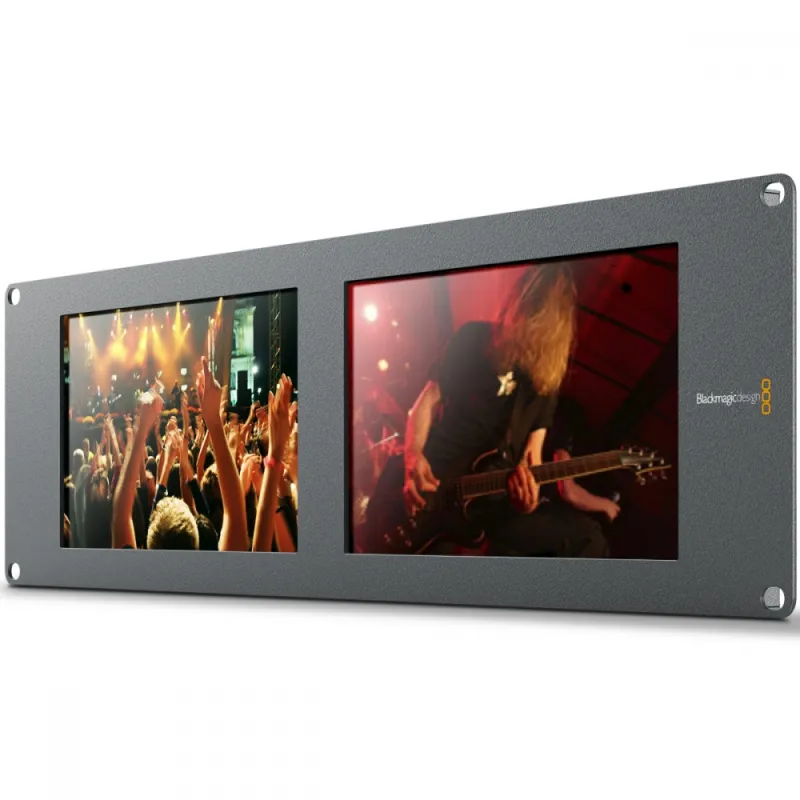

Featuring two large independent eight inch LCD screens in a compact rack mount design, SmartView Duo handles SD, HD and 3Gb/s SDI video standards. SmartView Duo is perfect for post production, broadcast and live event monitoring. For easy setup, all screens can be remotely adjusted via ethernet connection. With SmartView Duo you can install SDI monitoring everywhere you need!

Blackmagic Design SmartView

SmartView
When you need high quality SDI monitoring, SmartView monitors are the perfect solution! SmartView monitors are extremely thin and lightweight, so are perfect for both broadcast and portable use, and automatically switch between SD, HD and 3G-SDI video formats.
There are 3 great models; SmartView HD features a large 17" display, SmartView Duo has 2 independent 8" displays and SmartScope Duo 4K adds the flexibility of built in waveform monitoring that can be assigned to either of its 8” displays!

Blackmagic Design SmartView

High Quality SDI Monitoring
SmartView monitors are ideal for high-end broadcast monitoring because they feature high quality filtering and scaling, so you retain fine detail in the image. The fully digital design with high quality SDI inputs ensures precise color that’s easy to manage across multiple displays. SmartView includes Ethernet so you can connect them to your network and centrally control all your monitors from a single computer using the SmartView software utility for Mac OS X and Windows systems. SmartView also includes integrated tally that is fully compatible with many switchers or automation systems.


Compact Rack Design
Modern broadcast trucks and studios have less space than ever before and space costs money. SmartView monitors are super thin and are less than an inch thick! This means that when you're building a wall of camera monitors, you only need rack depth of a few inches to minimize space inside broadcast trucks and other tight situations. SmartView also features a lightweight, aluminum design that's perfect when installed into mobile racks and fly away kits because it's not heavy to lift. SmartView monitors are also designed to be installed in any position of equipment racks., and the LCDs can be easily rotated for the optimum viewing angle. The SmartView monitor will automatically sense the rotation angle of the screen and flip the image to the correct rotation.

Blackmagic Design SmartView

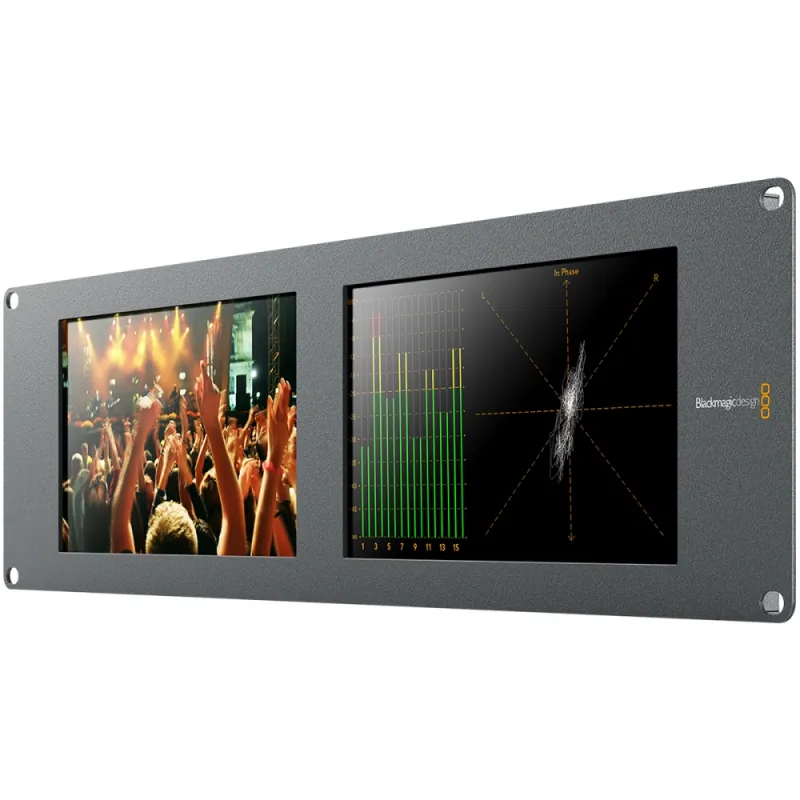

SmartScope Duo 4K

Power Supply

SD card with software and manual




Connections

SDI Video Input

Automatically switches between SD, HD and 6G-SDI. Reclocked loop through output.

SDI Video Output

1 x 10 bit loop through SD, HD and
6G-SDI switchable.

SDI Audio Input

16 channels embedded in SD, HD and UHD.

SDI Audio Output

16 channels embedded in SD, HD and UHD.

Multi Rate Support

Standard definition SDI, high definition SDI and 6G-SDI.

Tally

9-pin D connector

SmartScope Duo 4K

Standards

SD Format Support

525i29.97 NTSC, 625i25 PAL

HD Format Support

720p50, 59.94, 60
1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1080PsF23.98, 24, 25, 29.97, 30
1080i50, 59.94, 60

2K Format Support

2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF

Ultra HD Format Support

2160p23.98, 24, 25, 29.97, 30

SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M Level B and SMPTE 425M.

Audio Sampling

Television sample rate of 48KHz

Video Sampling

4:2:2 and 4:4:4

Color Precision

8-bit

Color Space

YUV and RGB

Computer Interface

USB 2.0 for software updates and Ethernet for configuration

Colorspace Conversion

Hardware based real time.

Scopes

Luminance Waveform, Vectorscope, RGB Parade, YUV Parade, Histogram, Audio phase and level.

Software

Software Included

Configuration utility for MAC and Windows.

Internal Software Upgrade

Via included firmware updater software.

Physical Installation

3RU

Operating Systems

Mac icon

Mac 10.15 Catalina,
Mac 11.1 Big Sur or later.

Windows Icon

Windows 10, 64-bit.

Power Requirements

Power Supply

12V universal power supply included with international socket adapters for all countries.

Power Consumption

< 20 Watts

Operational Voltage Range

12V - 15V

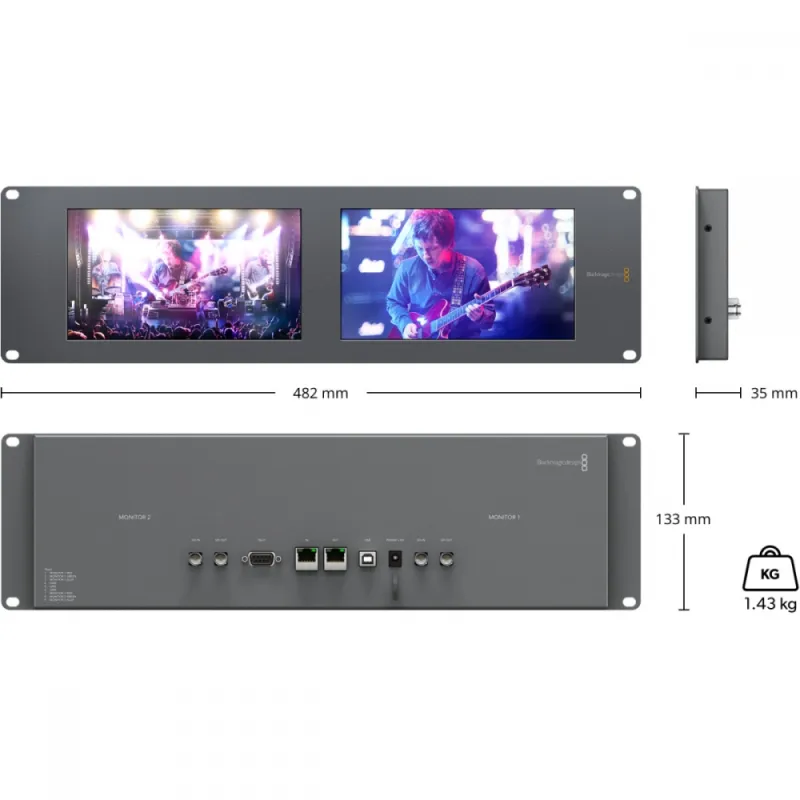

Physical Specifications

SmartScope Duo 4K

Environmental Specifications

Operating Temperature

0° to 40° C (32° to 104° F)

Storage Temperature

-20° to 45° C (-4° to 113° F)

Relative Humidity

0% to 90% non-condensing



Warranty

12 Months Limited Manufacturer's Warranty.
