Micro Four Thirds Lens Mount
35mm Equivalent to 28-84mm
52mm Filter Size
Continuous AF / AE Functionality
Jauns
LUMIX G X VARIO PZ 14-42mm / F3.5-5.6 ASPH. / POWER O.I.S.
It's a new cutting-edge interchangeable lens LUMIX G X VARIO PZ 14-42mm/F3.5-5.6 ASPH./POWER O.I.S. with electric-powered zoom operation from the new premium lens brand “X” for LUMIX G Micro System that complies with Micro Four Thirds System standard. Crystallizing Panasonic's optical technologies, new premium lens brand “X” features superb image rendering for lifelike textures, crisp edge-to-edge contrast, a unique Nano Surface Coating for minimal ghosts and flaring and natural atmospheres with remarkable transparency.
Comprising of 9 lenses in 8 groups, the lens system features excellent contrast at entire zoom range. The inclusion of 4 aspherical lenses that helps achieving the downsizing of lens unit also improves optical performance by minimizing distortion, even at the 28 mm wide end. The 2 ED lenses effectively compensates for the chromatic aberration. And, the retractable-type zoom lens boasts outstanding compactness with approx. 26.8 mm** in length and approx. 95g in weight to realize ultra-high mobility.
Panasonic's Nano Surface Coating technology is adopted to minimize the reflection at entire visual light range (380nm-780nm) by applying the extra-low refractive index coating with nano-sized structure on the surface of the lens. It results in the super clear image with dramatic reduction of ghost and flare.
Adopting an inner focus system driven by a stepping motor, the superior optical design realizes outstanding smoothness to support the high speed AF system of LUMIX G cameras. It achieves approx. 0.1 second Light Speed AF*** thanks to the downsizing of focus lens and its amount of movement. By speeding up the aperture control, shutter time lag is also shortened by approx. 40% compared with the LUMIX G VARIO 14-42mm/F3.5-5.6 ASPH. /MEGA O.I.S..****.
*For a digital interchangeable lens as of August 26, 2011./ ** When the lens is retracted./ ***The time for focusing on the subject is measured with the DMC-GF3 to move the lens position to ""2m"" from ""infinity"" position at wide-end. Panasonic measurement method.*5/ ****Measured with DMC-GF3. The time required to start exposure after the shutter button is fully pressed after the lens position is moved from “infinity” to “2m”. The zoom position is at wide-end.*5/ *5 The firmware of the GF3 must be updated to Ver.1.1 or later. Panasonic measurement method.
Specs
Lumix G VARIO 14-42mm f/3.5-5.6 II ASPH./MEGA O.I.S. objektīvs ar 35 mm formātam ekvivalentu fokusa attālumu 28‑84 mm ir izstrādāts, lai atveidotu ārkārtīgi asus attēlus ar minimālu izplūdumu un krāsu distorsiju visā tālummaiņas diapazonā. Tajā iebūvēta Panasonic MEGA O.I.S. optiskā attēla stabilizācijas tehnoloģija, kurā izmantoti žiroskopiskie sensori, lai apspiestu kameras vibrāciju radīto izplūdumu un nodrošinātu skaidru un asu attēlu uzņemšanu pat vāja apgaismojuma apstākļos.
Izmantojot iekšējās fokusēšanas sistēmu, kuru darbina soļdzinējs, augstākās klases optiskais dizains atbalsta nepārtraukta ātrgaitas kontrasta automātiskā fokusa (AF) un automātiskās ekspozīcijas (AE) funkciju gan fotoattēliem, gan filmām uz Lumix G un citām Mikro četru trešdaļu standarta sistēmas kamerām.

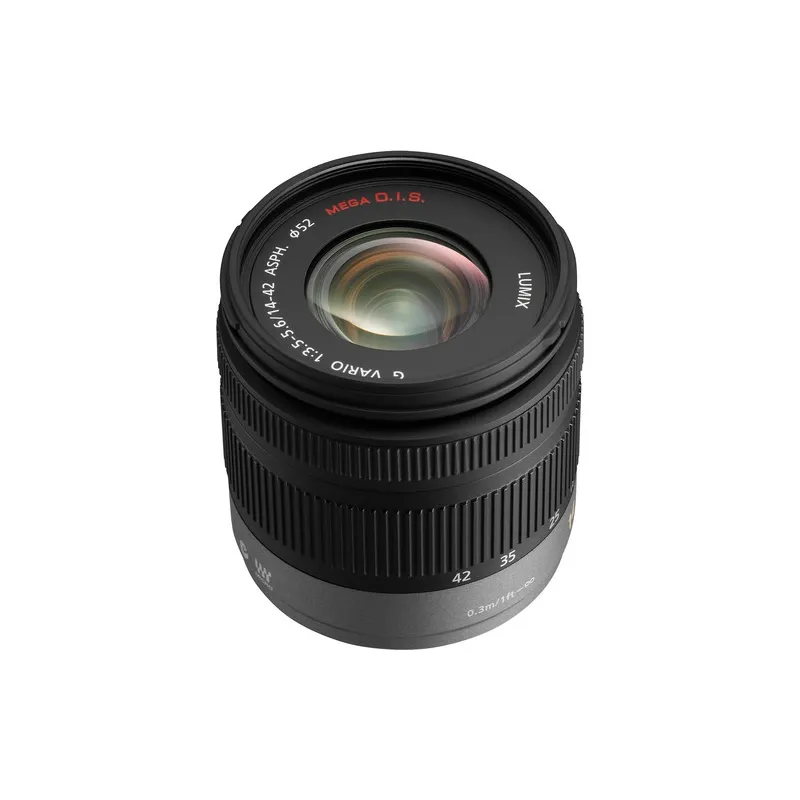

The LUMIX G Vario 14-42mm f/3.5 Asph. / MEGA O.I.S. Lens with a 35mm format focal length of 28-84mm is constructed with 12 elements in 9 groups and 1 aspherical lens to produce extremely sharp images with minimal fringing and color distortion across the entire focal range. It incorporates Panasonic's Mega O.I.S. (Optical Image Stabilizer) which employs gyro sensors built into the lens to suppress the blur caused by a shaky hand, and enables capturing clear and sharp images even in low-light situations.
Utilizing an inner-focus system driven by a stepping motor, the superior optical design supports continuous high-speed contrast autofocus (AF) and autoexposure (AE) functions for both photos and movies of Lumix G and other Micro Four Thirds system cameras.
Continuous AF / AE function that supports for both photos and movies
MEGA O.I.S. (Optical Image Stabilizer) - Panasonic's advanced hand-shake correction technology
Minimum focus distance of 1' (30 cm) over the entire zoom range
Contrast AF system support
Performance
Focal Length 14 - 42mm
Comparable Four Thirds and Micro 4/3 Focal Length: 28 - 84 mm
Aperture Maximum: f/3.5 - 5.6
Minimum: f/22
Camera Mount Type Micro Four Thirds
Format Compatibility Micro Four Thirds
Angle of View 75° - 29°
Minimum Focus Distance 1' (30.48 cm)
Magnification 0.16x
Maximum Reproduction Ratio 1:6
Elements/Groups 12/9
Diaphragm Blades 7
Features
Image Stabilization Yes
Autofocus Yes
Tripod Collar No
Physical
Filter Thread 52 mm
Dimensions (DxL) Approx. 2.39 x 2.50" (6.07 x 6.35 cm)
Weight 5.82 oz (165 g)
Bajonete | micro 4/3 (MFT) |
Lens Format Coverage | Four Thirds |
Lens Design | maināms |
Objektīva fokusa attālums, mm | 14-42 |
Focus Type | Autofocus |
Image Stabilization | Ir |
Objektīva tips | platleņķa |
Maksimālā apertūra | f/3.5 to 5.6 |
