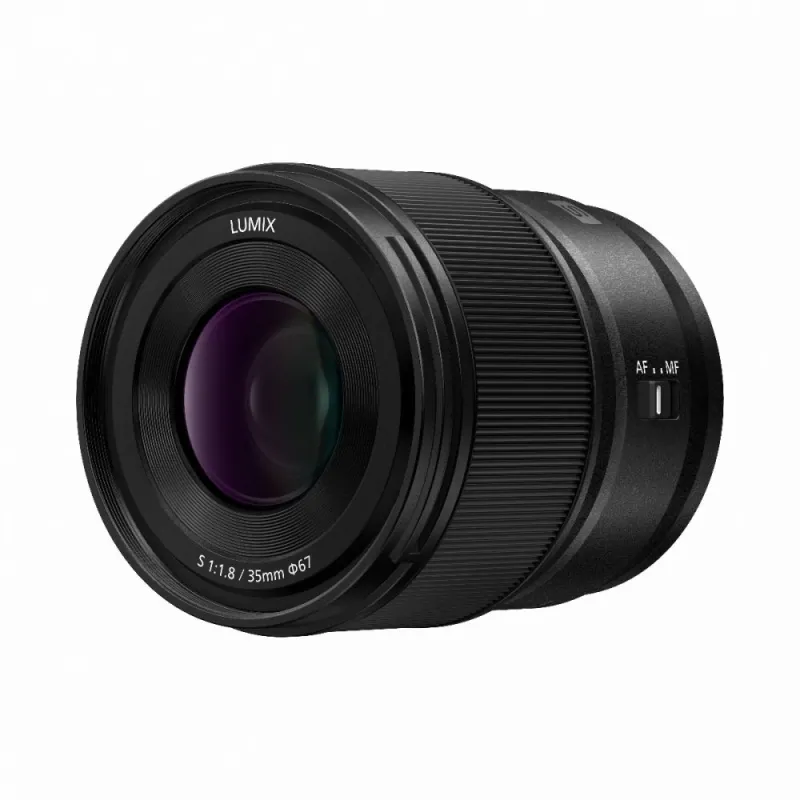

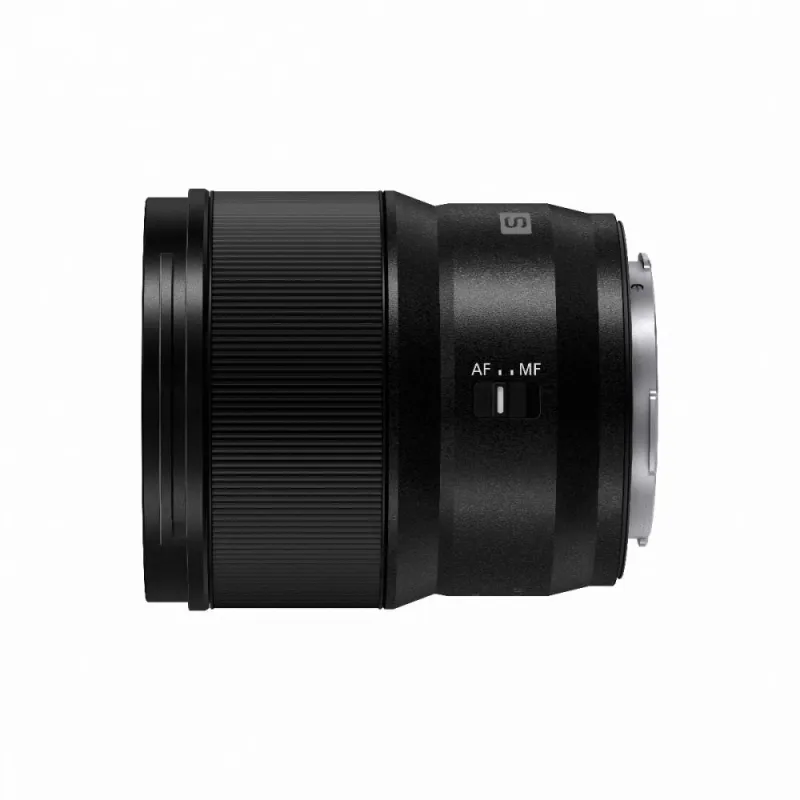

Panasonic LUMIX S 35mm F1.8 (S-S35E)

A wide-angle fixed focal length lens that offers delightful angles and excellent video performance for a wide range of shots.

• F1.8 large-aperture wide-angle fixed focal length lens with a compact, lightweight design.
• Dust, splash and freeze-resistant design.
• Excellent focusing performance for both photos and videos.

Create a strong sense of realism with exquisite bokeh and a sense of space
Introducing the LUMIX S F1.8 Series 35mm lens. Ideal for snapshots and portraits, it empowers you to create images with a strong sense of realism, beautifully capturing a sense of space and depth. Focus breathing inhibition and seamless exposure control contribute to the beautifully smooth video capture. Expressive power is aligned with the rest of the F1.8 Series, so even as you change lenses, your sequence of images will boast high quality continuity.

Dust, splash and freeze-resistant design
The LUMIX S 35mm F1.8 is designed to keep shooting in the toughest conditions thanks to its dust- and splash-resistant construction and allowing you to shoot in temperatures as low as -10 °C.
Dust and Splash Resistant does not guarantee that damage will not occur if this lens is subjected to direct contact with dust and water.

Ideal for video recording
The lens offers fast, accurate autofocus and smooth aperture changes, critical for the modern content creator, allowing you to record beautiful 4K video and stills without disturbing your subject.

S-S35 lens construction
The optimized configuration has 11 elements in 9 groups, including 3 ASPH and 3 ED lenses to minimize aberrations and ensure superb resolution.

Delivery Content
• S-S35E Lens
• Lens cap
• Lens rear cap
• Lens hood

Specifications

Lens Construction

11 elements in 9 groups (3 aspherical lenses, 3 ED lens)

Mount

L-Mount

Optical Image Stabilizer

No

Focal Length

f=35mm

Aperture Type

9 diaphragm blades / Circular aperture diaphragm

Maximum Aperture

F1.8

Minimum Aperture

F22

Closest Focusing Distance

0.24m/0.79ft

Maximum Magnification

0.22x

Diagonal Angle of View

63°

Dust and Splash Resistant

Yes

Recommended Operating Temperature

-10℃ to 40℃ (14℉ to 104℉)

Filter Size

φ67mm

Max. Diameter

φ73.6mm / 2.90inch

Overall Length

Approx. 82.0mm / 3.23inch (from the tip of the lens to the base side of the lens mount)

Weight

Approx. 295g / 0.65lb (excluding lens cap, lens rear cap and lens hood)

A large-aperture wide fixed focal length lens, the LUMIX S 35mm F1.8 (S-S35), is the fourth addition to the series of four F1.8 large-aperture lenses based on the L-Mount system standard. A total of four F1.8 fixed focal length lenses from the LUMIX S Series including 85mm(S-S85), 50mm(S-S50), 24mm(S-S24) and the new 35mm(S-S35) lens feature a common size and position of control parts to provide practical advantages in use. The center of gravity of these lenses is comparable, allowing easy and quick exchanging of lenses with minimum balance adjustment when the camera is on a gimbal. Consistent diameter also enables the use of common filters, and users will benefit from its descriptive performance. 11/12 2021.

The LUMIX S 35mm F1.8 is comprised of eleven lens elements in nine groups including three aspherical lenses and three ED (Extra-Low Dispersion) lenses. The use of three aspherical lenses realizes both high descriptive performance and beautiful bokeh, which are common advantages to the series of all F1.8 lenses. The ED lenses also effectively suppress chromatic aberration. The LUMIX S 35mm F1.8is suitable for versatile situations including landscapes, snapshots and portraits. Minimum focusing distance of 0.24m also produces high-quality close-ups.

The LUMIX S 35mm F1.8 is capable of smooth, silent operation, working with the camera's high-speed, high-precision contrast AF system with the sensor drive at max.240 fps. For the non-linear setting, focus is shifted with a variable amount according to the rotation speed of the focus ring, while focus is shifted with a designated amount according to the rotational quantum of the focus ring for the linear setting. Sensitivity, or the amount of focus shift per rotational quantum, can be selected from 90 to 360 degrees by 30 degrees to enable intended focus operation. The LUMIX S 35mm F1.8 also excels in video recording performance with a mechanism that suppresses focus breathing, which was a fatal problem of all interchangeable lenses designed for still image photography. Together with a micro-step aperture control for smooth exposure change, the lens achieves professional quality video recording.

With its approximately 295g compact size and light weight, the LUMIX S 35mm F1.8 features stunning mobility to fit the S5, LUMIX's smallest full-frame model. The rugged dust/splash-resistant*1 design withstands use under harsh conditions even at 10 degrees below zero for high mobility. The filter diameter is 67 mm, with a 9-blade circular aperture diaphragm.

To further strengthen the S-Series lens system, development is underway for a new 18 mm ultra wide angle fixed focal length lens with F1.8 large aperture. Alongside the development of new lenses, firmware update programs*2 are also available for the conventional S-R70200, S-E70200, S-R70300 and S-R24105 lenses to improve the stability of Image Stabilizer during video recording. In addition, image stabilization performance of Dual I.S. 2 has been increased from 6.5 stops to 7.5 stops*3 for photoshoot when the S-R24105 is mounted on the LUMIX S1H, S1R or S1.

• 9 diaphragm blades aperture F1.8 – F22
• Closest Focusing Distance 24cm
• Maximum Magnification 0.22x
• Fully optimized for video, dynamic aperture, quiet operation, smooth focus tracking
• Focus Breathing Suppression, Linear/Non-linear focus ring control
• Resistance to weather conditions, rain, dust, frost -10°C
• 11 elements in 9 groups (3x Aspherical, 3x ED lens)
• Dimensions – max. diameter 73.6mm, length 82mm, weight 295g
• Filter Size 67mm
