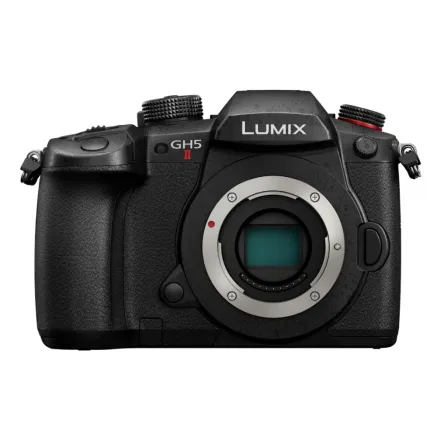

Panasonic Premium Panasonic LUMIX GH5 II Body (DC-GH5M2E)

Panasonic LUMIX GH5 II Body (DC-GH5M2E)

• 20.3-megapixel Digital Live MOS sensor with anti reflection coating
• C4K/4K 60p/50p 10-bit internal/external simultaneous recording
• C4K/4K 30p/25p/24p 4:2:2 10-bit video, V-Log L and unlimited recording time
• Wireless live streaming

From streaming and delivery-ready shooting to uncompressed log recording suitable for advanced post-production. A hybrid mirrorless camera that meets the needs of all creators.

Pre-installed V-Log L
The LUMIX GH5M2 features a dynamic range of 12 stops with pre-installed V-Log L, while colour graders can utilise the same LUTs they use with V-Log.

USB power supply / power charging
Convenient during long shoots in the studio and elsewhere, this feature allows you to supply power to the camera while charging the battery.* One USB 3.1 Type-C adaptor is included that is compatible with the USB PD (USB Power Delivery) standard.
*Battery must be installed in camera and retain some charge for feature to work.
*USB Type-C™ and USB-C™ are trademarks of USB Implementers Forum.

Wireless live streaming (RTMP/RTMPS protocol)
Enjoy wireless livestreaming indoors and outdoors with the ease-of-operation afforded by the LUMIX Sync app (Android/iOS). Stream live events anytime, anywhere with the quality that only a digital mirrorless camera can offer.
･Live streaming to the platforms that comply with RTMP/RTMPS is basically possible (Compatibility with all the platforms is not guaranteed.) There may be the cases where the live streaming is not possible when the service of the platform changes. For more information, please refer to the terms and conditions of the platform.
･Android and Google Play are trademarks or registered trademarks of Google Inc.
･IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.

Enhanced 20.3MP MOS sensor with AR coating
An AR (Anti Reflection) coating effectively suppresses flare to capture the expression of light as it is, even in a harsh shooting environment surrounded by strong light such as backlight, achieving high-quality visual beauty for both videos and still images.

Dual I.S.2 for superior stability
5-axis Dual I.S. 2 (Image Stabiliser) combines control of the Body I.S. and Lens O.I.S. to offer 6.5 stops’ worth of correction.(Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=140mm (35mm camera equivalent f=280mm) when H-FS14140 is used)

Delivery Content
• GH5 II
• Body Cap
• Hot Shoe Cover,
• Eye Cup
• Flash Synchro Socket Cap
• Cover for the Battery Grip Connector
• Shoulder Strap
• Battery Pack
• Battery Charger
• AC Adaptor
• USB Connection Cable (A-C)
• Cable Holder

New (7/2021) GH5 variant with many new features! The GH5M2 features a new 20.3MP sensor with an anti-reflective coating to minimize light artifacts and a larger dynamic range (1/3 EV compared to the GH5). Featuring the new Venus Engine image processing system, it enables unlimited internal DCI 4Kp60/10-bit video recording from the entire sensor area, and also offers comparable autofocus performance to the Panasonic S5. The new Dual I.S. 2 five-axis image stabilization system allows up to 6.5 EV longer shutter speeds, and the pre-installed V-Log L mode with 12 EV dynamic range and LUT Assist is also a big attraction. The GH5M2 is also compatible with UHS-II V90 SD cards, as well as with the new USB-PD charger and the new DMW-BLK22 battery (2200 mAh). Body only. On sale from 7/2021.

• Built on the platform of the powerful GH5, the LUMIX GH5M2 offers 10-bit internal DCI 4Kp60 quality video recording with 4:2:2 sampling and simultaneous HDMI 4:2:2, 10-bit output
• Thanks to the pre-installed V-Log L key, color tone can be easily matched with the GH5/GH5S V-Log S1H/S1 and V-Log L recording
• Digital Live MOS sensor with 20.3 megapixel resolution and AR anti-reflective coating. The image processor has also been upgraded and now uses the latest high-speed, high-performance Venus Engine processor technology.
• The LUMIX GH5M2 boasts fast and highly accurate autofocus. It incorporates advanced deep learning technology that recognises specific subjects, including people and animals. When capturing people, the GH5M2 detects the head independently using real-time detection technology in addition to eye, face and body recognition, further speeding up and refining the focusing process itself.
• To achieve shake-free handheld footage, the image stabilization (Body I.S.) in the LUMIX GH5M2 body is now even more advanced, allowing it to use a shutter speed that is 6.5 EV longer than in the non-stabilized mode. Using the latest algorithm developed for the Lumix S1H, video recording is smooth and stable even when the cameraman is on the move.
• Touch control is convenient thanks to the freely rotatable and tilting 3" LCD with a 3:2 aspect ratio and high resolution of 1840K dots. Compared to the GH5, the LCD features higher brightness and superior color reproduction, ensuring great visibility in outdoor environments.
• In addition to live video streaming via cable, the LUMIX GH5M2 is also capable of wireless live streaming in combination with the LUMIX Sync app. It will also be able to stream stable, high-quality videos after a future firmware update to offer RTP/RTSP IP streaming.
• The body of the LUMIX GH5M2 is durable enough to withstand the rigors of long-term use in the field. Its front and rear frame is made of magnesium alloy and is splash, dust and freeze resistant down to -10°C.
• The LUMIX GH5M2 offers Bluetooth 4.2, as well as 5GHz (IEEE802.11ac) and 2.4GHz (IEEE802.11b/g/n) Wi-Fi.
• Most accessories for the GH5, such as an audio extension with XLR interface, remote shutter release and battery grip, are also compatible with the GH5M2.

High quality video
TheLUMIX GH series hybrid cameras are characterised by their outstanding performance for professional video shooting and the LUMIX GH5M2 brings a number of innovations in this area. Even in DCI 4Kp60 resolution, the entire sensor area of the GH5M2 is used, allowing the user to record video without cropping. To ensure high dynamic range and a wide color spectrum, the GH5M2 has a pre-installed V-Log L key, so there is no need to purchase one. There are also 35 LUT tables for VariCam film cameras available as a free download. Also included in the GH5M2's video toolkit are handy tools such as Waveform Monitor and V-Log View Assist.

Like the S1H, the flagship of the S Series, the LUMIX GH5M2 offers two types of Cinelike gamma presets in the Photo Style menu. These modes offer an impressive look with warm skin tones or subtle nuances of light and shadow. The Cinelike D2 preset favours dynamic range, while Cinelike V2 favours contrast. L.Monochrome S and L.Classic Neo presets have also been added. All of these presets are also available in anamorphic mode. When recording in VFR (Variable Frame Rate) mode, you can choose between C4K/4K 60 fps, Anamorphic 50 fps and FHD 180 fps. Autofocus can be set before starting VFR recording.

Powerful image processing features
The 20.3 megapixel Digital Live MOS sensor with very good image rendering minimizes ghosting and flare even in backlight thanks to the new AR layer. The LUMIX GH5M2's lightning-fast and highly accurate autofocus detects the eyes and face of subjects approximately 2x faster and continues to track them even when the subject is 50% smaller (compared to the GH5). It follows the subject even when they turn their back to the camera, tilt their head or move away. Enhancements to DFD technology have improved the capabilities of the AFC mode, allowing users to track even small subjects. With the advanced touchscreen LCD, users can use the Frame Marker masking function to check the composition during recording in various aspect ratios such as 16:9, 4:3, 1:1, 4:5, 5:4 and 9:16. The distinctive red REC frame - an indicator of recording in progress on the screen and in the electronic viewfinder - clearly indicates whether the unit is recording.

Streaming
High quality live streaming indoors and outdoors with minimal equipment! Just the LUMIX GH5M2 and a smartphone with the LUMIX Sync app and you can stream FHD/60fps video at 16 Mbps. For live streaming via cable, special LUMIX Webcam Software is available as a free download.

Operational Reliability
Every joint or button on the LUMIX GH5M2 is sealed for use in harsh outdoor conditions. The lifetime of the shutter mechanism is approximately 200,000 cycles. To further support outdoor use, the GH5M2 boasts a new 2200 mAh high-capacity battery that meets USB PD (Power Delivery) requirements and can be recharged via and USB bus. The LUMIX GH5M2 features two SD memory card slots compatible with UHS-II high-speed, high-capacity cards with V90 classification for transfer, backup and recording allocation.

Bluetooth and Wi-Fi
The LUMIX GH5M2 integrates Bluetooth and Wi-Fi. By connecting the camera to a smartphone/tablet using the Panasonic LUMIX Sync app for iOS/Android, users can shoot, view and share photos and videos remotely. Bluetooth 4.2 (BLE, Bluetooth Low Energy) compatibility keeps the camera connected to the smartphone with minimal power consumption. The LUMIX GH5M2's settings and presets can also be copied and used in other devices of the same model, either via the LUMIX Sync wireless app or via SD card. Wi-Fi provides a secure and stable connection to either devices using the 2.4 GHz band or devices using the 5 GHz band (if available).

LUMIX Tether
Using the LUMIX Tether PC application, users can control the camera on a PC via the USB interface. The software allows the user and other viewers to view images on the computer screen while shooting, which is invaluable for commercial portrait or product photography, etc. The software supports 6K and 4K photos, can be used to start and stop video recording, and the user can also select a destination folder to save the images.

Future firmware updates
The LUMIX GH5M2 will continue to evolve, with firmware updates planned by the end of 2021 to include Live View Composite, USB Tethering (connecting to a smartphone via 4G/5G), and RTP/RTSP IP streaming capability when connected via cable. Upcoming firmware for the LUMIX G / LEICA DG lenses (H-E08018, H-X1025, H-ES12060, H-ES50200, H-RS100400, H-XA025, H-ES200, H-HSA12035, H-FS12060, H-HSA35100, H-FSA45200 and H-FSA100300) will make them easier to use with the Lumix GH5M2 and allow users to select non-linear or linear focus ring settings. In the non-linear setting, the focus changes depending on the rotation speed of the ring. In the linear setting, the focus shifts at fixed intervals depending on how much the ring is rotated, mimicking a manual lens. The sensitivity in the linear setting can be adjusted from 90 to 360 degrees in 30-degree intervals.
