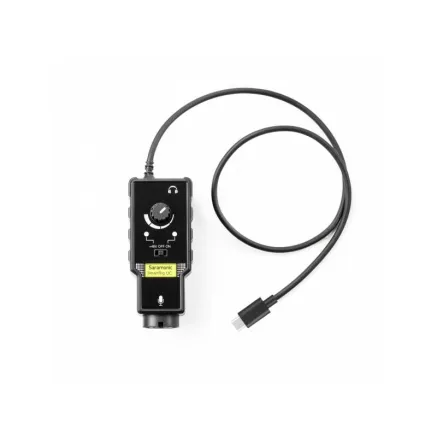

Saramonic SmartRig UC audio adapter

Saramonic SmartRig UC is audio adapter that allows connection to any audio equipment to mobile devices, which are equipped with a USB connector-C.
SmartRig UC is equipped with XLR / TRS jack (6.35 mm), which allows connect a microphone, a guitar or a console in a professional standard. Support phantom power supply provides broad compatibility supported microphones.
The output signal is transmitted to the smartphone or tablet via a USB cable-C. The signal level can be adjusted by means of a convenient analog dial. Standard headphone mini jack allows listening to recorded material in real time, making it easier to work with sound.
The interface is well suited in situations where we register a single source, eg. During interviews, V-logs, or instrumental music recordings.
The device is compatible with most available in the App Store application recording sound.
Housing SmartRig UC is made of high quality plastic, making it resistant to abrasions and bruises. On the back side is a belt clip allows you to put the adapter in a convenient location.


Specifications • Power supply: 9 volt battery
• phantom power supply: 48V
• input: XLR / TRS jack (6.35 mm)
• output: C USB connector with a cable length of 50 cm
• headphones: jack is TRRS (3.5 mm)
• Frequency range: 20 Hz - 20 kHz (+/- 0.5 dB)
• amplification of the signal 23 dBu to - ꚙ
35 mm), which allows you to connect a microphone, a guitar or a console in a professional standard. Support phantom power supply provides broad compatibility supported microphones.
The output signal is transmitted to the smartphone or tablet via a USB cable-C. The signal level can be adjusted by means of a convenient analog dial. Standard headphone mini jack allows listening to recorded material in real time, making it easier to work with sound.
The interface is well suited in situations where we register a single source, eg. During interviews, V-logs, or instrumental music recordings.
the device is compatible with most available in the App Store application recording sound.
Housing SmartRig UC is made of high quality plastic, making it resistant to abrasions and bruises. On the back side is a belt clip allows you to put the adapter in a convenient location.


Specifications • Power supply: 9 volt battery
• phantom power supply: 48V
• input: XLR / TRS jack (6.35 mm)
• output: C USB connector with a cable length of 50 cm
• headphones: jack is TRRS (3.5 mm)
• Frequency range: 20 Hz - 20 kHz (+/- 0.5 dB)
• amplification of the signal 23 dBu to - ꚙ
• signal to noise ratio (SNR) of 80 dB @ 1KHz, -30 dBu
• harmonic distortion (THD) of less than 0.01% @ 1 kHz, -30 dBu
• sampling frequency of 44.1 kHz or 48 kHz
• dimensions 88 x 41 x 42 mm
• weight:

The Saramonic SmartRig UC with USB Type-C interface is an easy solution to connect any professional microphones or guitars to record quality audio or create music with your USB Type-C devices.

Simply plug the microphone into the XLR connector or plug the guitar into the 6.35mm connector of the SmartRig UC, and connect it to your devices with the USB Type-C output cable.

The provided gain control thumbwheel makes it easy to set precise levels. Processed sound can be monitored through a 3.5mm headphone out.

Key Features

• Combo 1/4″ (6.35mm) and XLR input
• USB Type-C output connector
• Powered by one 9V battery
• +48V phantom power
• 3.5mm headphone output for monitoring (need APP)
• +48V/OFF/ON switch
• Gain control
