NANLUX EVOKE 1200B SPOT LIGHT WITH FLIGHT CASE EVOKE 1200B KIT

Evoke 1200B is the new weapon for cinematographer & gaffer in the film & TV production.

High Output, Refresh/Beyond Imagination

The Evoke 1200B achieves a remarkable light efficiency, giving it an extreme output of 61.030 lux@3m 5600K (with reflector), beating 1.8K HMI Par or 2.5K fresnel with the ability of changing to CCT in a twist. The Evoke 1200's impressive flicker-free function has been loaded into the Evoke 1200B as well, in order to give you the same guaranteed experience across the Nanlux line.

Combined LED's iconic advantages with the high luminous efficiency and non-preheated requirement, the Evoke 1200B is a revolutionary weapon for DPs and gaffers.

2700K-6500K Wide CCT Range - From Sunrise to Daylight to Sunset
CRI: Average 96
TLCI: Average 97

The Evoke 1200B features advanced Bi-Color light mixing technologies ensuring continuity and accuracy in CCT change from 2700K all the way up to 6500K. All 1200Bs have gone through rigorous and professional testing plus calibration. The CCT adjustment will be easily made at the turn of a knob, making CTO/CTB gels a thing of the past, it also offers way more flexibility in filmmaking by simulating natural light from sunrise to daylight to sunset. Furthermore, the incorporated constant output functionality supports through range CCT tuning without any intensity shift at all.

Developed for professionals who cares about the quality of color rendition, the Evoke 1200B brings excellent color rendering capability in real shootings proof by all the ratings of CRI, TLCI and TM-30.

IP 54 Rating - Anywhere? Everywhere!
The Evoke 1200B's whole-fixture IP54 rated in hermetically sealed structure to withstand extreme conditions, no matter it’s rain, snow or dust. The protection for the power supply is also enhanced to the same rating. Rain, snow or sandstorm. No problem!

0.1% increments fine-tuning for precise adjustment

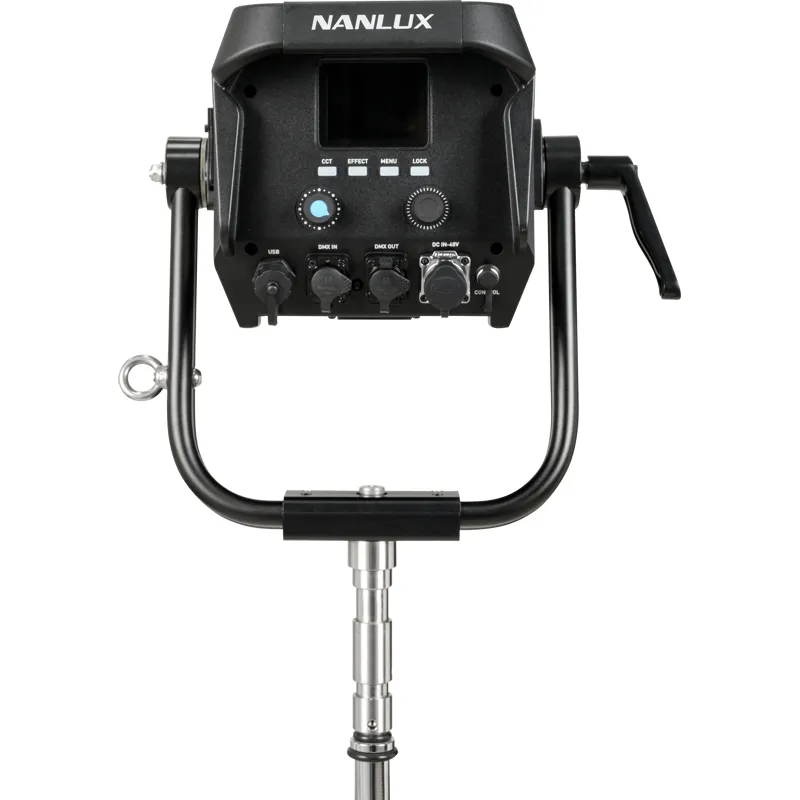

With a simplified and intuitive menu interface visualized on a 2.8-inch display, making the Evoke 1200B easy to control in all aspects, and familiar to existing Nanlux and Nanlite fixtures.

Dimming is fine-tuned from 0-100% in 0.1% increment with great smoothness, and the sudden jump in low output section between 0-1% is eliminated. Five dimming curves available via DMX control to perfectly match exacting control request of industry standard: LINEAR, EXPONENT, LOGARITHM, S CURVE, GAMMA 2.2.

Limitless Connecting Options
Permits comprehensive wired/wireless controlling solutions to seamlessly integrate into various on-set workflows. Wired and wireless DMX control in particular makes precise and digital lighting control on set a sure thing - can be connected to DMX console via 5-Pin cable or controlled wirelessly through the built-in LumenRadio TimoTwo module. Both reliability and flexibility are on the table for you to bring creative ideas to life.

LumenRadio TimoTwo
TimoTwo's both transmitting and receiving functions makes connection with other fixtures easy and stable.

NANLINK APP
Connects to NANLINK lighting control system via built-in 2.4G or Bluetooth to offer accurate and professional control at your fingertips.

DMX/RDM
Wire connects to DMX console via the on-board 5-pin XLR port to achieve stable and reliable control.

Wire Control
Connects to wire controller via the port on lamp head to provide an alternative solution for accurate control on set.

Designed for Frequent Use and a Long Lifetime
Thermal management of high power LEDs was crucial in the development of the Evoke 1200B. NANLUX created an even more efficient heat management system for Evoke 1200B to optimize heat dissipation while maintaining a compact fixture housing. This modification effectively achieves a higher efficiency and longer LED lifetime from high running temperature, compared to common LED lighting.

An enhanced fan control system with 4 operation modes for various shooting scenarios and environments: Smart Mode, High Speed, Low Speed and Off modes Smart sensors that adapt to the ambient temperature, allowing for real-time monitoring of LEDs temperature and automatically adjust the fan speed to offer better dissipation and a minimal noise level.

High Speed Mode
Heat dissipation boosted in high speed mode to meet the shooting requirements under high temperature environment.

Low Speed Mode
Limit the noise level within acceptable range for recording on set while discharging heat effectively. Maximum output is 50% in low speed mode.

Off Mode
Fan shut down to minimize the noise level for an optimal sound environment. Maximum output is 10% in off mode.

Classic Structure Design - Compact and Efficient
Inherits the design essence from Evoke 1200 - Aluminum die casting alloys used for its construction, the weight of bare light is kept at 7.75kg, only 70% of a 1.8K HMI, giving it an edge in terms of transportability while retaining the necessary intensity. All basic controls are integrated on the lamp head and easily accessible.

Offers 7.5m DC cables as standard and 10m & 12m connection cable as optional, extending the power supply distance. The self-locking connector allows for quick and tight connection.

Quick release super clamp and offset Yoke come as standard. Secures the power supply tight on light stand & truss and facilitates quick swapping of lamp head respectively. New offset yoke design with 15° for greater range of tilting while using soft boxes and other light shaping accessories, all improvements are for fast-paced production on set.

In the box:

• Evoke 1200B

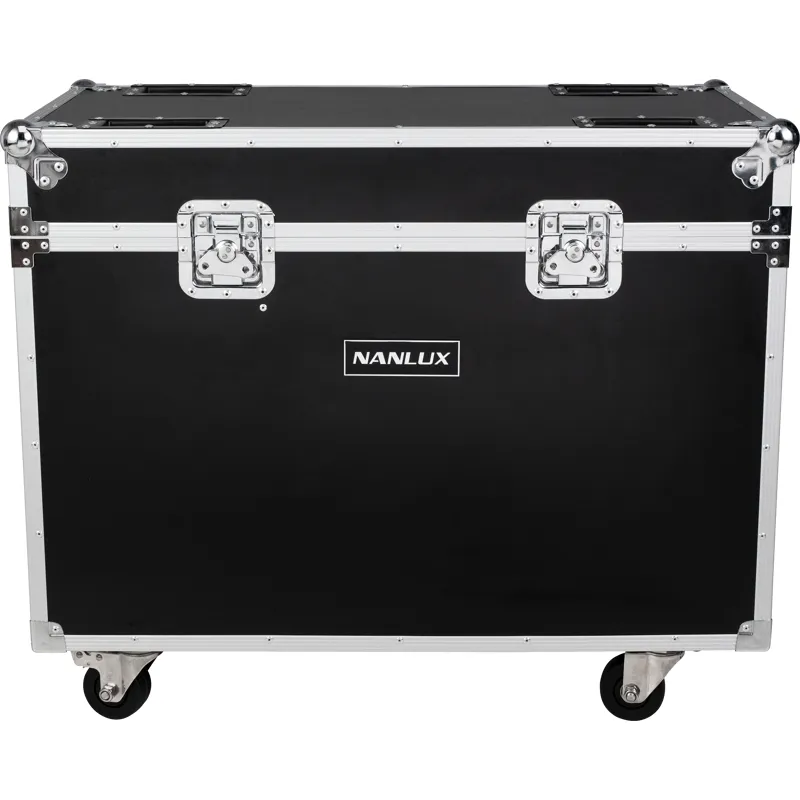

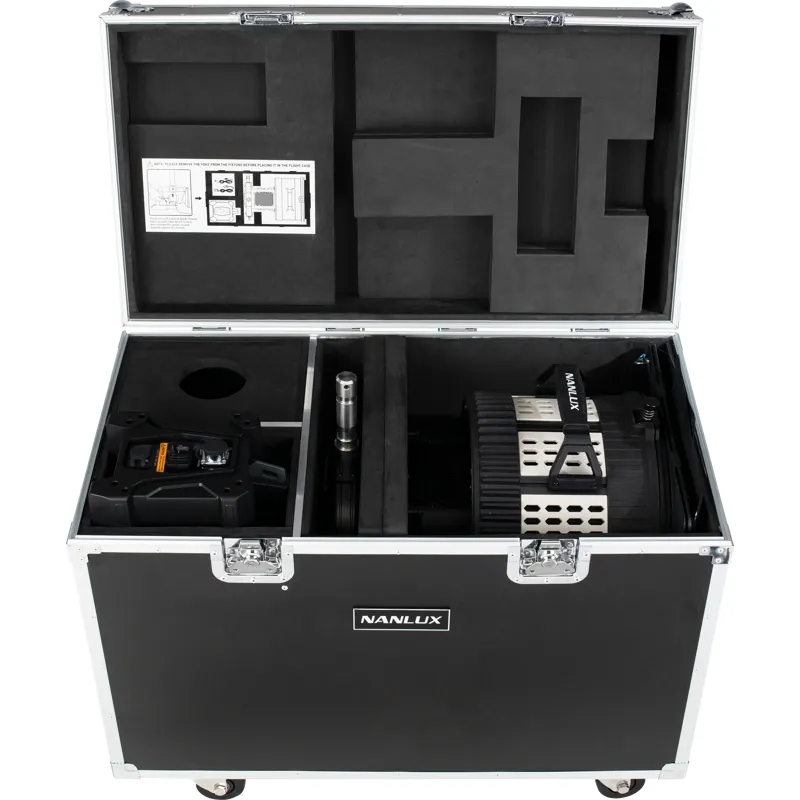

• Flight Case
• Yoke
• Power Adapter
• RF-NLM-45 Reflector
• Connecting Cable 7.5M
• WS-RC-C2 Wireless Controller
• Power Cable 6M
• AS-CP-QR-EV Quick Release Clamp
• USB Flash Drive
• User Manual
• DMX Reference Guide
• Thank You Card
