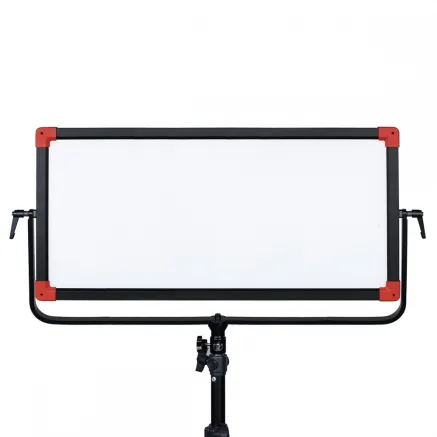

Swit PL-E90 Portable Bi-Color SMD Panel LED Light
Features:
PL-E90 is specially designed for field portable lighting applications. 480pcs SMD-LEDs are mounted in the inner edge of the light frame, and with SWIT unique 90° light guide technology, PL-E90 can output bright, soft and equally spread light, meanwhile, the light body is slim enough and portable, which is an ideal light source for interview kit and field video productions.
High efficiency and super bright
The traditional edge mounted LED lights are always not so bright, because half of the light will go to the backside, even if there’s reflection board, there’s still a lot of light lost.
SWIT innovative technology is to add laser dots with calculated spaces on the reflection glass, so that the multi angles of edge light will be converged on the laser dots, and output 90° to the front with minimum light lost. Then the slim edge mounted light can also be high brightness.
PL-E90 outputs 90W power, feeds 2200Lux luminance at 1 meter distance (center), much brighter than other similar size LED panels. The effective beam angle reaches 70°, bounded by 50% decline. PL-E90 also supports 0 to 100% PWM digital dimming, smoothly and non-flickering.
PL-E90 alternated with 2700K and 6500K LEDs, and the output color temperature can be continuously adjustable between 2700K and 6500K.
The rear LCD screen can display the current dimmer percentage, color temperature value, and remaining battery indications.
PL-E90 supports 11-36V wide range voltage input, with 4-pin XLR DC socket, and equipped with V-mount or Gold mount plate to power by batteries.
(The default battery plate is V-mount.)
Delivery:
1x PL-E90 light
1x AC-DC power adaptor
1x Carrying bag
Specifications:
LED | 480pcs SMD LEDs |
Illuminance | 2200Lux @ 1m |
Beam angle | 70°(50% bounded) |
Color Temperature | 2700K~6500K |
CRI | 98 |
TLCI | 99 |
Power | Approx. 90W |
Working voltage | DC11V~36V |
Dimension | 650×403×48mm |
Lighting area | 526×257mm |
Weight | 4.75kg |
