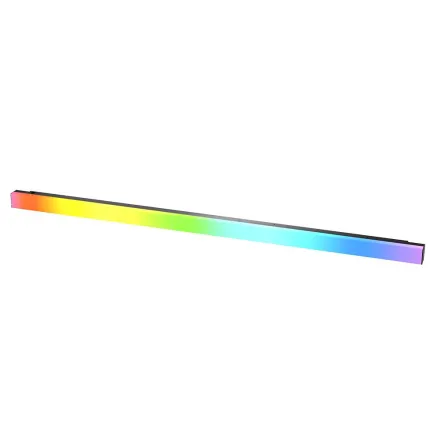

Aputure Infinibar PB12 LED lamp

• 4 pēdas (120 cm) 27W RGBWW pilnkrāsu LED pikseļu josla
• 96 Atsevišķi pikseļi (apgaismojuma zonas)
• Bezgalīgs sajaukšanas dizains, lai samazinātu redzamās spraugas, savienojot vairākas gaismas
• 10 savienojošie savienotāji
• Kopīgojiet maiņstrāvas jaudu, salīdzinot ar vairākiem infinibāriem ar savienojošiem savienotājiem
• Montāžs: Infinibar skava (mazuļa tapa) un neodīma magnēti, 1/4-20 collu skrūvju stiprinājums
• Apsalēts difūzijas slānis vienmērīgai gaismai un samazināts atspīdums
• Apm. 80 min akumulatora darbības laiks ar maksimālu izvadi (59,2Wh)
• Viedā akumulatora darbības režīmi: pielāgojiet izpildlaiku līdz 2/4/6/8 stundām
• 0-100% spilgtuma kontrole ar 0,1% pieaugumu
• Pilnībā noskaņojams CCT no 2000K-10 000K + G/M pielāgošanas
• CRI: ≥96, TLCI: ≥98, TM-30 RF (AVG.) = 94, TM-30 RG (AVG.) = 103, SSI (D56) ≥74, SSI (dienasgaisma) ≥85
• ≥90% krāsu Rec.2020 krāsu telpā
• Advanced HSI ar balta punkta CCT kontroli
• Nozares standarts XY (CIE 1931), RGB, 300+ gēla presets
• Vairākas vadības metodes: Sidus Link® App, DMX/RDM caur USB-C2, Lumenradio Crmx
• 32 iebūvētie DMX profili: atbalsta DMX zaudējumu izturēšanos
• 9 Sistēma FX: uguņošana II, ugunsgrēks II, Paparazzi II, kļūda
• 7 pikseļu FX: krāsu izbalēšana, krāsu cikls, viena pikseļa pakaļdzīšanās, divi pikseļu pakaļdzīšanās, trīs pikseļu pakaļdzīšanās, varavīksne, pikseļu uguns
• Atbalsta Siduspro® FX: ieskaitot manuālu FX, System FX, Picker FX, Magic programmu un Music FX
• Saglabāt līdz 10 pielāgotiem FX un 10 mūzikas fx
• Frekvences izvēle, lai samazinātu mirgošanu
• Iekļauta lietojuma nēsāšana
• Pieejams 8-gaismas komplekta konfigurācijās
• Izvēles apgaismojuma vadības piederumi: 1) Softbox, 2) 45o Slip-Onlight vadības režģis

Infinibar pikseļu josla ir Aputure pirmā RGBWW pilnkrāsu LED pikseļu josla. Infinibar PB12 ir 96 pikseļi, intuitīvas montāžas un savienošanas iespējas ar
bezgalīgu sajaukšanas dizainu, integrētu akumulatoru un uzlabotām savienojamības metodēm, kas izceļas ar 4 pēdu (120 cm) pikseļu joslu, kas izceļas, veidojot unikālus, krāsainus dizainus, kas ir tādi, ka tie ir unikāli, krāsaini dizainparaugi, ka tie, kas ir krāsaini dizaini, ka tas ir unikāls dizains, ka tas ir unikāls dizains, ka tas ir unikāls dizains, kas ir tāds, ka tas ir unikāls, krāsains dizains. Atdzīviniet ainas jaunos un aizraujošos veidos.

Infinibar unikālākā īpašība ir spēja sasaistīt vairākus 1 pēdas, 2 pēdas vai 4ft infinibars kopā, izmantojot 10 savādības formas savienotājus1, lai izstrādātu radošās formas un efektus. Lietotāji var darbināt vairākus infinibārus, izmantojot vienu barošanas avotu, kad to savieno ar barošanas koplietošanas savienotājiem, vai arī izmantot to iekšējās baterijas lielākai daudzpusībai. Pikseļu joslas bezgalīgais sajaukšanas dizains novērš arī redzamās spraugas starp armatūru, lai izveidotu bezšuvju pikseļu efektus, izmantojot PB12 96 RGB pikseļus. Infinibar PB12 96 pikseļi var sagrupēt un kontrolēt, izmantojot Sidus saiti, Lumenradio CRMX, vai caur vadu DMX, izmantojot Aputure USB-C līdz DMX adapterim.

2 Tajā ir iekļauta arī kritiskā krāsu kontrole (ieskaitot uzlaboto HSI ar baltā punkta pielāgojamību, RGB un XY), lai iegūtu pilnīgu radošu brīvību. Pārslēgt starp 9 iebūvēto sistēmu FX un 7 iebūvēto pikseļu FX vai saglabāt līdz 20 pielāgotu FX lietotnē Sidus Link, lai ērti piekļūtu dažādiem gaismas režīmiem.

Infinibar PB12 patentētais RGBWW mikroshēmojums rada satriecošu krāsu kvalitāti visā plašajā CCT diapazonā no 2000 000 līdz 10 000K ar pilnu
zaļās-Magenta pielāgošanu un var reproducēt & gt; 90% krāsu rec.2020 krāsu telpas telpā Apvidū Atbilstoši Aputure augstie krāsu standarti,
Infinibar PB12 rada arī precīzus ādas toņus, mērot CRI: 96+, TLCI: 98+, SSI (D56): 74 un SSI (volgsten): 85. < / / / / / / p>

Ar savu vieglo, bet izturīgo alumīnija korpusu Infinibar PB12 nodrošina galīgo elastību visās šaušanas vidēs. Neatkarīgi no tā, vai
ir sasaistīts kopā vai tiek izmantots neatkarīgi, Infinibar iebūvētie magnēti, Infinibar sliedes un mazuļa tapu skavas sistēma un divi 1⁄4-20 collu diegi ļauj PB12 viegli uzstādīt. Un ar iebūvēto 59,2Wh litija akumulatoru Infinibar PB12 80 minūtes var darboties ar 27W maksimālo jaudu, padarot to par daudzpusīgu armatūru jūsu apgaismojuma instrumentu komplektam.

1 Katrā Infinibar ietilpst 1 taisns savienotājs. Atlikušie 9 savienotāji, kas tiek pārdoti atsevišķi
2 Aputure Active USB-C līdz 5-PIN DMX IN & OUT adapteris (atsevišķi)

Aputure Infinibar PB12 is a 120 cm long RGBWW LED panel created for filmmakers, set designers and light designers. The innovative lamp will open up completely new possibilities for creating light installations. Thanks to its unique design, you can combine Aputure Infinibar family devices in hundreds of different ways. Control over the extensive light setup will be provided by the Sidus Link app. The lamp offers 96 sections of RGB "smart pixel" LEDs, providing smooth color transitions between zones (7 Pixel FX effects). The built-in rechargeable battery guarantees up to 80 minutes of operation at maximum power. The luminous arrangements you will create with the help of the Aputure Infinibar PB12 lamp will ideally find their way into music videos and commercials - as scenery or effect light, among other things. Main product features the longest LED panel in the Aputure Infinibar product family (120 cm) Innovative connection system with other Infinibar lamps possibility to connect lamps at different angles on flat surfaces or create three-dimensional light structures created with filmmakers, photographers, set designers and light designers in mind color control within HSI and RGB color space high CRI, TLCI, CQS and SSI ratios for excellent color reproduction extensive color temperature adjustment range of 2000 K - 10000 K green-magenta color correction option (G/M) equipped with 96 sections of "smart pixel" LEDs 9 special FX effects (including police car, paparazzi, campfire, TV) 7 transition effects ("Pixel FX") between diode sections (including penetration, fire, rainbow) Built-in 8000 mAh battery up to 80 minutes of operation using full power fast charging (about 2h) remote control via the advanced Sidus Link mobile app Sidus Mesh integration allowing you to control various Aputure lights with your smartphone or tablet support for the LumenRadio CRMX wireless control standard compatible with DMX standard (USB-C / DMX cable must be purchased) includes 2 strong neodymium magnets for installation on metal surfaces equipped with female mounting threads 3/8" and 1/4" in the kit you will also find: Infinibar Clamp, 48W power supply, power cable (1.5m), allen wrench, mounting adapter to connect with other Infinibar lights and carrying bag Light installations The Aputure Infinibar system will open up unique possibilities for you to create ambience with colored light. You can connect elongated panels together on flat surfaces or create three-dimensional constructions. Long lines, triangles, hexagons, stars - Infinibar lamps are like blocks that you can arrange in hundreds of different ways. Included with each Infinibar lamp you will find one mounting adapter that allows you to connect two panels together. Revolutionary design With its rectangular cross-section, elongated design and use of a special mounting system, the Infinibar series lamps can be combined in hundreds of different ways. The revolutionary design opens up completely new possibilities for stage designers and video creators to create scenes. The Aputure Infinibar PB12 LED lamp will be perfect as one of the light sources, but also as an element of stage design. Special mounting adapters will allow you to connect the panels at different angles. And when you align the lamps in a straight line, you will create a unified structure, with no visible gaps between the luminous modules. Excellent light quality Thanks to its state-of-the-art RGBWW LED chip, the Aputure Infinibar PB12 LED lamp impresses with unparalleled color quality. The 120 cm long panel allows you to conveniently control the color of light within the HSI and RGB space. There is also a green-magenta (G/M) correction option. Precise color reproduction is confirmed by high CRI (96+), TLCI (98+), SSI Tungsten (85) and SSI D56 (74) ratings. Smooth color transitions The Aputure Infinibar PB12 lamp offers up to 96 sections of RGB "smart pixel" LEDs. Thanks to them, adjacent LED modules can shine in different colors. However, that's not all. The device also offers 7 built-in "Pixel FX" transition effects. Unique light animations, such as penetration, rainbow, fire or color cycles will allow you to show even more creativity when working on videos. If you use multiple Infinibar panels, reach for the Sidus Link app. With its help, you can control as many as 1,024 "smart pixel" sections, i.e. designs with a total length of almost 13 meters! Sidus Link app You can control the Infinibar PB12 lamp with your smartphone or tablet. Remote operation is provided by the powerful Sidus Link mobile app, which has been accompanying users of equipment from Aputure for years. It is available on Google Play and the App Store at no extra charge. Thanks to the app, the lamp can become part of a larger ecosystem of light sources. It is with its help that you will program advanced combinations of transitions, as well as personalize settings for each group of LEDs. Additional control options In addition to intuitive operation via the Sidus Link app, the Aputure Infinibar PB12 panel also offers support for the popular LumenRadio CRMX wireless control standard. This allows professionals, filmmakers and lighting technicians to remotely control lamps and individual "smart pixel" zones. The lamp is also compatible with the DMX standard. USB-C / DMX adapter MUST be purchased separately. Adjustable color temperature The Aputure Infinibar PB12 LED lamp allows you to adjust the color temperature of the light from 2000 K to 10000 K. Such parameters will produce light that can be warmer than that emitted by tungsten lamps and cooler than typical daylight (D55). Flexibility in the choice of color temperature will certainly facilitate your work on set and allow you to instantly adjust the parameters of the device to changing lighting conditions. Convenient installation The Aputure Infinibar PB12 LED lamp is great for use as part of a large lighting setup, or as a set piece in music videos or commercials. Thanks to 2 powerful neodymium magnets, you can easily connect it to metal surfaces. You will also find an Infinibar Clamp, equipped with a Baby Pin and 1/4" thread. It takes just a few seconds to insert the accessory into the special mounting rail and connect it to your tripod or clamp. Specification model: Aputure Infinibar PB12 Light color temperature: 2000 K - 10000 K CRI: 96+ TLCI: 98+ CQS: 96 TM-30 RF: 94 (averaged value) TM-30 RG: 103 (averaged value) SSI (Tungsten): 85 SSI (D56): 74 angle of illumination: 120º luminous flux: 2077 lm maximum output power: 27 W Maximum power consumption: lamp: 36.5 W power supply: 40 W Operating voltage and current: lamp: 24 V, 1.8 A power supply: 100 - 240 V, 50 / 60 Hz, 1.5 A rechargeable battery: 7.4 V, 8000 mAh (59.2 Wh) operating time: about 80 minutes (using full power) charging time: about 120 minutes (24 V/ 2.67 A) number of sections ("pixel mapping"): 96 allowed operating temperature: -10°C - 45°C Controls: lamp control panel Sidus Link application DMX / RDM LumenRadio CRMX Maximum remote control range: LumenRadio: 100 m Tightness class: IP20 display: OLED Software update capability: Sidus Link app USB-C cooling: passive Mounting points: Infinibar Rail magnets 3/8 "threads 1/4" LED life expectancy: 50000 h estimated LED color change: 2% (after 6000 h) certifications: CE, FCC, KC, NCC, ROHS, RCM, ICES, UKCA, PSE Dimensions: lamp: 120.4 x 4.5 x 4.3 cm power supply: 12 x 5.3 x 3.2 cm Infinibar Clamp: 12.2 x 5.5 x 4 cm transport bag: 127.7 x 13 x 12.5 cm Weight: lamp: 1.96 kg power supply: 0.49 kg Infinibar Clamp: 0.27 kg whole set: 2.85 kg Content of the set Aputure Infinibar PB12 LED lamp Infinibar Clamp 48 watt power supply power cable (1.5 m) transport bag Allen wrench 2 magnetic mounts mounting adapter Photometry CCT 0.5 m 1 m 2000 K 975 lx 350 lx 2700 K 1350 lx 532 lx 3200 K 1410 lx 542 lx 4300 K 1500 lx 564 lx 5600 K 1600 lx 593 lx 6500 K 1650 lx 607 lx 7500 K 1650 lx 617 lx 10000 K 1510 lx 563 lx Red 227 lx 227 lx Green 793 lx 297 lx Blue 131 lx 49 lx
