Oriģinālais preces apraksts no ražotāja (oriģinālā valodā)

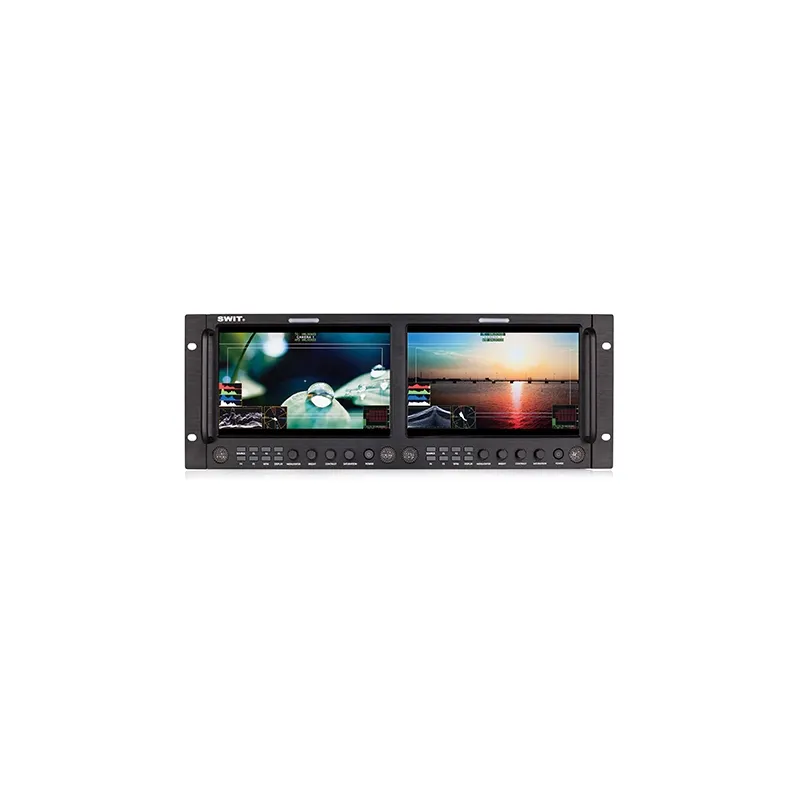

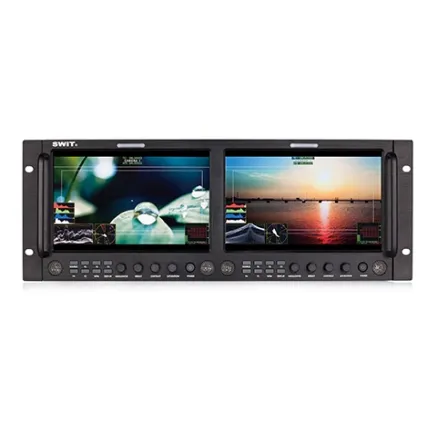

SWIT M-1093F 2x9" IPS LCD 19" rack 4U monitor with 1920×1200 resolution, 800:1 contrast ratio and 2x 2K/3G/HD/SD-SDI, HDMI and composite input (+loop output).
M-1093F
Dual 9-inch FHD Waveform Rack LCD Monitor
- 9-inch IPS LCD Panel ×2
- 1920×1200 resolution, 800:1 contrast
- 19-inch 4U rack mounting, ±30° rotatable
- 2K/3G/HD/SD-SDI, HDMI, CVBS monitoring
- 16-ch Embedded audio meters with alert
- Select any 2 audio channels to output
- Waveform Y/Cb/Cr/R/G/B and single line
- Vector scope, histogram R/G/B/Y
- AFD, H/V delay, R/G/B/Mono, False color
- TSL UMD and text TALLY display
- Zebra stripes, Peaking focus assist
- SDI timecode display
- Marker 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1
- TALLY light and GPI control
- USB firmware upgrade
9-inch IPS LCD
IPS panel with LED backlight
The M-1093F adopts 2× 9-inch IPS (In-Plane Switching) LCD panels, with Full HD 1920×1200 resolution and LED backlight, 800:1 contrast. The viewing angle is Horizontal: 170° / Vertical: 170°
Input/Output Interfaces
SDI / HDMI / CVBS / Analog Audio
Each LCD of M-1093F supports
2K/3G/HD/SD-SDI input × 2
2K/3G/HD/SD-SDI loop output × 2
HDMI 1.3 input × 1
HDMI 1.3 loop output × 1
CVBS input × 1
CVBS loop output × 1
3.5mm analog audio input × 1
3.5mm analog audio output × 1
Video Analysis Assistant Pattern
Waveform / Vector scope / Histogram
M-1093F supports video analysis assistant patterns includes: Waveform (Y/Pb/Pr/R/G/B), Vector scope, Histogram (R/G/B/Y), to convert the digital video quality info (Luma, Color, Saturation, etc) to patterns, and the patterns can be switched on/off individually, select display position (Up/Down/Left/Right), size, color, and translucence.
Embedded Audio Monitoring
Up to 16-ch meters with alert and select output
M-1093F supports SDI-16ch and HDMI-8ch embedded audio meters display, with marks and audio abnormal alert info. Users can also select any 2 channels audio to output via 3.5mm socket or speakers. The audio meter pattern position can be selected from one of four corners, and you can select to display only 2 channels, 8 channels, and full 16 channels. Also scale markers, alert info, and translucent of the audio meter pattern are selectable.
UMD and Text-Tally Display
TSL 3.1 / 4.0 Protocol
M-1093F supports UMD and Text-Tally display of TSL 3.1/4.0 protocol, with 1-126 TSL address selection, and Max 8 letters displayed. The UMD/TALLY signal inputs via RJ45(RS485) port on the rear panel of the monitor.
USB Firmware Upgrade
The monitor provides a standard USB port on the rear panel, for firmware upgrade. Users can download the latest firmware file to a USB stick, and directly insert into M-1093F monitor to upgrade, without PC connection.
3-color TALLY Light
RJ45(RS485) input signal
There are front TALLY lights of Red, Green and Yellow colors on each screen, and users can define the pins of RJ45 port to control the TALLY lights.
Power Supply
M-1093F provides a 4-pin XLR socket of DC 6.5-24V power input, for the both 2 screens, and an AC-DC adaptor is attached on the rear panel of the monitor.
Installation
M-1093F is standard 19" rack mount fixing, occupies 4U height. The monitor is ±30° up and down rotatable when installed on racks.
Standard Package
M-1093F offers the following accessories as standard package:
- 1x 4-pin XLR power adaptor
- 2x LCD protective film
Input Video Formats
M-1093F support the following input video formats:
| Input | Supported formats | |
| CVBS | PAL / NTSC | |
| HDMI | 480i/ 576i / 480p / 576p | |
| 1080i (60 / 59.94 / 50) | ||
| 720p (60 / 59.94 / 50) | ||
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) | ||
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | ||
| SDI | SMPTE ST 2048-2 | 2048×1080p (23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60) |
| 2048×1080i (50 / 59.94 / 60) | ||
| SMPTE-425M | 1080p (60 / 59.94 / 50) | |
| SMPTE-274M | 1080i (60 / 59.94 / 50) | |
| 1080p (30 / 29.97 / 25 / 24 / 23.98) | ||
| SMPTE-RP211 | 1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
| SMPTE-296M | 720p (60 / 59.94 / 50) | |
| SMPTE-125M | 480i (59.94) | |
| ITU-R BT.656 | 576i (50) | |
