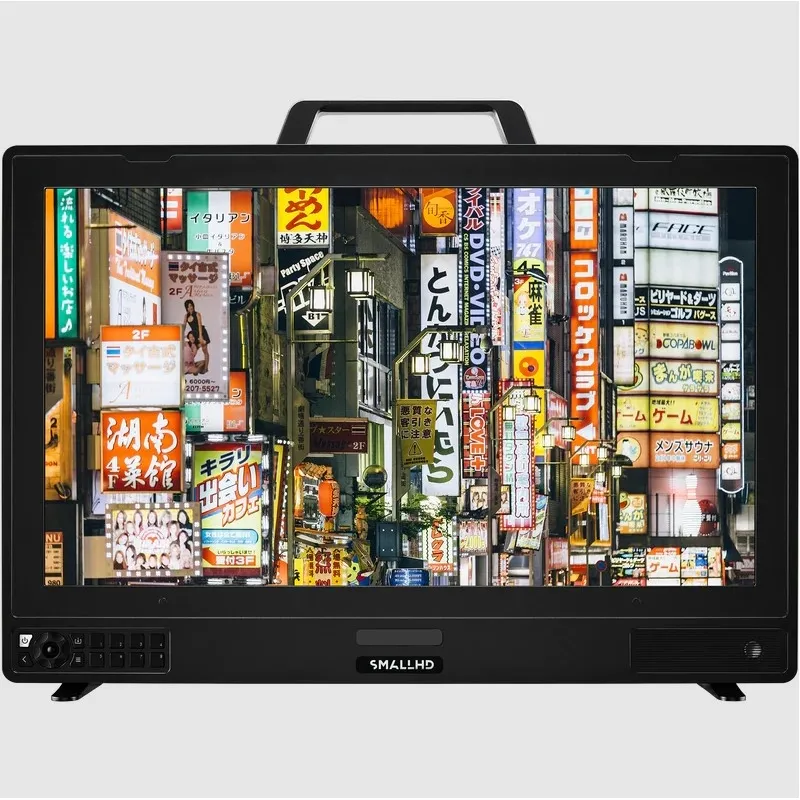

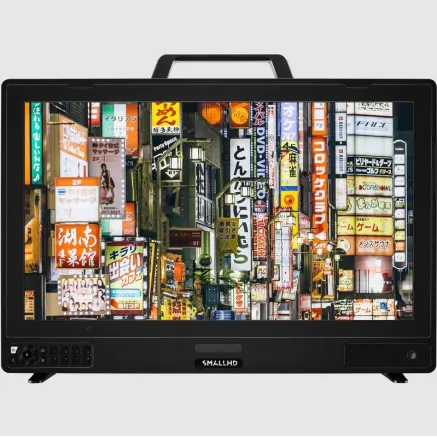

Cine 24 brings 4K, daylight-viewable monitoring everywhere. Lightweight for faster setup and teardown, this monitor is the all-around solution as a director’s monitor or for production and broadcast video villages. Cine 24 is SmallHD’s ultimate production workhorse.
The Cine 24” 4K High-Bright Monitor offers 1350 nits of sustained brightness, enabling clear viewing in bright daylight environments, which eliminates the need for a sun hood or viewing tent. The 24-inch screen, the largest in our Cine series, features a 3840x2160 resolution as well as 10-bit color depth and 100% DCI-P3 color gamut for color-accurate images.
Cine 24 features four 12G SDI inputs and outputs as well as one HDMI 2.0 input. The Unibody Smart Chassis offers a Dovetail Mounting Rail for battery and accessory mounting, interchangeable mounting points, and 2x 2-pin accessory power outputs. Hot-swappable dual inputs allow you to add on Gold Mount or V-Mount battery plate attachments.
With the power of SmallHD PageOS software, build customized Page Profiles, and utilize all of the dependable SmallHD features such as personalized frame guides, Focus & Exposure Assist, high-resolution 3D LUT overlays, histogram, vectorscope, waveform, and more.
Environmental
Item Weight (oz) 16.5lbs/7.5kg
Height (in) 15.8 (w/out feet and handle) 17.8 (w/ feet and handle)
Width (in) 23.3 (w/out feet and handle) 23.6 (w/ feet and handle)
Length/Depth (in) 2.4 (w/out feet and handle) 4.7 (w/ feet and handle)
Display
Panel Type IPS LCD
Diagonal Size 24.1
Resolution 3840x2160
Brightness 1350nits
Contrast 1000:1
Gamut 100% DCI-P3
Color Depth 10-bit (8+2)
Viewing Angle 178 Degrees
Backlight Type Edgelit
Panel Resolution 3840 x 2160
Color Bit Depth 10-bit (8+2)
Input Signal
12G-SDI Input Types 4x 12G-SDI
HDMI Input Types 1x HDMI 2.0 (4K60)
Output Signal
12G-SDI Output Types 4x 12G-SDI
HDMI Output Types Coming Soon
Audio Output Types 1x 3.5mm 3-pin Stereo Headphone Jack
Data I/O Connector Type 1x SD Card Slot, 1x RJ45 Ethernet, 1x RJ45 GPI
Power Input 1x 3-pin XLR (210W max, 12V-34V, 18A max)
Output 2x 2pin (12V / 2A combined) 1x USB (2.4A) (Front) 1x USB (1.5A) (Front) 1x USB-C (5V / 1.5A)
Consumption 128w (monitor only) 209w (w/max access. power draw)
Battery Plate Included No
Battery Types 1x Dual-GM/VM Batt.Plate (14/26V) (sold as accessory)
