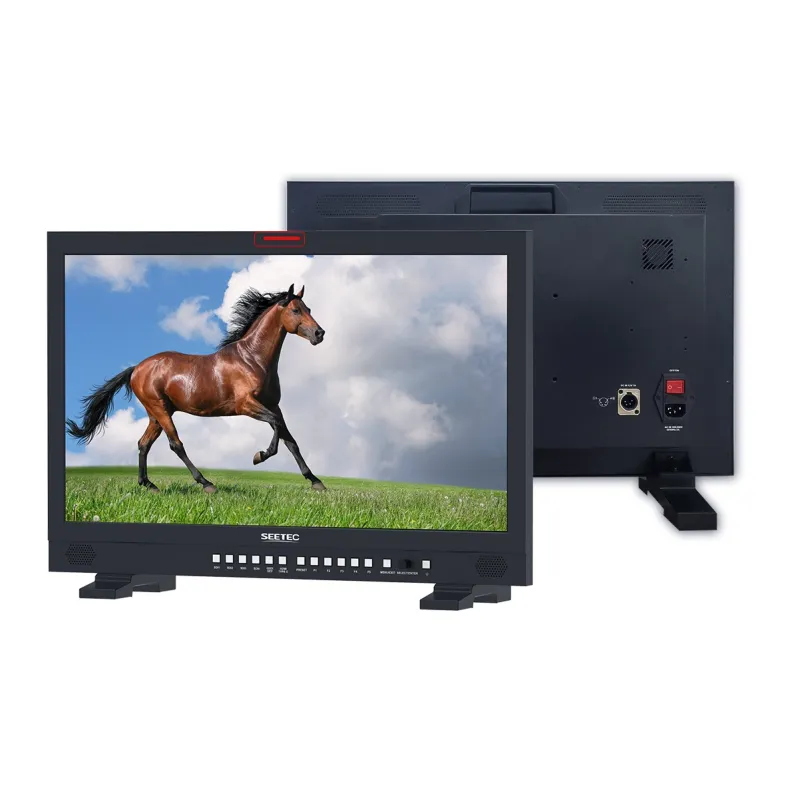

Feelworld SEETEC 12G238F 23.8 INCH 4K 8K BROADCAST PRODUCTION HDR MONITOR 4X 12G SDI IN OUT 2X HDMI 3840X2160

23,8 collu 12G-SDI profesionāls filmu un televīzijas ražošanas monitors

23,8 collu ultra HD IPS panelis ar krāsu dziļumu līdz 10 bitiem un virkni palīgfunkciju. Un ar 12G-SFP optiskās šķiedras ieejas pieslēgumu Ultra HD uzraudzībai lielos attālumos! Varat arī pieslēgt datoru, lai kontrolētu monitoru, izmantojot lietojumprogrammas. To plaši izmanto pirms filmēšanas un pēc krāsu gradācijas darbā apraidē, kino un televīzijā, kā arī augstas klases reklāmas ražošanā.

Galvenās funkcijas:

• 23,8 collu 3840X2160 ultra HD lielais ekrāns
• Izturīgs alumīnija korpuss, izturīgs
• Elastīga un intuitīva pogu darbība, viegli lietojams)
• Atbalsta plašu krāsu gammu televīzijas apraides un filmu standartiem, kas atbilst dažādām fotogrāfu vajadzībām attiecībā uz krāsu gammu.
• Vairāki displeja režīmi (Quade, Quadview triple side, Quadview triple bottom, PBP, PAP)
• SDR un HDR attēlu salīdzināšanas funkcija
• Ar viļņu formas, vektorskopa, RGB histogrammas, fokusa palīgsistēmas, monohroma u. c. funkcijām var palīdzēt precīzi eksponēt un fokusēt katru kadru.
• Vairākas saskarnes, kas atbilst dažādām vajadzībām (4*12G-SDI ieejas un izejas, 2*HDMI 2.0 ieejas, RS422 ieeja un izeja, GPI, LAN, Type-C, SFP).
• Trīs signālkrāsas (sarkana, dzeltena, zaļa)
• Stereo austiņu izeja, skaļrunis
• VESA standarta montāžas punktu atbalsts iekāršanai pie sienas

23.8-inch 12G-SDI Professional Film and Television Production Monitor

High-speed, stable, and ultra-high-definition integration

SEETEC 12G238F is a professional film and television production monitor equipped with 4*12G-SDI that can support 8K signal input, and present you up to 2160p@60 native display. The 23.8-inch ultra HD IPS panel with a color depth of up to 10 bits and a series of aux functions. And featuring the option of a 12G-SFP Fiber Optic input connection for Ultra HD monitoring over massive distances! You also can connect your computer to control the monitor via applications. It is widely used in the pre-shooting and post-color grading work of broadcast, film and television, and high-end advertising production.

Key Features:

* 23.8-inch 3840X2160 ultra HD large screen
* Rugged aluminum housing, durable
* Flexible and intuitive button operation, easy to use)
* Supports wide color gamut for broadcast TV and film standards, meeting the different needs of photographers for color gamut.
* Mulitple display modes (Quade, Quadview triple side, Quadview triple bottom, PBP, PAP)
* SDR and HDR Image Comparison Function
* With Waveform, Vectorscope, RGB Histogram, Focus Assist, Monochrome, etc. functions, can help you accurately expose and focus every shot.
* Multiple interfaces, meet different needs (4*12G-SDI inputs and outputs, 2*HDMI 2.0 inputs, RS422 in and out, GPI, LAN, Type-C, SFP)
* Three Tally color(Red, Yellow, Green)
* Stereo Earphone output, speaker
* VESA standard mounting points support for hang wall installation

Professional film and television production monitor
The SEETEC 12G238F is a professional film and television production monitor equipped with 4x12G SDI that supports 8K signal input and gives you a native display of 2160p 60.
You can also connect your computer to control the monitor via applications.  The monitor is widely used in pre shooting and post color correction of broadcast, film and television and high end advertising production.


Highlights

23.8 inch LCD monitor
Ultra high resolution of 3840x2160,
Highly accurate 3D LUT
Rugged and durable

View more details
The monitor has a 23.8 inch LCD panel, with an ultra high resolution of 3840x2160, a color depth of up to 10bit and display of 1.07B colors, allowing you to see color performance youve never seen before, and more creation space for color grading. The monitor covers 100% Rec.709 and 98% DCI P3 wide color gamut, with rich colors. And supports ITU R BT.2020, ITU R BT.709, EBU, SMPTE C, Native and other color gamuts, meet photographers different needs for color gamut. The monitor uses a highly accurate 3D LUT that supports the tetrahedral interpolation algorithm, and the built in Rainbow color management engine ensures that the monitor has accurate color reproduction capabilities.


Rugged and durable, easy to dissipate heat
The full aluminum alloy frame not only makes the device more sturdy and durable, but also solves the problem of heat dissipation.


Flexible and intuitive button operation
The monitor can easily switch between sources with one button, custom shortcuts and quickly call up menus to make shooting easier. The backlight button design makes it easier to distinguish the current input signal and shortcut buttons used, easy to use.


A new visual experience
It comes with 4 x 12G SDI inputs and outputs, supports up to 8K signal input, allows multiple input configurations, 2 x HDMI 2.0 inputs, supports up to 4096x2160p(60/59.94/50/30/29.97/25/24 /23.98) & 3840x2160p(60/50/30/25/24) signal. Matching the refresh rate of 60 frames per second, 4K audio and video transmission can be resolved with only a single cable.


Seamless, fast, reliable data communication connection
The monitor comes with SFP interface, can place the 12G SFP fiber optic module, which is an essential part of high speed telecommunications and data communications, especially in large network environments, which enables the reception of broadcast quality video data at transmission level through a fiber optical connection.


Remote control application.
Connect your computer to control the monitor via applications. The RS422 input and output can realize synchronization control of multiple monitors. Real time control of the monitors signal input source, turn on waveform and other functions.


VESA mounting points
The monitor is equipped with 100 mm/200 mm two VESA mounting sizes, you can easily hang it on a wall. Flexible mounting for a busy newsroom.
Note: the bracket is not included.,

Model: 12G238F
Screensize: 23,8
Brightness: 540
Screen Gamut: 98% DCI P3
SDI Interface: 4 x 12 G SDI (support 8K input)
HDMI interface: 2x HDMI 2.0
Other interface: 1 x Type C, 1 x SFP, 1 x LAN, 1 x GPI, RS422 in & out
Tally: Front
Power: AC+DC
3D LUT: Tetrahedral interpolation, Uses LUT
HDR: PQ+HLG
EETF: Yes
Still image detection: Support
Gamma: Gamma 2.0, Gamma 2.2, Gamma 2.4, Gamma 2.6, SMPTE ST 2084(PQ), ITU R BT.2100(HLG), S Log3, Canon Log
Camera Log: Sony, Canon, ARRI, DJI Log mode
Gamut Comparison: SDR and HDR Images Comparison
GamutWarning: Yes
Multi view: Quad view, Quadview triple side, Quad triple bottom, PBP, PAP
UMD: 3.1, 4.1, 5.0
Waveform, Vector, Histogram: Yes
Time Code: Yes
2 year warranty
