Feelworld 7 LUT7 PRO IPS panel full HD 1920*1200 super high brightness

Monitora apakšdaļā atradīsiet HDMI ieeju/izeju, strāvas pieslēgumu un līdzstrāvas 8 V strāvas izeju jūsu kamerai. Sānu pusē ir 3,5 mm austiņu ligzda. Apakšā ir arī 1/4"-20 montāžas caurums, lai to varētu novietot uz maģiskās rokas. Monitora augšdaļā ir vadības pogas. LUT7S PRO atbalsta pielāgotas 3D LUT, lai precīzi novērtētu kameras krāsu uz ekrāna; tās tiek augšupielādētas, izmantojot sānos iebūvēto SD atmiņas kartes slotu.
No-squeeze Iebūvēta funkcija No-squeeze 1,3x vai 2x ļauj izmantot anamorfiskos objektīvus vai adapterus un redzēt attēlu normālā proporciju attiecībā, pat ja jūsu kamerai nav funkcijas No-squeeze.
Piederumu montāža un barošanas avots L sērijas montāžas plate ļauj piestiprināt piederumus, piemēram, bezvadu raidītāju vai uztvērēju, tieši monitora aizmugurē un darbināt to, izmantojot L sērijas akumulatora ligzdu. Viena akumulatora ligzda aizmugurē ir saderīga ar Sony L sērijas akumulatoriem.

Raksturojums

• 7 collu IPS skārienekrāns ar 1920 x 1200 pikseļu izšķirtspēju
• HDMI ieeja/izeja
• Atbalsta SD, HD un DCI 4K video
• 2200 cd/m² spilgtums
• 1200:1 kontrasta attiecība
• 160 grādu skata leņķis
• Atbalsta 3D LUT Log atbilstoši Rec.709, lietotāja 3D LUT augšupielāde
• Ietver viļņu formas, vektorskopa, histogrammas, fokusa palīgsistēmas, monohroma funkcijas
• Uzstādīt piederumus, izmantojot ārējo akumulatora plāksni
• L sērijas NP-F970 akumulatora plate
• Līdzstrāvas 8 V izeja sistēmas vai spoguļkameras barošanai
• 2 gadu garantija

Iepakojumā

• Mini/Micro-HDMI uz HDMI Type-A kabelis
• Nokārtojuma rokturis
• Atslēga
• Lietotāja rokasgrāmata

Feelworld  7 LUT7 PRO IPS panel full HD 1920*1200 super high brightness
The monitor has a sharp 323ppi display and supports SD, HD, UHD and DCI 4K video. This HDMI monitor has an integrated L series battery slot.
The LCD panel has a resolution of 1920 x 1200 pixels, an aspect ratio of 16:10, a contrast ratio of 1200:1 and a measured brightness of 2200cd/m, making it easy to see both indoors and outdoors. The touchscreen provides quick access to settings. The IPS LCD screen has a viewing angle of 160 degrees without distorting colours or contrast.  The monitor has a variety of image evaluation tools built in, including Histrogram, False Colors and Zebras for checking exposure, Focus Assist and markers for correct framing.
The Feelworld LUT7S Pro uses the professional Rec.709 HD colour standard and is factory calibrated. As a result, the monitor displays colours very accurately and without distortion.

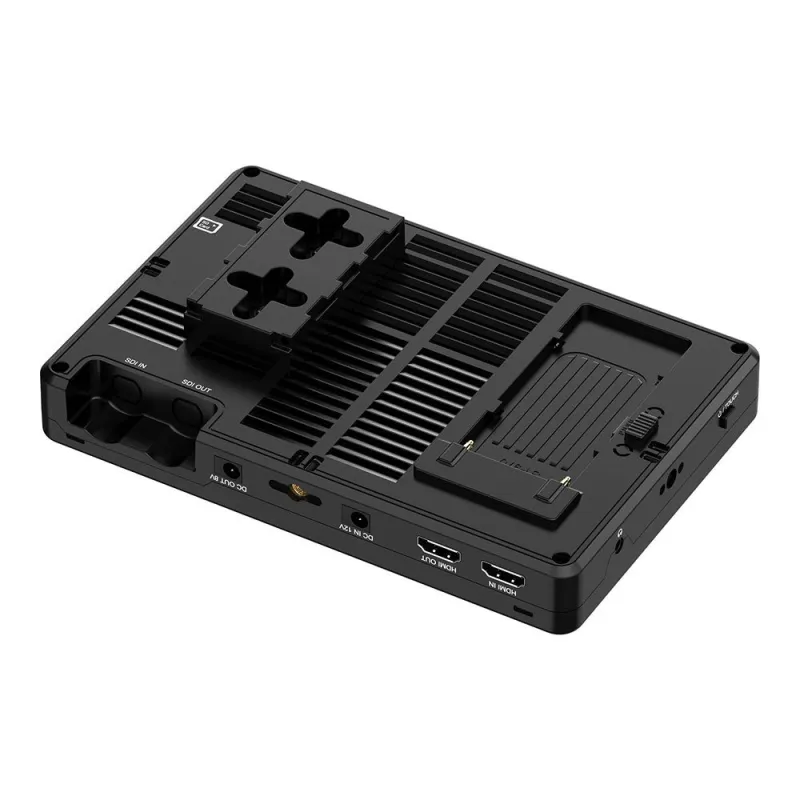

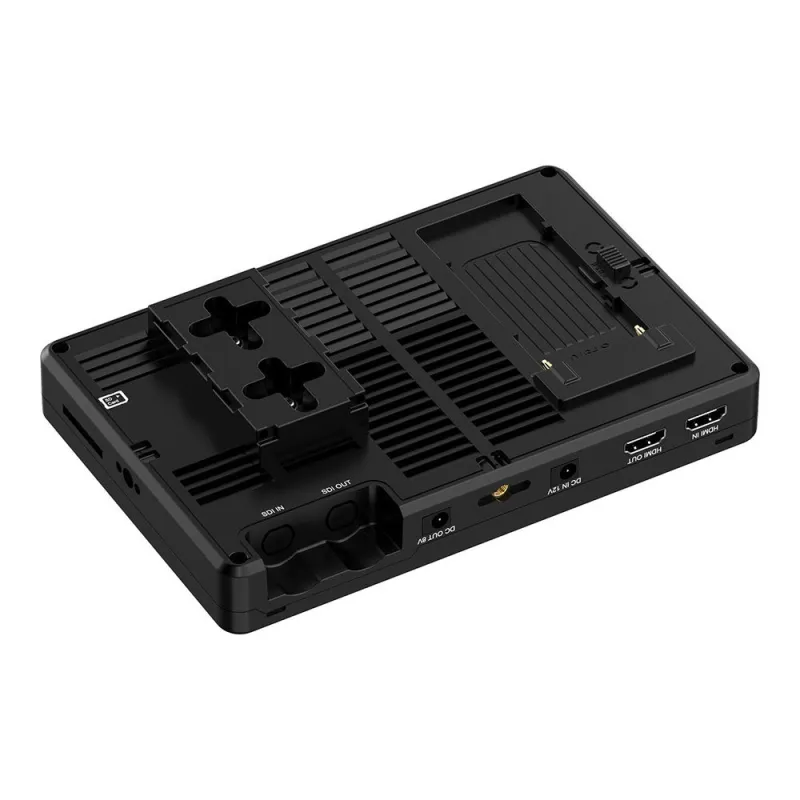

On the bottom of the monitor, you will find the HDMI input/output, power connection and DC 8V power output for your camera. On the side is the 3.5mm headphone jack. The bottom also has a 1/4 20 mounting hole for placement on a magic arm. The top of the monitor houses the control buttons. The LUT7S PRO supports custom 3D LUTs to accurately assess camera colour on screen, these are uploaded via an integrated SD memory card slot on the side.


No squeeze
Built in no squeeze 1.3x or 2x allows you to use anamorphic lenses or adapters and see the image in normal aspect ratio, even if your camera has no no squeeze function.


Accessory mounting and power supply

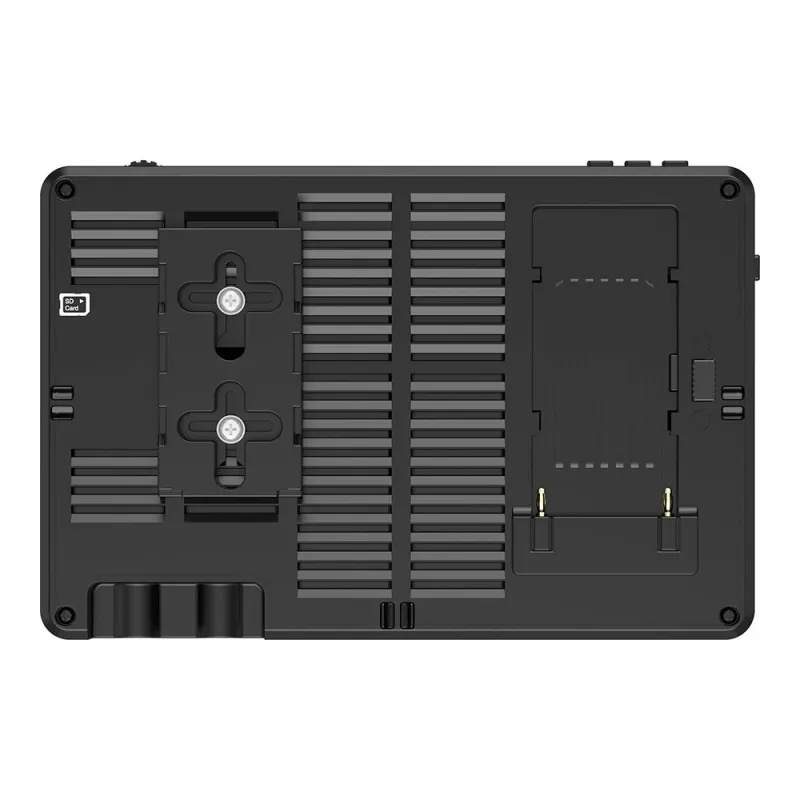

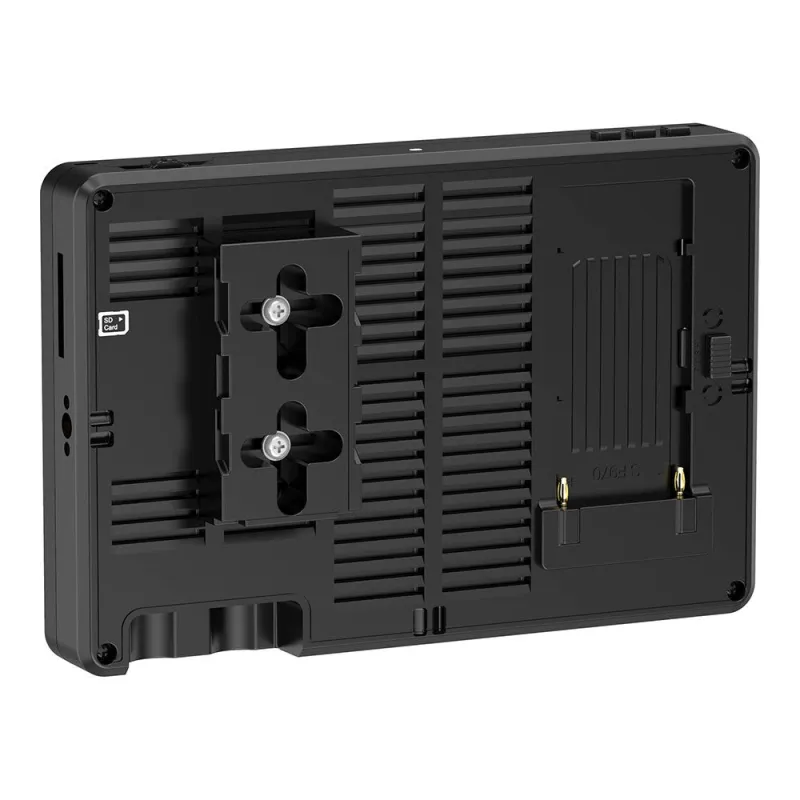

The L Series mounting plate allows you to attach accessories, such as a wireless transmitter or receiver, directly to the back of the monitor and power it using the L Series battery slot. The single battery slot on the back is compatible with Sony L series batteries. ,

7 inch IPS touchscreen with a resolution of 1920 x 1200 pixels
HDMI input/output
Supports SD, HD and DCI 4K video
2200cd/m brightness
1200:1 contrast ratio
160 degree viewing angle
Support 3D LUT Log to Rec.709, user 3D LUT upload
Includes Waveform, Vectorscope, Histogram, Focus Assist, Monochrome functions
Mount accessories via external battery plate
L Series NP F970 battery plate
DC 8V output to power your system or SLR camera
2 Year Warranty
,

Mini/Micro HDMI to HDMI Type A cable
Tilt Arm
Spanner
User manual
