FEELWORLD Monitor F6 Plus V2 6" Monitor

FEELWORLD F6 PLUS Upgrade to Version V2, The Screen Size Update From 5.5 Inch to 6 Inch

Light and Slim Design, Only 235g
The F6 PLUS is 6 inch and only 235g, and makes it the ideal size and weight for field production. The entire monitor’s build is sturdy and compact, allowing you to easily mount it to your DSLR camera or even a gimbal stabilizer. It gives you the freedom to shoot well anywhere.

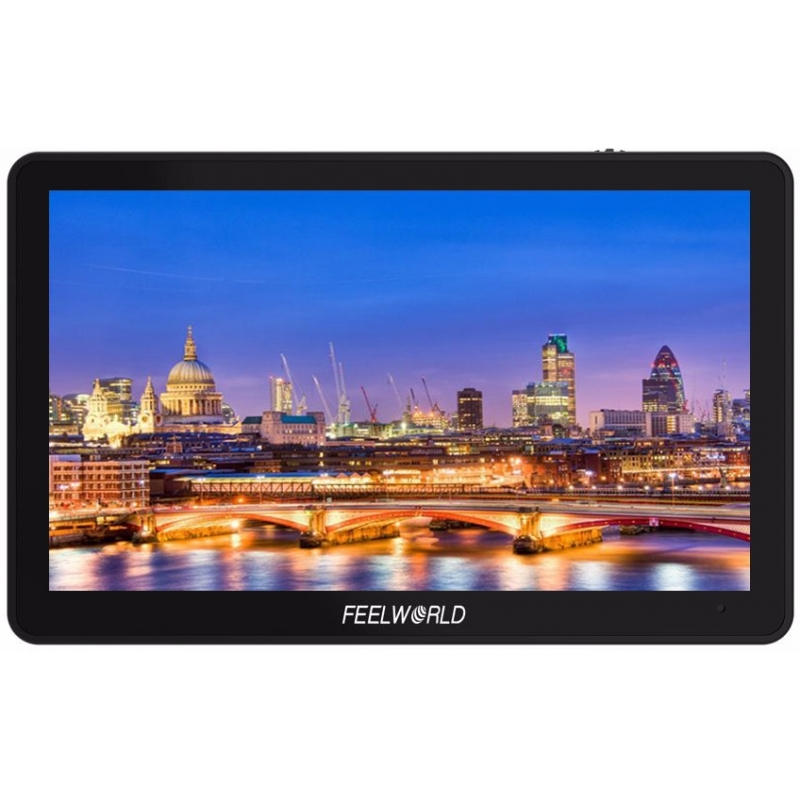

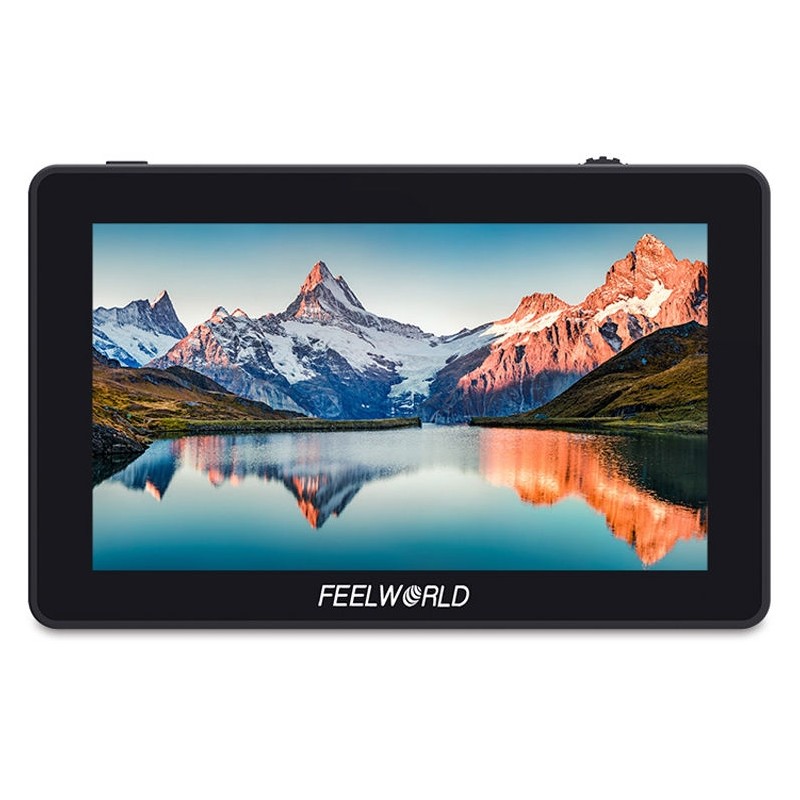

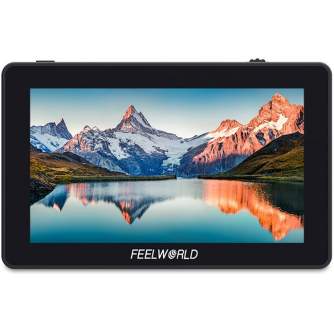

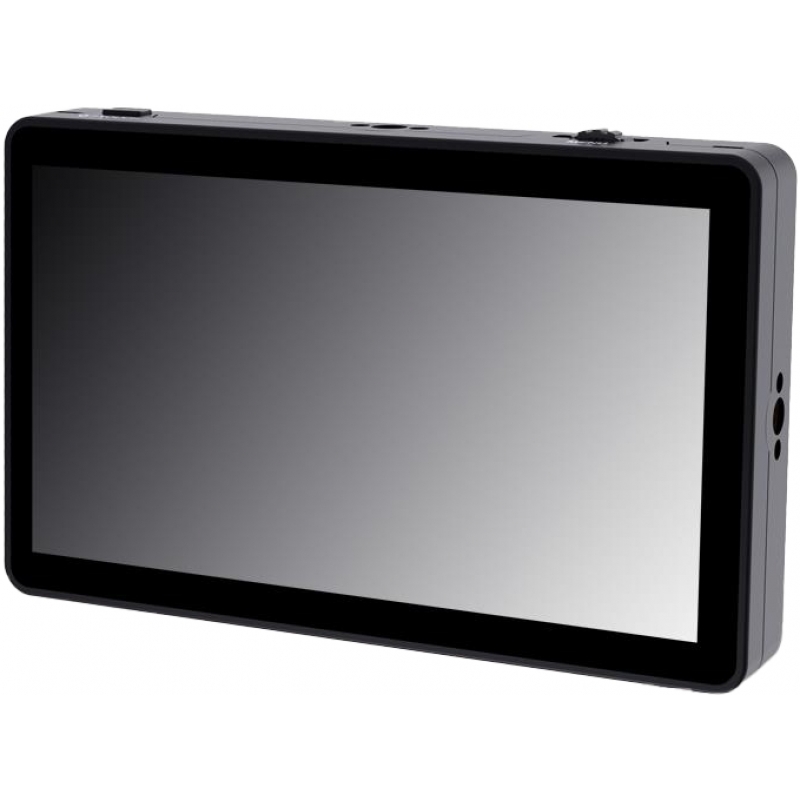

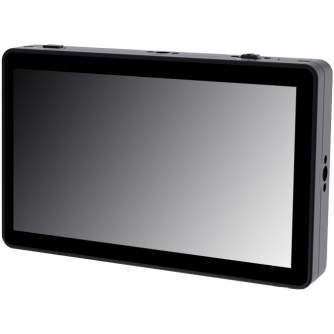

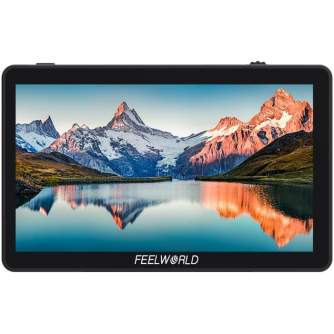

6” 1920x1080 Display with Rec. 709 Color Calibration
The 6" IPS screen features a 1920 x 1080 resolution, packing 367 pixels per inch and provides a wide viewing angle of 160° and for easier off-axis position monitoring. Built-in 3D LUT color calibration, which complies with the standard of REC-709, can calibrate each monitors so that it can eliminate the trouble of color cast.

Easy Touchscreen Controls, Freely Zoom In and Out
OCR Full-fit Screen Design
The monitor uses OCR full-fit technology and high-strength, scratch-resistant, impact-resistant glass.

Use simple tap and swipe gestures to make adjustments!
The built-in monitor is also an interactive touchscreen that makes setting up the F6 PLUS V2 incredibly intuitive. All of the functions are at your fingertips, allowing you to use simple tap and swipe gestures to change function settings. You can easily and intuitively zoom in and out of your shot with the pinch-to-zoom gesture.

Support Touch Screen and Button Control Menu
●You can also get a quick glance at your menu settings and features with an easy tap on the screen.

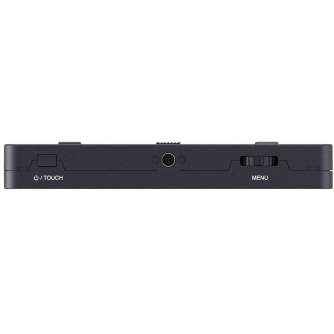

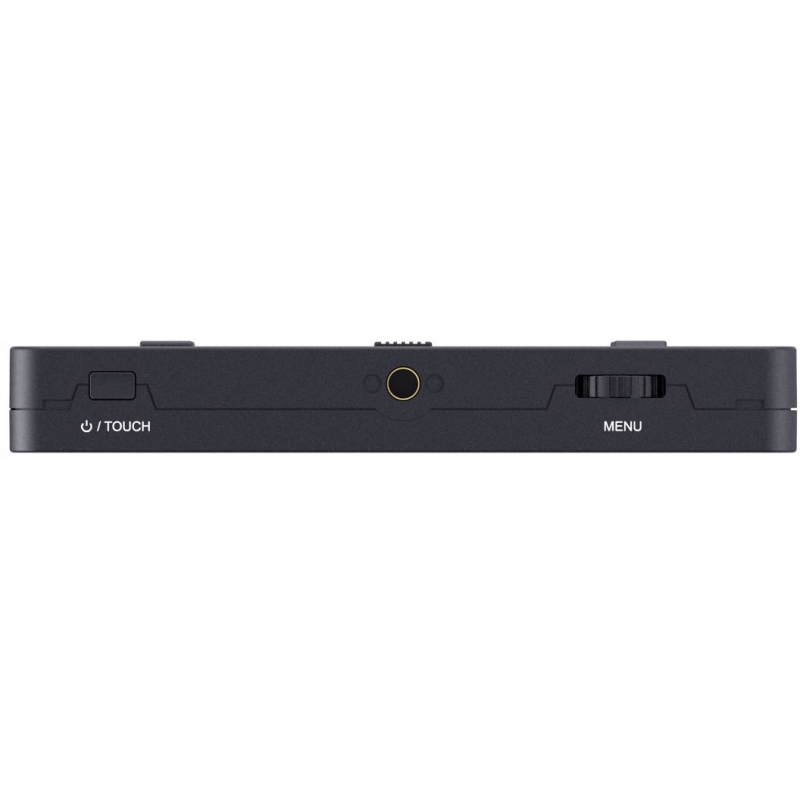

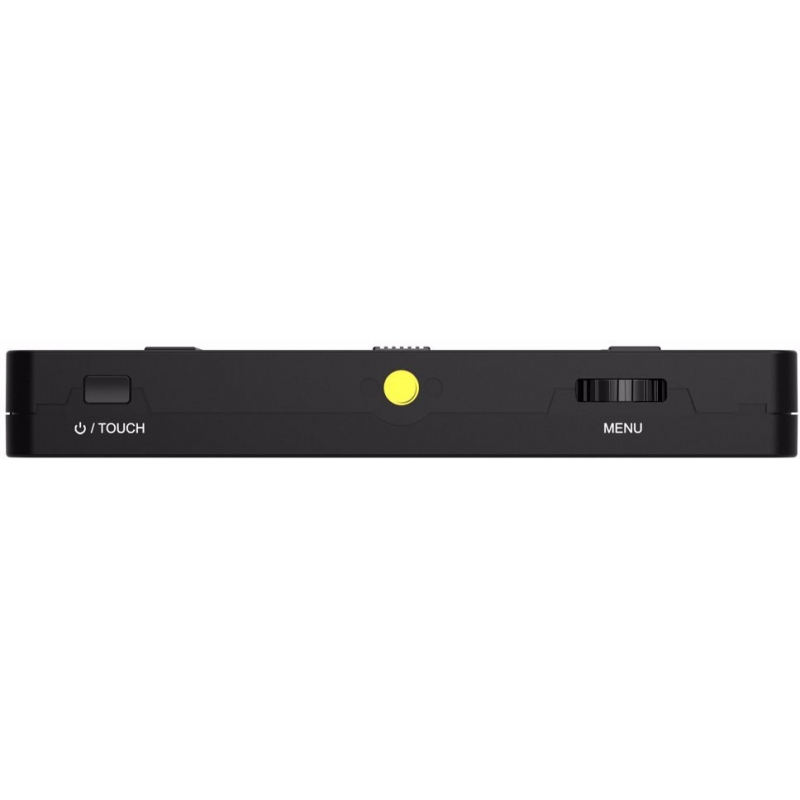

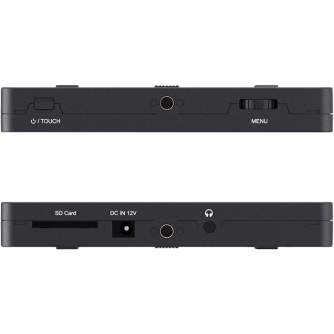

●It also supports physical buttons control. Tap/Rotate the wheel button for quick selection and function settings.
●Tap the power switch to turn off the touch function, designed to prevent misuse.

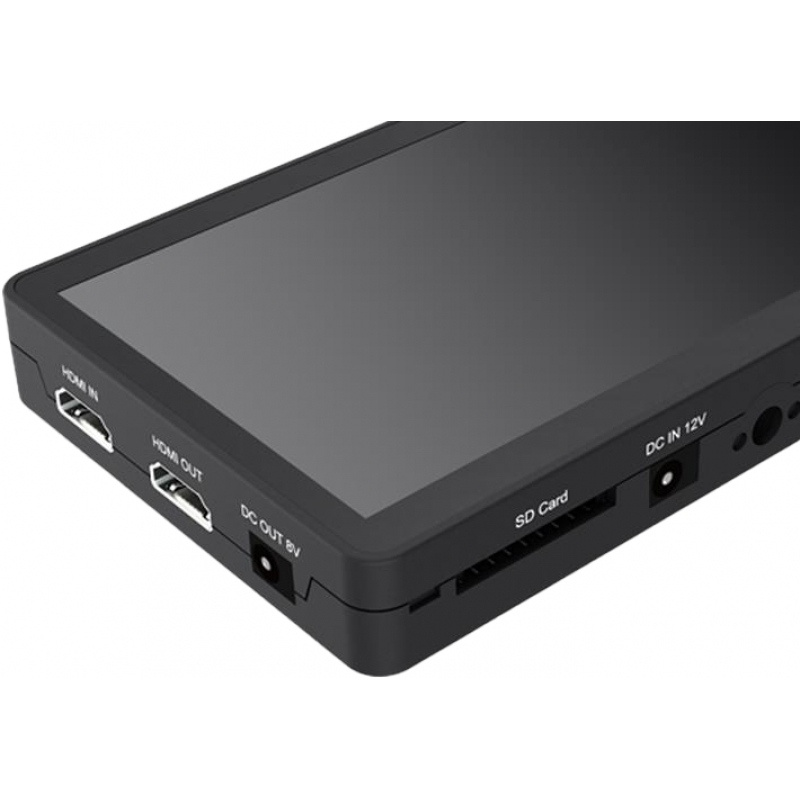

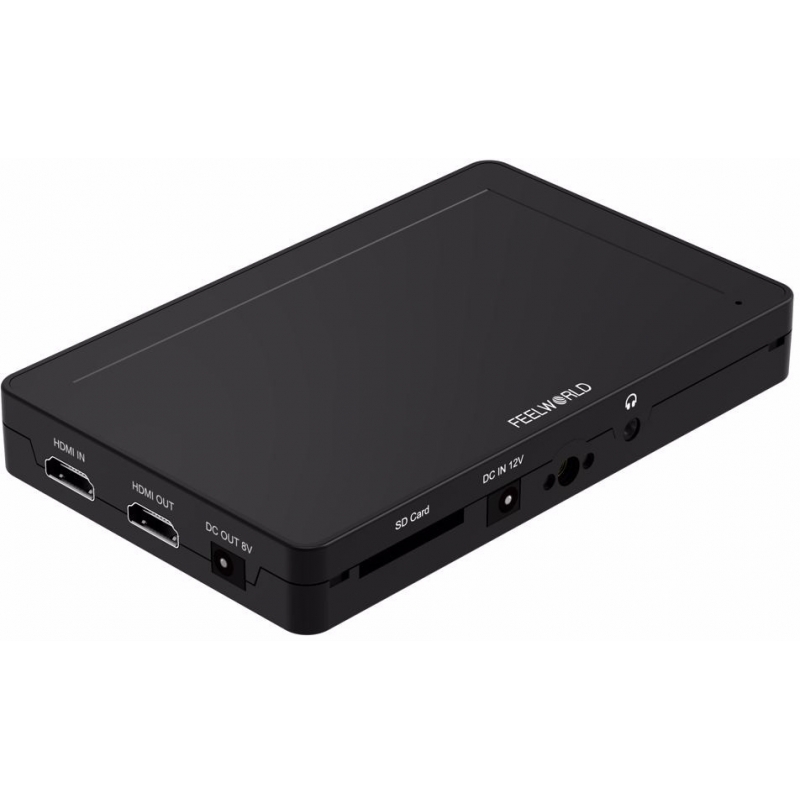

4K HDMI Input & Loop Output
The F6 PLUS V2 has 4K HDMI in and loop-out, allowing it to not only display live signals, but also send them out to other monitors simultaneously. It's the ability to display live picture on multiple displays at once while still maintaining the original video quality. Plus, you can monitor audio using the 3.5mm stereo headphone jack.

HDMI Output Application

Connect to Wireless Transmitter
Transmission to film crew director monitoring at the same time. Without the cable more flexible to transition between scenes effortlessly for outdoor shooting.

Connect to Director Monitor
Display live picture on multiple displays simultaneously.

Connect to Projector
At the concert, live broadcast, conference, you can connect to project display real-time images.

Power Your DSLR or Mirrorless Camera
The F6 PLUS V2 is an ideal camera-top monitor for DSLR and mirrorless camera shooters. Because the F6 PLUS V2 provides auxiliary power out; allowing shooters to power their cameras. With a battery adapter cable (Optional), the F6 PLUS extends camera run-time, while providing a more usable display.

Power Input

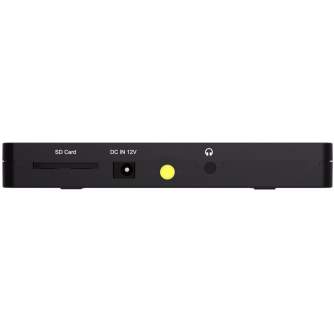

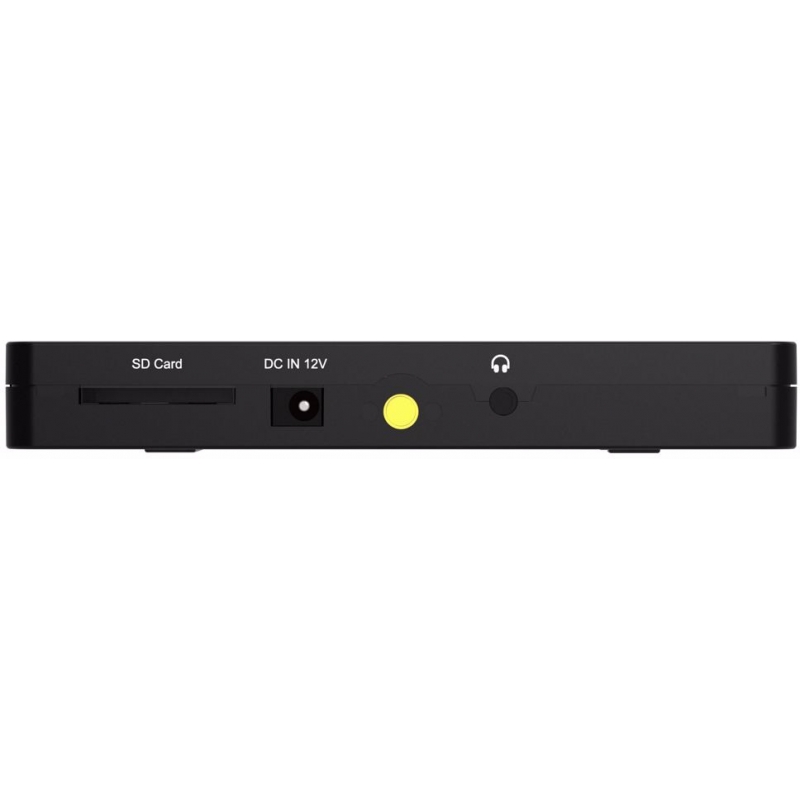

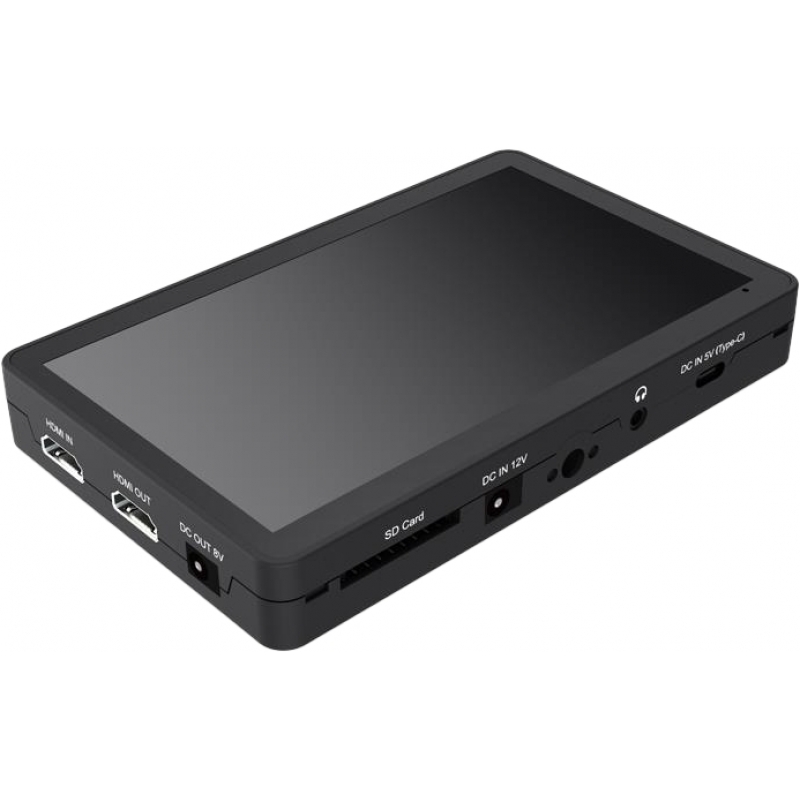

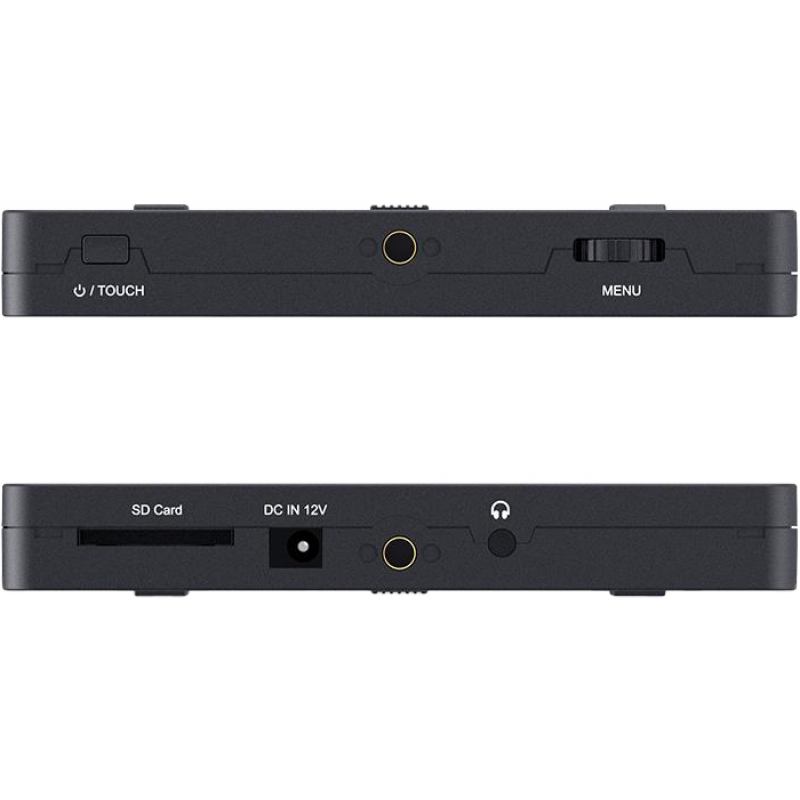

In addition to the power supply through the battery plates and 12V DC power input(can be using 12V/1.5A adapter), it also supports 5V Type-C input, which can be powered by mobile phone charger or power bank. (At least 5V/2A)
Note: The 5V Type-C port is only used for power supply, not for data transmission, and cannot provide loop-out power.

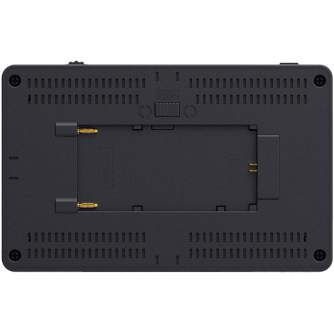

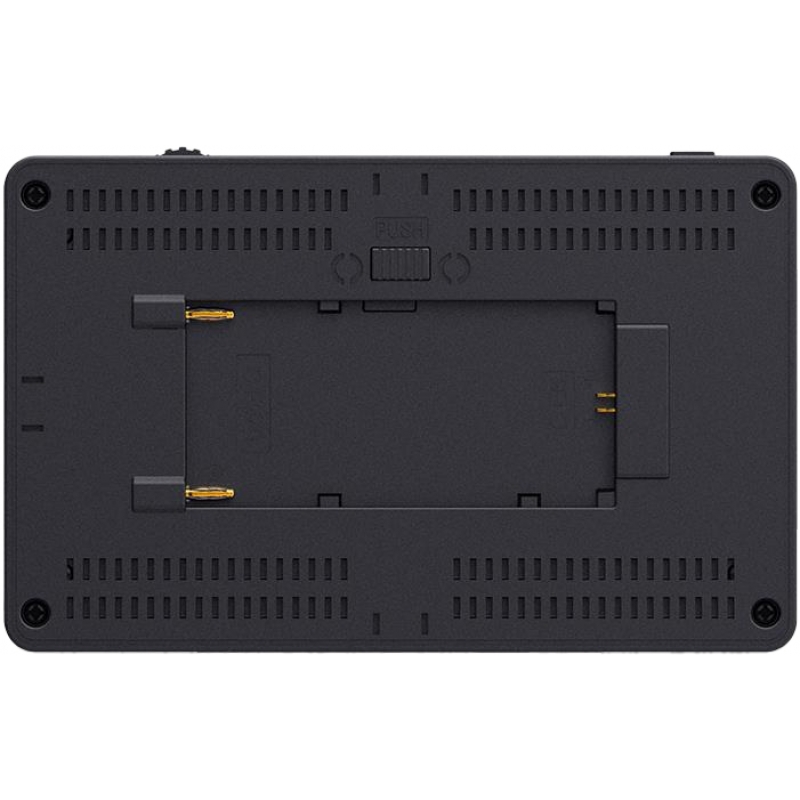

6”Flexible Dual-purpose Battery Plate
Compatibility with Sony F970 and Canon LP-E6 of lithium batteries for one battery plate. Providing long-time working condition for cameraman in shooting applications.

Monitoring Tools with Quick Accessibility
The F6 PLUS V2 keeps the original great: it's small, lightweight and has great image quality. In addition, it now features the touch screen and has the ability to import 3D LUTs via the SD card. The F6 PLUS V2 is the perfect monitor for those who need an easy-to-use lightweight on-camera monitor such as gimbal operators, or shooters that are always on the go.Its touchscreen conveniently allows you to zoom your image with a pinch gesture and tap to access the menu settings. There are also a variety of onscreen tools to help you set up your shots, including parade (RGB, YUV, Y), vector, histogram, peaking, embedded audio, exposure, false color, nine grid, auto mirror, zoom, guides, pixel-to-pixel, anamorphic mode, image freeze and more.

Sharp Screenshot + Video Overlay
Convenient to compare the composition and correct displacement during the shooting
F6 PLUS V2 supports screenshot and stored via SD card, you can capture any image, then compared with real-time video by semi-transparent image superposition. It is convenient for photographers to compare the composition and correct the displacement during the shooting.
Note: The number of screenshots stored depends on the capacity of the SD card.

3D LUT Color Calibration and Real-time Preview
User LUT cube import （Up to 50)）
F6 PLUS provides S-log2/3, V-log, Log-C etc, to convert log mode to REC709 for all major cameras. The LUT loading function makes the color calibration work of the previous shooting easier and more intuitive, optimizes the workflow and improves work efficiency. User creative 3D LUT cube or calibration 3D LUT cube can be uploaded to F6 PLUS by SD card.

HDR Monitoring
What you see is what you get
F6 PLUS V2 has built-in HLG 2020, HLG 709, HLG P3 HDR 3D LUT, and Rec709 De-slog3 LUTs, includes SLOG2, SLOG3, LOGC, VLOG. The monitor can display an HDR (high dynamic range) signal for incredible clarity and detail, simplify the complexities of shooting Log and HDR, helping you to replicate post-production workflows at the moment when it matters most–while shooting.

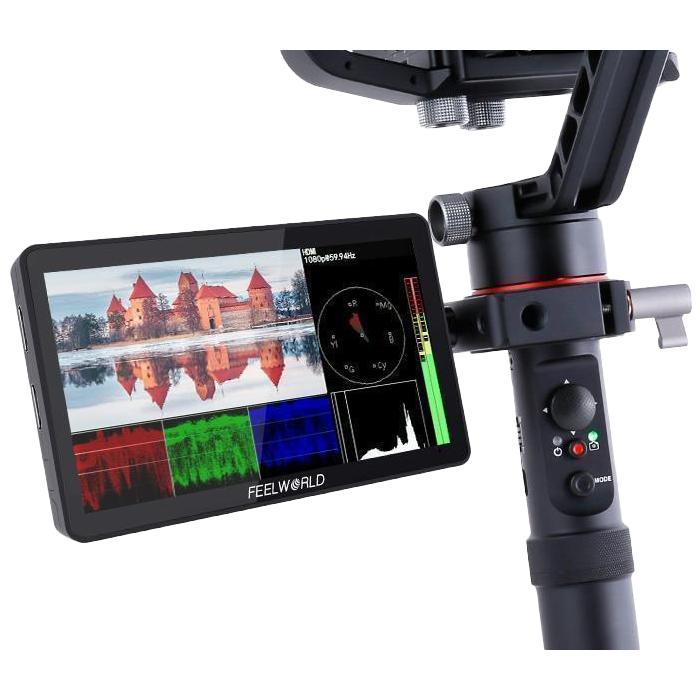

Accurate Waveform Monitoring
Save your budget
When you need to analyze image quality more accurately than simply looking at the picture then use F6 PLUS V2's built in waveform monitoring! Choose from waveform (RGB Parade, Y Parade), vectorscope, histogram and audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. F6 PLUS V2 is perfect for live production monitoring and removes the need for separate expensive scopes!

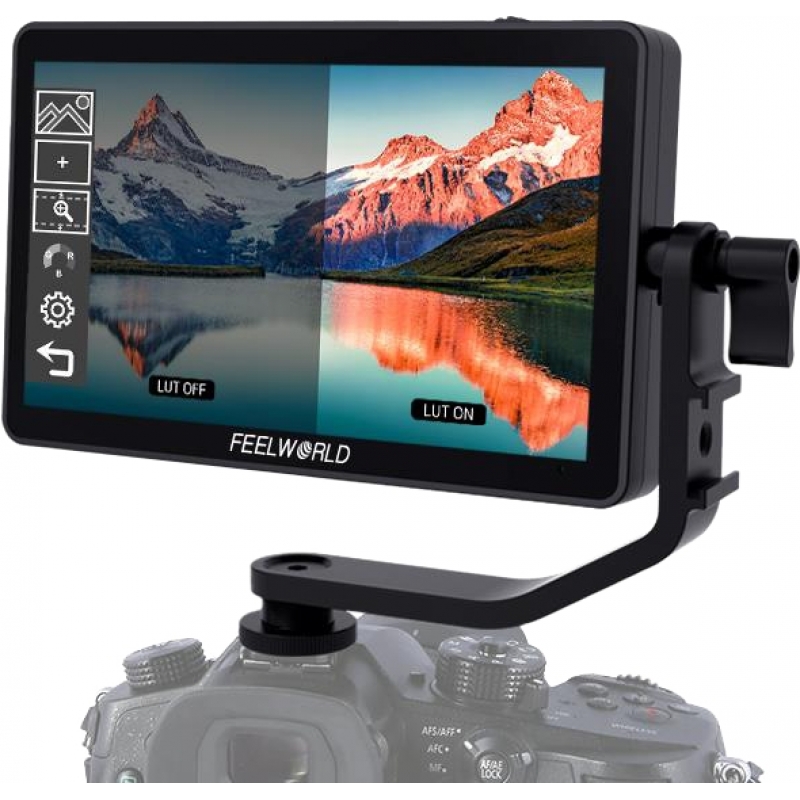

Convenient Mounting - Tilt Arm

Every F6 PLUS V2 monitor will ship with a cold shoe mounted Tilt Arm. Shooters will have a secure way to position their monitor while maintaining a low profile.

• Allows the F6 PLUS V2 monitor to rotate 360 degrees for viewing convenience

• Secure and lightweight mounting via shoe mount or 1/4"-20 thread

• Includes a shoe mount of its own for accessories like a microphone, LED light, or wireless receiver, etc.

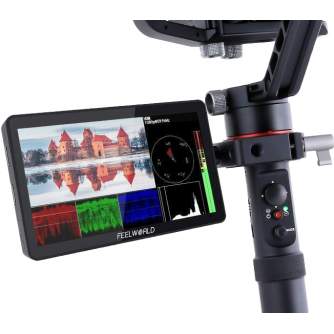

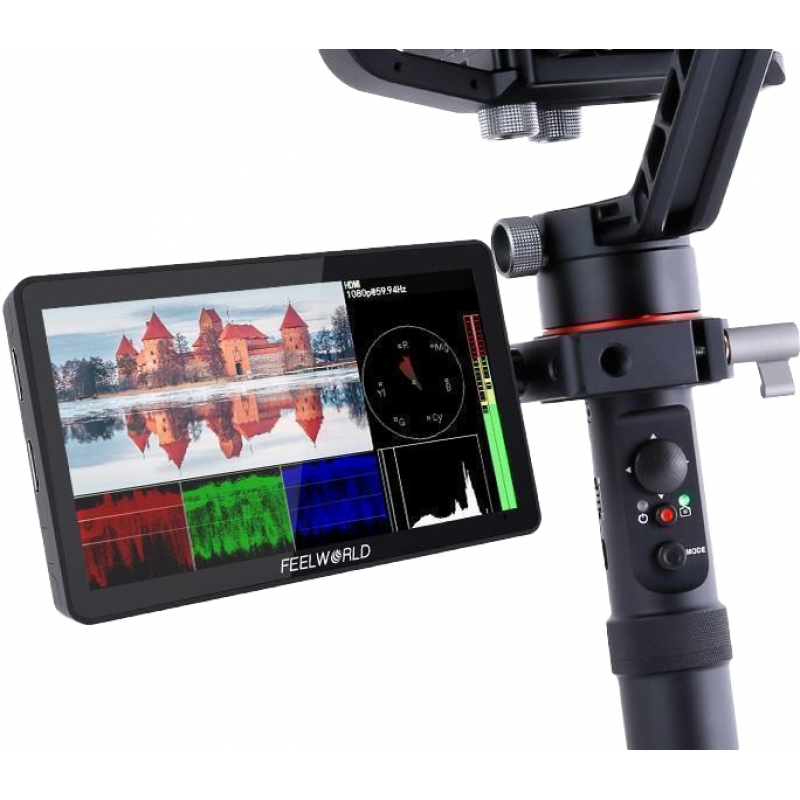

Flexible Install Both on Camera and Gimbal
To convenient the various angles monitoring
F6 PLUS V2 features standard 1/4" mount points (top, bottom, right) for attaching it to cameras and rigs. Not only you can install it on a monitor through tilt arm, but also you can mount it on a handheld stabilizer or securely attach it to the top of your camera as the ultimate HD viewfinder! If you install it on the bottom of the device, you can also combine the image flip function to maintain the correct orientation of the screen!

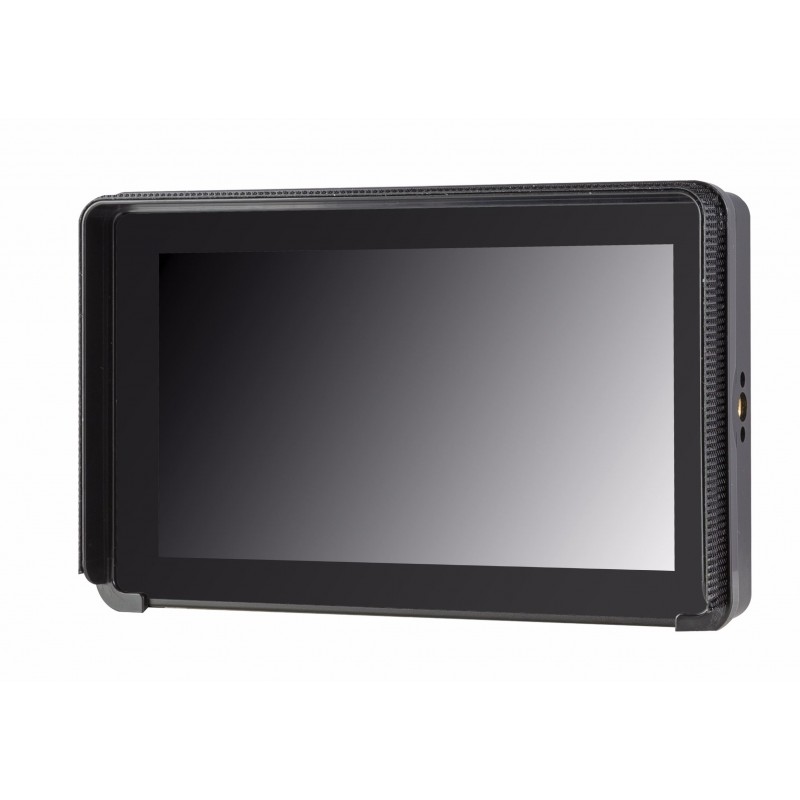

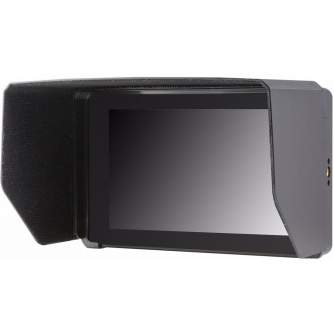

Portable Sunshade, Easy Install
The F6 PLUS V2 monitor is equipped with a sunshade, which allows the photographer to focus more on the video and avoid the interference of strong light, providing a better visual experience. The installation process is simple and fast, which is very suitable for outdoor shooting.

Key Features

• Support 3D LUT Log to Rec.709, user 3D LUT Upload
• Support Touch Menu
• High Resolution: Full HD 1920x1080, High Contrast: 1000:1
• 160° wide viewing angles IPS Panel
• Provides auxiliary power out; allowing shooters to power their cameras
• Support HDR monitoring
• Parade (RGB, YUV, Y)
• VectorScope
• Histogram
• Support screenshot, image overlay
• Peaking Focus Assist (red, green,blue, white, yellow five peaking colors optional; 1~10 peaking level adjustable)
• False Colors
• Zebra Exposure (1%~100% adjustable)
• Scan Mode (Under Scan, Over Scan)
• Zoom (100%~300%)
• Anamorphic Mode (1.25x, 1.33x, 1.5x, 2.0x, 2.0x mag)
• Pixel to Pixel
• Nine Grid
• Center Marker
• Safety Marker (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1)
• Ratio Marker (16:9, 16:10, 4:3, 1.85:1, 2.35:1)
• Marker Color (red, green, blue, white, black, yellow)
• Check Field (red, green, blue, gray)
• Image Flip (H, V, H/V)
• Image Freeze
• Color Temperature Adjustment

In The Box

• 1× Micro HDMI Cable
  1× Sunshade
  1× Tilt Arm
  1× Manual

Kompakts tomēr atbalsta 4K ieeju/izeju un ar skārienekrāna interfeisu, FeelWorld 5,5 collu Full HD HDMI kameras skārienekrāna monitors ar 4K atbalstu ir ideāls kā kameras uzraudzības risinājums. Tam ir 1920 x 1080 sākotnējā izšķirtspēja, kontrasta attiecība 1000:1 un maksimālais spilgtums 500 cd/m², Šis IPS monitors ļauj precīzi skatīt uzņemto materiālu no līdz pat 160° ārpus ass. Iebūvētais SD kartes slots ļauj augšupielādēt 3D LUT, lai jūs varētu skatīt a daudzveidīgs Log videomateriāls monitorā.

Kompakts, taču atbalsta 4K ieeju/izvadi un ar skārienekrāna interfeisu FeelWorld 5,5 collu Full HD HDMI kameras skārienekrāna monitors ar 4K atbalstu ir ideāls kā kameras uzraudzības risinājums. Ietver vietējo izšķirtspēju 1920 x 1080, kontrasta attiecība 1000:1 un maksimālais spilgtums 500 cd/m², šis IPS monitors ļauj precīzi skatīt uzņemto materiālu no līdz pat 160° ārpus ass. Iebūvētais SD kartes slots ļauj augšupielādēt 3D LUT lai monitorā varētu skatīt dažādus žurnāla materiālus.

Skārienekrāns interfeiss nodrošina lielāku ekrāna nekustamo īpašumu, lai skatītu uzņemtos materiālus jau tagad ka priekšējā paneļa pogas un pogas vairs nepārblīvē jūsu monitoru. Priekš tiem, kas joprojām dod priekšroku fiziskai kontrolei, izvēlnes/izvēles ritenis augšpusē monitors nodrošina tādu pašu funkcionalitāti, kaut arī mazāk intuitīvu, kā skārienekrāna interfeiss. Monitors atbalsta dažādu displeju un diagnostikas rīki, tostarp fokusa noteikšana, nepareiza krāsa, zebras joslas, histogramma, attēla apgriešana un krāsu temperatūras regulēšana. Turklāt monitors piedāvā vairākas malu attiecību opcijas un atbalsta anamorfo režīmu 1,25:1, 1,33:1, 1,5:1 un 2,0:1.

Feelworld F6 PLUS ir lauka monitors, kas ir mazs, viegls un tam ir lieliska attēla kvalitāte. Tam ir skārienekrāns un iespēja importēt 3D LUT, izmantojot SD karti.

F6 PLUS ir ideāls monitors tiem, kam nepieciešams ērti lietojams viegls kameras monitors, piemēram, kardāna operatori vai šāvēji, kas vienmēr ir ceļā.
Tā skārienekrāns ļauj ērti tuvināt attēlu, piespiežot žestu un pieskaroties, lai piekļūtu izvēlnes iestatījumiem. Ir arī dažādi ekrāna rīki, kas palīdz iestatīt attēlus, tostarp histogramma, maksimuma noteikšana, iegultais audio, ekspozīcija, nepareizas krāsas, tālummaiņa, ceļveži un daudz kas cits.

Galvenās funkcijas

• Atbalstiet 3D LUT žurnālu uz Rec.709, lietotāja 3D LUT augšupielādi
• Atbalsts Touch Menu
• Augsta izšķirtspēja: Full HD 1920x1080, augsts kontrasts: 1000:1
• 160° plati skata leņķi IPS panelis
• Nodrošina papildu strāvas padevi; ļaujot šāvējiem darbināt savas kameras
• Histogramma
• Pīķa fokusēšanas palīgs (sarkans, zaļš, zils, balts, dzeltens piecas maksimālās krāsas pēc izvēles; 1–10 maksimuma līmenis
• Nepareizas krāsas
• Zebra ekspozīcija (1% ~ 100% regulējams)
• Skenēšanas režīms (skenēšanā, pārmeklēšanā)
• Tālummaiņa (100%~300%)
• Anamorfiskais režīms (1,25x, 1,33x, 1,5x, 2,0x, 2,0x mag)
• Pixel uz Pixel
• Centra marķieris
• Drošības marķieris (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1,85:1, 2,35:1)
• Attiecību marķieris (16:9, 16:10, 4:3, 1,85:1, 2,35:1)
• Marķiera krāsa (sarkana, zaļa, zila, balta, melna, dzeltena)
• Atzīmes lauks (sarkans, zaļš, zils, pelēks)
• Attēla apvēršana (H, V, H/V)
• Attēla iesaldēšana
• Krāsu temperatūras regulēšana
