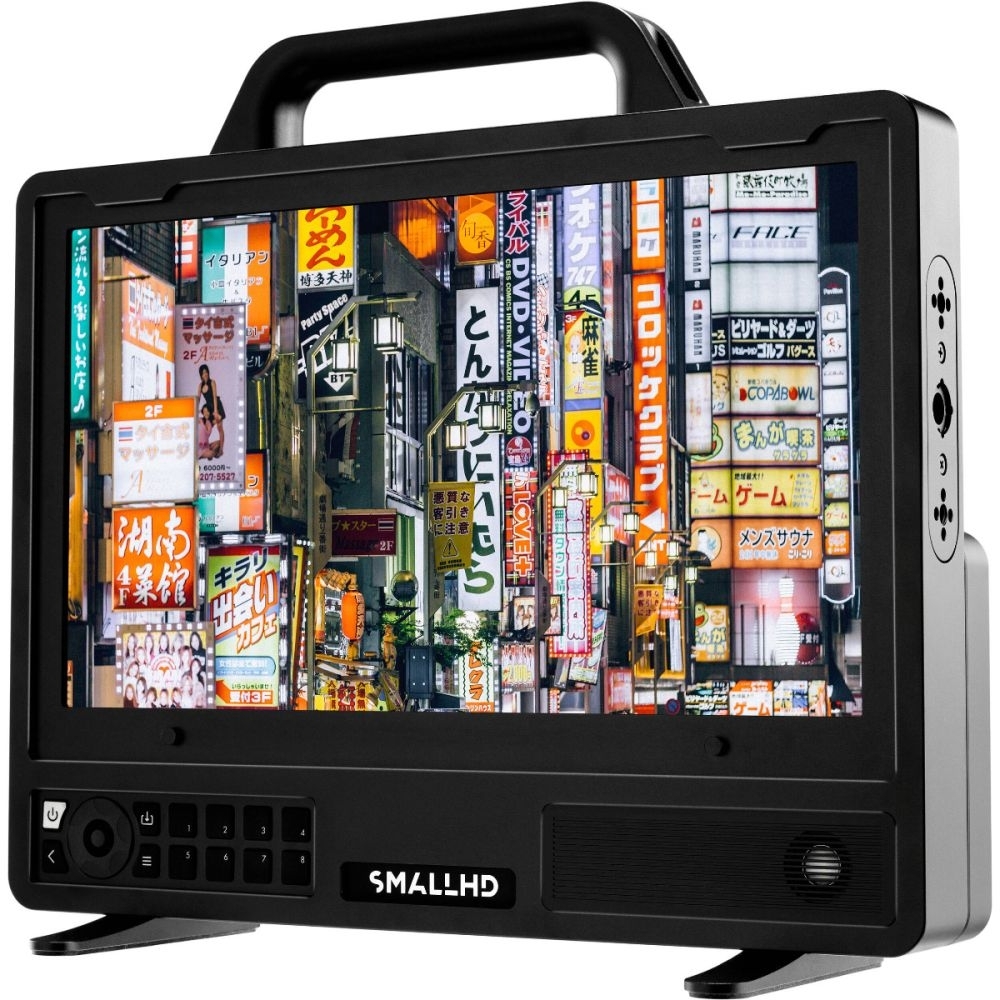

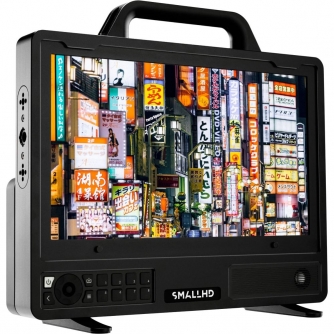

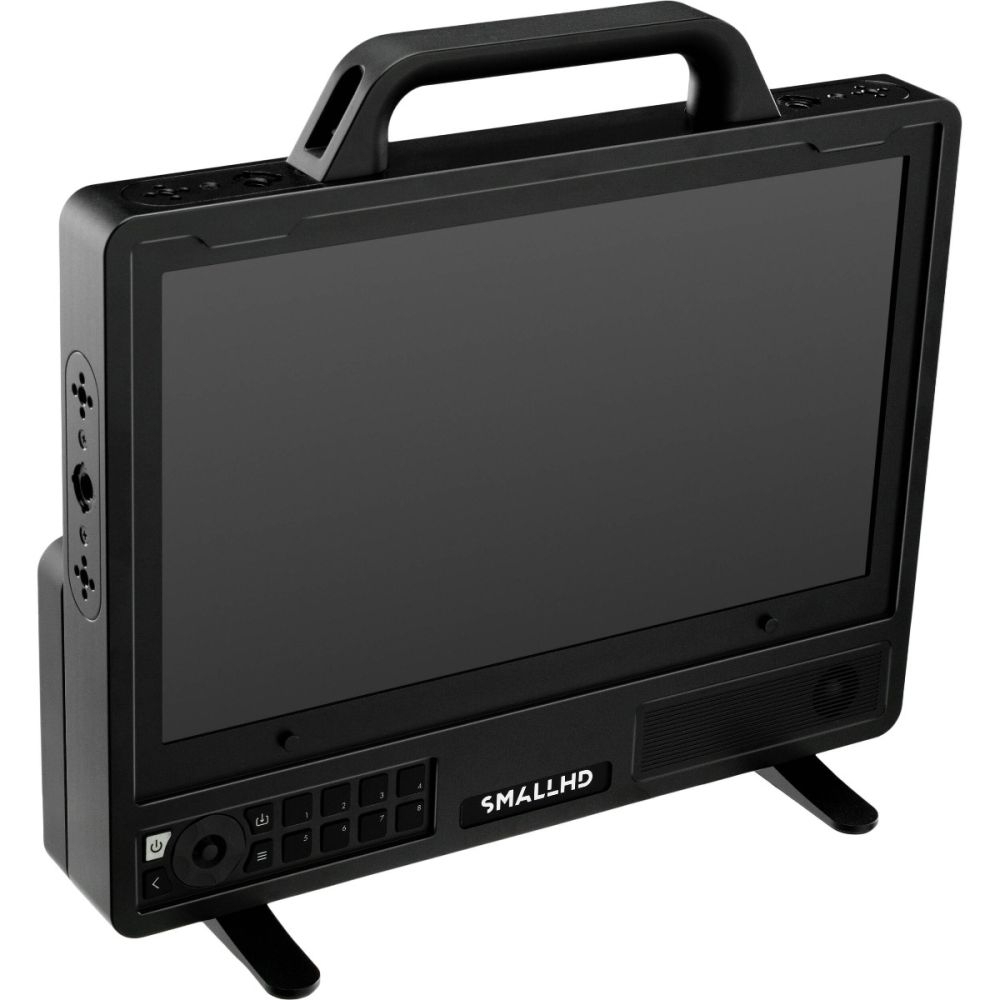

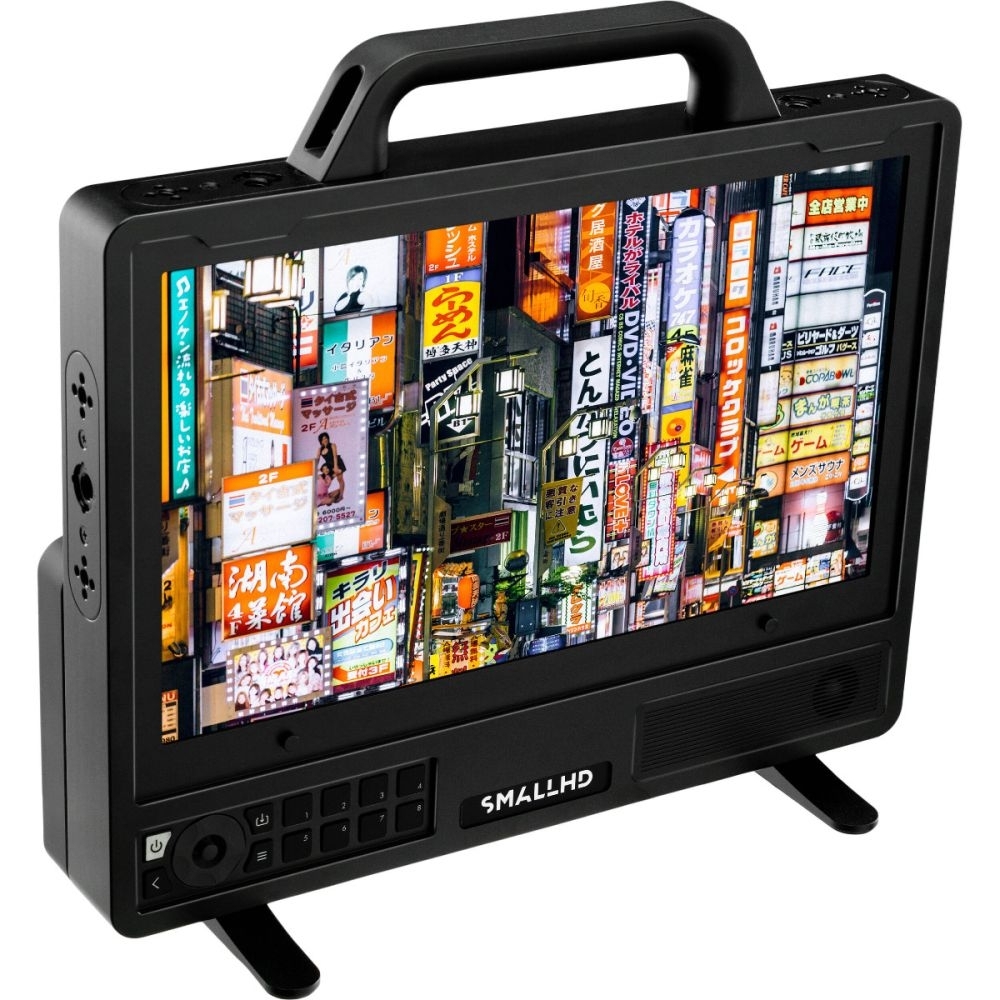

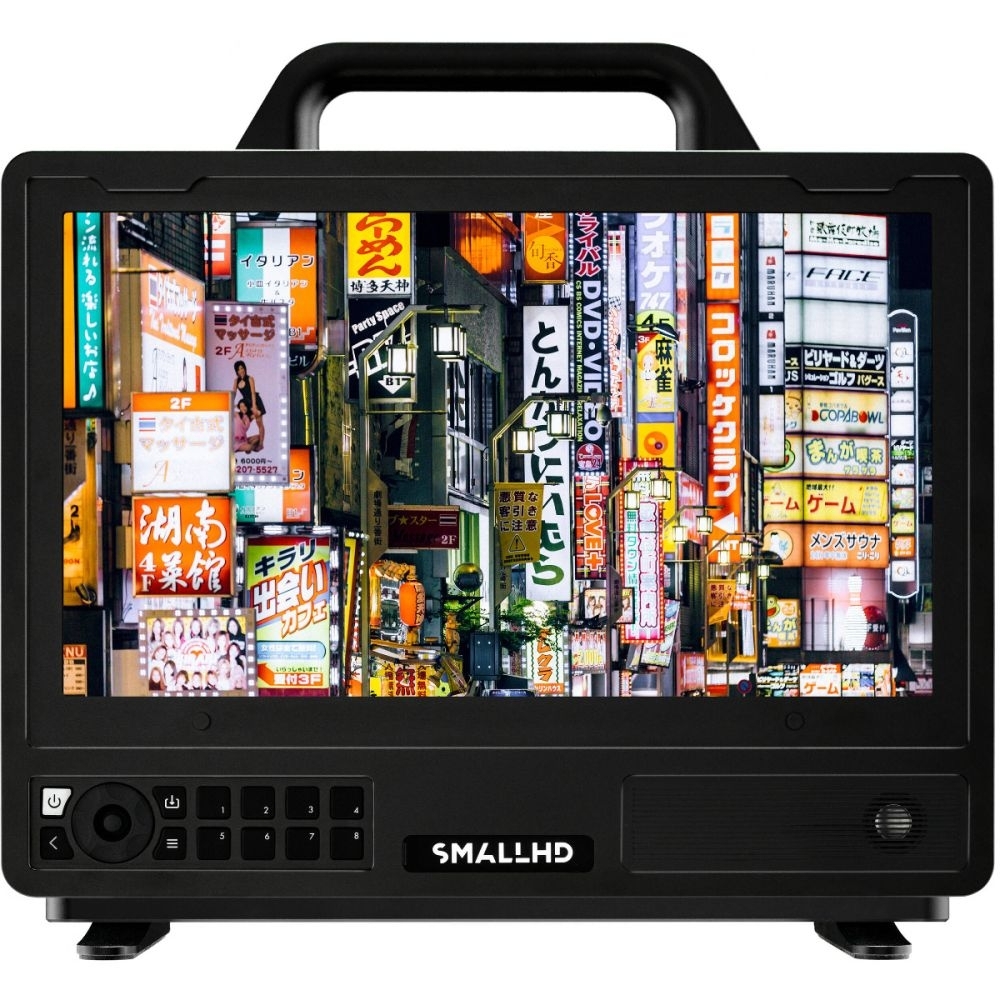

SmallHD Cine 13 4K High Bright Production Monitor

Cine 13 is an agile, brilliantly bright, and pixel-dense 4K production monitor designed for those on-set creatives who require critical focusing capability and a large display. Low-profile in design, this field companion can be rigged for almost any situation. And, weighing in at only 6.8lbs, the Cine 13 is making monitoring in 4K more portable than ever.

The Cine 13” 4K High-Bright Monitor boasts over 1500nits of brightness, ensuring an unobstructed look at your production in full sunlight without the need for a sunhood or viewing tent. The 13-inch screen has a 3840 x 2160 resolution and full 4K clarity, as well as 10-bit color depth for color-accurate images.

Cine 13 features four 12G SDI inputs and outputs as well as one HDMI 2.0 input. The Unibody Smart Chassis offers an Arca Slide on Rail for battery and accessory mounting, a lower mounting rail for ultimate flexibility, and 2x 2-pin accessory power outputs. Hot-swappable dual inputs allow you to add on Gold Mount or V-Mount battery plate attachments.

Meet the Smart PageOS Software
With the power of SmallHD PageOS software, build customized Page Profiles, and utilize all of the dependable SmallHD features such as personalized frame guides, Focus & Exposure Assist, high-resolution 3D LUT overlays, histogram, vectorscope, waveform, and more.

In the Box
• Cine 13 Monitor
• 4K HDMI to 4K HDMI Cable (120in/305cm)
• SmallHD 4K Monitor Feet (Set)
• Premium Monitor Handle for 4K Monitors
• Mounting Rail for Cine 13
• 8GB SD Card
• 4-pin XLR 24V Power Supply
• SmallHD Cleaning Cloth

Specifications

Environmental

Item Weight

6.8lbs/3.09kg

Height

25,6 cm (10.1 in) (w/out feet and handle)
31,5 cm (12.4 in) (w/ feet and handle)

Width

33,5 cm (13.2 in) (w/out feet and handle)
33,5 cm (13.2 in) (w/ feet and handle)

Length/Depth

5,8 cm (2.3 in) (w/out feet and handle)
11,9 cm (4.7 in) (w/ feet and handle)

Compliance

FCC, IC, CE, RoHS, SRRC, MIC

Screen Protection

Basic and Hardened

Construction

Anodized aluminum chassis with plastic accents

Display

Diagonal Size

13.3in / 34cm

Resolution

3840 x 2160

Pixel Density

331ppi

Max Brightness

1500nits

Contrast

1300:1

Gamut

100% REC. 709

Color Depth

10-bit (8+2)

Backlight Type

LCD (Edge-Lit LED)

Mount Points

Options

1x 110mm VESA-compatible rear mount
Interchangeable accessory mount plates on top and sides with multiple ¼”-20 and/or ”-16 options

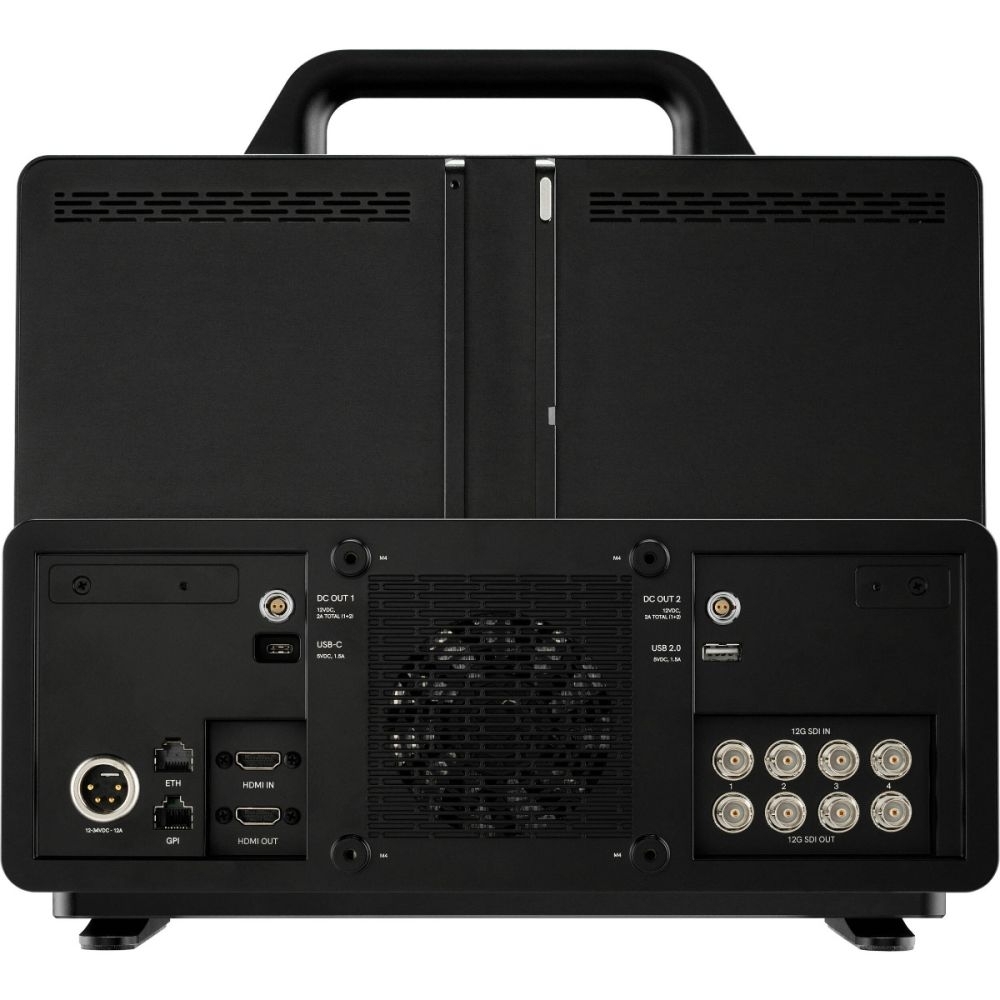

Input/Output Signals

Input

4x 12G-SDI, 1x HDMI 2.0

Output

4x 12G-SDI, 1x HDMI 2.0

Audio Output Types

1x 3.5mm 3-pin Stereo Headphone Jack

Data Input/Output

Connector Type

1x SD Card Slot, 1x RJ45 Ethernet, 1x RJ45 GPI

Power

Input

1x XLR 4-Pin 12 - 34VDC IN
(210W max, 12V-34V, 18A max)

Output

2x 2-pin (12V / 2A combined)
1x USB-A (2.4A) (Front)
1x USB-A (1.5A) (Rear)
1x USB-C (5V / 1.5A) (Rear)

Consumption

36.7w (monitor only) 117.9w (w/max access. power draw)

Battery Plate Included

no

Battery Types

1x Dual-GM/VM Batt.Plate (14/26V) (sold as accessory)
