Feelworld P6X 5.5 Inch Aluminium DSLR Camera Field Monitor Touch Screen 4K HDMI

Galīgā Kontrole un Precizitāte

Izbaudiet izcilu kontroli ar Feelworld P6X 5.5 Inch Aluminium DSLR Camera Field Monitor. Šis modernais monitors ir ideāli piemērots gan amatieriem, gan profesionāliem videogrāfiem, piedāvājot Full HD izšķirtspēju 1920 x 1080 pikseļi un spilgtu IPS skārienekrānu, kas nodrošina skaidras bildes jebkādos apgaismojuma apstākļos.

Izcelšanās

• Izcila Attēla Kvalitāte
• 4K HDMI Ieeja
• Ilgmūžīgs Dizains
• Jaudīgi Uzraudzības Rīki
• Daudzveidīgas Barošanas Iespējas

Galvenās Iezīmes

• 5.5 Inch Full HD Displejs Augstas izšķirtspējas IPS panelis izcilai detaļu un krāsu precizitātei.
• Jutīgs Skārienekrāns Intuitīva saskarne vieglai kontrolei ar pieskārieniem un slīdēšanu.
• Poga Kontrole Pielāgojamas īsinājumtaustiņi ātrai piekļuvei būtiskajām funkcijām.
• 916 Vertikālā Ekrāna Marķējums Ideāli piemērots vertikālām platformām, piemēram, TikTok un Instagram.
• Pielāgojamu LUT Atbalsts Augšupielādējiet līdz 32 pielāgotām LUT krāsu gradēšanai.
• HDR Uzraudzība Uzlabota dinamiskā diapazona skaidrākām detaļām.
• Precīza Vilnis Monitorings Iebūvēti rīki precīzai video un audio signāla analīzei.
• Daudzveidīgas Barošanas Avoti Iespējas nepārtrauktai barošanai vai akumulatora lietošanai, ar 5V Type C ieeju.
• Valodu Atbalsts Pieejams 11 valodās starptautiskai lietošanai.
• Daudzveidīgas Montāžas Vietas Aprīkots ar 3 standarta 1/4 montāžas vītnēm daudzveidīgai uzstādīšanai.

Piezīme: Akumulators pārdodams atsevišķi.

Ultimate control and precision
Experience ultimate control and precision with the Feelworld P6X 5.5 Inch Aluminum DSLR Camera Field Monitor Touch Screen 4K HDMI, an advanced 5.5 inch field monitor designed for both amateur and professional videographers. With its sharp Full HD resolution of 1920 x 1080 pixels and a bright IPS touch screen, the P6X provides a crystal clear and vivid image even in brightly lit environments.


Highlights

Outstanding image quality
4K HDMI Input
Durable and professional design
Powerful image monitoring tools
Versatile power supply options

Refined and lightweight
The P6X has an HDMI transmission speed of up to 4K at 60 Hz, so you can experience the smoothness of high speed transmission. The 5.5 inch touchscreen with high brightness, makes shooting more efficient. The all metal body is sturdy and durable. A range of camera assist functions helps photographers create compositions on the spot and save post production time.

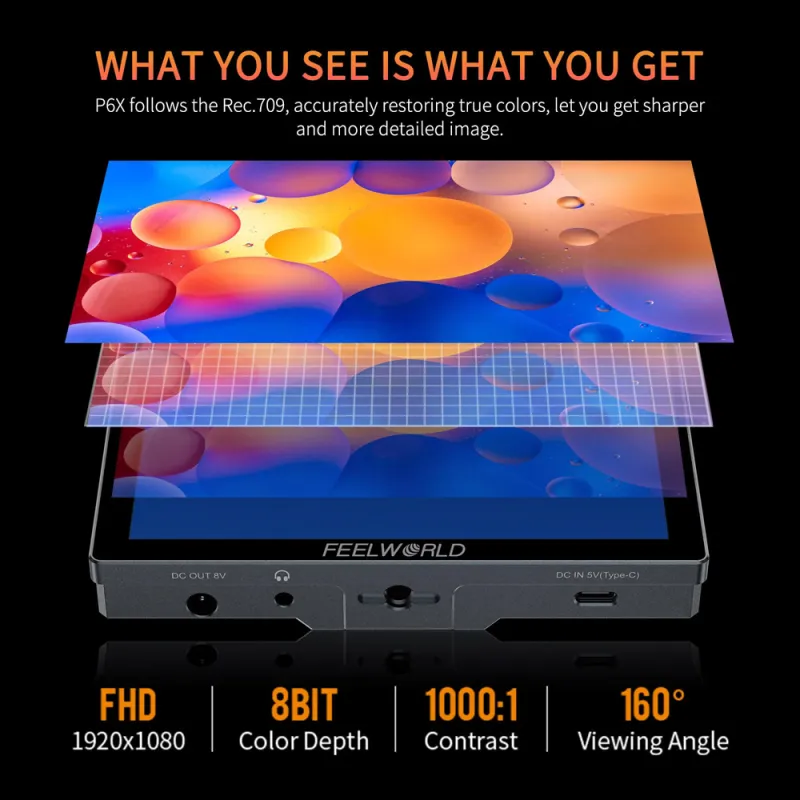

5.5 inch Full HD display
Extremely high resolution 5.5 inch IPS panel provides excellent detail and accurately reproduces original colors. Wide viewing angle clearly provides more detailed image.

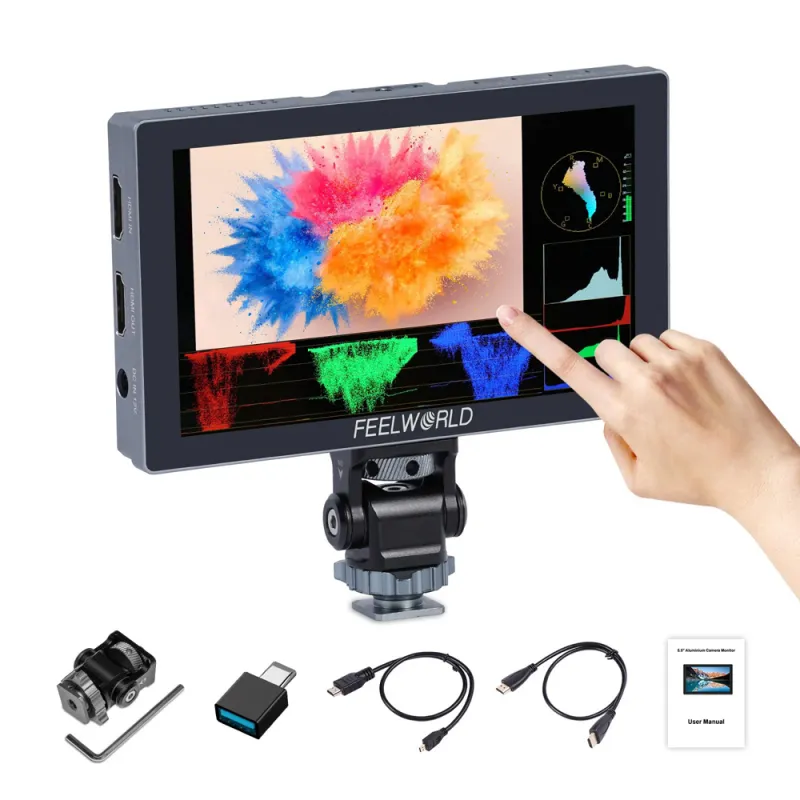

Sensitive touchscreen operation
The innovative touchscreen LCD user interface offers incredible control. You can use simple tap and swipe gestures for key monitoring functions without buttons.


Button control, more selection
In addition to touch control, the P6X also offers button control. In particular, the three custom shortcut buttons allow the photographer to preset the shortcut functions based on the actual needs of the shooting location, and quickly access the required functions during the shooting process, significantly improving shooting efficiency.


9:16 Vertical Screen Marking
The P6X has many types of ratio markups, especially the 9:16 vertical screen markup. Perfect for vertical screen platforms such as Tap Tok, Instagram.


Menu user switch
The P6X offers saving menu settings in 4 groups. You can select 1~4 groups after setting the menu. These are saved automatically and can be called directly or switched next time.

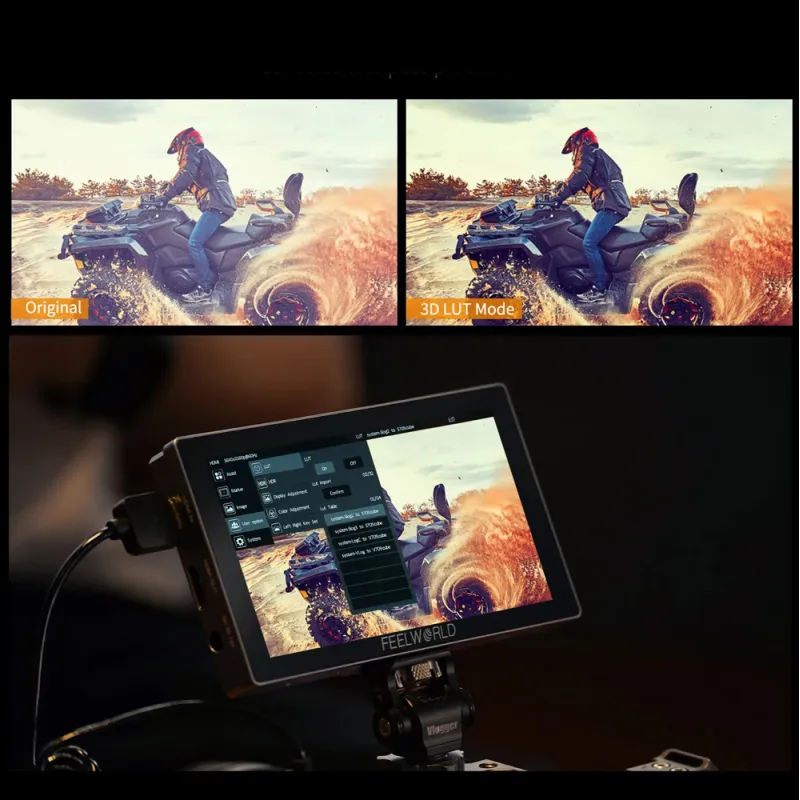

Supports uploading 32 custom LUTs.
The 3D LUT is a table that allows you to quickly look up and output specific color data. By loading several 3D LUT tables, it can quickly recombine the color tone to form different color styles. Built in 4 DE log LUT, you can also load the custom .cube file via USB flash driver (up to 32 load). Insert the USB flash driver into the standard accessory Type C to USB adapter, then connect to P6Xs Type C interface.


HDR Monitoring
When HDR is activated, the display reproduces a wider dynamic range of brightness, allowing lighter and darker details to be displayed more clearly.

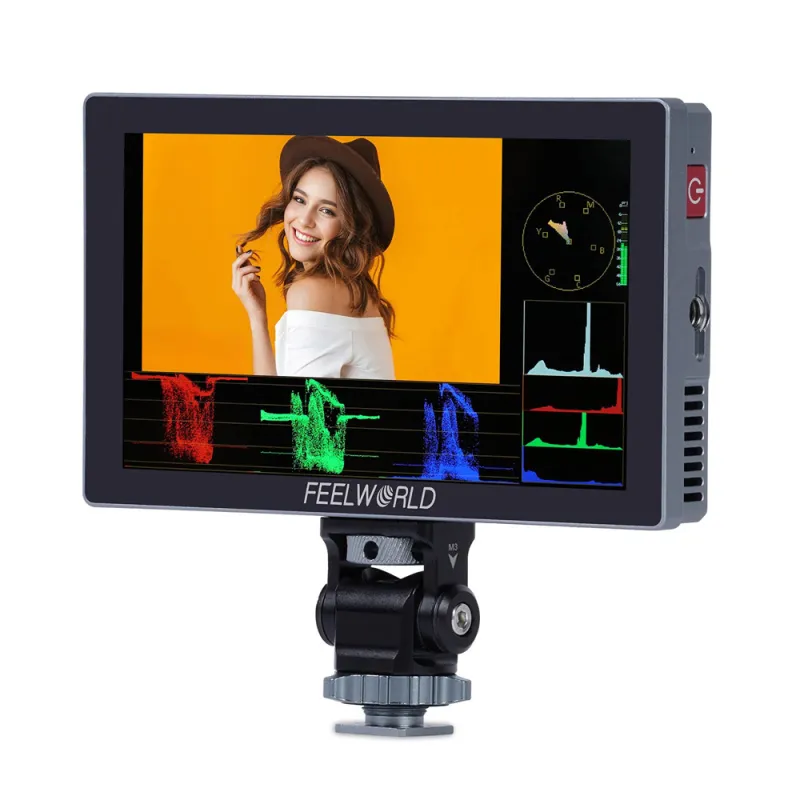

Accurate waveform monitoring
Built in waveform monitoring, you can choose from waveform, vector scope, histogram, audio phase and level views, and get accurate waveform monitoring that shows everything you technically need to know about your video and audio signals. The functions can be accessed individually and also support one button to access all scope modes. The P6X becomes the ideal choice for live production monitoring, eliminating the need for separate, expensive scopes!


4K HDMI input and output, high speed transmission
Equipped with 4K HDMI input and output, the signal supports up to 4096x2160/60p and 3840x2160/60p, compatible with the latest DSLR cameras on the market. And provide a 3.5mm headphone jack to monitor audio.


DC 8V OUT, power your DSLR or mirrorless camera
The P6X offers an additional DC 8V power output (suitable DC 5.5 x 2.1 mm plug), allowing photographers to power their cameras. With a battery adapter cable (optional), the P6X extends camera run time and provides a more usable display


Multiple power supplies, long lasting power for shooting
You can connect to the DC power input to get continuous power (suitable for using a 1.5 A power adapter, DC 5.5 x 2.1 mm plug) or use the standard NP F battery plate to install the NP F series battery for mobile applications. Install one F750 battery (4400 mAh) that lasts approximately 3 hours. The monitor also provides a 5V Type C input, which can be powered by a cell phone charger or power bank. (Minimum 5V/2A).


Please note that the battery is exclusive, must be purchased separately.


11 languages supported
P6X is built in up to 11 languages, which means P6X is perfect for international location work with different shifts because you can just go to the menu and change the language whenever you want!


Multiple mounting points, meet different monitoring needs
The monitor is equipped with 3 standard 1/4 mounting threads (top, bottom, right side), you can easily mount it on the camera or other types of equipment with a magic arm, bracket, etc. Meet the different monitoring for photographer or director.,

Model: P6X
Screen size: 5.5 IPS
Resolution: 1920x1080 pixels
Pixel Pitch: 0.069 (H) 0.069 (V) (mm)
Aspect Ratio: 16:9
Brightness: 1000cd/m
Contrast Ratio: 1000:1
Backlight: LED
Viewing angle: 80/80 (L/R) 80/80 (U/D)

Input

 1 X HDMI: HDMI 2.0
 1 X DC: DC IN 12V (suitable for Barrel DC5.5*21mm plug)
 1 x USB: 5V Type C (use 5V/2A or more than 2A Type C power supply)

Output

 1 X HDMI: HDMI 2.0
 1 X DC: DC OUT 8V (suitable for Barrel DC5.5*21mm plug)

Audio

Audio: 3.5mm stereo headphones

Supported format for HDMI input output

480i / 576i / 480p / 576p
1080i (60 / 59.94 / 50)
720p (60/59.94/50/30/29.97/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/23.98)
3840x2160p (60/50/30/29.97/25/24/23.98)
40962160p (60/50/30/29.97/25/24/23.98)

General

Input voltage: DC7 ~ 24V
Power consumption: 10W
Operating temperature: 20C ~ 50C
Storage temperature: 30 C ~ 60 C
