Feelworld SEETEC P133 Pro Broadcast Monitor

SEETEC P133 Pro Broadcast Monitor

SEETEC P133 Pro Broadcast Monitor ir daudzfunkcionāls, augstas kvalitātes displejs, kas ideāli piemērots studijas pārraidēm, tiešraidēm un āra ierakstiem. Tas atbalsta SD/HD/3D SDI un līdz 4K HDMI 60Hz video formātus, piedāvājot XLR, DC IN barošanas ieeju un V montāžas akumulatora plati elastīgām barošanas iespējām. Ar dažādām kamerā iebūvētām palīgfunkcijām tas vienkāršo uzņemšanas procesu un uzlabo pēcapstrādes efektivitāti. Monitoru var piestiprināt pie sienas, izmantojot VESA statīvu, vai izmantot uz galda statīva.

Izcelšanās

• 13.3 collu Full HD displejs Augstas izšķirtspējas IPS panelis ar 8 bitu krāsu dziļumu detalizētām bildēm.
• CalMAN kalibrācija Nodrošina precīzu krāsu atveidošanu pirms iznākšanas no rūpnīcas.
• 1000 NIT spilgtums Redzams dažādos apgaismojuma apstākļos.
• 4K 60Hz atbalsts Gluda attēlu pārsūtīšana ar augstiem kadru ātrumiem.
• 32 pielāgojami LUT Viegli augšupielādējiet un pārslēdzieties starp LUT, lai optimizētu krāsu kalibrāciju.
• HDR uzraudzība Plašāks dinamiskais diapazons uzlabotiem vizuālajiem efektiem.
• Precīza viļņu formas uzraudzība Iebūvēti rīki tehniskai video un audio signālu analīzei.
• Intuitīvas vadības Pielāgojami ātrie taustiņi un viegla signāla avota pārslēgšana.
• 3 krāsu TALLY gaisma Uzlabo komandas sadarbību tiešraidēs.

Iekļautie piederumi

• SEETEC P133 Pro Broadcast Monitor
• 3A barošanas adapteris
• Tally komplekts
• V montāžas akumulatora plate
• Mini HDMI kabelis
• HDMI kabelis
• SDI kabelis
• Lietotāja rokasgrāmata

High quality professional monitoring
The SEETEC P133 Pro Broadcast Monitor is a high quality monitor versatile enough to be used for studio broadcasts, live productions or outdoor crew recordings. The P133 PRO works with all SD/HD/3D SDI and up to 4K HDMI@60Hz video formats and includes XLR, DC IN power input and V mount battery plate, so you can use it with battery or connect to DC power. A range of in camera assist functions can help photographers compose on the spot and save time in post production. This monitor can be wall mounted using a VESA stand and desktop stand.


Highligts

13.3 inch Full HD display
True colour reproduction
4K 60Hz, for a smoother experience

13.3 inch Full HD display
With extremely high resolution 13.3 inch IPS panel, a wider field of view and clearly present more detailed image. 8bit colour depth with 16.7M colour screen.


CalMAN software calibration, true colour reproduction
Each monitor is calibrated by CalMAN professional colour calibration software before it leaves the factory to ensure colour accuracy and true display.


1000NIT, Daylight display
The high brightness of 1000nit can be viewed in almost any kind of light. Indoors, outdoors or wherever you want.


4K 60Hz, for a smoother experience
HDMI upgraded for 4K at 60HZ, capable of transferring twice as much video data as 4K at 30HZ. Ensures smoother images and preserves dynamic images at high frame rate from cameras.


Supports uploading 32 custom LUTs
The LUT loading function makes colour calibration easier and more intuitive, optimises workflow and improves work efficiency in the early stages of shooting. You can use the built in LOG or upload .cube files. With the P133 PRO, you can load up to 32 custom LUTs, looks or profiles internally at any time via the USB flash driver and choose between them directly, ensuring that creative intent is always maintained.


HDR monitoring
When HDR is activated, the display reproduces a wider dynamic range of brightness, rendering brighter and darker details more clearly, better reproducing visual effects in real world environments. Built in HLG1, HLG2, HLG3 three types.


Accurate waveform monitoring

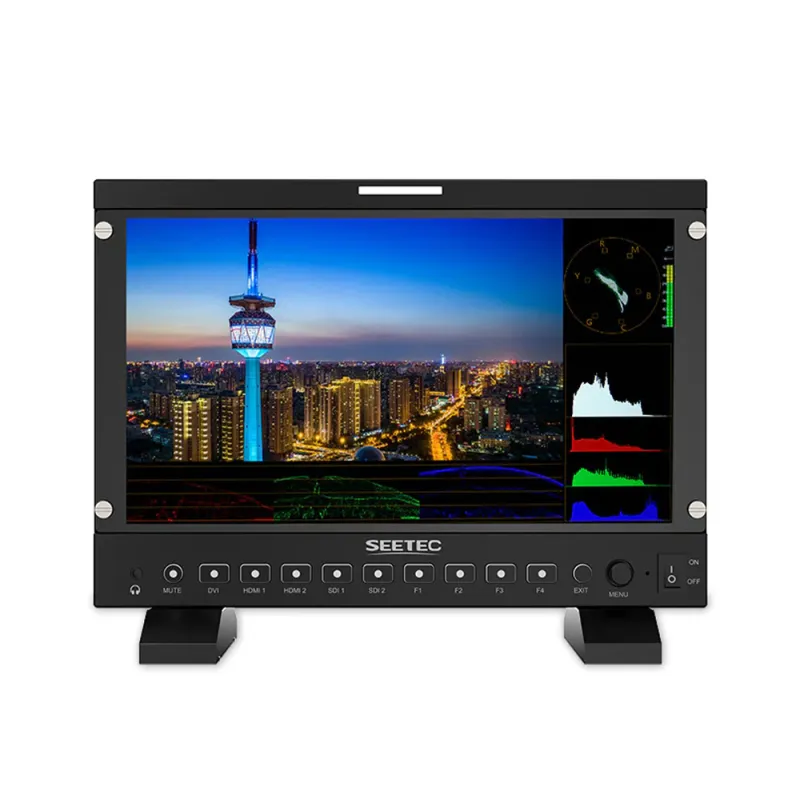

Built in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be accessed separately and also support one button to access all scope modes. When enabled separately, you can also change its horizontal or vertical position. The P133 PRO becomes the ideal choice for live production monitoring, eliminating the need for separate expensive scopes!


Intuitive button operation
The P133 PRO comes with multiple intuitive buttons that allow you to mute the sound or easily switch the signal source with a single button, and the green LED backlit button that allows you to quickly identify the signal being played, even in dimly lit environments. The 4 customisable hotkeys allow you to adjust the hotkey function to suit your needs, such as all waves, focus assist and so on, so you can shoot more efficiently.


3 colour TALLY Light, enhances team collaboration

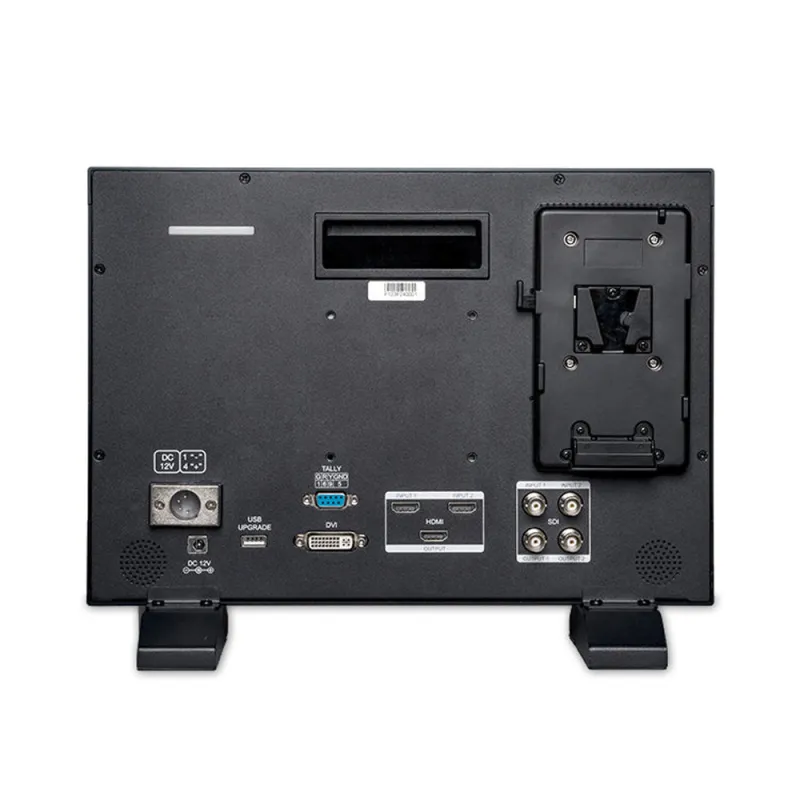

The front and rear panels of the P133 PRO feature Tally Light, which can display a red, green or yellow Tally signal. This means that during a live production, you always know when you are recording or on air, or you can see which camera has been recorded on the preview output of your switcher. Tally is connected via an industry standard parallel pin connector on the rear panel.,

13.3 inch 1920x1080 full HD large screen,
1000nits high brightness,
Intuitive button controls, 4 custom function hotkeys
Custom 3D LUT,
Support 4K@60 HDMI input and output
Under HDMI signal, sound meter level can be displayed max 8 channels; under SDI signal can be displayed max.16 channels
HDR monitoring,
Built in Tally light front and rear,
The top, left and right sides of the protective cover have 1/4 and 3/8 threads,
Stereo earphone output
,

1 SEETEC P133 Pro Broadcast Monitor
1 3A power adapter
1 Tally Kit
1 V mount battery plate
1 Mini HDMI cable
1 HDMI Cable
1 SDI Cable
1 User Guide
