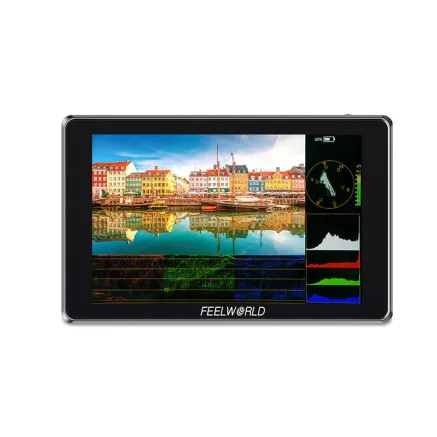

Feelworld S10 12G SDI Monitor

Ideāla 4K SDI uzraudzība

FEELWORLD iepazīstina ar Feelworld S10 12G SDI Monitor, kas vienkāršo 4K darba plūsmas, prasot tikai vienu 12G SDI kabeli, nevis četrus 3G SDI kabeļus. Tas novērš nepieciešamību uzraudzīt 2K, filmējot 4K.

Izcelšanās

• Profesionāla raidījumu kvalitāte Atbalsta SD, HD SDI, 3G SDI, 6G SDI un 12G SDI avotus ar augstas kvalitātes video atkārtošanu.
• 10 collu Full HD displejs Iespējo 10 collu IPS paneli ar 1,07 miljardiem krāsu un 160 grādu skatīšanās leņķi, uzlabojot sadarbību.
• Pielāgojami ātrie taustiņi Trīs pielāgojami ātrie taustiņi ātrai piekļuvei būtiskām funkcijām, uzlabojot filmēšanas efektivitāti.
• Jutīga skārienekrāna darbība Intuitīva kontrole, izmantojot pieskārienus un slīdēšanas žestus, kā arī kameras kontrole, izmantojot ritināšanas riteni.
• Augšupielādējami 3D LUTs Atbalsta līdz 32 pielāgojamiem LUTs krāsu kalibrēšanai, uzlabojot darba plūsmu un radošo nodomu.
• 3 krāsu TALLY gaisma Norāda ierakstīšanas statusu ar sarkanu, zaļu vai dzeltenu gaismu, uzlabojot komandas sadarbību.
• Daudzveidīgas montāžas vietas Aprīkots ar trim 1/4 montāžas vītnēm daudzveidīgām pievienošanas iespējām.
• Mini karstā kurpes adapteris Viegli noņemams, lai izmantotu ar dažādām iekārtām, piedāvājot 180 grādu skatīšanu un 360 grādu rotāciju.

Tehniskie dati

• 10 collu 1920x1200 Full HD IPS ekrāns
• Skārienekrāna izvēlnes kontrole
• 1600 nits spilgtums saules gaismas redzamībai
• Robusta alumīnija korpuss
• 12G SDI augstas ātruma pārsūtīšana
• SDI un HDMI krusts konversija
• Atbalsta LUT atkārtošanu un lietotāja augšupielādētus 3D LUTs
• HDR uzraudzība ar viļņu formu, vektoru, histogrammu un audiometru
• Iekļauti F970 divu akumulatoru plāksnes paplašinātai āra lietošanai
• Stereo austiņu izeja

Iekļautie piederumi

• 1 Feelworld S10 12G SDI Monitor
• 1 Mini HDMI kabelis
• 1 HDMI kabelis
• 1 F970 divu akumulatoru plāksne
• 1 Mini karstā kurpes montāža + sešstūra atslēga
• 1 Lietotāja rokasgrāmata

Perfect 4K SDI monitoring
FEELWORLD releases the first Feelworld S10 12G SDI Monitor field monitor. This allows you to reduce system complexity in a 4K workflow. Instead of 4 x 3G SDI cables to get 4K video image, you only need one 12G SDI and no longer have to monitor 2K while shooting 4K.


Highlights

Professional broadcast quality
10 inch Full HD display
Multiple mounting points
Mini hot shoe adapter

Professional broadcast quality
The S10 can not only handle the monitoring of all your SD, HD SDI, 3G SDI, 6G SDI and 12G SDI sources, but can also loop high quality broadcast video simultaneously. This offers you the perfect future proof surveillance solution and ensures the best possible quality and a smooth, fluid viewing experience!


10 inch Full HD display
With an extremely high resolution 10 inch IPS panel, a wider field of view and significantly more detailed image. 1.07B colour provides a richer range of colours. 160 wide viewing angle, supports multiple members to control the image from all angles, facilitates team collaboration for filmmaking.


Custom hotkeys
There are three customised hotkeys on the top of the S10, the photographer can preset the hotkey functions based on the actual needs of the shooting location, and quickly recall the desired functions while shooting, greatly improving shooting efficiency.


Sensitive touchscreen operation
The innovative touchscreen LCD user interface offers incredible control. You can use simple tap and swipe gestures for key monitoring functions without buttons. Moreover, you can also control the camera with the scroll wheel.


Load custom 3D LUTs, watch film in the field
The LUT loading function makes colour calibration easier and more intuitive, optimises workflow and improves work efficiency in the early stages of shooting. You can use the built in LOG or upload .cube files. With the S10, you can load up to 32 custom LUTs, looks or profiles internally at any time via the SD card slot and choose between them directly, so you always maintain your creative intent.


3 colour TALLY light, enhances team collaboration
The S10 includes a traffic light that can display a red, green or yellow traffic light. This means that during a live production, you always know when you are recording or on air, or you can see which camera is recorded on the preview output of your switcher. Tally is connected via a standard parallel pin connector on the rear panel.


Multiple mounting points
The monitor is equipped with 3 standard 1/4 mounting threads (bottom, right side, left side), you can easily mount it on the camera or other types of equipment with a magic arm, bracket, and so on. So you can meet different monitor requirements for photographers and directors.


Mini hot shoe adapter
The standard accessory mini hot shoe mount adapter can be quickly detached and attached to the camera monitor, LED light, flash, microphone, etc. Top with 180 viewing angle and base with 360 rotation.,

10 inch 1920x1200 full HD IPS screen
Touch screen menu control
1600 nits visible in sunlight
Robust aluminium housing
12G SDI high speed transmission
With SDI & HDMI cross conversion
Both HDMI and SDI support LUT loop out
Supports 3D LUT Log to REC.709 and 3D LUT upload by user (up to 32)
HDR monitoring
Support waveform, vector, histogram, audiometer vertically and horizontally movable
Standard accessory F970 dual battery plates, long lasting power for outdoor filming
Stereo earphone output
,

1 Feelworld S10 12G SDI Monitor
1 Mini HDMI Cable
1 HDMI Cable
1 F970 Dual Battery Plate
1 Mini hot shoe assembly + Hex wrench
1 User Guide
