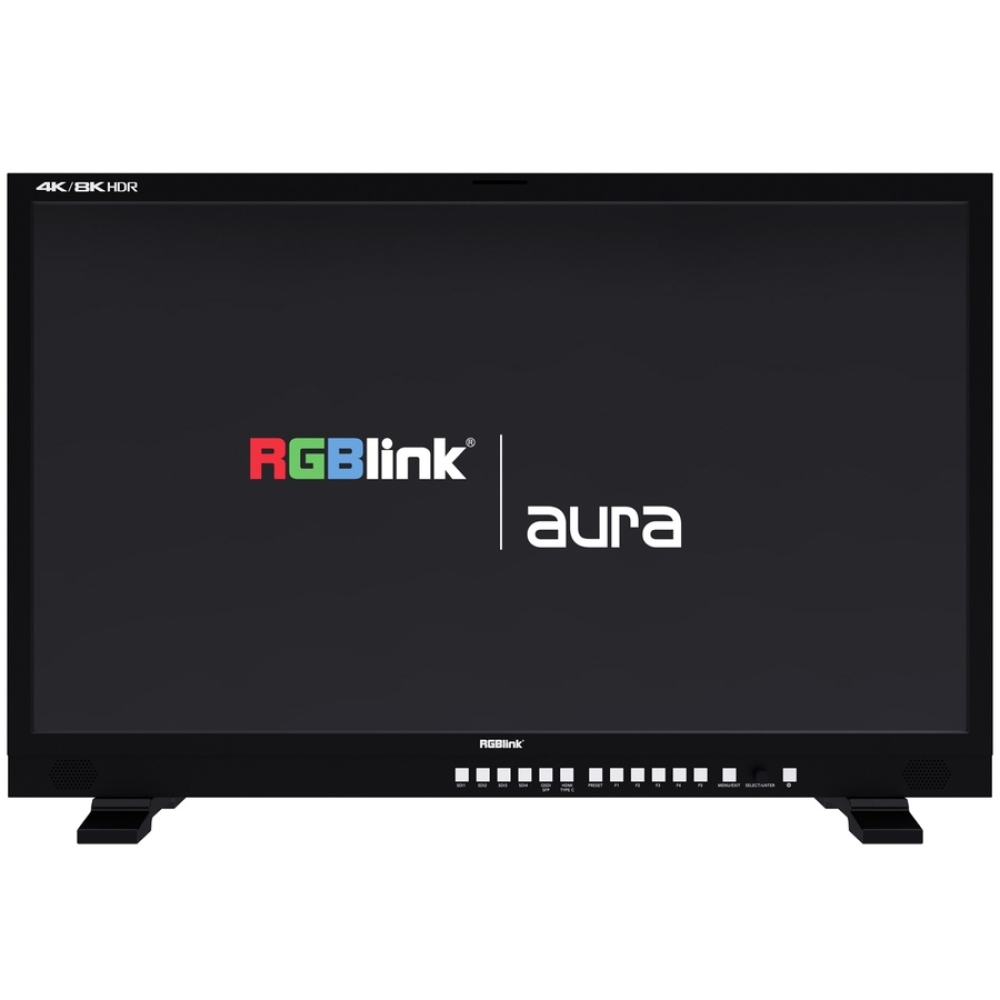

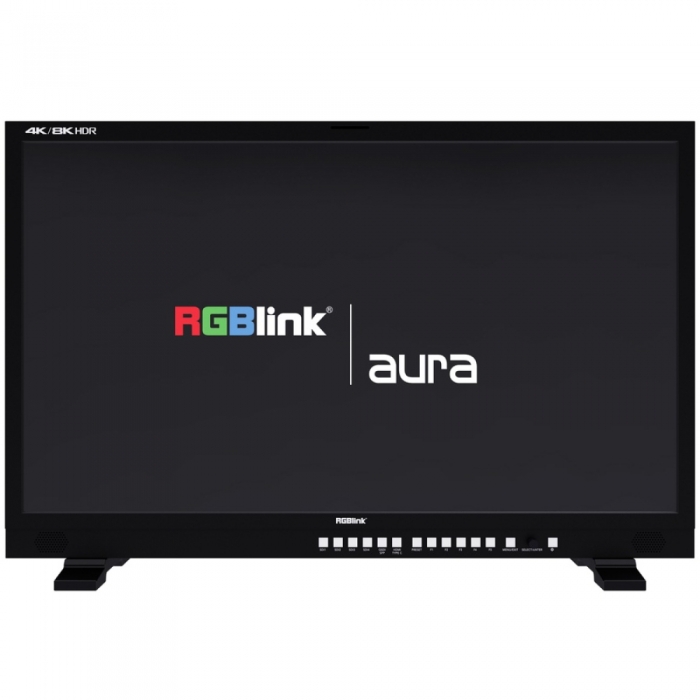

RGBlink Aura UHD 32 Production & Grading Monitor

RGBlink Aura UHD 32 Production & Grading Monitor

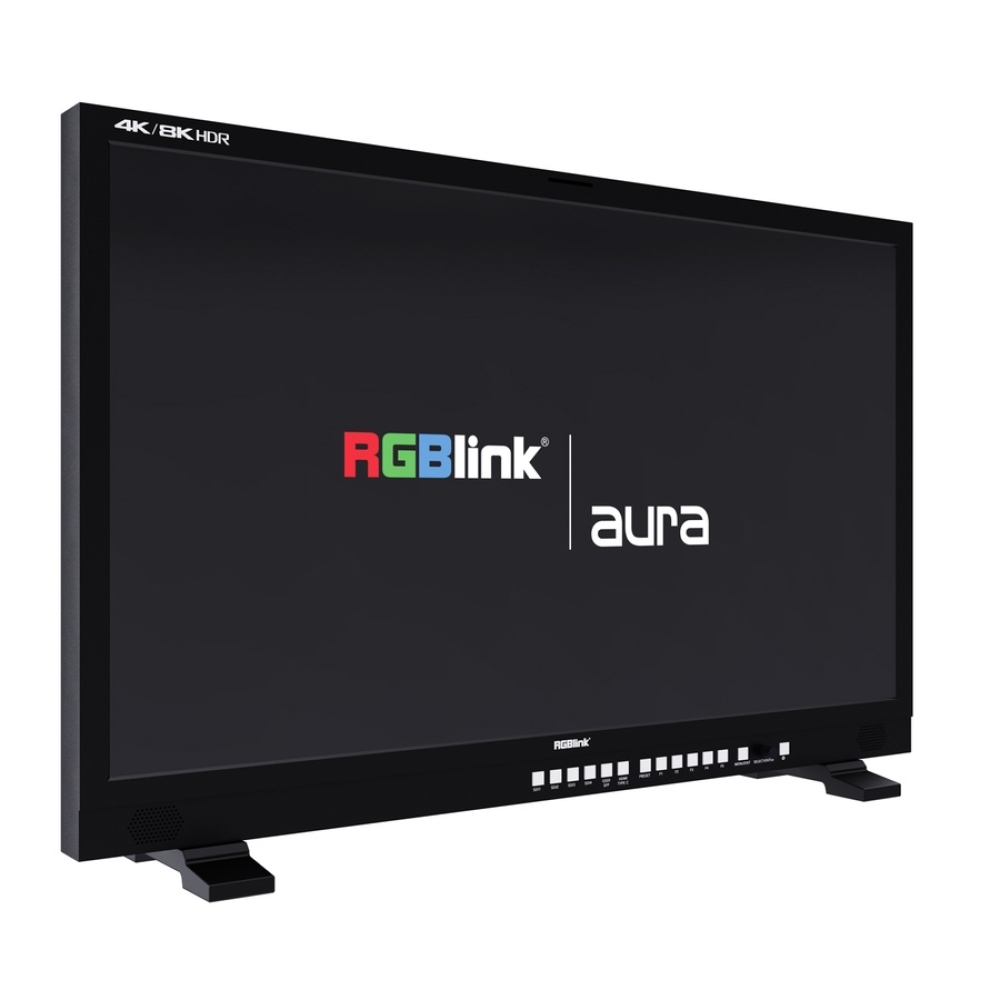

12G-SDI Professional 32 UHD Film and Television Production Monitor

This 32 broadcast/grading 4K HDR monitor, equipped with UHD (3840×2160) screen, supports 4-channel single-link 12G-SDI, quad-link 4K SDI and HDMI2.0 signal input, it supports high-precision 3D LUT with tetrahedral interpolation algorithm and HDR formats such as SMPTE ST2084(PQ), hybrid log-gamma HLG, various Gamma curves , camera Log and other professional functions which are widely used in pre-shooting and post-grading work in broadcasting, film, television, and high-end advertising production.

• 12G-SDI /8K/4K HDMI Signal
• 4K IPS LCD Panel
• Professional On Set Monitoring Tools
• Flexible and Intuitive Button Operation
• Accurate 3D LUT Color Calibration
• Multiple Screen Modes
• SDR and HDR Image Comparison Function
• 12G-SFP Fiber Port
• USB-C (Thounderbolt) input Port
• Aluminum Alloy Frame
• Payload ID Automatically Read
• 3D LUT, Recreate Film Looks
• Dynamic UMD
• Three Color Tally Lights
• Professional Audio Meters

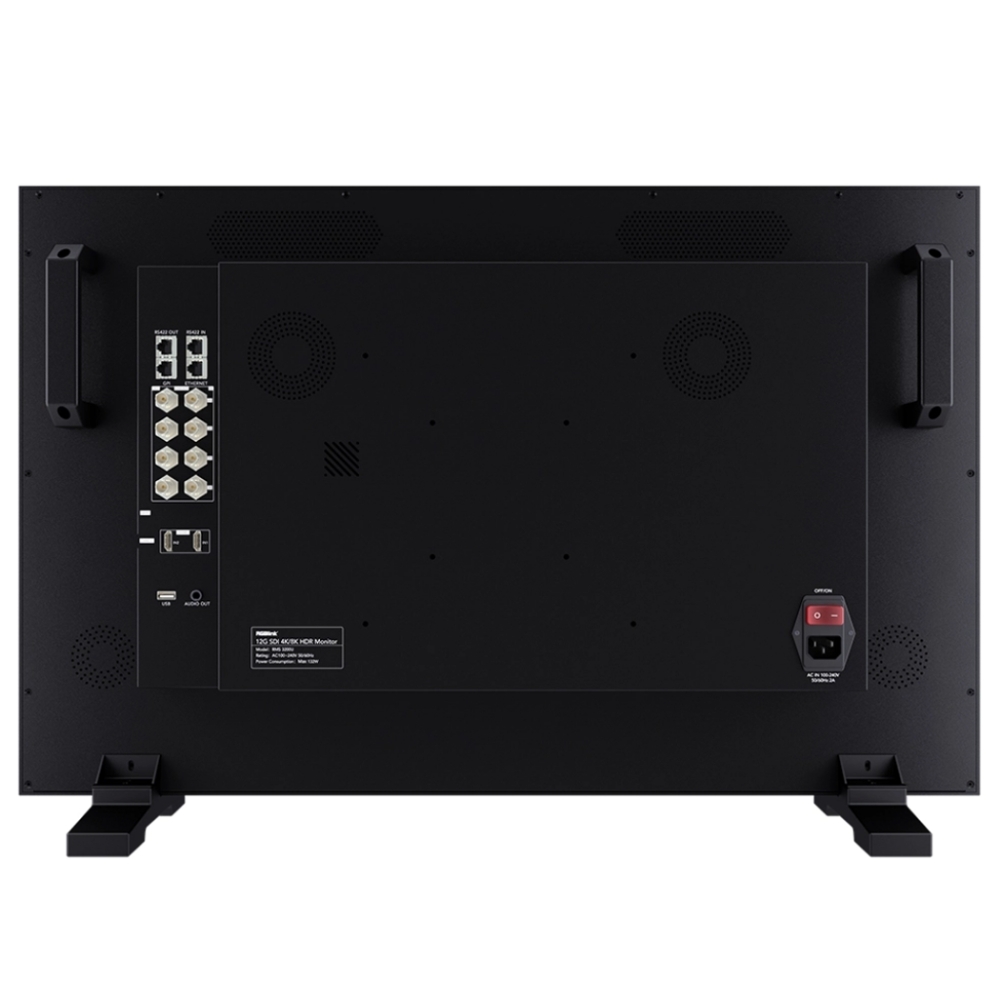

• Removable feet and handles on the back side
• VESA mounting points

When you need  high quality SDI monitoring for 4K or 8K video, RMS UHD series is the perfect choice. It comes with four 12G-SDI in- and outputs and supports up to 8K signal input. There are multiple possible configurations of input with two HDMI 2.0 inputs that support 4096x2160p and 3840x2160p up to 60p. Corresponding to the refreshrate of 60 frames per second, 4K audio and video transmission can be solved just over a single cable, reducing costs and ensuring high quality image, bringing you a new visual experience!

The 4K UHD LCD panel, with ultra high resolution and color depth up to 10bit displays 1.07B colors, that allow you to see a color performance you have never seen before providing more creative space for color grading. This UHD Monitor covers 100% Rec.709 and 98% DCI-P3 wide color gamut, presenting rich color and supports ITU-R BT.2020, ITU-R BT.709, EBU, SMPTE-C, Native and other color gamuts. It offers a series of professional auxiliary monitoring tools, such as waveform, 3D-LUT, peaking filter, histogram, vector scope, audio meter, time code, image flip, etc. All these functions are easy to select and operate from the OSD menu.

When you are busy at the shooting scene, you need to be able to easily control the equipment. You can switch between one-button sources, custom shortcuts, and quickly call out menu etc. to make shooting easier. The backlit button-design makes it easier for you to distinguish the current input signal and the shortcut keys, easy to use even in dimly lit studio or outdoor environments.

The 32 RMS UHD Production Monitor adopts a high-precision 3D LUT that supports tetrahedral interpolation algorithm, and built-in Rainbow color management engine to ensure accurate color reproduction.

Perfect choice for multiple camera monitoring.
Quad view, Quadview triple side , Quadview triple bottom, PBP, PAP multi display mode or one monitor are supported for multi-camera setups.

Supports HDR mode/Gamma (EOTF)
The RMS UHD 32 can perform SDR and HDR image comparison monitoring in multi-view mode, supporting HLG (1.0,1.1, 1.2, 1.3, 1.4, 1.5), mixed log gamma, ST.2084, Dolby Vision PQ, Sony S-log3 HDR, various common gamma and user Gamma LUT upload.

All Monitors of the RMS UHD-Series come with an SFP interface that is  compatible with universal SFP or SFP+ fiber optical modules, what is an essential part of high-speed telecommunications and data communications, especially in large network environments, to receive of broadcast quality transmission level video data via fiber optic connection. Fiber optic input is the industry standard in the control room video transfer technology.
Note: SFP module optional. SFP+ module on camera and monitor must be the same.

Note on Calibration (see requirements in the manual)
To perform a color calibration and upload LUTs, you need a Windows PC with a PCIe card with SDI output and the free Windows app PD Tools. The manufacturer provides the app on its website for free download.

The full aluminum alloy frame not only make the device more solid and durable, but also solve the problem of heat dissipation.

The Monitor can read the Payload ID information of the SDI input signal source and automatically select the color gamut and EOTF (PQ or HLG) curve.
By loading different 3D-LUT tables, it can quickly recombine color tone to form different color styles. With nine DE-log LUT built in, you also can load custom .cube files via dedicated software application. UMD of TSL 3.1/4.0/5.0 protocol is also supporter which let you display the signal source with up to eight letters.

GPI controls red, green and yellow Tally, which not only can remind the operator to enter the recording state, but also appreciate the convenience of a TV shooting professional technology in your production. The Monitors of the RMS UHD series can de-embed audio from SDI and HDMI. You can select any 2 channel audio to output via either speaker or 3.5mm headphone jack. The 16-channel audio meters can be displayed vertically or horizontally.

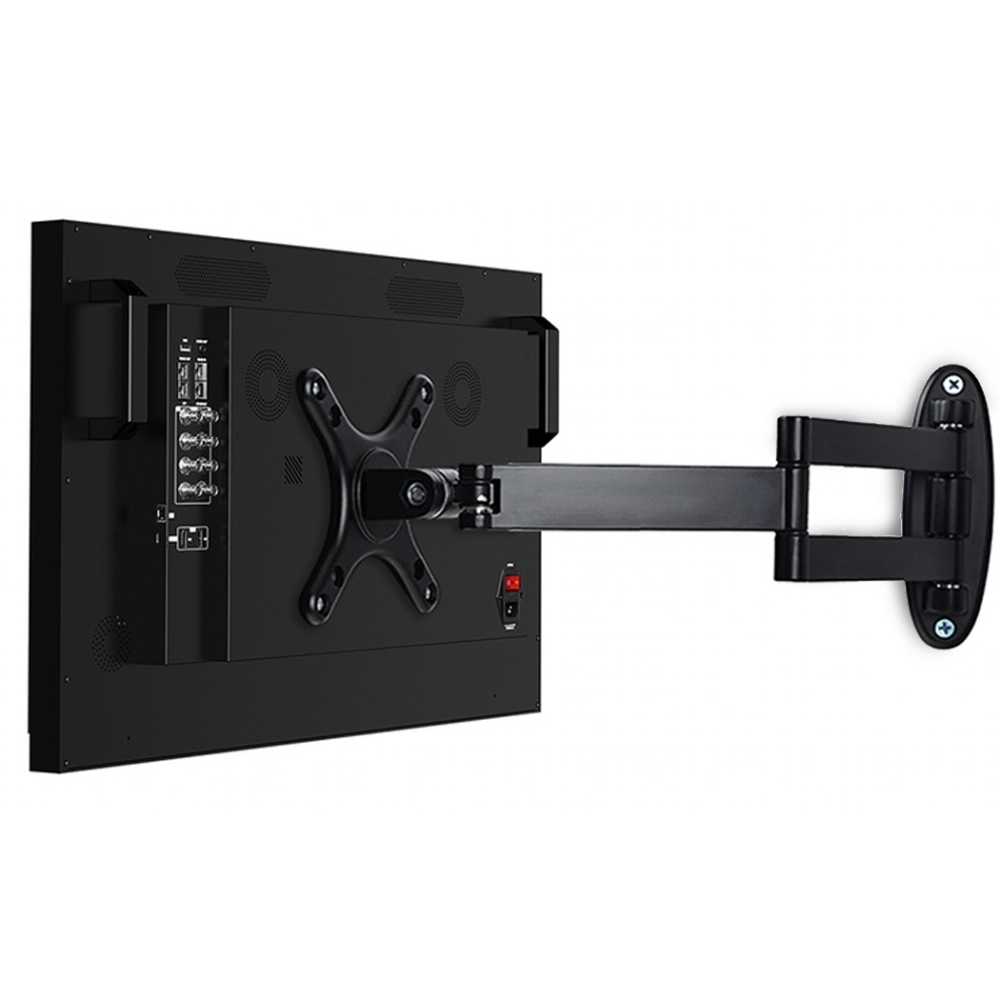

The Monitor is equipped with 100×100 and 200×200mm VESA mounting points. You can easily hang it on on articulated arm or wall for a busy newsroom.
Note: articulated arm is not supplied

In the Box
1x RGBlink RMS3200U 32 UHD Monitor
1x Powercable


Specifications

Screen Size

32

Brightness

700nit

Color Depth

10Bit

Resolution

3840x2160

Aspect Ratio

16:9

Contrast Ratio

1200:1

Backlight

LED

Responsetime

9ms

Viewing Angle

178°

Screen Gamut

98% DCI-P3

SDI Interface

4× BNC - 12G-SDI Input (support 8K input)
4× BNC - 12G-SDI Output

HDMI Interface

2× HDMI-A - HDMI 2.0 Input

Other Interface

• 1× Type-C/Thunderbolt3 - USB-C
• 1× SFP - 12G Fiber
• 1× RJ45 - Network Port (For connecting network cable)
• 1× RJ-45 - GPI (Remote Control/Trigger various functions)
• 2× RJ-45 - RS422 (1 In | 1 Out /Loop)
• 1× 3.5mm Jack - Earphone Output (The speaker will be turned off when earphone is connected)
• 1× USB-A - Input (For software upgrade)
• 1× 4-Pin XLR - DC In 12V 8A

Tally

Front

3D LUT

Tetrahedral interpolation, User LUT

HDR

PQ + HLG

EETF

Yes

Still Image Detection

Supported

Gamma

• Gamma 2.0, 2.2, 2.4 & 2.6
• SMTP ST 2084(PQ)
• ITU-R
• BT.2100(HLG)
• S-Log3
• Canon Log

Camera Log

• Sony
• Canon
• ARRI
• DJI

Gamut Comparison

SDR and HDR Image Comparison

Gamut Warning

Yes

Multi-View

Display multiple signal sources on the same screen
• Quadview triple side
• Quadvie triple bottom
• Live Broadcast Mode
• PBP
• PAP

UMD

3.1, 4.1, 5.0

Monitoring Tools

• Waveform
• Vectorscope
• Histogram

Time Code

Yes

Input Voltage

AC 100V~240V

Power Consumption

Max. 132W

Working Temperature

-10°C ~ 55°C

Storage Temperature

-20°C ~ 60°C

Net Dimension (LxHxD)

751 × 502 × 179 mm

Packaged Dimension (LxHxD)

980 × 270 × 675 mm

Net Weight

15.3 kg

Packaged Weight

20.6 kg
