SmallRig 4824 HawkLock Quick Release Cage for Panasonic LUMIX GH7 / GH6

SmallRig 4824 HawkLock ātrās atbrīvošanas kaste Panasonic Lumix GH7/GH6

To piestiprina pie kameras, izmantojot vienu 1/4-20 skrūvi un divas M2,5 skrūves abās pusēs.

Iebūvētās aizsargplāksnes novērš kameras saskrāpēšanu.

Sprosts nodrošina piekļuvi pieslēgvietām, pogām vai akumulatora vāciņam.

1/4-20 vītņotie caurumi, ARRI 3/8-16 atrašanās vietas noteikšanas caurumi un HawkLock cold shoe stiprinājumi atbalsta SmallRig augšējo rokturi 3765, sānu rokturi 2093, monitora stiprinājumu 2903, mikrofonus, LED gaismas, monitorus u. c.

Apakšējā QD ligzda atbalsta SmallRig QD plecu siksnu.

HawkLock Arca-Swiss ātrās noņemšanas plāksne apakšā ir saderīga ar DJI RS 2/RSC 2/RS 3/RS 3/RS 3 Pro/RS 4/RS 4 Pro.

Kameras sānos un apakšdaļā ir atveres siksnām, kas ļauj piestiprināt tādus piederumus kā siksnas rokām 2456.

Turklāt būrī ir iebūvēta magnētiskā skrūvgrieža atslēga, kas atvieglo demontāžu un montāžu.

Savietojamība

• Panasonic LUMIX GH7
• Panasonic LUMIX GH6

Iepakojumā

• 1 x būris

Creative expansion

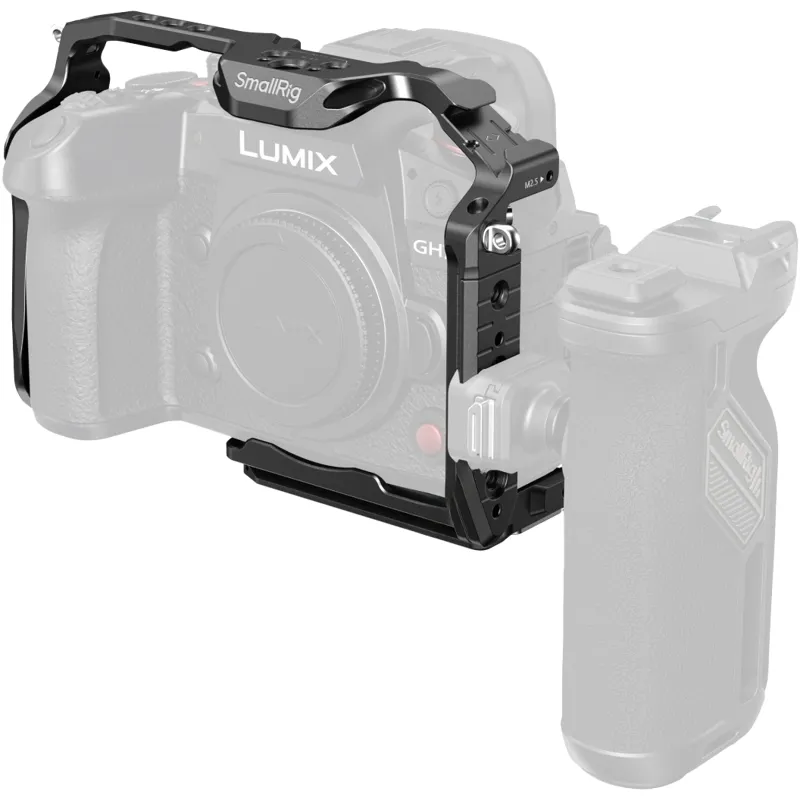

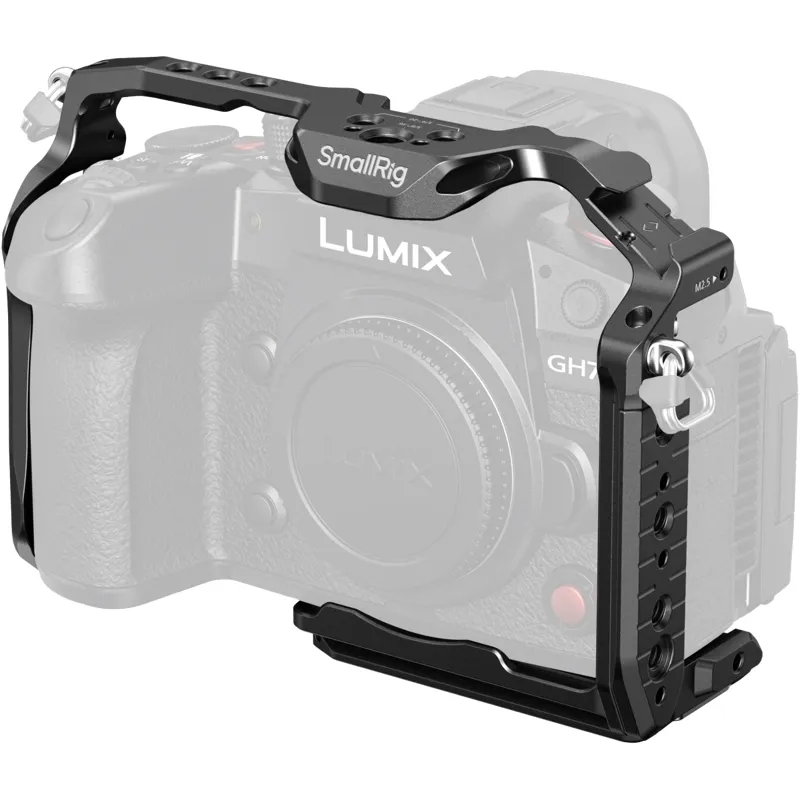

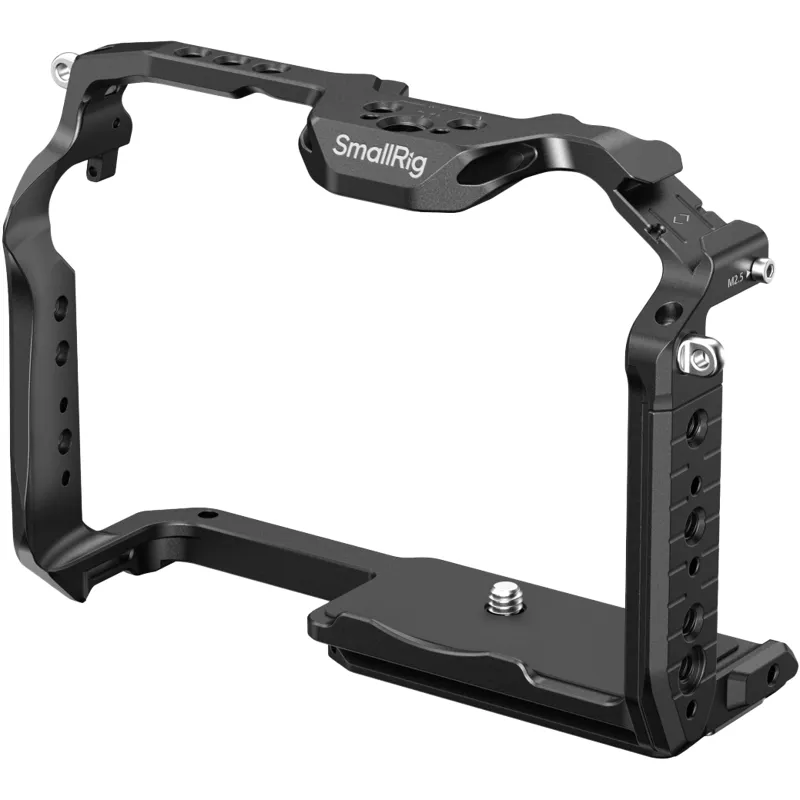

The SmallRig 4824 HawkLock Quick Release Cage for Panasonic LUMIX GH7 / GH6 is designed to attach accessories and protect the camera. The patented self developed quick release structure HawkLock covers cold shoes, NATO rail, and arca swiss, which is used with HawkLock eco accessories to achieve a solid and no false position, one push to load, release to lock, and improve disassembly efficiency. It locks the camera via a 1/4 20 screw and the two M2.5 screws on either side. Built in protective spacers all around prevent scratching the camera.


Highlights

Self developed quick release design, stable and immovable
Compatible with traditional cold shoe, NATO clamp and Arca Swiss clamp

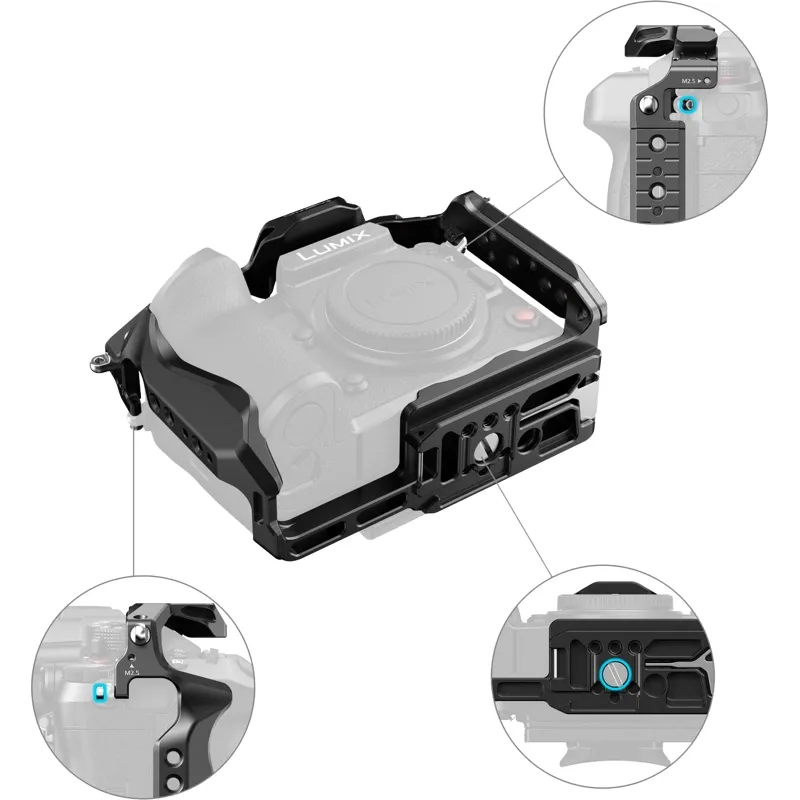

Three point locking:
Arca Swiss quick release plate at the bottom for quick tripod switching,
Multiple attachment points

Multiple interfaces
The cage allows access to interfaces, dials, buttons or battery covers. Holes with 1/4 20 threads, ARRI 3/8 16 mounting holes and HawkLock cold shoe mounts support top handle 3765, side handle 2093, monitor mount 2903, microphones, LED lights, monitors, etc. The lower QD mount supports the QD shoulder strap. HawkLock Arca Swiss quick release plate at the bottom is compatible with DJI RS 2 / RSC 2 / RS 3 / RS 3 Pro / RS 4 / RS 4 Pro. Belt holes on the sides and bottom of the cage allow attachment of accessories such as the hand strap PAC2456. Moreover, the cage has a built in magnetic key that facilitates disassembly and assembly.,

Dimensions: 160.3 114 62 mm
Weight: 192.5 g
Material: aluminium alloy, stainless steel, silicone
2 year warranty
,

1 x SmallRig 4824 HawkLock Quick Release Cage for Panasonic LUMIX GH7 / GH6
