Kompaktais UltraStudio 3G ierakstītājs no Blackmagic Design ļauj tvert vai straumēt video no kameras vai cita SDI vai HDMI. avots, izmantojot datora Thunderbolt savienojumu. Šis ierakstītājs atbalsta gan YUV, gan RGB video izšķirtspēju līdz 1080p60, izmantojot 3G-SDI vai HDMI.
Ievade
Video ievades savienotāji | 1 x HDMI 1 x BNC (3G-SDI) |
Ievades video formāts | HDMI 1080p: 23,98/24/25/29,97/30/50/59,94/60 kadri/s SDI 1080p: 23,98/24/25/ 29,97/30/50/59,94/60 kadri/s |
Audio ievades savienotāji | Nav |
Izvade
Video izvades savienotāji | 1 x Thunderbolt |

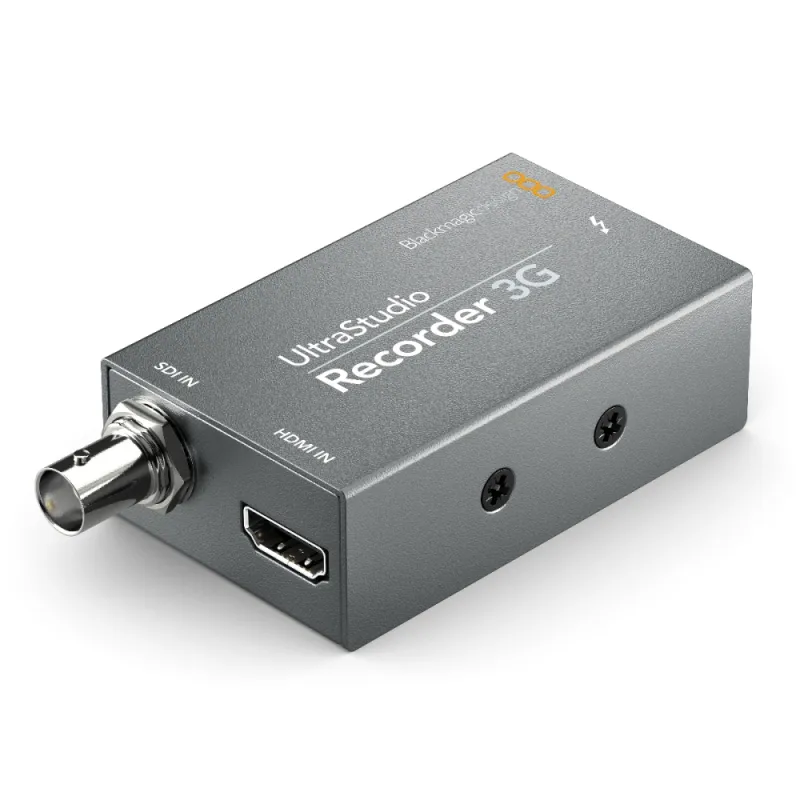

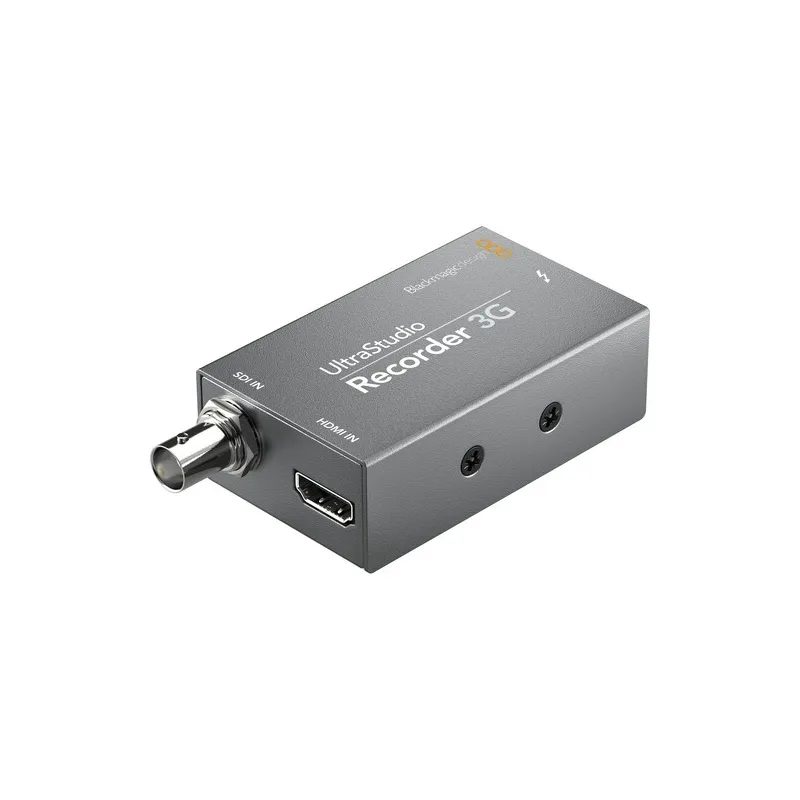

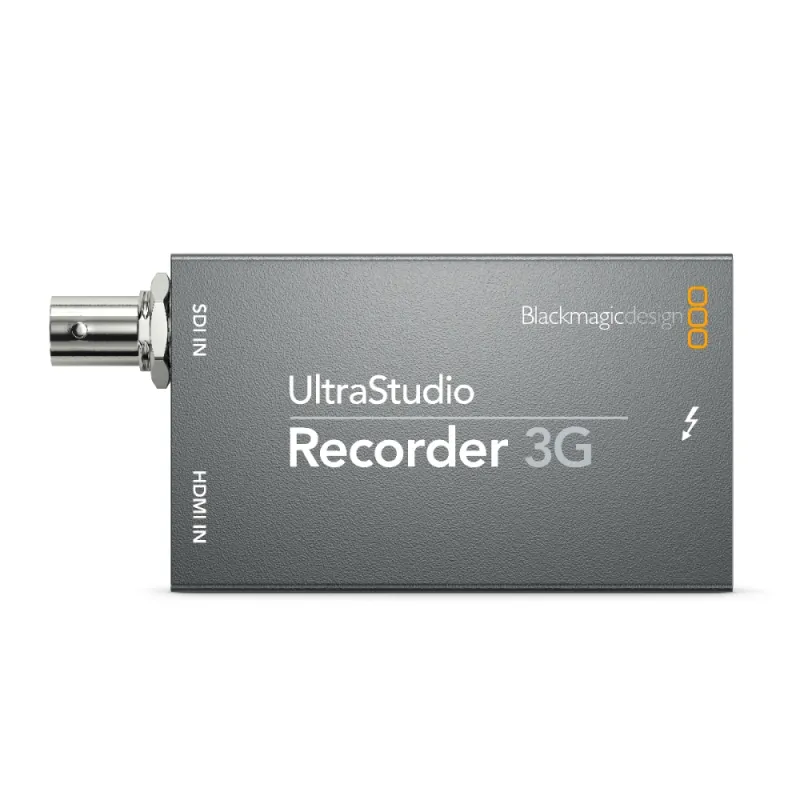

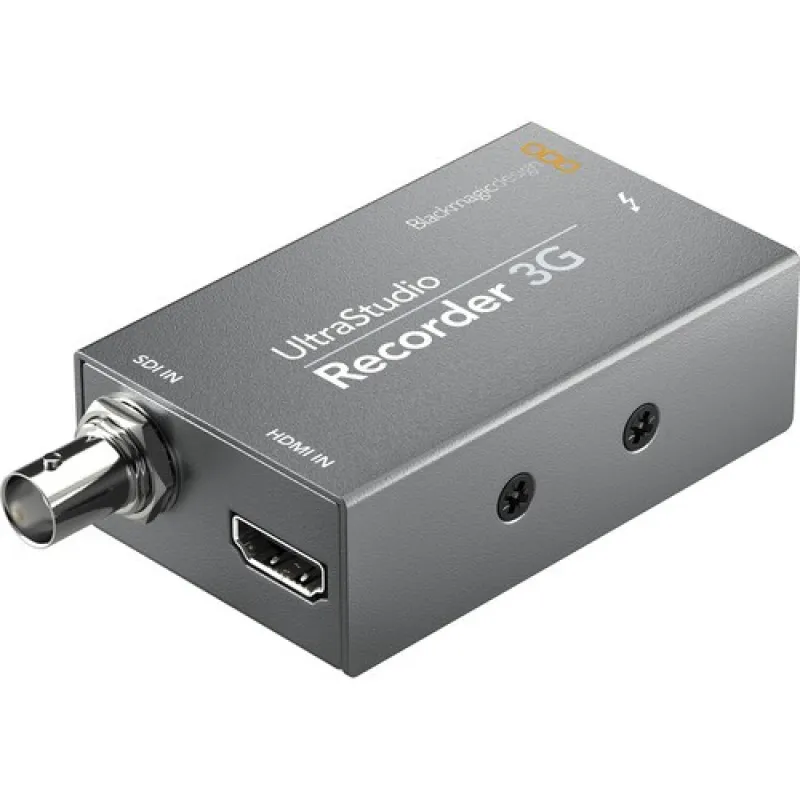

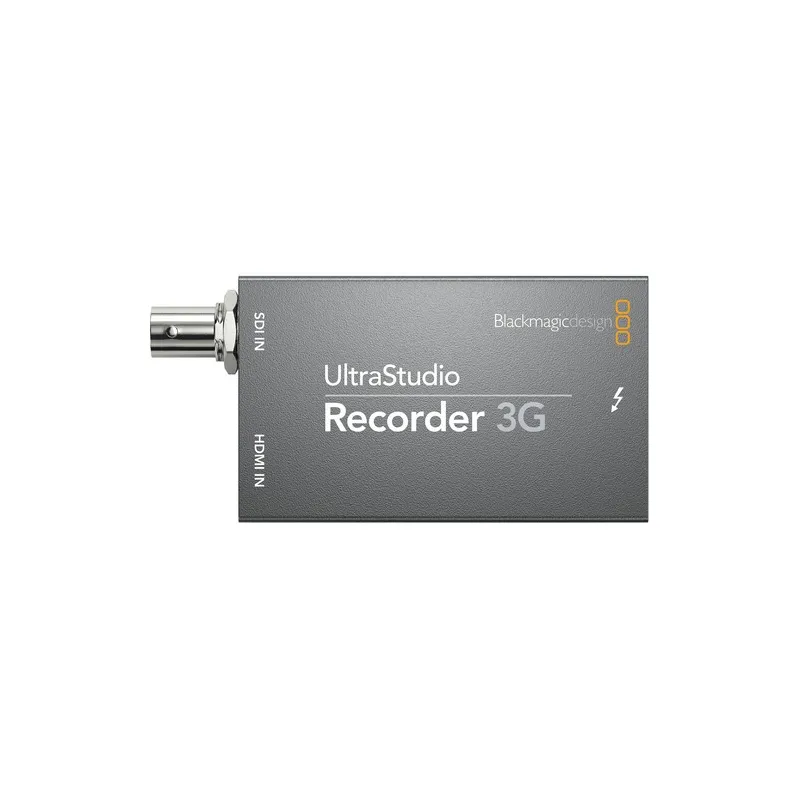

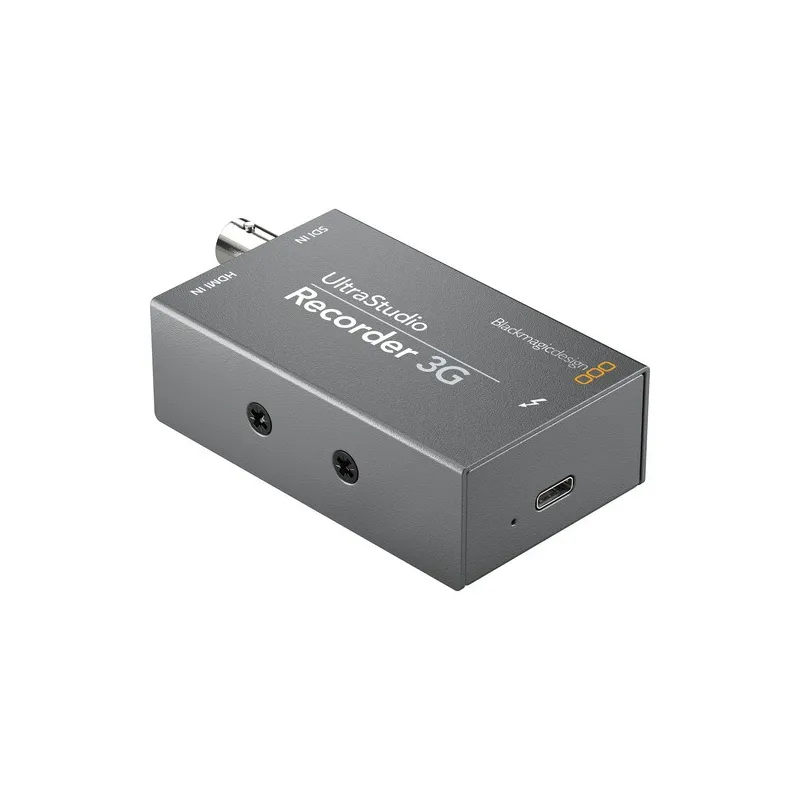

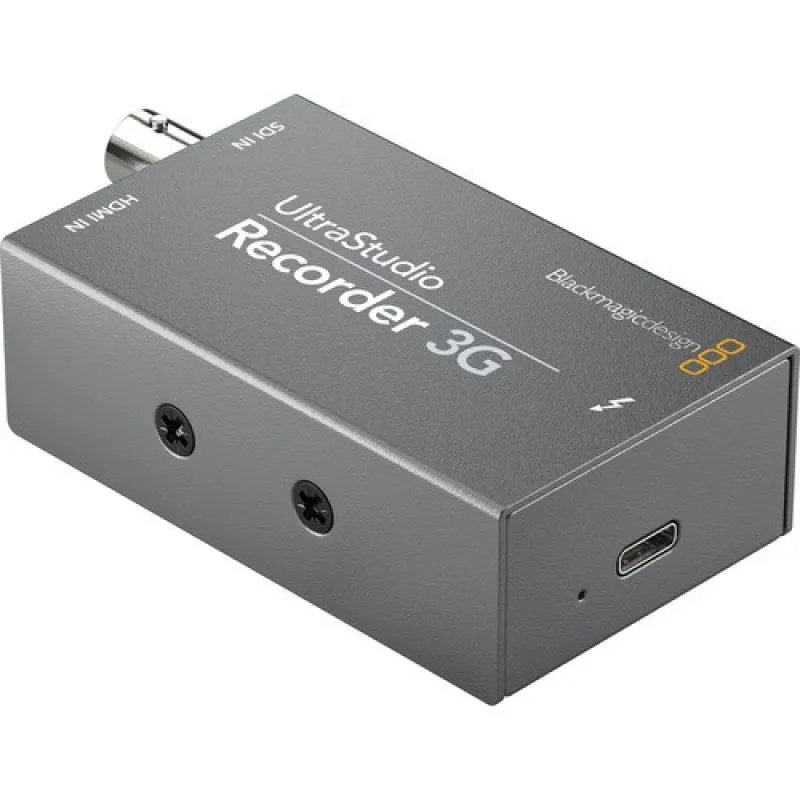

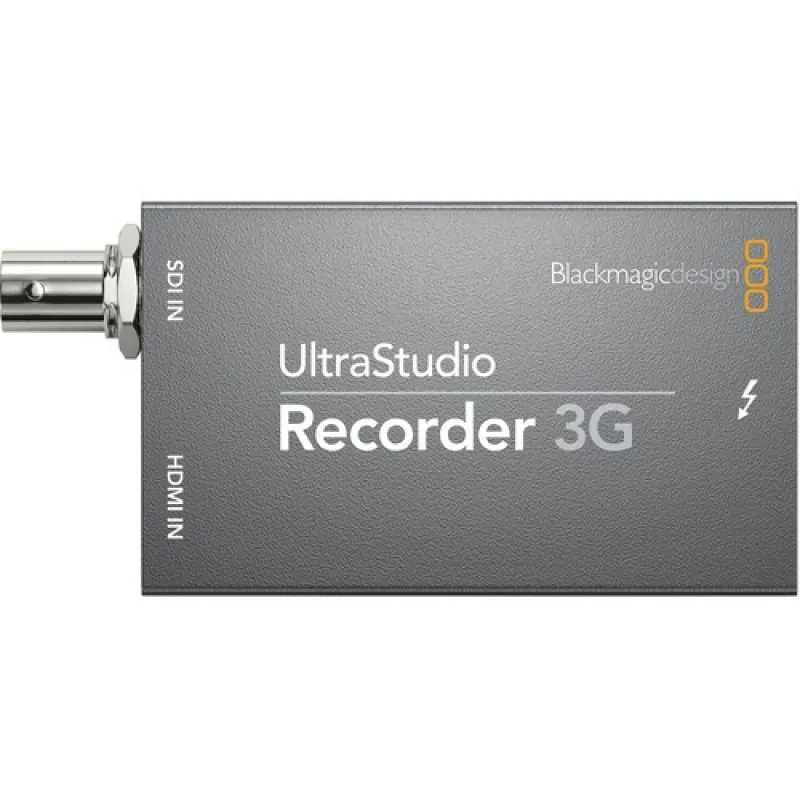

Blackmagic UltraStudio Recorder 3G (BM-BDLKULSDMAREC3G)
Iegūstiet pasaulē mazāko kabatas formāta SDI un HDMI video tveršanu savam Thunderbolt 3 klēpjdatoram vai galddatoram! UltraStudio Recorder 3G piedāvā augstākās kvalitātes 10 bitu nesaspiestu un saspiestu video uzņemšanu, kas ir saderīga ar visu populāro video programmatūru, tostarp DaVinci Resolve, Avid Media Composer, Adobe Premiere Pro CC un simtiem citu!
Piegādes saturs
• UltraStudio Recorder 3G
Specifikācijas
- SDI video ieejas
- 1
- SDI tarifi
- 270 Mb, 1,5 G, 3 G
- SDI audio ieejas
- 16 kanāli, kas iegulti SD/HD kvalitātē
- HDMI video ieejas
- 1
- HDMI audio ieejas
- 8 kanāli, kas iegulti SD/HD kvalitātē
- Datora saskarne
- Thunderbolt™ 3 (Mac OS, Windows un Linux)
- Atbalstītie kodeki
- AVC-Intra, AVCHD, Canon XF MPEG2, digitālā spoguļkamera, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR un DNx44444 Apple ProRes , Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 starpniekserveris, Nesaspiests 8 bitu 4:2:2, Nesaspiests 10 bitu 4:2:2, Nesaspiests 10 bitu 4:4:4.
- SDI SD video standarti
- 525i59.94 NTSC, 625i50 PAL
- SDI HD video standarti
- 720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60 - SDI 2K video standarti
- 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
2KPsF23.98 DCI. , 2KPsF30 DCI - SDI atbilstība
- SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 424M un SMPTE 425M A/B
- SDI metadatu atbalsts
- RP 188/SMPTE 12M-2 un slēgtie paraksti.
- SDI audio iztveršana
- Televīzijas standarta izlases frekvence 48 kHz un 24 biti.
- SDI video paraugu ņemšana
- 4:2:2, 4:4:4
- SDI krāsu precizitāte
- 8, 10, 12 bitu RGB 4:4:4 līdz 1080p30 un 8, 10 bitu YUV 4:2:2 visos standartos.
- SDI krāsu telpa
- REC 601, REC 709 un REC 2020
- Vairāku tarifu atbalsts
- SDI video savienojumu var pārslēgt starp SD un HD.
- HDMI SD video standarti
- 525i59.94 NTSC, 625i50 PAL
- HDMI HD video standarti
- 720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50,i - HDMI audio iztveršana
- Televīzijas standarta izlases frekvence 48 kHz un 24 biti.
- HDMI video paraugu ņemšana
- 4:2:2 un 4:4:4
- HDMI krāsu precizitāte
- 8 bitu RGB 4:4:4, 8 bitu YUV 4:4:4 un 12 bitu YUV 4:2:2 visos standartos.
- HDMI konfigurācija
- HDMI 2.0a atbalsta Deep Color.
- HDMI krāsu telpa
- REC 601, REC 709 un REC 2020
- Vairāku tarifu atbalsts
- HDMI video savienojums ir pārslēdzams starp SD un HD.
- Aizsardzība pret kopēšanu
- HDMI ieeja nevar tvert no HDMI avotiem, kas aizsargāti ar kopēšanu. Pirms satura uzņemšanas vai izplatīšanas vienmēr apstipriniet autortiesību īpašumtiesības.
- Aparatūras kadra buferis
- v210 (10 bitu YUV), 2vuy (8 bitu YUV), ARGB, BGRA (8 bitu RGB), r210 (10 bitu RGB), R12B, R12L (12 bitu RGB).
- Darbības temperatūra
- 5° līdz 40° C (32° līdz 104° F)
- Uzglabāšanas temperatūra
- -20° līdz 45°C (-4° līdz 113°F)
- Relatīvais mitrums
- 0% līdz 90% nekondensējošs
Blackmagic UltraStudio Recorder 3G (BM-BDLKULSDMAREC3G)
Get the world’s smallest pocket sized SDI and HDMI video capture for your Thunderbolt 3 laptop or desktop computer! UltraStudio Recorder 3G features the highest quality 10 bit uncompressed and compressed video capture that’s compatible with all popular video software including DaVinci Resolve, Avid Media Composer, Adobe Premiere Pro CC and hundreds more!
Delivery Content
• UltraStudio Recorder 3G
Specifications
- SDI Video Inputs
- 1
- SDI Rates
- 270Mb, 1.5G, 3G
- SDI Audio Inputs
- 16 Channels embedded in SD/HD
- HDMI Video Inputs
- 1
- HDMI Audio Inputs
- 8 Channels embedded in SD/HD
- Computer Interface
- Thunderbolt™ 3 (Mac OS, Windows and Linux)
- Supported Codecs
- AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4.
- SDI SD Video Standards
- 525i59.94 NTSC, 625i50 PAL
- SDI HD Video Standards
- 720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60 - SDI 2K Video Standards
- 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI - SDI Compliance
- SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 424M and SMPTE 425M A/B
- SDI Metadata Support
- RP 188/SMPTE 12M-2 and closed captioning.
- SDI Audio Sampling
- Television standard sample rate of 48 kHz and 24-bit.
- SDI Video Sampling
- 4:2:2, 4:4:4
- SDI Color Precision
- 8, 10, 12-bit RGB 4:4:4 up to 1080p30, and 8, 10-bit YUV 4:2:2 in all standards.
- SDI Color Space
- REC 601, REC 709 and REC 2020
- Multiple Rate Support
- SDI video connection is switchable between SD and HD.
- HDMI SD Video Standards
- 525i59.94 NTSC, 625i50 PAL
- HDMI HD Video Standards
- 720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60 - HDMI Audio Sampling
- Television standard sample rate of 48 kHz and 24 bit.
- HDMI Video Sampling
- 4:2:2 and 4:4:4
- HDMI Color Precision
- 8-bit RGB 4:4:4, 8-bit YUV 4:4:4 and 12-bit YUV 4:2:2 in all standards.
- HDMI Configuration
- HDMI 2.0a supports Deep Color.
- HDMI Color Space
- REC 601, REC 709 and REC 2020
- Multiple Rate Support
- HDMI video connection is switchable between SD and HD.
- Copy Protection
- HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
- Hardware Frame Buffer
- v210 (10 bit YUV), 2vuy (8 bit YUV), ARGB, BGRA (8 bit RGB), r210 (10 bit RGB), R12B, R12L (12 bit RGB).
- Operating Temperature
- 5° to 40° C (32° to 104° F)
- Storage Temperature
- -20° to 45° C (-4° to 113° F)
- Relative Humidity
- 0% to 90% non-condensing
