Falcam TreeRoot Quick Lock Travel Tripod ( without head ) TOOA4302

Falcam TreeRoot Quick Lock ceļojumu statīvs

Falcam TreeRoot Quick Lock Travel Tripod (bez galvas) ar trīsstūrveida caurules konstrukciju nodrošina uzlabotu pārnēsājamību un stabilitāti. Tam ir plāns, plakans stiprinājums uzglabāšanas laikā, un tas nodrošina labāku apakšējās daļas stabilitāti nekā cilindriskās caurules.

Izcelts

• Trīsstūrveida caurules konstrukcija nodrošina pārnēsājamību un stabilitāti
• 1/3 bloķēšanas darbība precizitātei
• Ātras atbrīvošanas vidējā kolonna

M40 augsta moduļa oglekļa šķiedras materiāls

Kājas ir izgatavotas no M40 augsta moduļa oglekļa šķiedras, kas nodrošina izcilu stiepes izturību un izturību pret saliekšanu, lai nodrošinātu stabilu atbalstu fotografēšanas laikā.

Ātrās bloķēšanas mehānisms

Statīvu var viegli izlocīt vai uzglabāt ar vienu roku, ar precīzu darbību un iebūvētu ierobežojuma konstrukciju, kas novērš izjaukšanu.

Papildu funkcijas

• Noturība pret aizķeršanos smilšainā un vējainā vidē
• Lielāks fiksācijas spēks ar 360° fiksācijas mehānismu
• Divi panorāmas iestatīšanas režīmi horizontāliem un vertikāliem kadriem
• Daudzfunkcionāls āķis priekšmetu piekāršanai
• Stabili gumijas kājiņu balsti dažādām virsmām

Specifikācijas

• Materiāls: Materiāls: oglekļa šķiedras alumīnija sakausējums
• Kāju sekciju skaits: 4
• Maksimālais augstums: 1515 mm (ar izstieptu centrālo statni)
• Minimālais augstums: 135 mm
• Svars: 1,3 kg
• Ieteicamā maksimālā slodze: Ieteicamā maksimālā svars: 10 kg

Solid, Fast, Superior
The Falcam TreeRoot Quick Lock Travel Tripod (without head) with triangular tube improves both portability and overall stability. The design provides a slim, flat fit during storage with contours that feel natural in the hand. In particular, it offers better overall bottom stability than comparable cylindrical tubes of the same diameter.


Highlights

Triangular tube: Initiative rich combination of portability and stability
1/3 lock: operation remains precise
Middle column with quick release

Conventional
The non circular shape results in uneven stress distribution on all sides. Stiffness is weaker than that of a cylindrical tube


M40 high modulus carbon fibre material
The legs are made of M40 high modulus carbon fibre, a material that has
has more than 60% more Youngs modulus than T300 if we assume equal diameter single filament fibres. This advanced composition provides superior tensile strength and bending resistance to the structural components, ensuring you have solid support for creative work and sharp photos.


Quick Lock
The Falcam TreeRoot Quick Lock Travel Tripod (without head) can be easily grasped with one hand and requires only about a one third turn to quickly unfold or store the legs.


Operation remains precise
The leg lock includes a built in limit structure to prevent inadvertent disassembly and confusion in the locking direction during use.
Each leg has four sections and can be adjusted into 3 positions, providing different shooting angles for flexible photography.


Resistant to jamming in sandy and windy environments
The legs are equipped with built in O rings for sealing, which significantly reduce the ingress of sand and dust into the legs from above.


Increased locking force
The tripod has a 360 locking mechanism and uses a 360 evenly loaded rotation locking mechanism, creating a stronger locking force


Dual panorama setting modes
The tripod supports both horizontal panoramic and vertical shots, with adjustable
damping for precise control. Each lock button provides tactile and audible cues, allowing you to control the lock button precisely.

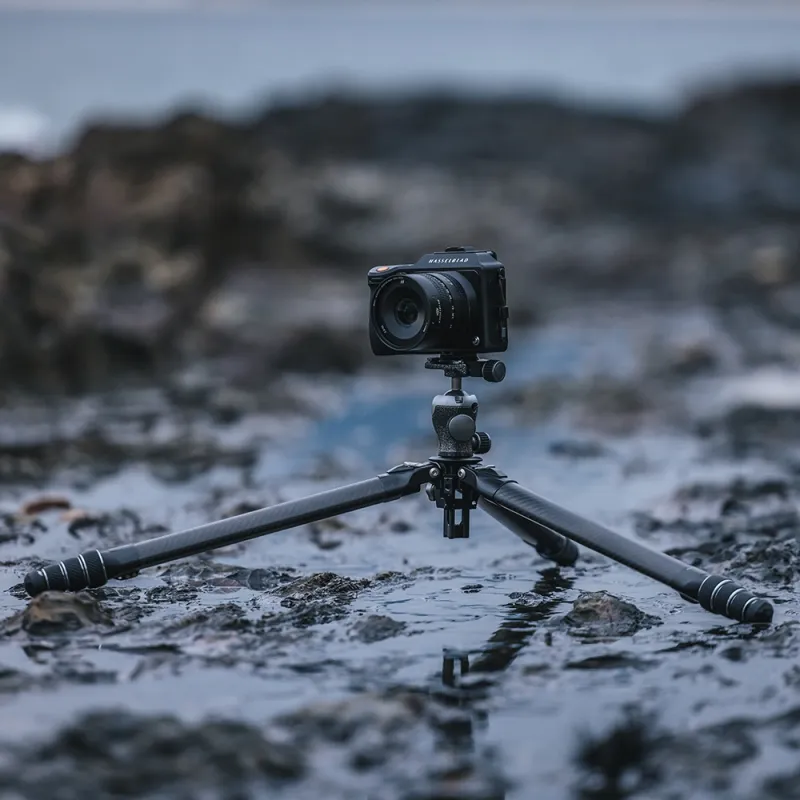

Effortless execution of low angle shots
The initial quick release centre column with butterfly lock lets you
easily remove without tools at the bottom to instantly switch to low angle shooting. This ensures smooth and uninhibited creative expression.


Multifunctional hook
Equipped with a screwdriver, the hook can also be used to hang backpacks, water bottles and other items. Supplied with both 1/4 and 3/8 screws, it also supports the use of a long or short centre column.


Stable support
The versatile rubber foot supports provide stable support on a variety of surfaces and protect sensitive floors such as tiles and wood. After removing the rubber foot pads, the three tooth spikes can provide stable support on soft carpets or ice surfaces.


Abundant expansion interfaces
Equipped with F22 quick release interfaces, 1/4 Arri expansion thread hole, carry strap holes and compatibility with Maglink quick release.,

Material: Carbon fibre + aluminium alloy
Number of leg sections: 4
Leg tube diameter: 26 x 40.75 mm, 22mm, 17.9mm, 13.8mm
Maximum Height: (with the central pillar extended): 1515 mm
Maximum Height: (without central pillar extended): 1270 mm
Minimum height: 135 mm
Storage length: 445 mm
Weight: 1.3 kg
Recommended maximum static
Vertical Load of the Tube Leg: approximately 50kg
Recommended maximum load: 10kg (with the centre column extended)
Center column load capacity: ~20kg (without the centre column extended)
,

1 x Falcam TreeRoot Quick Lock Travel Tripod ( without head )
2 x H4 Allen key
