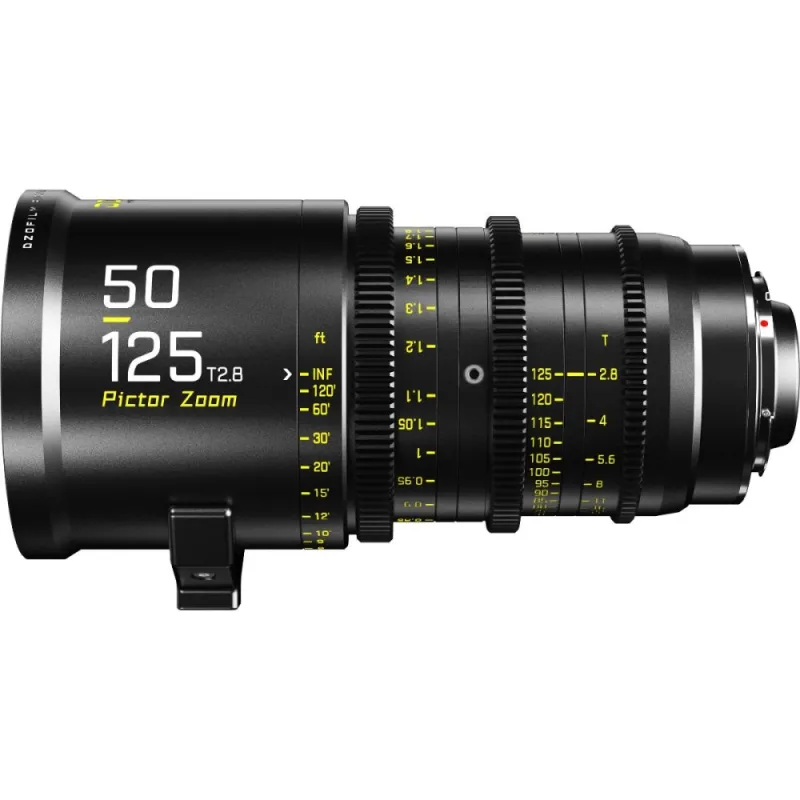

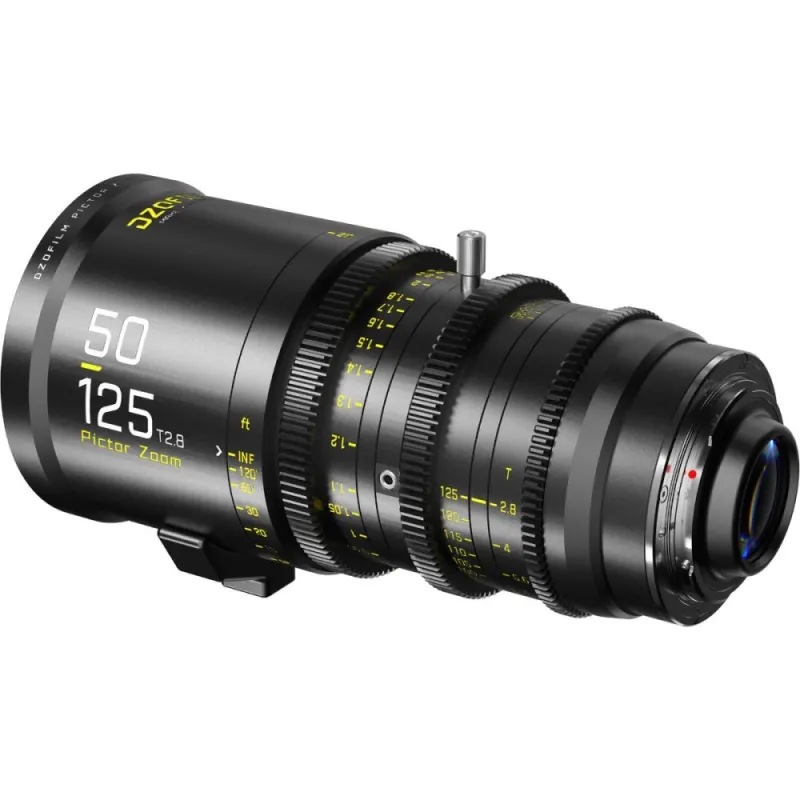

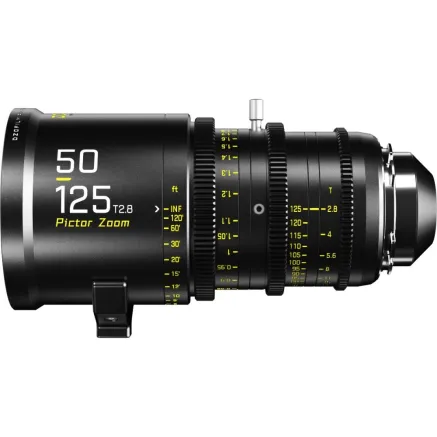

DZOFILM Pictor Zoom 50-125 T2.8 Black for PL/EF Mount (S35)

DZOFILM Pictor Zoom 50-125 T2.8 Black for PL/EF Mount (S35) (DZO-7220001B)

The concept of DZOFILM is to explore more possibility and incorporate it into daily filming and thinking. At DZOFILM it is all about the interaction and  the relationship between the cinematographer and their projects.

There is no need to look for other cine-lenses or hesitate. DZOFILM is dedicated to balance the harmony between aesthetics and utility and keep their cine-lenses compact and versatile. This way DZOFILM cine-lenses are enabling a swift and fast workflow and amazing footage.

DZOFILM Pictor 50-125mm T2.8, the latest Super 35 wide-angle lens

• Maintains focus throughout the zoom range
• Minimal focus breathing
• 16-blade iris produces round out-of-focus highlights
• T2.8 to T22 aperture
• Common Pictor 95mm front diameter
• Compatible with standard cine-style lens accessories

A parfocal cine lens, the DZO Pictor 50 to 125mm T2.8 Super35 Parfocal Zoom Lens features a relatively fast maximum aperture of T2.8 with an aperture range of T2.8 to T22. As you would expect from a cinema-style zoom, the lens is parfocal, meaning it holds focus throughout the zoom range. The internal focus design with floating elements virtually eliminates focus breathing. It covers a Super35 image circle, comes standard with an interchangeable PL mount, and includes an EF mount.

The 16-blade iris creates round out-of-focus highlights, which have a more natural appearance and contribute to the lenss natural-looking bokeh. The lens features cine-style gear rings on the focus, iris, and zoom lens rings, making it compatible with cine-style lens accessories such as follow focus units, lens motors, and lens control systems. The 95mm outer front diameter allows you to use a variety of compatible third-party matte boxes, and the lens has an 86mm filter thread. A lens support foot allows you to support the lens on rods to help reduce strain on your cameras lens port.

Please Note: According to the manufacturer, when converted to EF mount this lens is not compatible with DSLR cameras that have an EF mount. However, it is compatible with mirrorless cameras that have an EF mount, including Blackmagic Design cameras.

In the Box
1x DZOFILM Pictor 50-125 T2.8 Cine Zoom Lens for PL and EF Mount (Black)

Specifications

Focal Length

50-125mm

Colour

Black

Mount

PL/EF

T-Stop

T2.8-22

Image Circle

Ø31.5 mm (S35)

Close Focus

0.6m / 2ft.

Zoom Ratio

≈2.5X

Flange Distance

PL=52mm
EF=44mm

Iris control

72°

Focus control

270°

Zoom control

100°

Front outer diameter

Ø95 mm/3.74”

Filter Size

M86*0.75

Gear Pitch

0.8M

Blades Iris

16

Length

175mm / 6.89“ (PL)
182.9mm / 7.20 (EF)

Weight

≈1700g
