Jauns
Bajonete | Sony E |
Lens Format Coverage | Full Frame |
Lens Design | fiksēts |
Objektīva fokusa attālums, mm | 100 |
Focus Type | Manual Focus |
Image Stabilization | Nav |
Objektīva tips | Macro |
Objektīva tips | tele zoom |
Maksimālā apertūra | T3.1 |

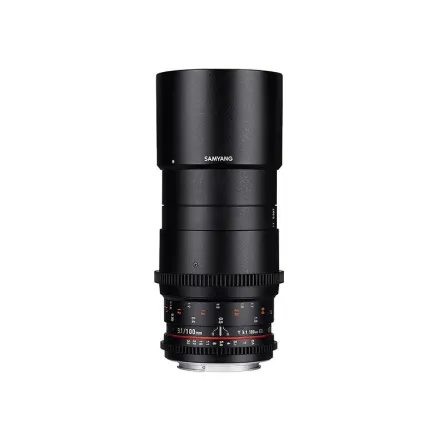

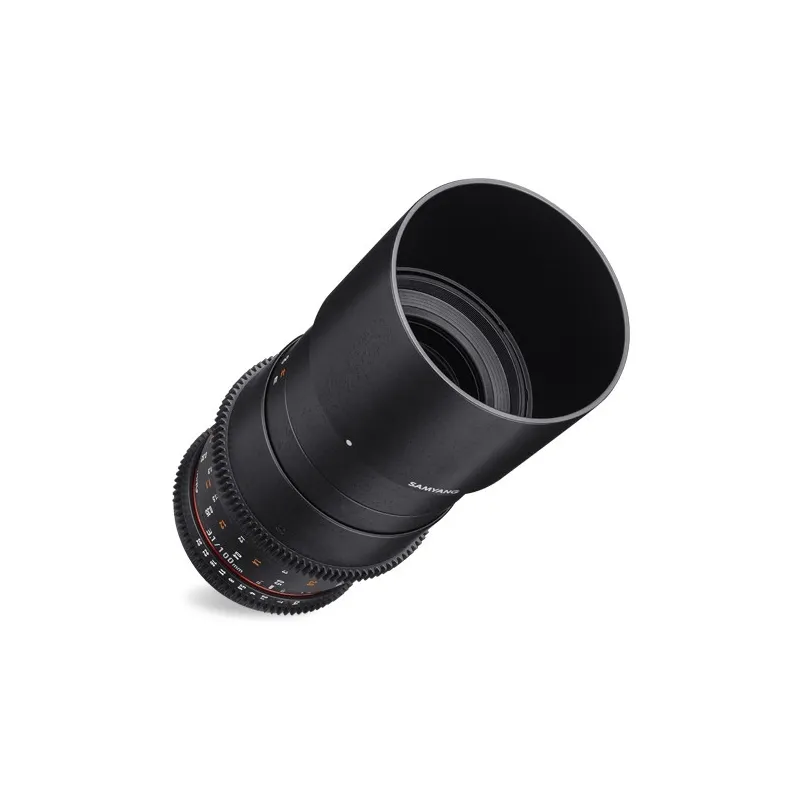

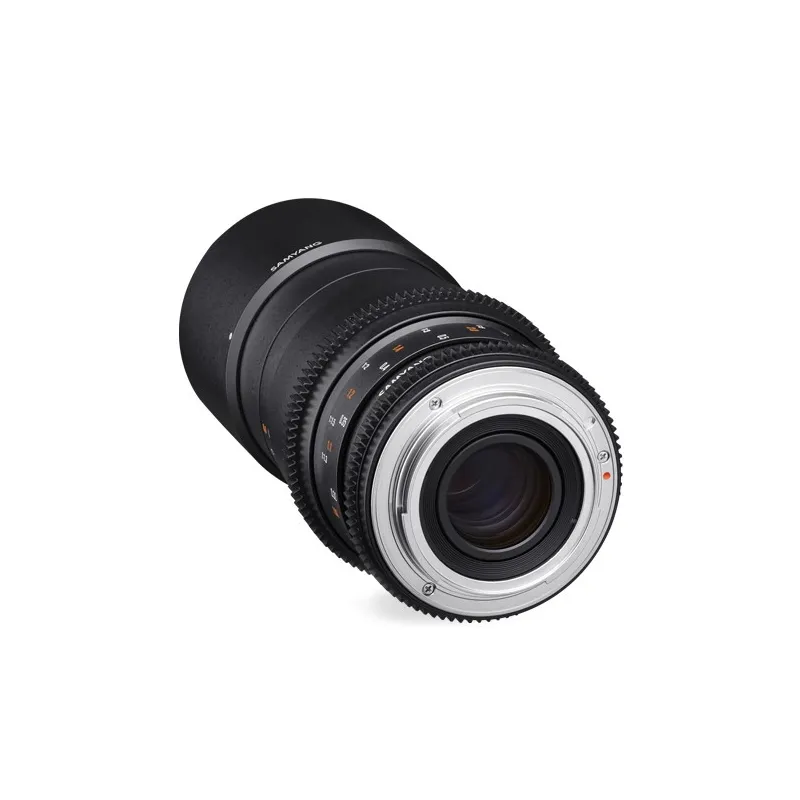

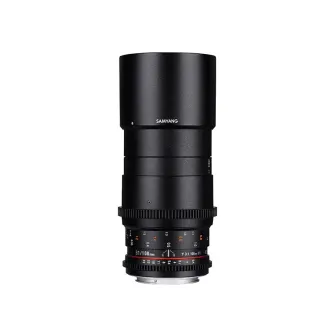

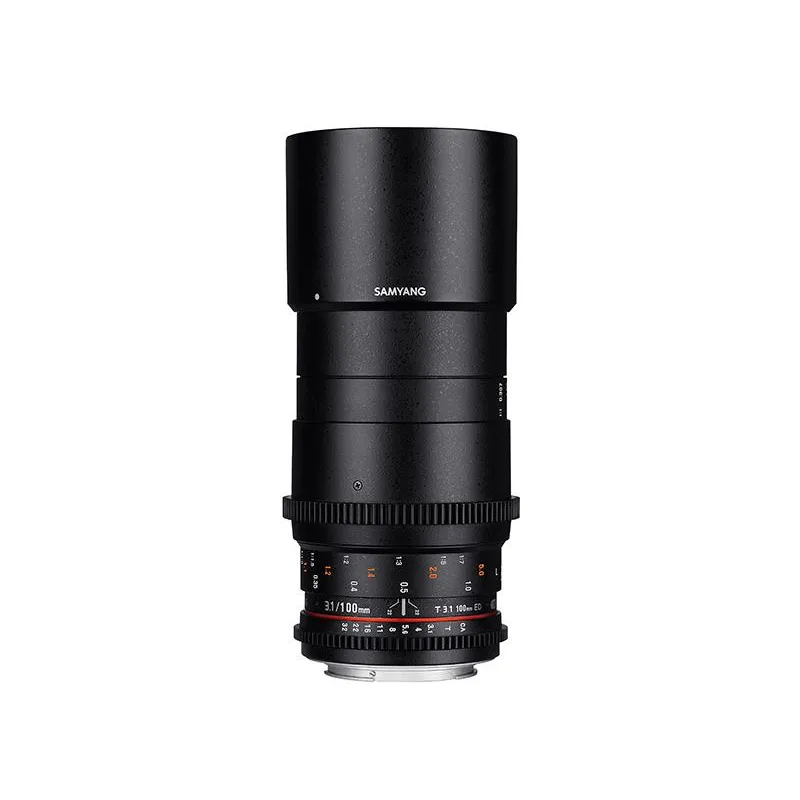

The Samyang 100mm T3.1 VDSLR ED UMC MACRO cine lens is the ideal lens for close-up videos with greater quality. This lens is optimally designed for professional follow focus system thanks to the quiet and smooth uncoupled focus and aperture gear rings. Also, the distance scale and T numbers are marked on both sides of the lens for convenience when filming. Also, the Samyang 100mm T3.1 lens is one of Samyang Optics VDSLR II Cine Lens Line Up which produces the matched image color and has identical location of aperture and focus gear rings.
Based on exceptional optical technology of Samyang Optics, the Samyang 100mm series features 15 glasses in 12 groups, including high refractive lens (HR) and extra low dispersion lens (ED) to minimize the unnecessary light dispersion and deliver high resolution throughout center to corner of image. Ultra Multi Coating (UMC) of Samyang Optics is used to optimize the light penetration and minimize flare and ghost.
Specifications | 1:3.1 100mm ED UMC MACRO | |||||||||||
Aperture Range (T-stop) | T3.1 to T32 | |||||||||||
Optical Construction | 15 elements in 12 groups | |||||||||||
Minimum Focusing Distance | 0.307m(1.0ft) | |||||||||||
Filter Size | Φ67mm | |||||||||||
Maximum Diameter | Φ81.6mm | |||||||||||
Mount | Nikon | Canon EOS | Pentax K | Sony α | Canon M | Fujifilm X | Samsung NX | Sony E | Four-Thirds | Micro Four-Thirds | ||
Angle of View | 35mm | 24.8° | 24.8° | 24.8° | 24.8° | - | - | - | 24.8° | - | - | |
APS-C | 16.4° | 15.4° | 16.4° | 16.4° | 15.4° | 16.4° | 16.4° | 16.4° | - | - | ||
Four-Thirds 4/3" | - | - | - | - | - | - | - | - | 12.6° | 12.6° | ||
Length (mm) | 120.6 | 123.1 | 121.6 | 122.6 | 149.0 | 149.4 | 141.6 | 149.1 | 128.4 | 147.9 | ||
Weight (grams) | 710 | 725 | 715 | 720 | 735 | 775 | 725 | 735 | 740 | 730 |
Manual telephoto macro
T3,1 VDSLR Samyang 100mm ED UMC MACRO macro lens is a manual designed for use with full-frame and APS-matrix-C. The maximum reproduction ratio is 1: 1. The lens generating vivid colors and beautiful bokeh is the perfect tool for shooting flowers and insects. It can also be used for portraiture and landscape.
Features cinematographic Samyang 100mm ED UMC T3,1 VDSLR MACRO is the cinematographic version of the model 100 f / 2.8 ED UMC MACRO. In order to ensure precise and silent operation during shooting lens it is provided with a rack cooperating with follow-focus system and a ring aperture running continuously. Indices scale focus and iris are applied parallel to the optical axis of the lens.
Optical construction
Samyang 100mm T3,1 VDSLR ED UMC MACRO has a focal ratio of f / 2.8. It provides complete control of the exposure in a variety of lighting conditions.
optical construction is constructed of 15 elements 12 arranged in groups. In order to offer high-definition throughout the frame and to minimize the aberrations of a lens used with a high refraction (HR), and also a lens of a low dispersion (ED). Designed by Samyang coating Ultra Multi Coating (UMC) optimize the penetration of light and eliminate reflections. The minimum focusing distance is 30.7 cm and a maximum magnification is 1: 1.
description:
Focal length: 100 mm
Light source: T3,1
field of view :
24.8 ° Min. focusing distance 0.3 m
Max. Magnification: 1: 1
Min. aperture f / number 32
diaphragm blades 9
autofocus MF
Optical construction 15 lenses in 12 groups including a lens having a high refractive (HR) and a lens having a low dispersion (ED )
filter diameter: 67 mm
Manual telephoto macro
T3,1 VDSLR Samyang 100mm ED UMC MACRO macro lens is a manual designed for use with full-frame and APS-matrix-C. The maximum reproduction ratio is 1: 1. The lens generating vivid colors and beautiful bokeh is the perfect tool for shooting flowers and insects. It can also be used for portraiture and landscape.
Features cinematographic Samyang 100mm ED UMC T3,1 VDSLR MACRO is the cinematographic version of the model 100 f / 2.8 ED UMC MACRO. In order to ensure precise and silent operation during shooting lens it is provided with a rack cooperating with follow-focus system and a ring aperture running continuously. Indices scale focus and iris are applied parallel to the optical axis of the lens.
Optical construction
Samyang 100mm T3,1 VDSLR ED UMC MACRO has a focal ratio of f / 2.8. It provides complete control of the exposure in a variety of lighting conditions.
optical construction is constructed of 15 elements 12 arranged in groups. In order to offer high-definition throughout the frame and to minimize the aberrations of a lens used with a high refraction (HR), and also a lens of a low dispersion (ED). Designed by Samyang coating Ultra Multi Coating (UMC) optimize the penetration of light and eliminate reflections. The minimum focusing distance is 30.7 cm and a maximum magnification is 1: 1.
description:
Focal length: 100 mm
Light source: T3,1
field of view :
24.8 ° Min. focusing distance 0.3 m
Max. Magnification: 1: 1
Min. aperture f / number 32
diaphragm blades 9
autofocus MF
Optical construction 15 lenses in 12 groups including a lens having a high refractive (HR) and a lens having a low dispersion (ED )
filter diameter: 67 mm
Bajonete | Sony E |
Lens Format Coverage | Full Frame |
Lens Design | fiksēts |
Objektīva fokusa attālums, mm | 100 |
Focus Type | Manual Focus |
Image Stabilization | Nav |
Objektīva tips | Macro |
Objektīva tips | tele zoom |
Maksimālā apertūra | T3.1 |
