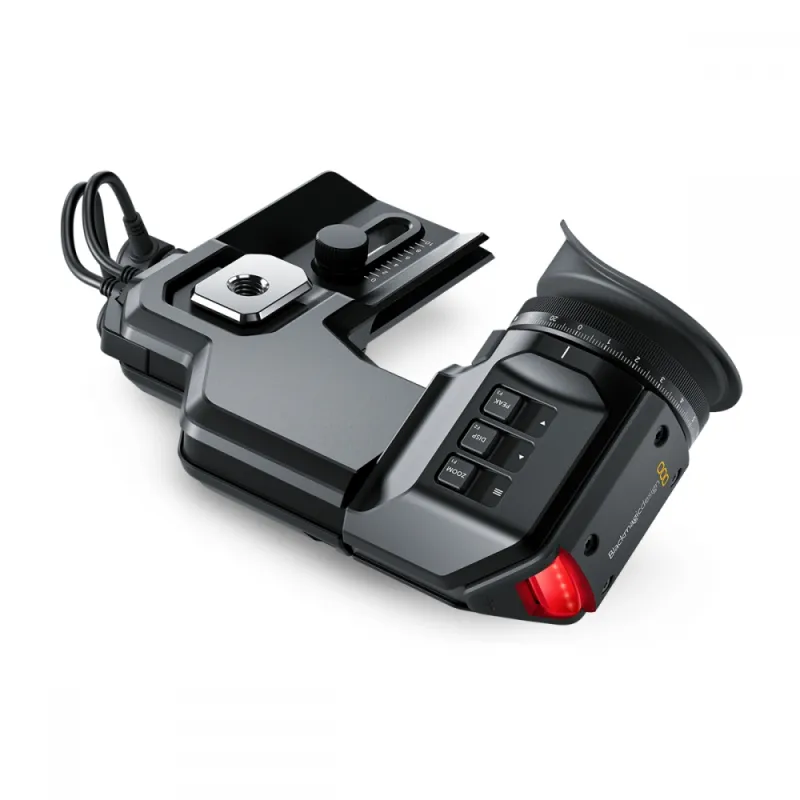

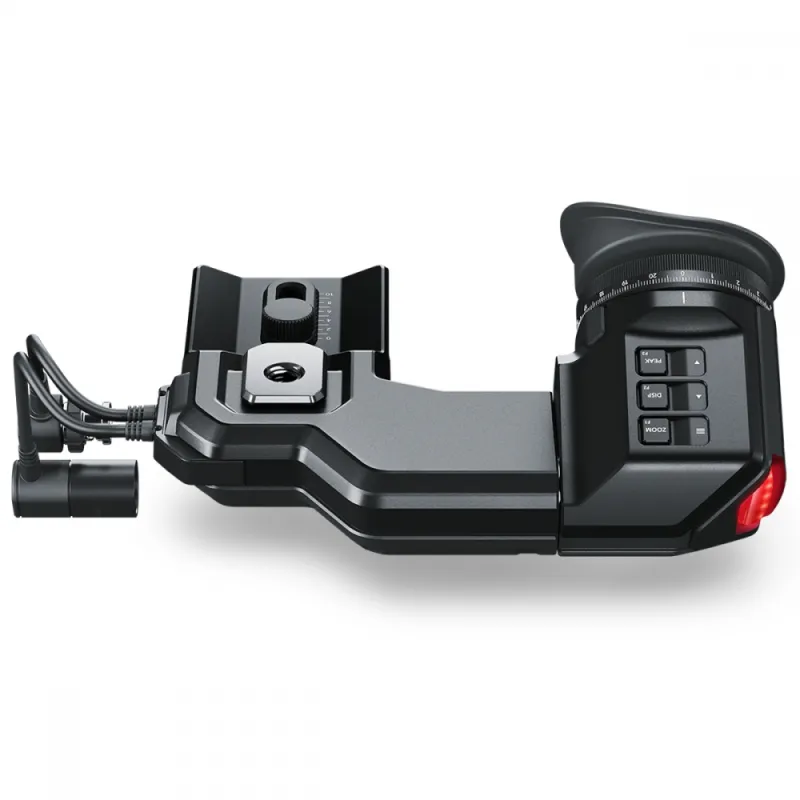

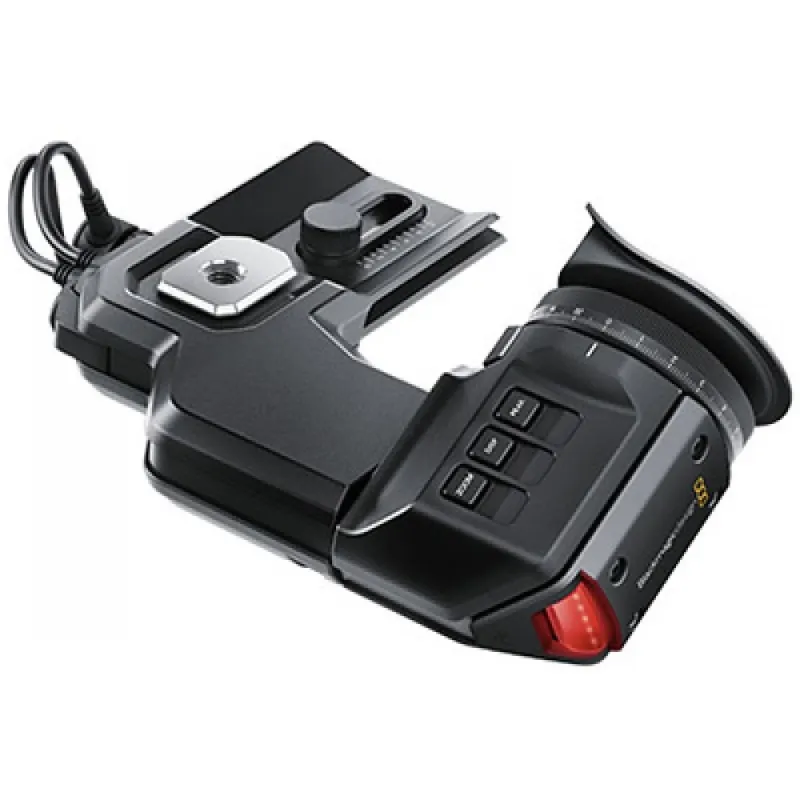

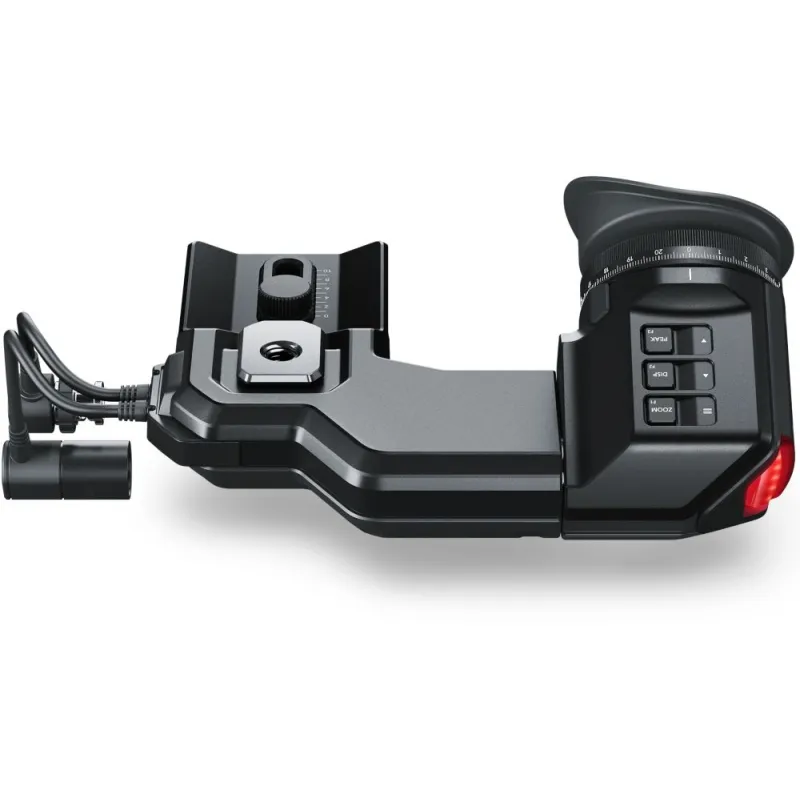

Blackmagic Design URSA Viewfinder (BM-CINEURSANEVFP)

Blackmagic URSA Viewfinder (BM-CINECAMURSANEVFP)

High resolution viewfinder for USRA range of cameras includes full HD OLED display and true glass optics for perfect focus.

If you’re project calls for a lot of over the shoulder or handheld shooting, you’ll want to add the Blackmagic URSA Viewfinder. You get a high resolution 1920 x 1080 color display that lets you get incredibly accurate focus and the screen is so sharp that it’s impossible to see any individual pixels so it’s just like using an optical viewfinder on a traditional film camera. The viewfinder can be adjusted for either left or right eye use. Simply plug it into the power and SDI viewfinder output, then start shooting! The viewfinder features a sensor that turns off the screen when you’re not using it to save power and extend the life of the OLED screen.

More Information is coming soon!

Blackmagic URSA Viewfinder (BM-CINECAMURSANEVFP)
The essential accessory for handheld shooting!

High resolution viewfinder for USRA range of cameras includes full HD OLED display and true glass optics for perfect focus.

• Display Resolution 1920x1080 (Full HD)
• Frame Rate up to 60fps
• OLED Display with 6.22MP
• Color Precision 24 bit RGB, 16.7 million colors
• 4 Element diopter. Focus
• Diopter Range -4 to +3

Connections
• 1x 3G-SDI BNC (SDI Video Inputs)
• 1x 4 pin XLR 12V (Power Input)
• 1x USB 2.0 Mini-B port for software updates (Computer Interface)

If your project calls for a lot of over the shoulder or handheld shooting, you’ll want to add the Blackmagic URSA Viewfinder. You get a high resolution 1920x1080 color display that lets you get incredibly accurate focus and the screen is so sharp it’s just like using an optical viewfinder on a traditional film camera. The viewfinder can be adjusted for either left or right eye use. Simply plug it into the power and SDI viewfinder output, slide it onto the camera using the Shoulder Mount Kit, then start shooting! The viewfinder features a sensor that turns off the screen when you’re not using it to save power and extend the life of the OLED screen.

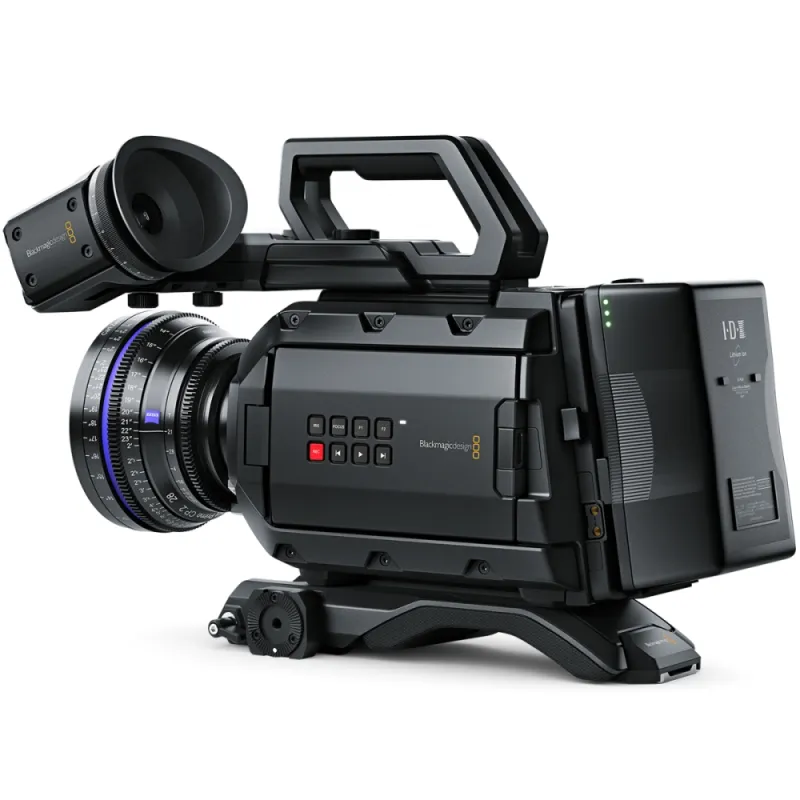

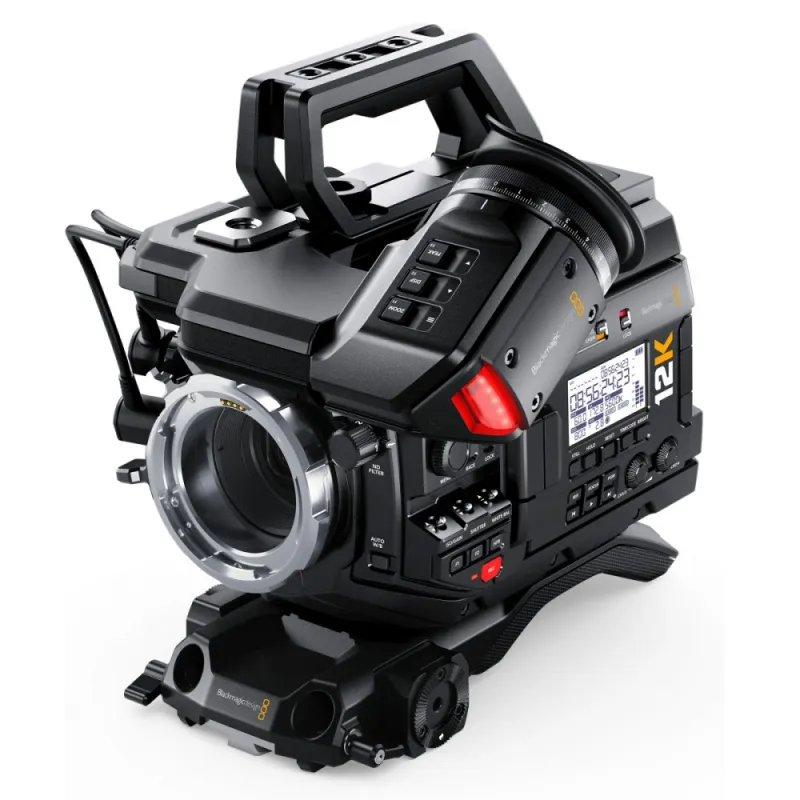

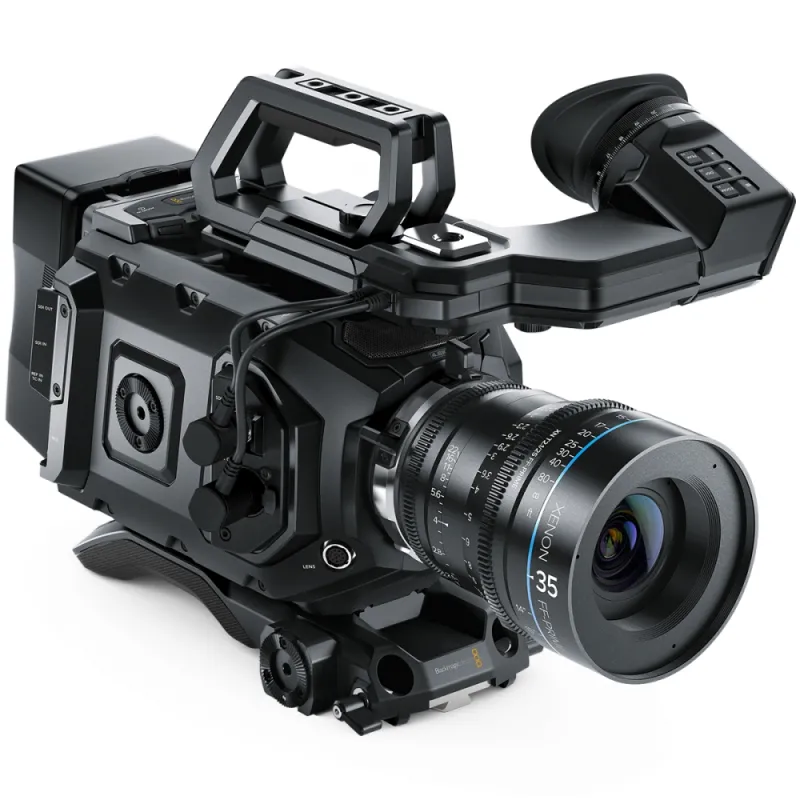

The Blackmagic URSA Viewfinder is the perfect accessory to make outdoors and handheld shooting with your URSA or URSA Mini digital film camera easy. You get an extremely high quality viewfinder with 1080HD resolution display, true precision glass optics, built in tally light and built in menus, overlays and even a digital focus chart!

Controls
Buttons for settings, short cut features and navigating menus.

Overlays
Built in overlay display processor and top mounted buttons.

Eyepiece
Can be tilted vertically and extended for left or right eye use.

Tally
LED tally light.

Mounting Options
Camera mount with adjustment.

Metadata Support
Detects camera information embedded in the SDI signal from URSA, URSA Mini and Blackmagic 3G-SDI Shield for Arduino.


In The Box
(1) Blackmagic URSA Viewfinder
(1) 3/8 inch viewfinder mounting thumb screw for URSA
