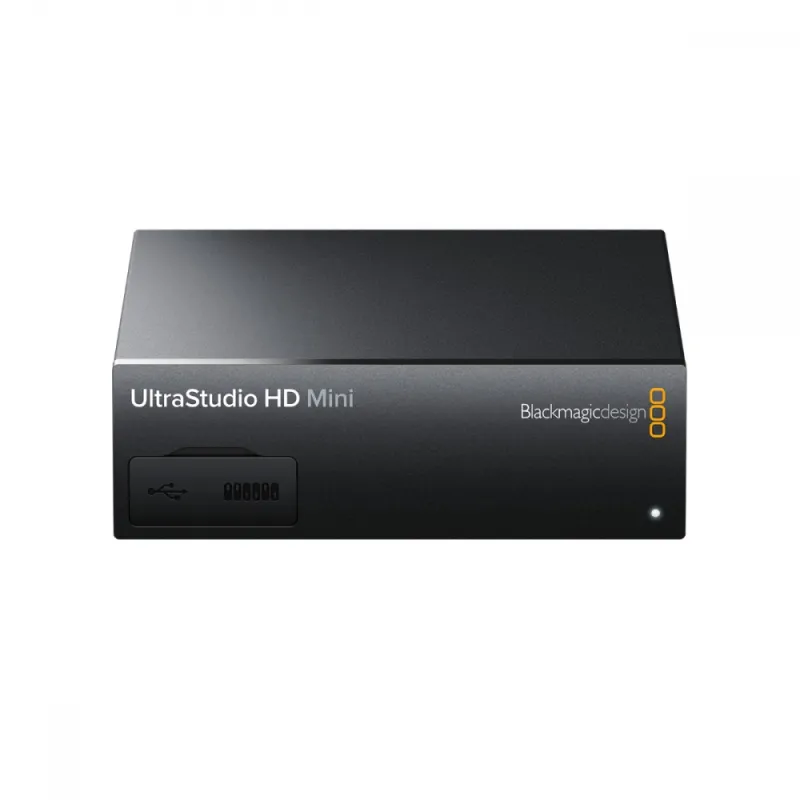

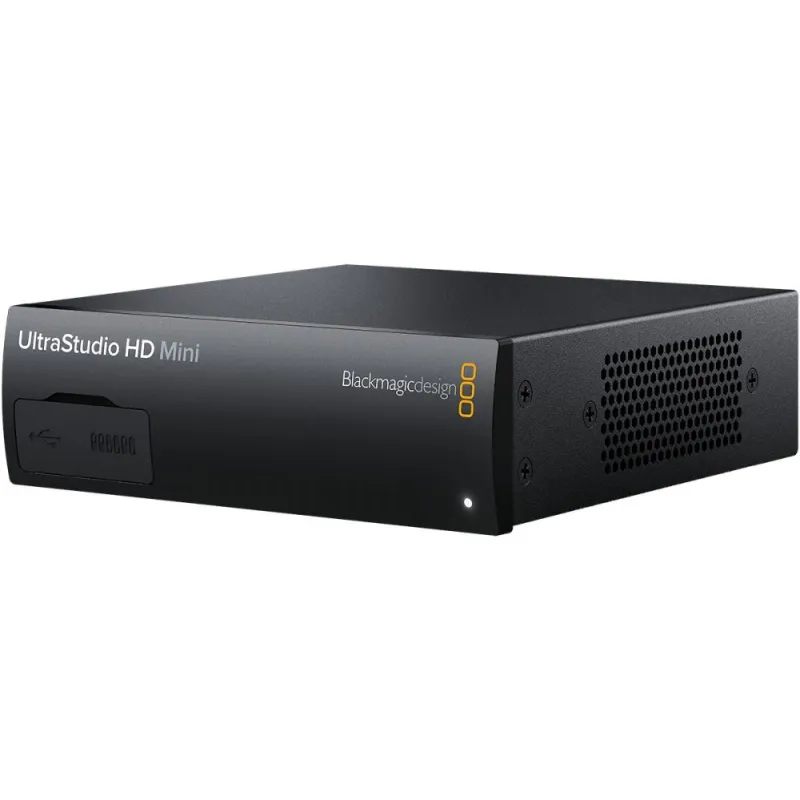

Blackmagic Design Ultrastudio HD Mini
15410
BDLKULSDMINHD
9338716004809
Jauns
639.45
Līzinga kalkulators
Apskatīt līdzīgus produktus
Apskatīt līdzīgus produktus
Oriģinālais preces apraksts no ražotāja (oriģinālā valodā)

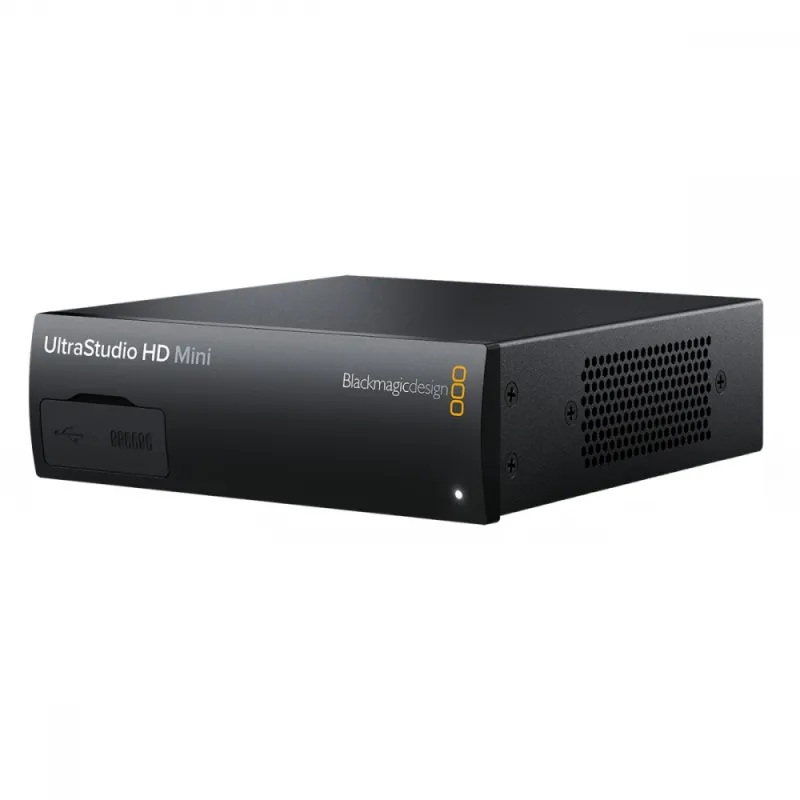

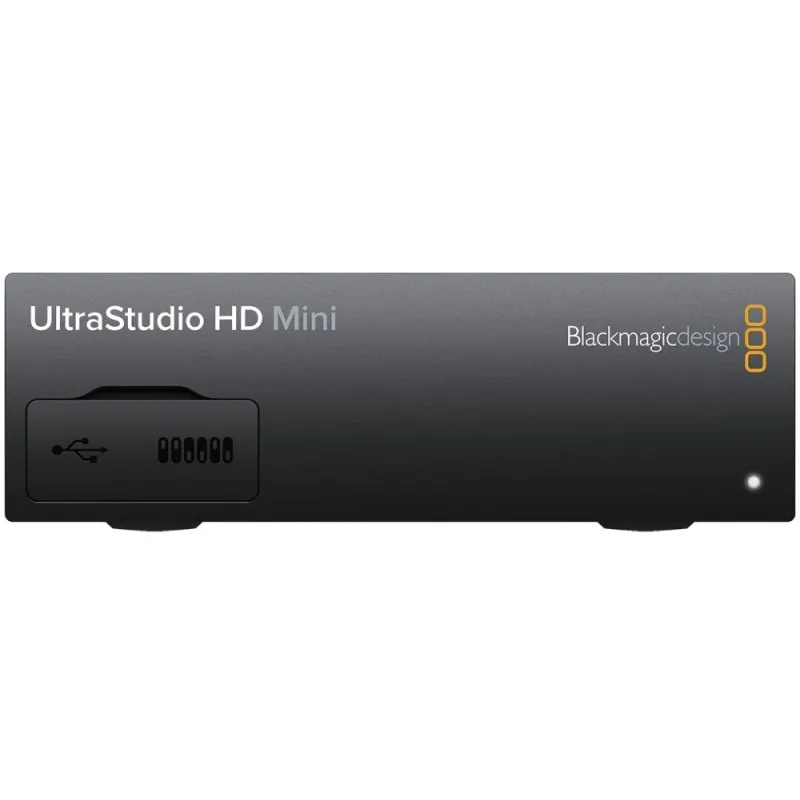

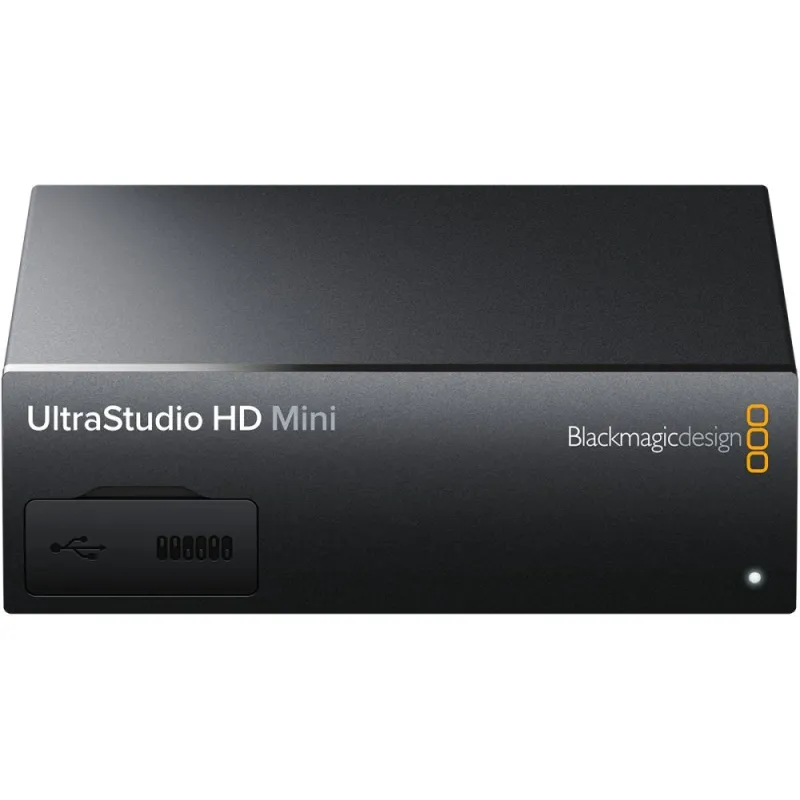

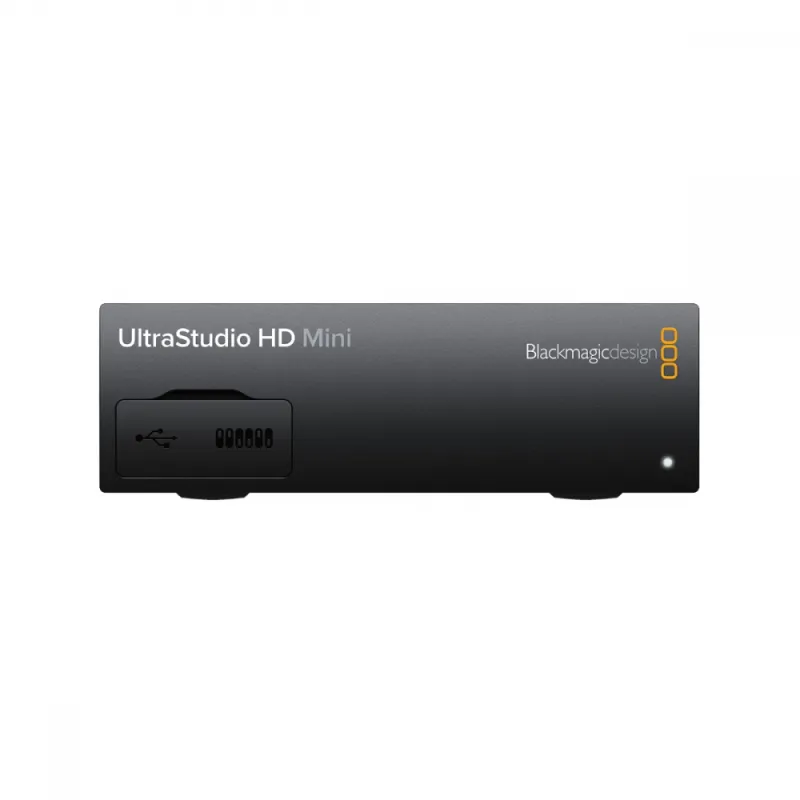

Blackmagic Design Ultrastudio HD Mini (BM-BDLKULSDMINHD)
Built with blazingly fast Thunderbolt, UltraStudio lets you work with the highest quality video resolutions all the way up to Ultra HD and DCI 4K. UltraStudio works with all your favorite video software such as DaVinci Resolve, Final Cut Pro, Avid Media Composer and Adobe Creative Suite. UltraStudio is QuickTime and WDM based and work with any Mac OS X and Windows video software!
Advanced Workflow
UltraStudio is perfect for high performance work that demands the highest quality. Using a single Thunderbolt cable, you can easily connect any Thunderbolt computer or laptop for amazing on set color correction, editing, visual effects and video streaming. Lightweight and compact, UltraStudio HD Mini is extremely portable, easily moving from one computer to another. UltraStudio Mini Recorder and UltraStudio Mini Monitor include SDI and HDMI connections and are great when you require either capture or playback in SD or HD. UltraStudio HD Mini and UltraStudio Mini models are Thunderbolt powered so you just plug in and go.
SDI input
UltraStudio HD Mini includes 3G-SDI, analog YUV and composite NTSC/PAL video inputs, two channel analog audio in, and reference as well as RS-422 for deck control! For output, you get dual link 3G-SDI with simultaneous fill and key, plus HDMI. UltraStudio Mini also features Thunderbolt 3 so you get incredible 40 Gb/s performance for capture and playback of fully uncompressed video, leaving your computer’s CPU free for more processing tasks.
Delivery Contents:
• UltraStudio HD Mini
• SD card with software and manual.
• DaVinci Resolve SD card
Teranex Mini Smart Panel is not included in the package.
Specifications

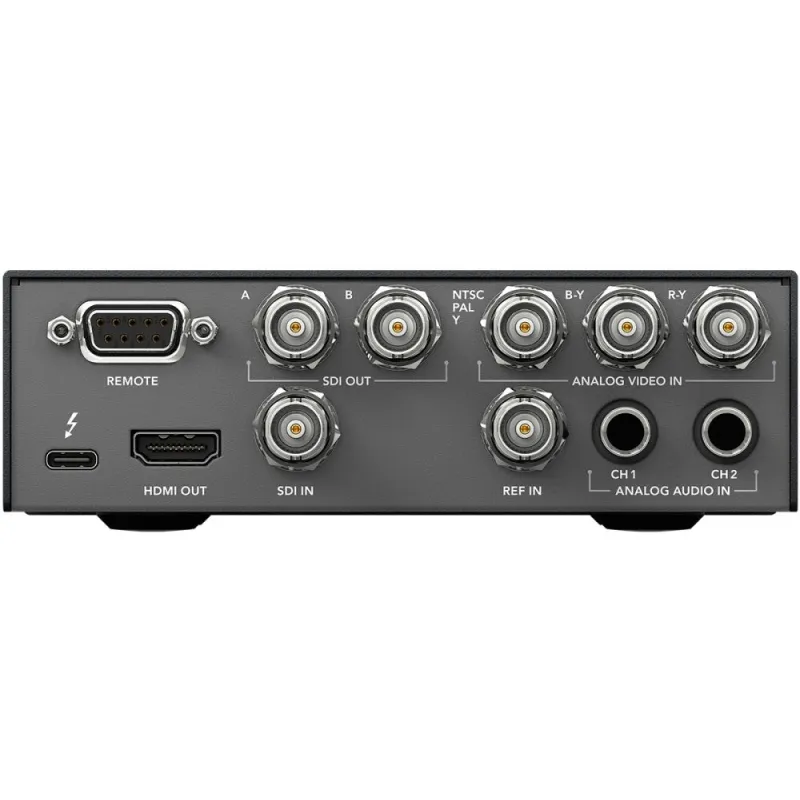

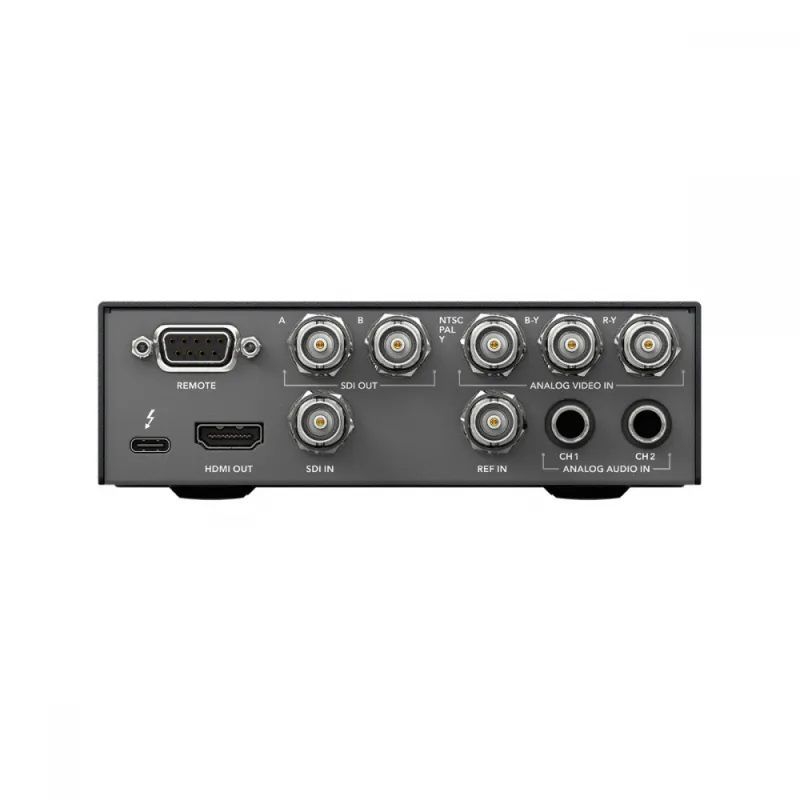

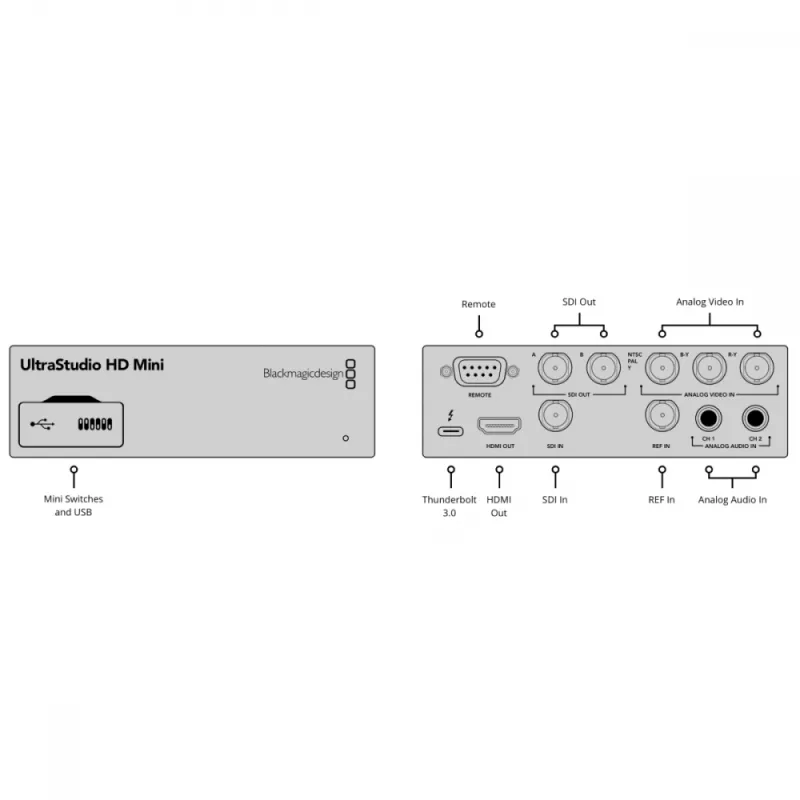

Connections
SDI Video Outputs
2 x 3Gb/s SD/HD switchable, supports single and dual link 4:2:2/4:4:4.
SDI Rates
270Mb, 1.5G, 3G
Optical SDI
None
HDMI Video Inputs
None
HDMI Video Outputs
1 x HDMI 1.4b type A connector.
Analog Video Inputs
Y, B-Y, R-Y/NTSC/PAL.
Analog Video Outputs
None
Analog Audio Inputs
2 x 1/4 inch jack connectors for balanced and unbalanced analog audio.
Analog Audio Outputs
None, embedded audio only.
SDI Audio Inputs
16 Channels embedded in SD and HD.
SDI Audio Outputs
16 Channels embedded in SD and HD.
HDMI Audio Outputs
2 Channels embedded in SD and HD.
Reference Input
Tri-Sync or Black Burst.
Codecs
AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHD, DNxHR, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2.
Software
Software Included
Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS X and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
Internal Software Upgrade
Firmware built into software driver. Software driver loads upgrades at system start or via updater software.
Video Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2K Video Standards
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M and SMPTE 425M A/B
SDI Metadata Support
RP 188/SMPTE 12M-2 and closed captioning.
Audio Sampling
Television rate of 48kHz and 24 bit.
SDI Video Sampling
4:2:2/4:4:4
Color Precision
8, 10, 12-bit RGB 4:4:4 up to 1080p30 and 8, 10-bit YUV 4:2:2 in all standards.
Color Space
REC 601, REC 709
HDMI Resolution
Pixel for pixel HD resolution input to connected device.
Multiple Rate support
SDI and HDMI video connections are switchable between standard definition and high definition. SDI switches between 270 Mb/s, 1.5 Gb/s and 3 Gb/s.
Copy Protection
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Hardware Frame Buffer
v210 (10 bit YUV), 2vuy (8 bit YUV), ARGB, BGRA (8 bit RGB), r210 (10 bit RGB), R12B,R12L (12 bit RGB).
Computer Capture
1 x Thunderbolt™ 3 for Mac and Windows. Powers from Thunderbolt host computer, includes Blackmagic Desktop Video SDK.
Control
Built in Control Panel

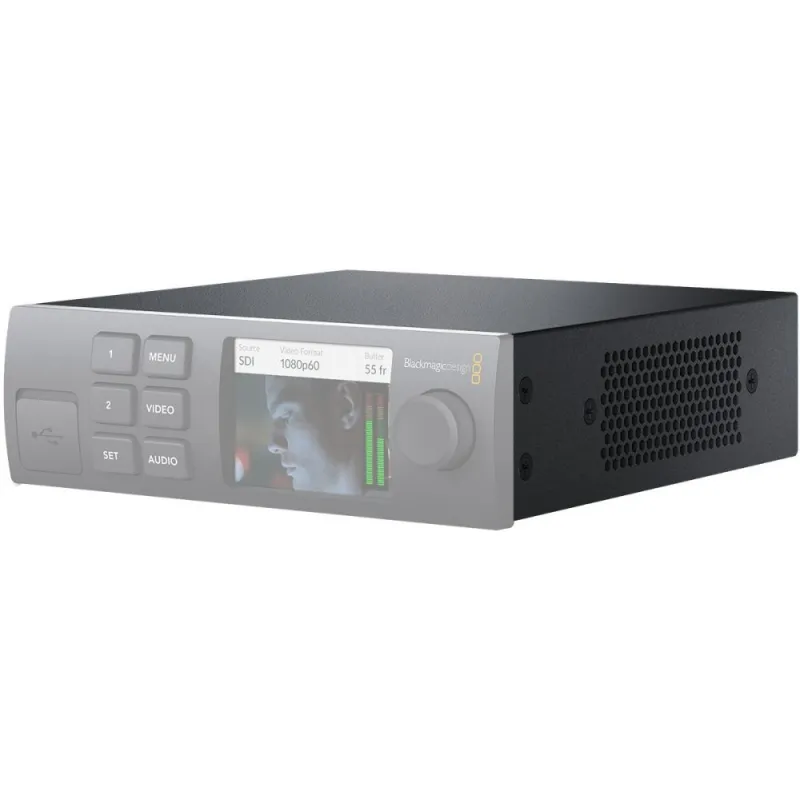

None. Supports Teranex Mini Smart Panel with 2.2 inch color display for video preview, audio meters and status.
Device Control
1 x Sony™ compatible RS-422 deck control port. Serial ports TxRx direction reversible under software control.
Processing
Colorspace Conversion
Hardware based real time.
HD Down Conversion
Real time 10-bit hardware down conversion on SDI B output, Composite and S-Video when working in HD video formats on playback. Selectable between letterbox, anamorphic 16:9 and center cut 4:3 styles.
Real Time Effects
Final Cut Pro X internal effects. Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects. DaVinci Resolve.
Physical Installation
Requires computer with a Thunderbolt™ 3 USB-C port. Please check support pages to see the full system requirements.
Operating Systems
Mac OS X 10.11 El Capitan,
macOS 10.12 Sierra or later.
Windows 7, 8.1 and 10, all 64-bit.
Linux
Power Requirements
Powered by Thunderbolt cable.
Environmental Specifications
Operating Temperature
5° to 40° C (41° to 104° F)
Storage Temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
