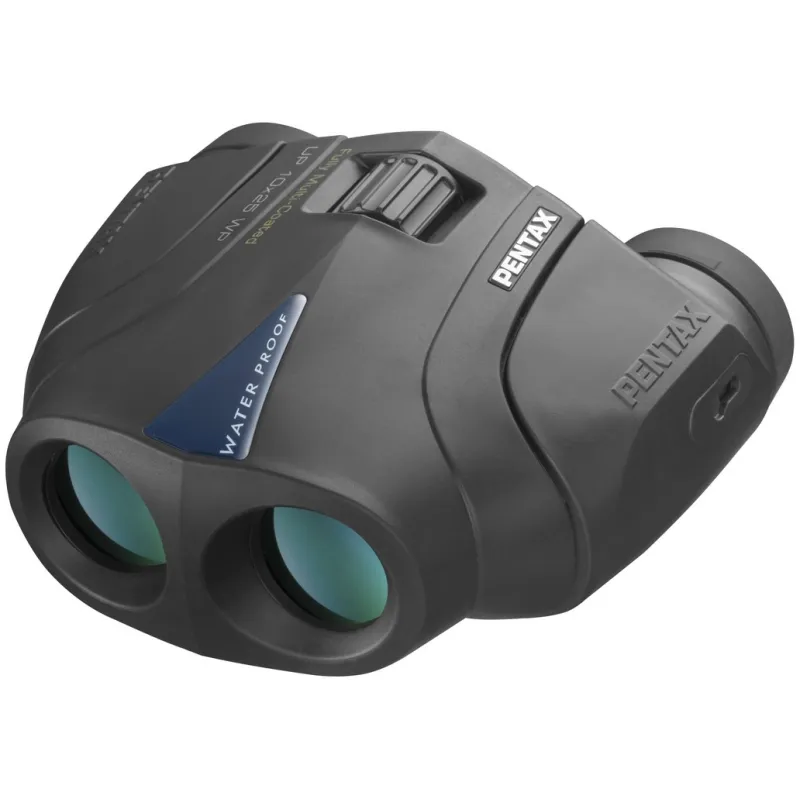

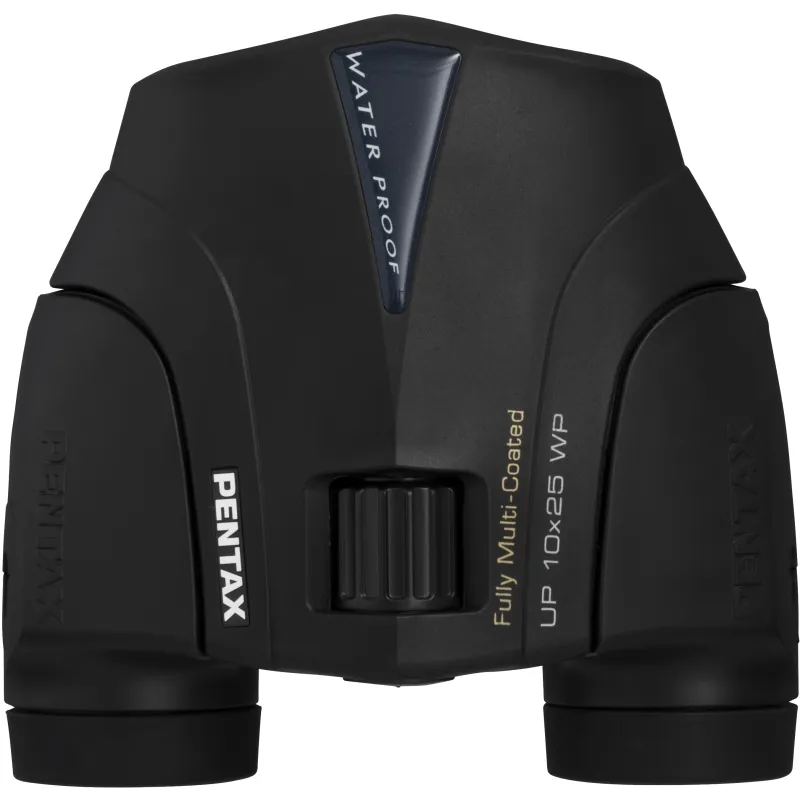

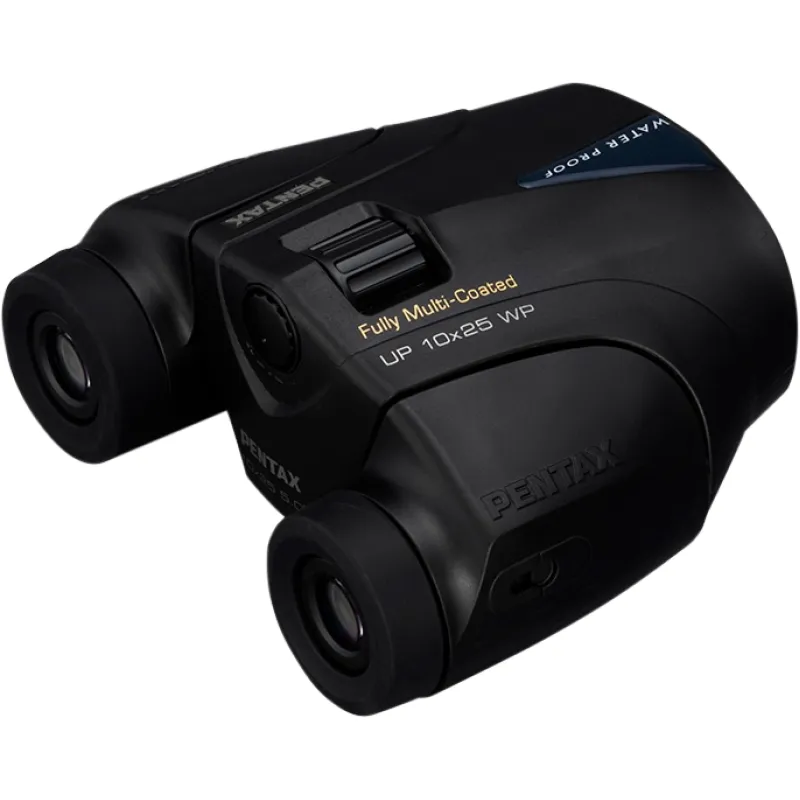

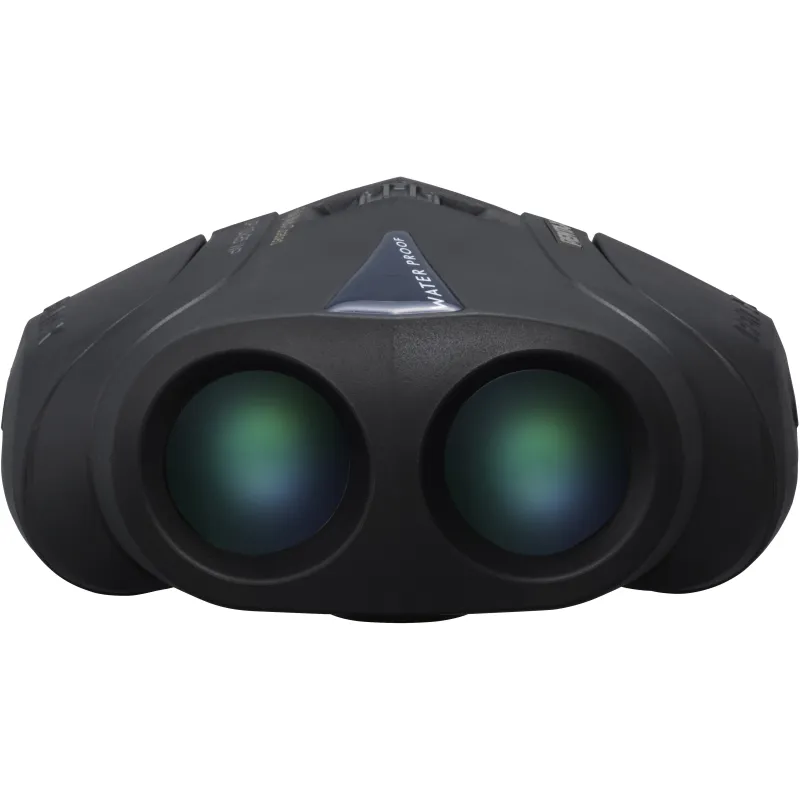

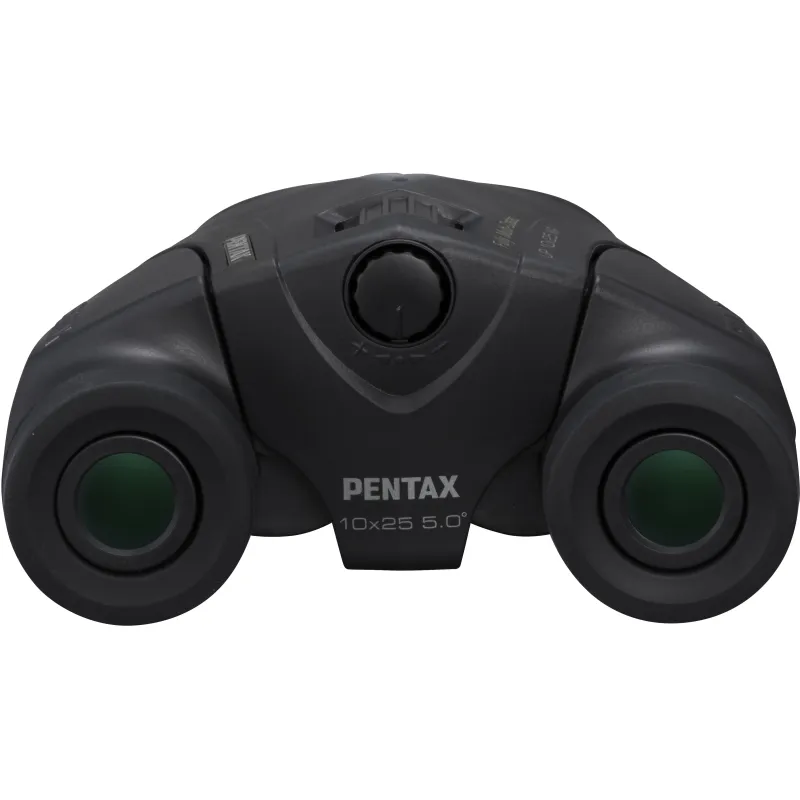

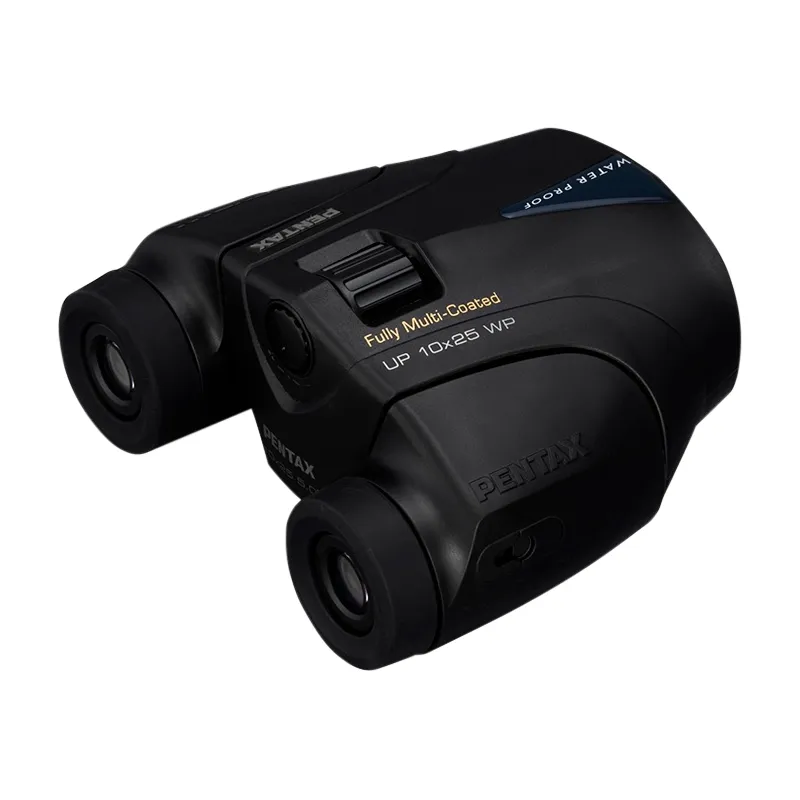

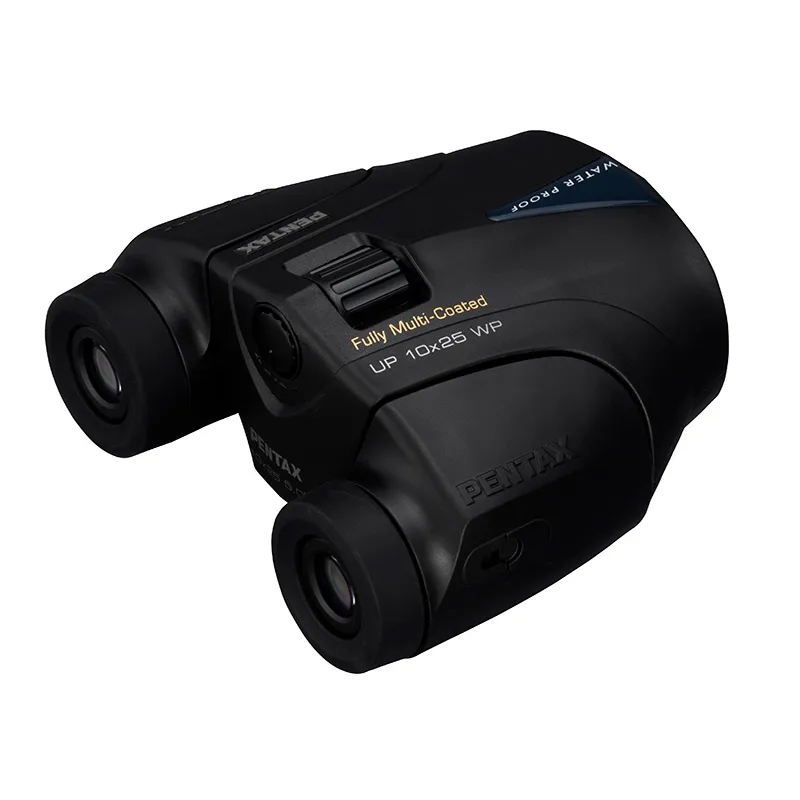

PENTAX UP 10X25 WP

Waterproof in a sleek design

Waterproof serie to manes all outdoor life. This line-up takes a different approach. The dual-axis and inverted porro prism design makes it compact and light weight. Combined with aspherical lens elements for edge-to-edge sharpness, BaK4 prisms and multi-coated lenses you get a star performer ideal as a travel companion, for outdoor events or for general purpose usage.

• New fully multi-coated optics
• Inverted porro prism design
• Waterproof JIS Class6
• Aspherical lens elements providing edge-to-edge sharpness
• High Quality BaK4 prism to enhance transmission and resolution
• Dual-axis, single body design with synchronized eye-piece IPD adjustment
• Deep, blue-tinted rubber armouring for maximum protection and grip
• Pull-up eyecups combined with comfortable eye-relief
• Centrally-located lockable diopter adjustment

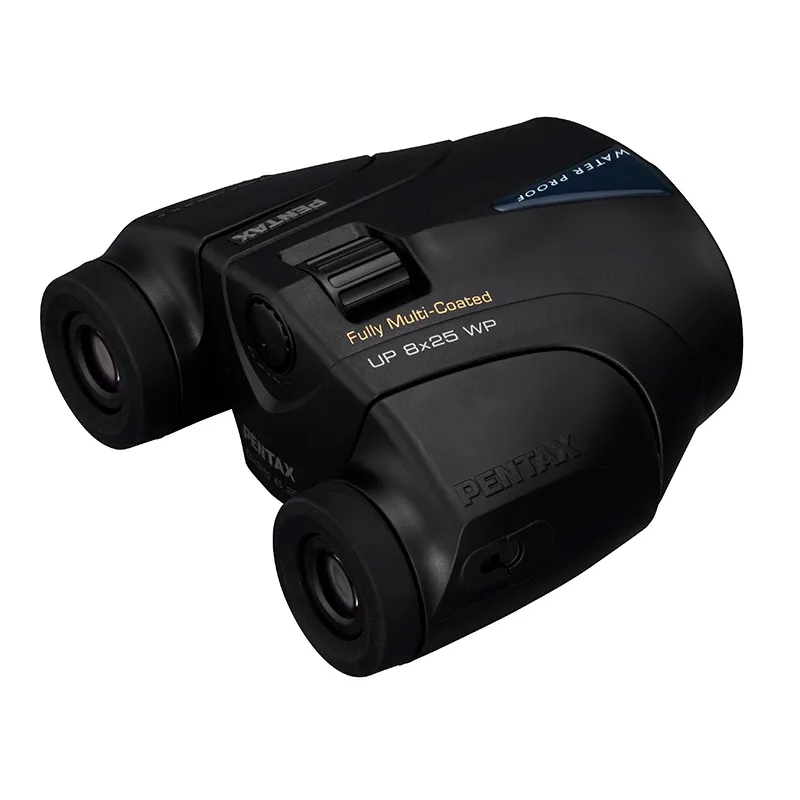

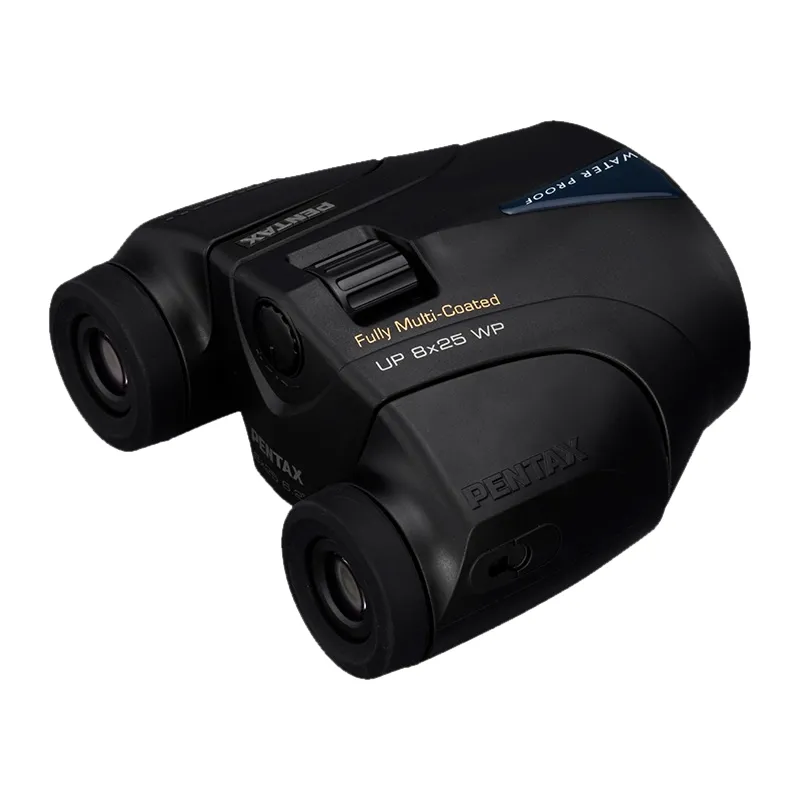

	UP 8x25 WP	UP 10x25 WP
Magnification	8x	10x
Objective lens diameter	25mm
Prisma type	Inverted porro-prism
Lens Coating	Fully multi-coated optics
Prism	BAk4
Field of View (at 1.000 m)	108m	87m
Close focus	1,9m
Exit Pupil	3,1mm	2,5mm
Eye Relief	15mm	15mm
Eyecups	Pull-up with Multi-stop
Waterproof	Yes
Tripod adaptor	Adapter U
Size (LxWxH in mm)	115 x 110 x 55	115 x 110 x 56
Weight (g)	300
Supplied accessories	Objective and eyepiece caps, case, strap

• New fully multi-coated optics
• Inverted porro prism design
• Waterproof JIS Class 6
• Aspherical lens elements providing edge-to-edge sharpness
• High Quality BaK4 prism to enhance transmission and resolution
• Dual-axis, single body design with synchronized eye-piece IPD adjustment
• Deep, blue-tinted rubber armouring for maximum protection and grip
• Pull-up eyecups combined with comfortable eye-relief
• Centrally-located lockable diopter adjustment

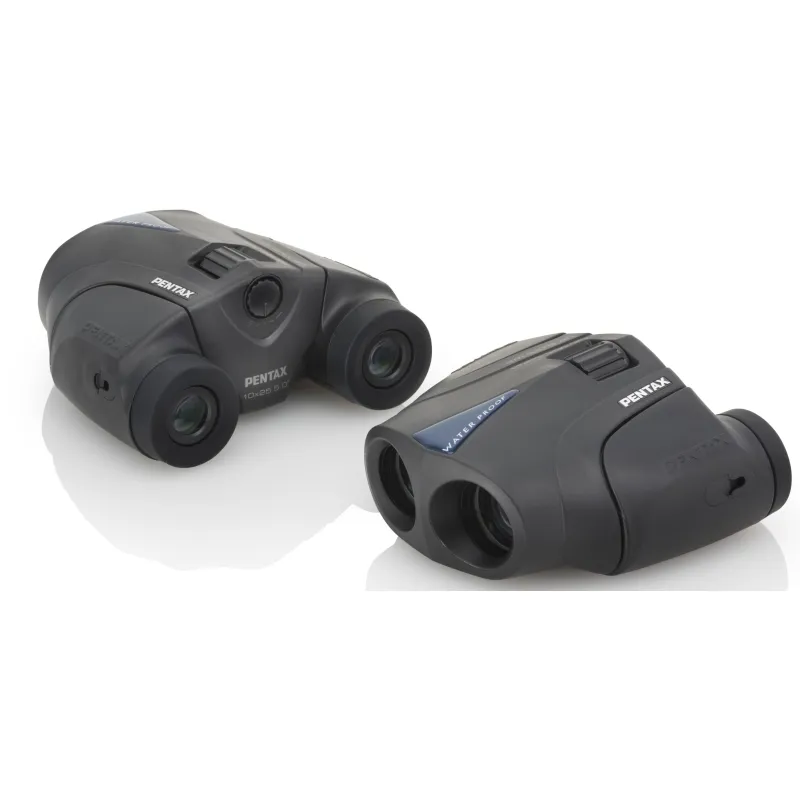

U-Series
These compact, inverted porro-prism models feature a durable dual-axis, single body design with synchronized IPD adjustment and full multi-coating for better light transmission. Aspherical lens elements give you edge-to-edge sharpness. They are a perfect “utility” companion for a multitude of applications.

This line-up takes a different approach. The dual-axis and inverted porro prism design makes it compact and light weight. Combined with aspherical lens elements for edge-to-edge sharpness, BaK4 prisms and multi-coated lenses you get a star performer ideal as a travel companion, for outdoor events or for general purpose usage.

New Fully-multi-coated optics
Fully multi-coated lenses serve the essential purpose of maximizing the amount of light passing through a lens, thereby prevent flare and ghosting from interfering with your view. PENTAX applies multiple layers of coatings to every surface of every element and prism in the full Sport Optics line-up. These fully-multi-coated optics assure the maximum light transmission resulting in a clear, crisp view of the world.

BaK4 prisms
Due to its outstanding refractive index, the BaK4 glass prism found in all PENTAX Sport Optics is highly acclaimed for its perfectly round exit pupil and clear, unvignetted image.

Aspherical lens elements
Edge-to-edge sharpness is a vital element to comfortable viewing. To achieve this, we utilise aspherical lens elements in our eyepieces. This is a specially shaped lens design that reduces aberration to a minimum.

Inner Focus Optics Design
This sophisticated optical design is critical to low-maintenance and long life guarantee. Exposure to airbourne particles and moisture is avoided, thereby ensuring that no outside influences can penetrate the housing and disrupt functionality.

PENTAX Waterproofing
PENTAX waterproof products are fully sealed and purged with laboratory grade nitrogen to provide a fog proof view in the harshest weather conditions. With a JIS Class 6 rating, PENTAX waterproof binoculars can even be submerged in up to 3 feet of water.

Long eye relief design
The long eye relief offered in all PENTAX Sport Optics allows the viewer to see the entire fi eld of view clearly and effortlessly. This is especially benefi cial to eyeglass wearers, and allows viewing for extended periods of time without added eye strain.

Other Features
Exterior rubber coating that provides the binoculars with superb resistance to shocks and impacts.

• New fully multi-coated optics
• Inverted porro prism design
• Aspherical lens elements providing edge-to-edge sharpness
• High Quality BaK4 prism to enhance transmission and resolution
• Dual-axis, single body design with synchronized eye-piece IPD adjustment
• Deep, blue-tinted rubber armouring for maximum protection and grip
• Pull-up eyecups combined with comfortable eye-relief
• Centrally-located lockable diopter adjustment

U-Series
These compact, inverted porro-prism models feature a durable dual-axis, single body design with synchronized IPD adjustment and full multi-coating for better light transmission. Aspherical lens elements give you edge-to-edge sharpness. They are a perfect “utility” companion for a multitude of applications.

This line-up takes a different approach. The dual-axis and inverted porro prism design makes it compact and light weight. Combined with aspherical lens elements for edge-to-edge sharpness, BaK4 prisms and multi-coated lenses you get a star performer ideal as a travel companion, for outdoor events or for general purpose usage.

New Fully-multi-coated optics
Fully multi-coated lenses serve the essential purpose of maximizing the amount of light passing through a lens, thereby prevent flare and ghosting from interfering with your view. PENTAX applies multiple layers of coatings to every surface of every element and prism in the full Sport Optics line-up. These fully-multi-coated optics assure the maximum light transmission resulting in a clear, crisp view of the world.

BaK4 prisms
Due to its outstanding refractive index, the BaK4 glass prism found in all PENTAX Sport Optics is highly acclaimed for its perfectly round exit pupil and clear, unvignetted image.

Aspherical lens elements
Edge-to-edge sharpness is a vital element to comfortable viewing. To achieve this, we utilise aspherical lens elements in our eyepieces. This is a specially shaped lens design that reduces aberration to a minimum.

Inner Focus Optics Design
This sophisticated optical design is critical to low-maintenance and long life guarantee. Exposure to airbourne particles and moisture is avoided, thereby ensuring that no outside influences can penetrate the housing and disrupt functionality.

Long eye relief design
The long eye relief offered in all PENTAX Sport Optics allows the viewer to see the entire field of view clearly and effortlessly. This is especially beneficial to eyeglass wearers, and allows viewing for extended periods of time without added eye strain.

Other Features
Exterior rubber coating that provides the binoculars with superb resistance to shocks and impacts.

Bright and sharp in a sleek design

This line-up takes a different approach. The dual-axis and inverted porro prism design makes it compact and light weight. Combined with aspherical lens elements for edge-to-edge sharpness, BaK4 prisms and multi-coated lenses you get a star performer ideal as a travel companion, for outdoor events or for general purpose usage.

• New fully multi-coated optics
• Inverted porro prism design
• Aspherical lens elements providing edge-to-edge sharpness
• High Quality BaK4 prism to enhance transmission and resolution
• Dual-axis, single body design with synchronized eye-piece IPD adjustment
• Deep, blue-tinted rubber armouring for maximum protection and grip
• Pull-up eyecups combined with comfortable eye-relief
• Centrally-located lockable diopter adjustment



	UP 8x25	UP 10x25
Magnification	8x	10x
Objective lens diameter	25mm
Prisma type	Inverted porro-prism
Lens Coating	Multi-coated optics
Prism	BAk4
Field of View (at 1.000 m)	108m	87m
Close focus	1,9m
Exit Pupil	3,1mm	2,5mm
Eye Relief	15mm	15mm
Eyecups	Pull-up with Multi-stop
Waterproof	No
Tripod adaptor	Adapter U
Size (LxWxH in mm)	115 x 110 x 55	115 x 110 x 56
Weight (g)	300
Supplied accessories	Objective and eyepiece caps, case, strap

Waterproof in a sleek design

Waterproof serie to manes all outdoor life. This line-up takes a different approach. The dual-axis and inverted porro prism design makes it compact and light weight. Combined with aspherical lens elements for edge-to-edge sharpness, BaK4 prisms and multi-coated lenses you get a star performer ideal as a travel companion, for outdoor events or for general purpose usage.

• New fully multi-coated optics
• Inverted porro prism design
• Waterproof JIS Class6
• Aspherical lens elements providing edge-to-edge sharpness
• High Quality BaK4 prism to enhance transmission and resolution
• Dual-axis, single body design with synchronized eye-piece IPD adjustment
• Deep, blue-tinted rubber armouring for maximum protection and grip
• Pull-up eyecups combined with comfortable eye-relief
• Centrally-located lockable diopter adjustment
