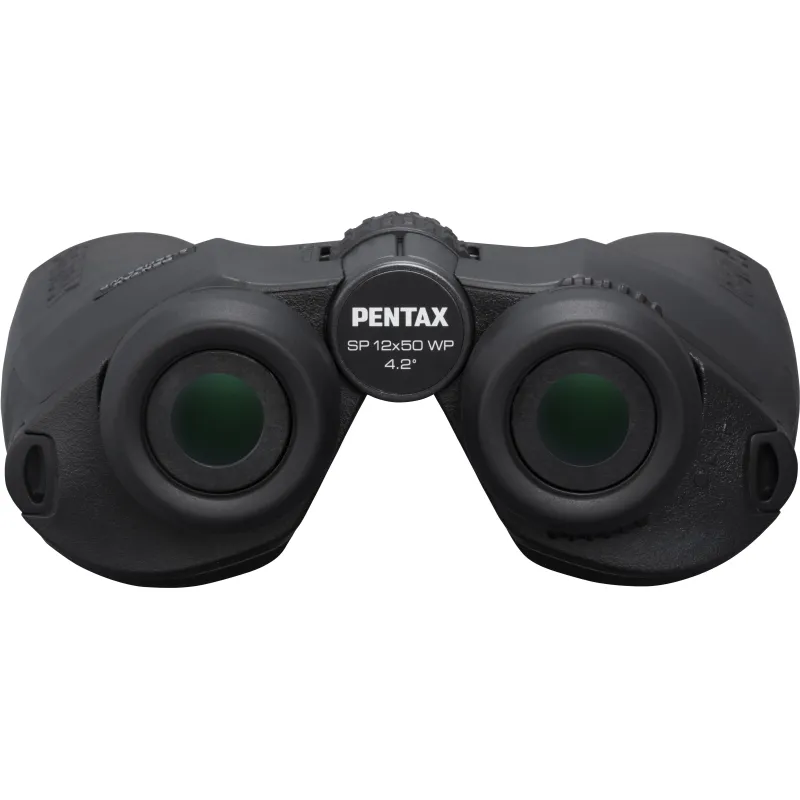

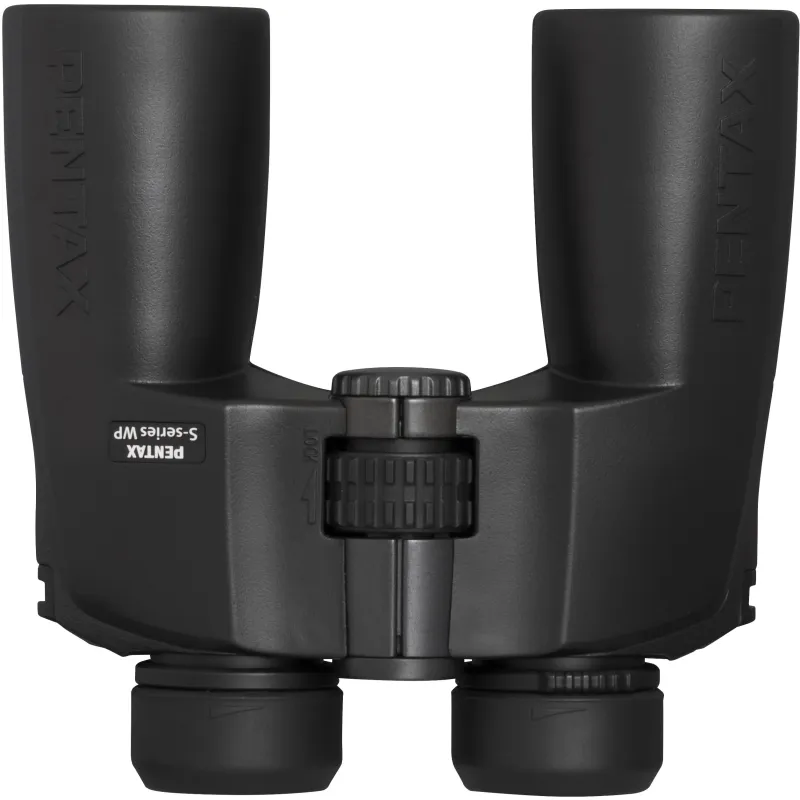

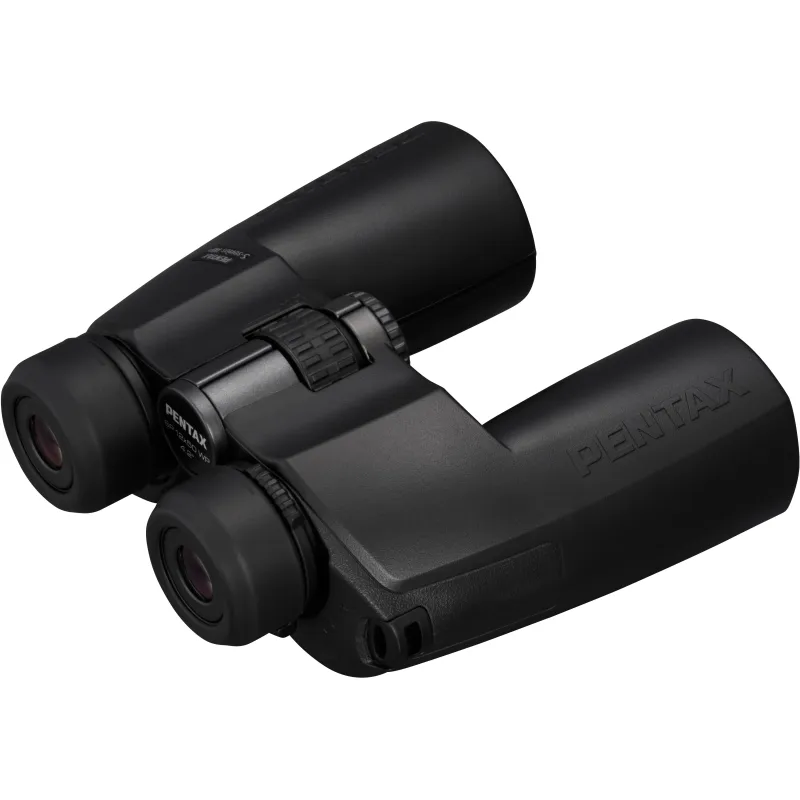

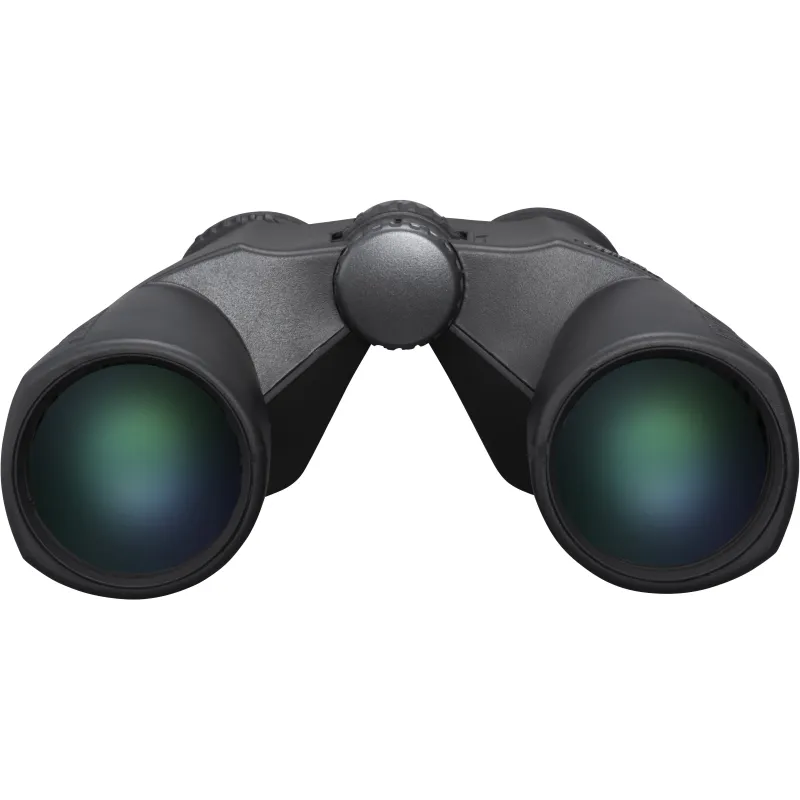

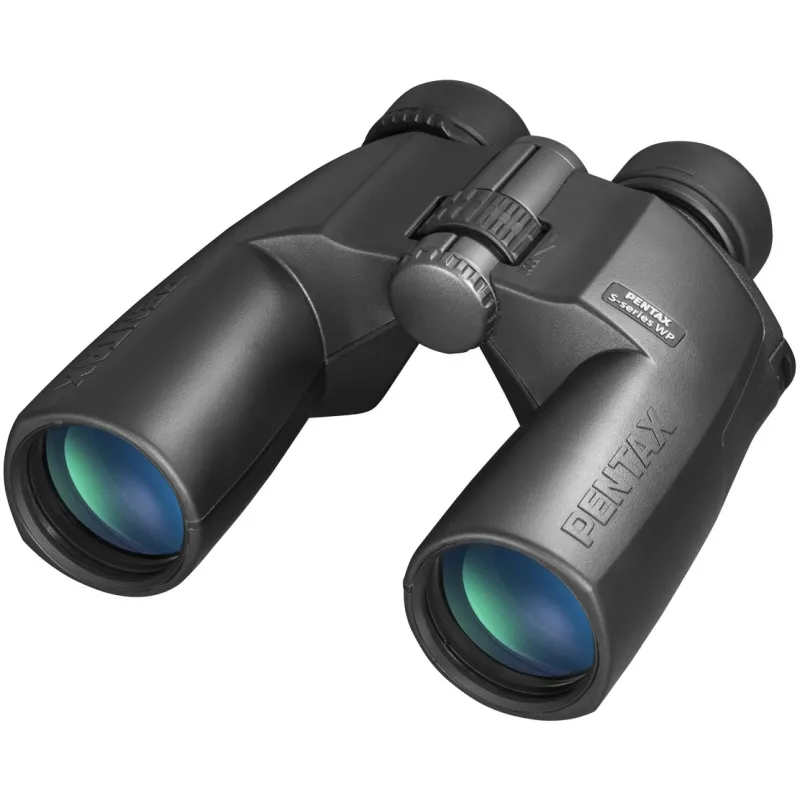

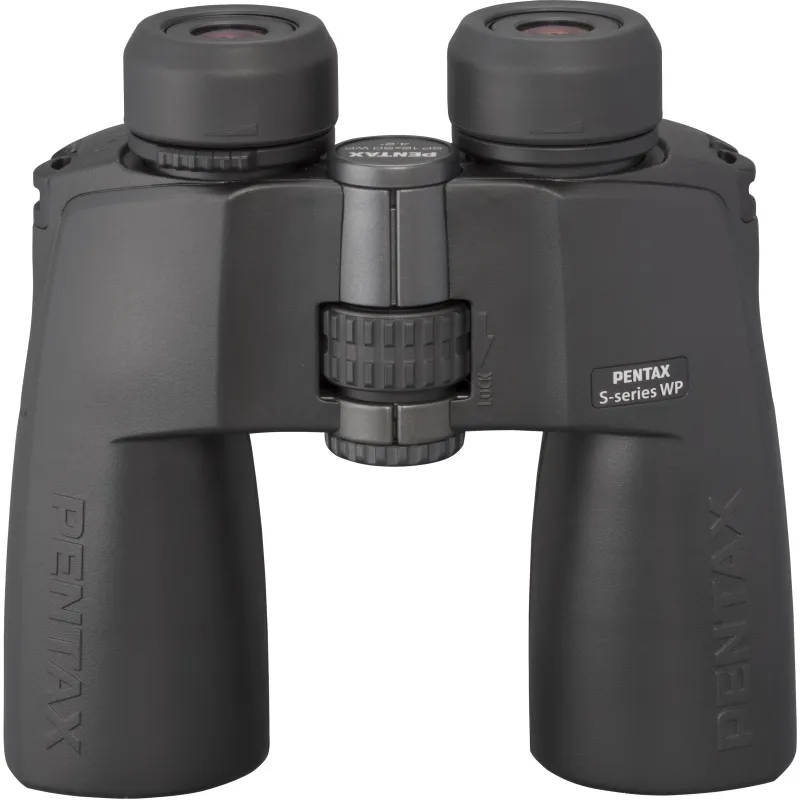

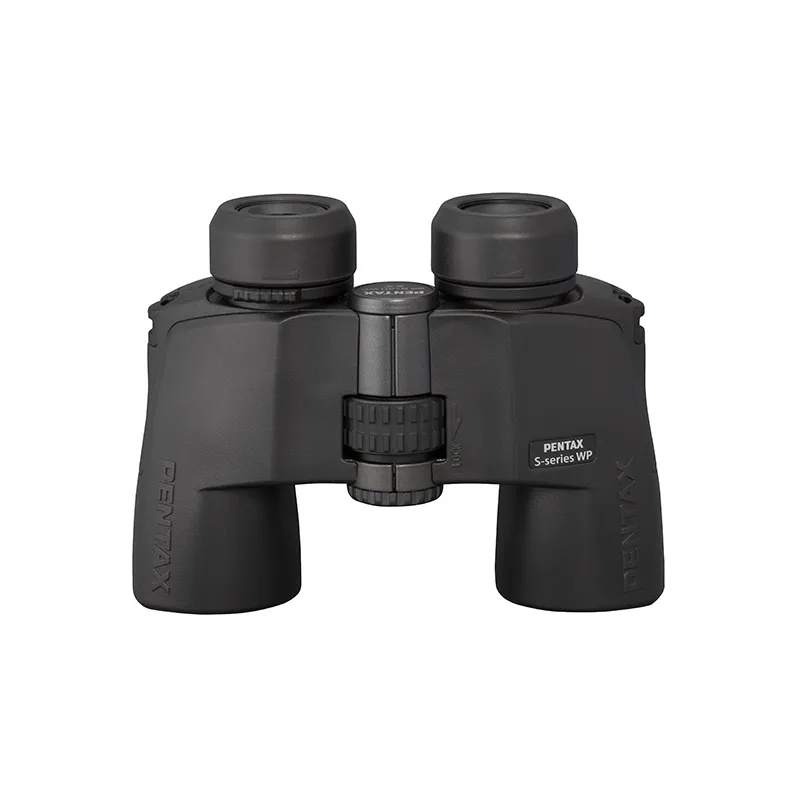

PENTAX SP 12X50 WP

A ROUGH & TOUGH WATERPROOF PERFORMER

This binocular was created for heavy duty applications. The rubber armoured waterproof and nitrogen-purged body withstands weather, dust or rough impact.

Add high imaging capability and you have a binocular that will accompany you to the extremes, on land or on water! Includes a powerful 20 x 60 for long-range or astronomy observations.

• New fully multi-coated optics
• Phase correction
• Protective lens coating
• Waterproof
• Nitrogen purged
• Unique hydrophobic coating
• Aspherical lens elements
• Magnesium alloy construction

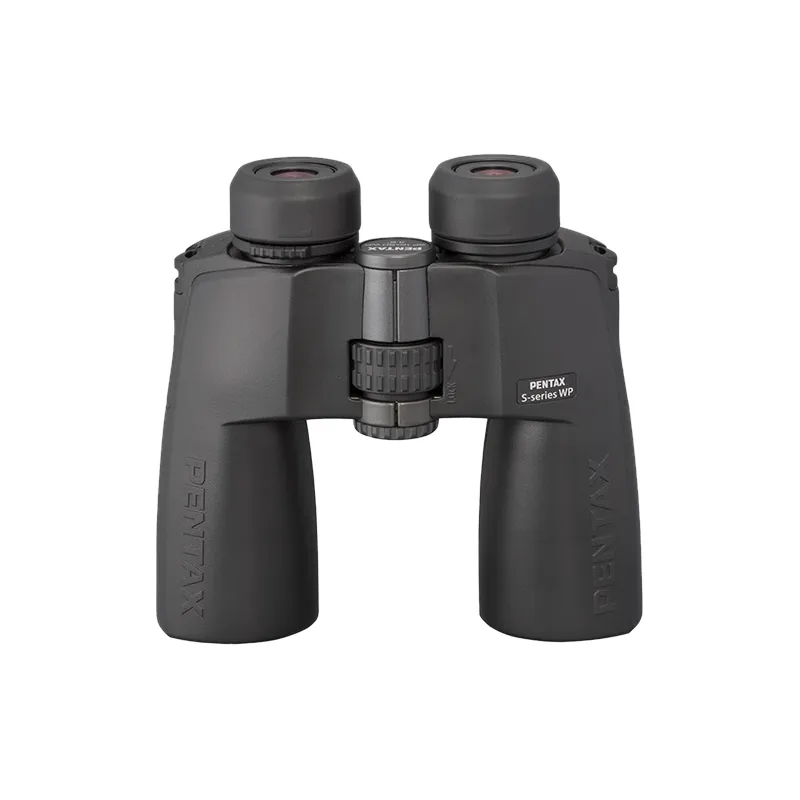

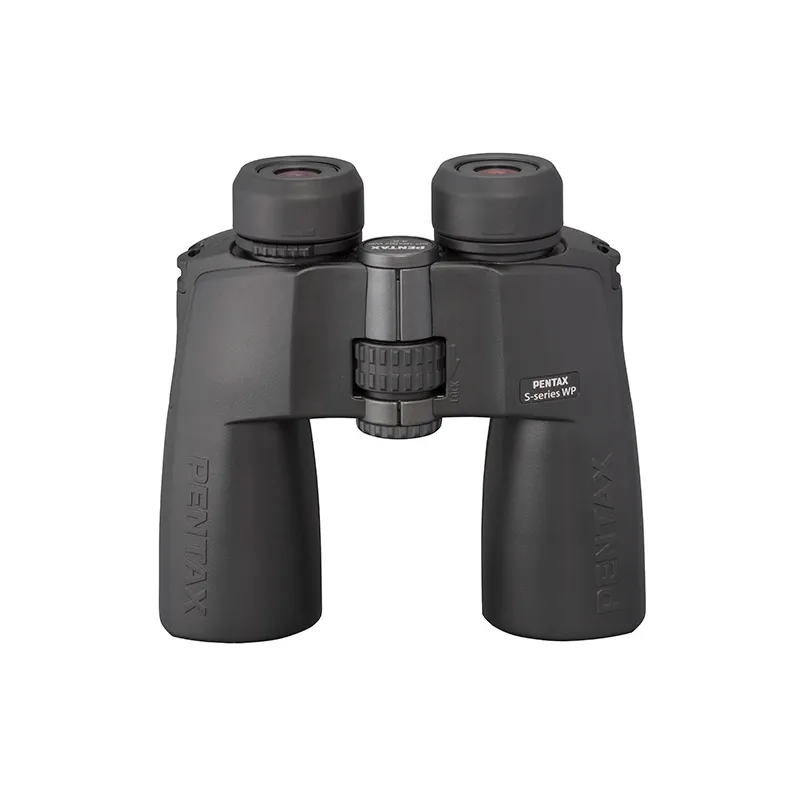

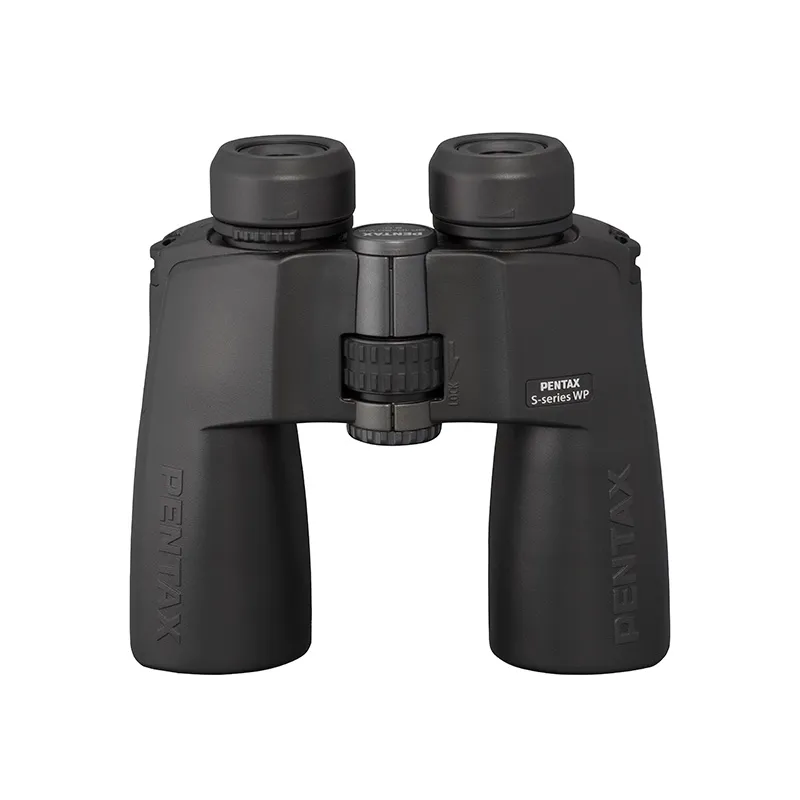

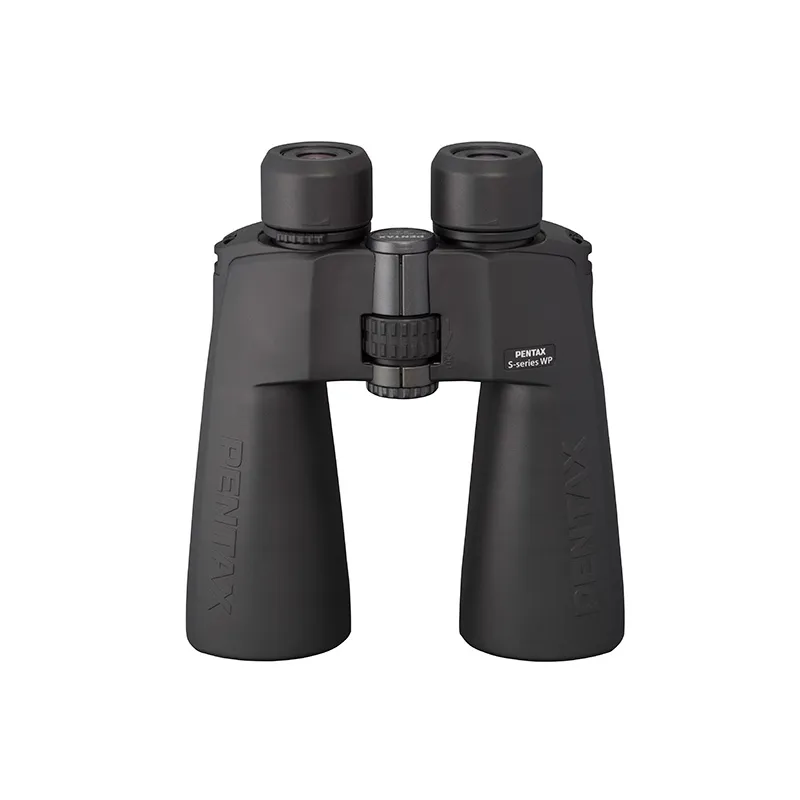

	SP 8X40 WP	SP 10X50 WP	SP 12X50 WP	SP 20X60 WP
Magnification	8x	10x	12x	20x
Objective lens diameter	40mm	50mm	50mm	60mm
Prisma type	Porroprism
Lens Coating	Fully Multi-coated optics with phase correction and hydrophobic coating
Prism	BaK4
Field of View at 1.000 m	110m	87m	73m	38m
Close focus	3,5m	5,5m	5,5m	8,0m
Exit Pupil	5mm	5mm	4,2mm	3mm
Eye Relief	20mm	20mm	20mm	21mm
Eyecups	Twist-up
Waterproof	Yes
Tripod adaptor	Adapter N
Size (LxWxH in mm)	136 x 178 x 76	178 x 183 x 79	178 x 183 x 79	224 x 195 x 85
Weight (g)	850	1060	1080	1400
Supplied accessories	Objective and eyepiece caps, case, strap

• New fully multi-coated optics
• Phase correction
• Protective lens coating
• Waterproof
• Nitrogen purged
• Unique hydrophobic coating
• Aspherical lens elements
• Magnesium alloy construction

S-series
The S-series consists of both roof and porro prism models with objective lenses > 40mm so personal preferences are immediately defined. In addition to the newly developed light transmission coatings, waterproof porrro prism models also boast the hydrophobic coating, thereby allowing for contrast-rich, bright viewing under rough outdoor conditions.
This binocular was created for heavy duty applications. The rubber armoured waterproof and nitrogen-purged body withstands weather, dust or rough impact. Add high imaging capability and you have a binocular that will accompany you to the extremes, on land or on water! Includes a powerful 20 x 60 for long-range or astronomy observations.

New Fully-multi-coated optics
Fully multi-coated lenses serve the essential purpose of maximizing the amount of light passing through a lens, thereby prevent flare and ghosting from interfering with your view. PENTAX applies multiple layers of coatings to every surface of every element and prism in the full Sport Optics line-up. These fully-multi-coated optics assure the maximum light transmission resulting in a clear, crisp view of the world.

Protective Lens Coating
All optical surfaces are delicate and must be handled with care to prevent scratching. To add to the durability of the Z- and S-series Water Proof binoculars, PENTAX has added a protective, nano technology coating that helps deflect water, oil, dust and dirt. This allows PENTAX binoculars to withstand the harshest viewing conditions.

BaK4 prisms
Due to its outstanding refractive index, the BaK4 glass prism found in all PENTAX Sport Optics is highly acclaimed for its perfectly round exit pupil and clear, unvignetted image.

Phase Correction
The complex optical design of roof prism binoculars provide durable, compact, yet lightweight design but require a higher level of optical perfection. A phase-correction coating is applied in the full range of roof prism binoculars to maximize image viewing quality.

PENTAX Waterproofing
PENTAX waterproof products are fully sealed and purged with laboratory grade nitrogen to provide a fog proof view in the harshest weather conditions. With a JIS Class 6 rating, PENTAX waterproof binoculars can even be submerged in up to 3 feet of water.

Unique Hydrophobic Coating
Water droplets on a lens have a negative infl uence on the ability of light to enter the objective lens. By using a unique water repellent coating on all outer lenses we make water drops “bead” into small, deformed droplets. The deformed droplets cause less distortion and “slide” more easily off the lens. Your binocular remains fully functional even in rain, snow, fog or condensing breath.

Aspherical lens elements
Edge-to-edge sharpness is a vital element to comfortable viewing. To achieve this, we utilise aspherical lens elements in our eyepieces. This is a specially shaped lens design that reduces aberration to a minimum.

Nitrogen purged
Nitrogen is a chemical element and a colorless, odorless and tasteless gas. It contains very little humidity and is therefore used to “purge” binoculars and spotting scopes of the high humidity air that is part of our environment. Due to the low humidity factor, nitrogen prevents condensation from forming on the internal lenses of optical instruments during phases of rapid temperature change. Furthermore, because nitrogen is purged into the optical instrument at slightly above atmospheric pressure, dust and other miniscule particles are prevented from entering the housing.

Long eye relief design
The long eye relief offered in all PENTAX Sport Optics allows the viewer to see the entire field of view clearly and effortlessly. This is especially beneficial to eyeglass wearers, and allows viewing for extended periods of time without added eye strain.

Superb impact resistance
The body is made from magnesium, which adds toughness while keeping the binoculars light. In addition, the exterior rubber coating provides the binoculars with superb resistance to shocks and impacts.

Other Features
Helicoid three-stop eyepiece rings that permit fine adjustment for maximum viewing comfort.
