HOLLYLAND PYRO S-RX WIRELESS VIDEO RECEIVER PYRO S-RX

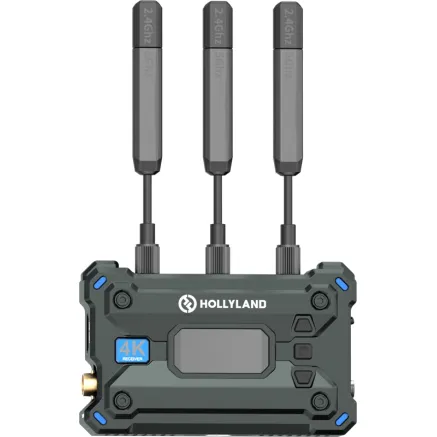

HOLLYLAND PYRO S-RX WIRELESS VIDEO RECEIVER

Pyro S is a groundbreaking addition to the Hollyland Pyro series lineup, which redefines wireless video transmission. Pyro S supports HDMI and SDI input/output and can transmit to up to four receivers simultaneously, with a range of up to 400m and minimal latency of just 50ms. Pyro S uses advanced Auto Dual-Band Hopping (ADH) technology to ensure reliable transmission and features selectable modes for your real-world shooting needs. Lighter and more durable than traditional models, Pyros magnesium alloy shell makes it easier to carry and handle. Its ideal for multi-user monitoring in dynamic shooting scenarios, such as film production, live events, and ENG/EFP applications.

Key Features

• 1 Transmitter to 4 Receivers
• Up to 1,300ft (400m)
• 0.05s Low Latency
• 2.4 GHz & 5 GHz Dual Band
• Auto Frequency Hopping
• HDMI & SDI
• Multiple Power Supply Options
• UVC Streaming
• 4K30 Transmission
• Ready Out of the Box

4 Receivers. Not an Issue.

Pyro Ss WifiBroadcast technology enables one transmitter to connect to four receivers with stable signals, offering more flexibility when additional monitoring needs emerge on set.

Faster. Longer. Stronger.

With self-developed 2.4 GHz & 5 GHz Dual-Band technology, Pyro S features a stable transmission range of up to 1,300ft (400m). It achieves a minimal transmission latency of 50ms thanks to upgraded chips and optimized video encoding/decoding algorithms.

Dual Boost From Delay to Distant Stability

Compared to traditional video transmission systems whose range extends at the cost of image quality and latency, Pyro S excels with increased transmission distance while preserving video quality and minimizing latency.

You can select these two modes according to your application needs

Smooth Mode The bitrate dynamically adjusts in this mode to achieve the lowest 50ms latency for ultra-long-distance transmission.

HD Mode Optimal for superior image quality. HD Mode guarantees clear visuals, maintaining a stable bitrate of 8-12 Mbps even at a range of 1,300ft (400m).

Auto Dual-Band Hopping (ADH)

With our developed Auto Dual-Band Hopping (ADH) technology, Pyro S operates on both 2.4 GHz and 5 GHz dual-bands and features intelligent Auto Frequency Hopping, so it can automatically choose the clearest channel. This feature guarantees reliable and uninterrupted wireless video transmission.

2.4 GHz & 5 GHz Dual Band

Pyro S offers a dual-band transmission solution that addresses common issues such as signal interference, low transmission efficiency, and frequency congestion. And the omnidirectional high-gain antennas will also ensure stable signals in all directions. This provides better signal transmission performance and efficiency. With Pyro S, you wont have to worry about video drop issues anymore.

Auto Frequency Hopping

Pyro S is equipped with Auto Frequency Hopping technology, which constantly scans and monitors the strength of the signal and interference across various frequency ranges to find the best wireless channel to use, resulting in a more reliable connection.

Both HDMI and SDI Input/Output

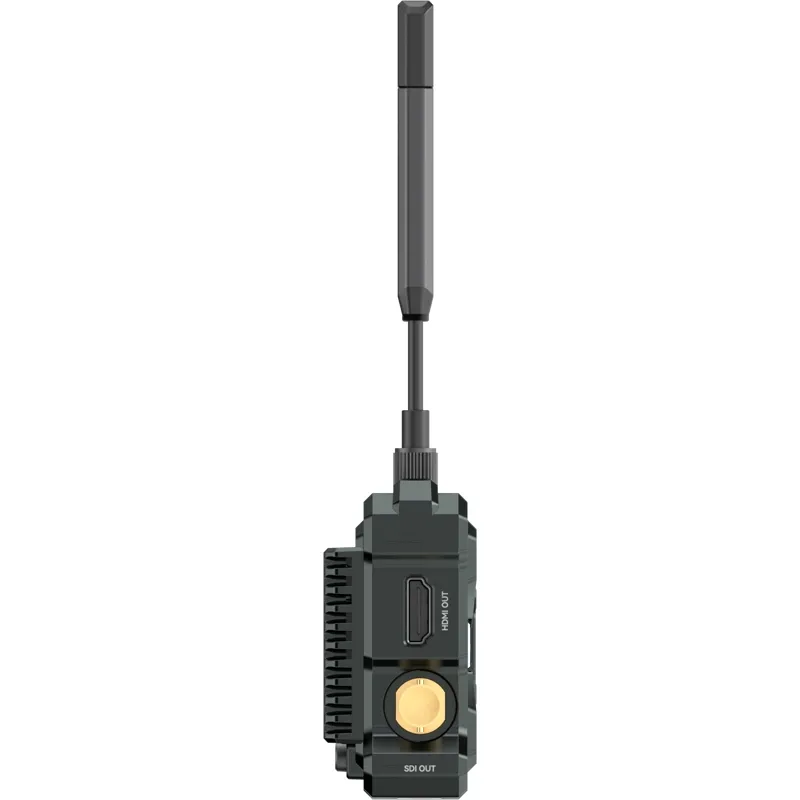

Pyro S is the perfect solution for professional shooting and smaller commercial projects. The transmitter features one HDMI input and one SDI input, while the receiver provides one SDI output and one HDMI output.

4K. Crisp and Sharp.

With 4k/30fps transmission capabilities, Pyro S presents images with superior clarity, detail, and realism, making it competent for professional applications, such as filmmaking.

UVC Streaming.

UVC allows seamless compatibility with a wide range of devices, such as computers, without requiring capture cards or software installations. This plug-and-play feature simplifies setup and operation, making it convenient for users in various scenarios, such as live streaming and video conferencing.

RTMP Streaming

With RTMP (Real-Time Messaging Protocol), just input your wireless key and connect your wireless network card to easily stream video to popular live broadcasting or conferencing platforms like Zoom, YouTube Live, Twitch, TikTok Live, and others. Pyro S will offer you a straightforward and convenient live streaming experience.

Smart Channel Scan.

Upon startup, Pyro S automatically chooses a high-quality frequency channel, optimizing the user experience from the outset. Additionally, users can activate the smart channel scan function on the receiver to view real-time feedback on the frequency status, thus ensuring an uninterrupted and reliable experience.

Easy Setup. Ready to Go.

Pyro S supports preset grouping and pairing, obviating the need for users to repetitively and manually set up the transmitter and receivers. Time really matters to crew members.

Lighter, Stronger, Stiffer Pyro S with Magnesium Alloy Shell

The shell of Pyro S is made of aerospace-grade magnesium-aluminum alloy, which is more robust, rigid, 30 lighter, and better at heat dissipation than aluminum-only models.

Efficient Cooling System

Pyro S features a three-speed fan adjustment feature (Auto, Low Speed, Off). The cooling system helps to regulate device temperature, preventing overheating and ensuring stable signal transmission.

LCD Display

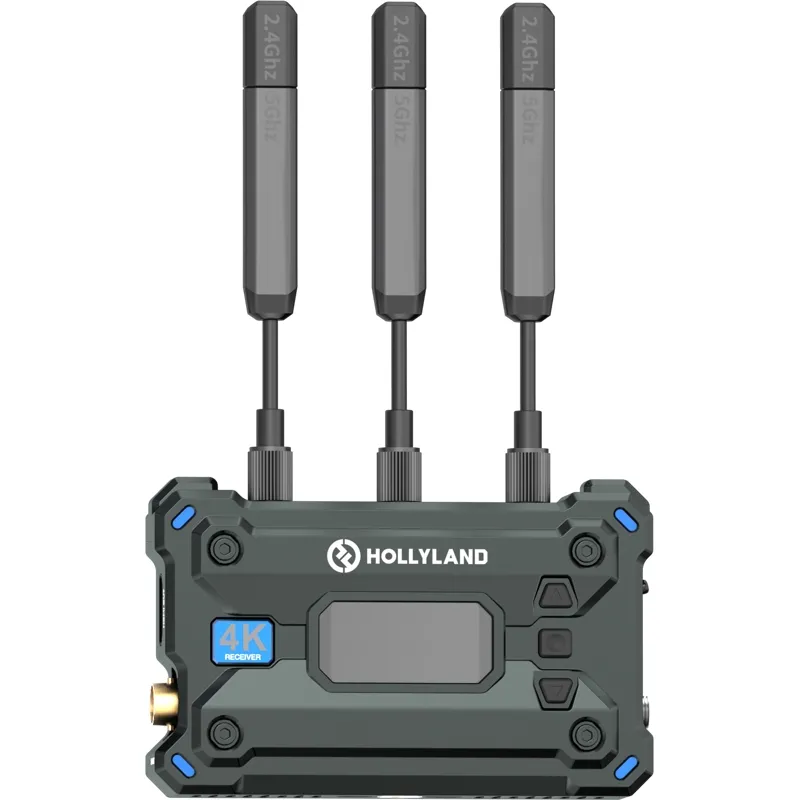

The LCD display on both units offers vibrant, vivid colors and an easy-to-read interface. With it, you can monitor the status and setting information, including battery level, current group, transmission resolution, frame rate, current channel, and more.

Multiple Power Supply Options

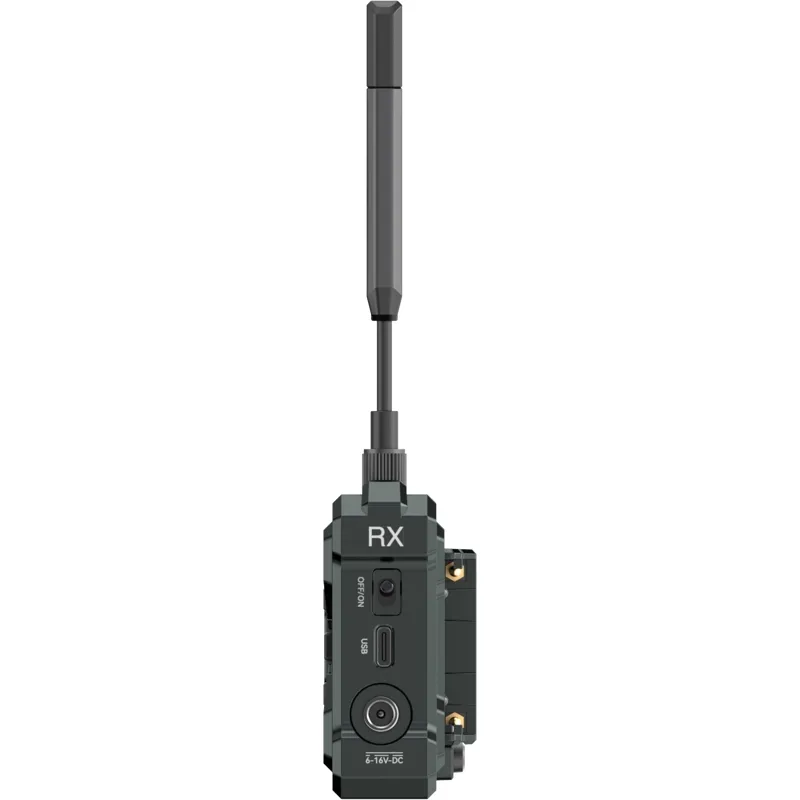

Each unit can support power input from an NP-F battery or a DC power source.

Specifications, Receiver

Port

• DC Input 2.0mm Core Socket
• HDMI Input HDMI 1.4b
• SDI Input 3G SDI
• USB-C USB 2.0 OTG
• Antenna SMA Male

Power Supply

• Battery Voltage Range 6.8 - 8.4V
• DC Voltage Range 6 - 16V

Power Consumption

• < 8W

Net Weight

• 207g

Dimensions

• Lx Wx H 112 x 71.2 x 34.1mm (4.4 x 2.8 x 1.3in.)

Input/Output Format

• HDMI Output
  • 720p50/59.94/60
  • 1080150/59.94/60
  • 1080p23.98/24/25/29.97/30
  • 1080p50/59.94/60
  • 3840*2160 30/25/24/29.97/23.98
• SDI Output
  • 1080p50/59.94/60
  • 1080150/59.94/60
  • 1080p23.98/24/25/29.97/30
  • 720p50/59.94/60
  • 1080p23.98/24
  • 1080150/59.94/60

Operating Frequency

• 5 GHz Frequency Band
  • 5.150 - 5.250 GHz
  • 5.250 - 5.350 GHz
  • 5.470 - 5.725 GHz
  • 5.725 - 5.850 GHz
• 2.4 GHz Frequency Band
  • 2.412 - 2.484 GHz

Receiver Sensitivity

• -85 dBm (Broadcast -80 dBm)

Latency

• as low as 50ms

Bandwidth

• 20 MHz (Broadcast 40 MHz)

Temperature

• 10 - 45C (working)
• 40 - 60C (storage)

In The Box

• Pyro S Wireless Video Transmitter*1
• Pyro S Wireless Video Receiver*1
• Paddle Antenna (2.4 GHz & 5 GHz)*7
• Rotatable Cold Shoe Mount*1
• USB-C OTG Adapter*1
• User Manual*1
• Packing List Card*1
• Warranty Card*1
• 12V/2A DC Power Adapter*1
• Compliance Information*1
• Hollyland Ecosystem Leaflet*1*
