Foto un video tehnikas veikals, noma un ekspertu padomi
Apskatīt līdzīgus produktus
Apskatīt līdzīgus produktus
| Produkta veids | Vadi, kabeļi |
| Savienojuma spraudnis | 3,5mm |
| Savienojumi | 3.5mm to XLR |
| Krāsa | Melns |
| Garums, m | 5 |
Oriģinālais preces apraksts no ražotāja (oriģinālā valodā)

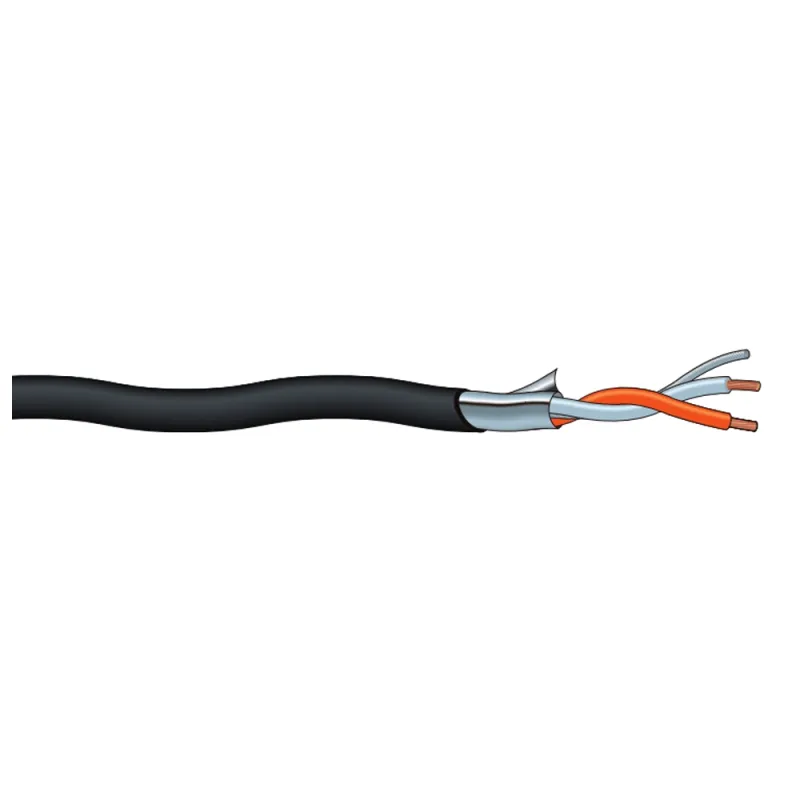

Canare's thinnest profile audio hookup wire. Amazingly flexible, with 100% foil shield, drain wire and PVC jacket that strips easily for rapid assembly. Suitable for large cable harness bundles, mixing consoles, tape machines and inner-rack wiring.
- Microphones.
- Permanent Installations.
- Audio Patch Cords.
- PA Systems.
- Post Production Suites.
- Recording Studios.
- 100% Foil Shield Coverage w/Drain Wire.
- Built in Dupont® Kevlar 29 and Drain Wire.
- Cross Linked PE Insulation.
- Reduced Handling Noise.
- Rejects EMI and RFI.
| Model | Std. Lng. ft. (m) | Wt Std. Lng. lbs (kgs) | Nom. O.D. in. (mm) | Jacket Nom. Thick. in. (mm) | Brittle Point F° (C°) | No. of Cond. | Insul. Type* Thick mil | Cond-AWG (Qty./mil) Cross Sec. Area mil.² | Pitch Twist Quad in. (mm) | Shield |
| L-2B2AT | 656 1640 | 6 (3) 15(7) | 126 (3.2) | .012 (0.3) | -13 (-25) | 2 | IPE 12.6 | AC - #25 (16/4.73) 279 | <0.99 (<25) | 100% |
*Dielectric Strength = 500V AC/1min. Insulation Resistance/3Mft = >1000M ohm.
**Effective AWG of combined twin conductors.
| Model | Cond. D.C.R. ohm/1000ft (ohm/100m) | Shield D.C.R. ohm/1000ft (ohm/100m) | Nom. Cap. *** pF/m | Nom. Cap. † pF/m | Nom. Imp. ohm | Nom. Atten. V/1000ft (V/100m) | Group Delay Time nS/ft (nS/m) |
| L-2B2AT | <31.9 (<10.5) | - | 73 | 120 | - | - | - |
***Capacitance between conductors.
†Capacitance between conductors to shield.
| Produkta veids | Vadi, kabeļi |
| Savienojuma spraudnis | 3,5mm |
| Savienojumi | 3.5mm to XLR |
| Krāsa | Melns |
| Garums, m | 5 |
