| Produkta veids | Vadi, kabeļi |
| Savienojumi | XLR to XLR |
| Krāsa | Melns |
Oriģinālais preces apraksts no ražotāja (oriģinālā valodā)

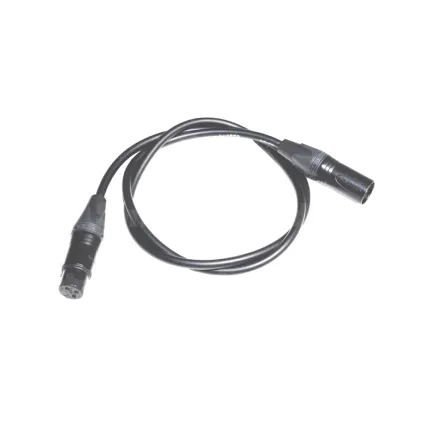

XLR (M) / XLR (F) microphone interconnect Star Quad cable made to order from high quality cable from Japanese manufacturer Canare and Neutrik connectors .
Canare L-4E6S is a symmetrical flexible Star Quad cable
Satin smooth to the touch and extra strong microphone cable with 6 mm outer diameter
Features:
- Copper braided shielding
- Flexible even in extremely cold weather
- Cross-linked PE (polyethylene) insulation
- Reduced handling noise
- Suppressed EMI (electromagnetic interference) and RFI (radio frequency interference)
Specifications:
- Standard manufactured lengths in (m): 100/200
- Cable weight in kg/100m: 4.8
- Sheath diameter (overall diameter) in mm: 6.0
- AWG: 24
- Material and thickness of outer insulation in (mm): PVC (1.12)
- Breaking point in (C): -49
- Number and colour of conductors: 4 / 2 x blue, 2 x white
- Number and diameter of cores per conductor in mm: 40/0.08
- Shielding factor: >95%
- Conductor resistance in /100m: <9.8
- Shielding resistance in /100m: <3.0
- Capacitance between blue and white conductors in pF/m: 150
- Capacitance between conductors and shielding in pF/m: 185
- Impedance in : 44
Technical specifications of Neutrik XX-B connectors:
- Capacitance: 4 pF
- Contact resistance: 3 m
- Rated voltage 1min: 1,5 kVdc
- Insulation resistance: > 10 G
- Rated current per 1 contact: 16 A
- Rated voltage: 50 V
- Cable diameter: 3.5 - 8.0 mm
- Force required to connect connectors: 20 N
- Force required to disconnect connectors: 20 N
- Lifetime: > 1000 connection cycles
- Conductor: max. 2.5 mm, max. 14 AWG
- Soldering
- Cable cap: Polyurethane
- Contact surface treatment: 0.2 m Au layer on 2 m Ni
- Contact material: Bronze (CuSn8)
- Polyamide (PA 6.6 30% GR)
- Lock: Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
- Connector body: Zinc diecast (ZnAl4Cu1)
- Connector body finish: black chrome
