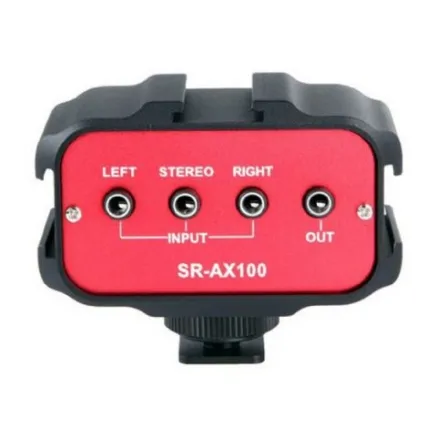

SARAMONIC SR-AX100 2-CH 3.5mm Audio Mixer

The SR-AX100 from Saramonic is a functional 2-channel audio solution with basic functions for your DSLR camera. You can connect the SR-AX100 to your camera with the included 3.5mm cable. The SR-AX100 lets you use two mono or one stereo 3.5mm input channels. You can adjust the input levels with a turn knob.

;

No battery required

;

There is no battery needed to operate the SR-AX100. The passive system works with the phantom power of the camera.

;

SR-AX100 in practice

;

As an example you can use the SR-AX100 in the following way: you connect a shotgun microphone on the stereo input port. You can place him on the hotshoe on top of the SR-AX100. On both the mono input ports you can connect a lavalier microphone. This can also be wireless microphones, in that case you can place the receivers on the left and right hotshoe of the SR-AX100. The stereo-mono button lets you switch between the sound of the shotgun microphone and both lavalier microphones. Because the sound of both mono channels is send on a separate track to the camera, you can edit them separately in the editing software.

;

1x SR-AX100; 1x 3.5mm cable; 1x Manual; 1x Warranty card; 1x Packaging

The Saramonic SR-AX100 is an ultra-compact, two-channel audio mixer that makes it possible to connect and mix two microphones to DSLR, mirrorless, and video cameras that only have a single mic input and it doesn’t require power to operate. A built-in shoe mount on the base lets you attach the AX100 to your camera, and a 1/4-20 tripod thread makes it possible to easily attach it to camera cages, tripods and more.

There are three 1/8“ (3.5mm) (1 stereo and 2 mono) inputs on the back of the AX100 for connecting battery-powered microphones and wireless microphone receivers. The two attenuator knobs on the front of the AX100 make it easy to adjust the levels of the microphones that are plugged in, and the knobs feature stepped indents for precise adjustments. A Mono/Stereo switch lets you control how the microphones are recorded to your camera. Stereo mode separates the audio into individual left and right channels on your camera, perfect for getting two separate mic signals to mix in post-production. In Mono mode, they are mixed together which is useful when you have two mics plugged in, but you want the audio mixed to both left and right channels in your camera.

The top and sides of the AX100 feature durable shoe mounts, which acts as a bracket that transforms the single shoe on your camera into three, giving you convenient places to confidently mount lights, microphones, and wireless receivers. The AX100 is so small and lightweight that you can easily bring it with you everywhere you go, and its all-metal construction means it’s built like a tank and prepared for travel.

• Allows you to plug and mix 2 microphones into cameras with only 1 mic input
• Ultra-compact and operates without batteries
• Integrated bottom shoe mount with metal 1/4-20 tripod thread
• Large stepped level control knobs with precise adjustment, durable all-metal construction
• Durable construction with 3 additional shoe mounts for attaching microphones, lights, and more
• Dimensions: 76 × 59 × 55 mm
• Weight 5.4 oz / 153.1 g

Please note: Microphones that do not run on batteries are not compatible.
SARAMONIC SR-AX100 is a two-channel audio adapter is designed for Camera VDSLR equipped with standard hot shoe. The device enables two microphone / receiver and wireless power control signal. Built-in switch allows you to select the type of output signal between mono / stereo.

In the aluminum case are three feet for mounting microphones, receivers, lighting, etc.. The device works passively and requires no additional power supply.

inputs
- 1x stereo mini-jack 3.5 mm
- 2x mono mini-3.5mm

outputs
- 1x stereo mini-jack 3.5 mm

Specifications:
Minimum input power: -35 dBu
frequency response: 20Hz - 20kHz

SARAMONIC SR-AX100 is a two-channel audio adapter is designed for Camera VDSLR equipped with standard hot shoe. The device enables two microphone / receiver and wireless power control signal. Built-in switch allows you to select the type of output signal between mono / stereo.

In the aluminum case are three feet for mounting microphones, receivers, lighting, etc.. The device works passively and requires no additional power supply.

inputs
- 1x stereo mini-jack 3.5 mm
- 2x mono mini-3.5mm

outputs
- 1x stereo mini-jack 3.5 mm

Specifications:
Minimum input power: -35 dBu
frequency response: 20Hz - 20kHz
