Oriģinālais preces apraksts no ražotāja (oriģinālā valodā)

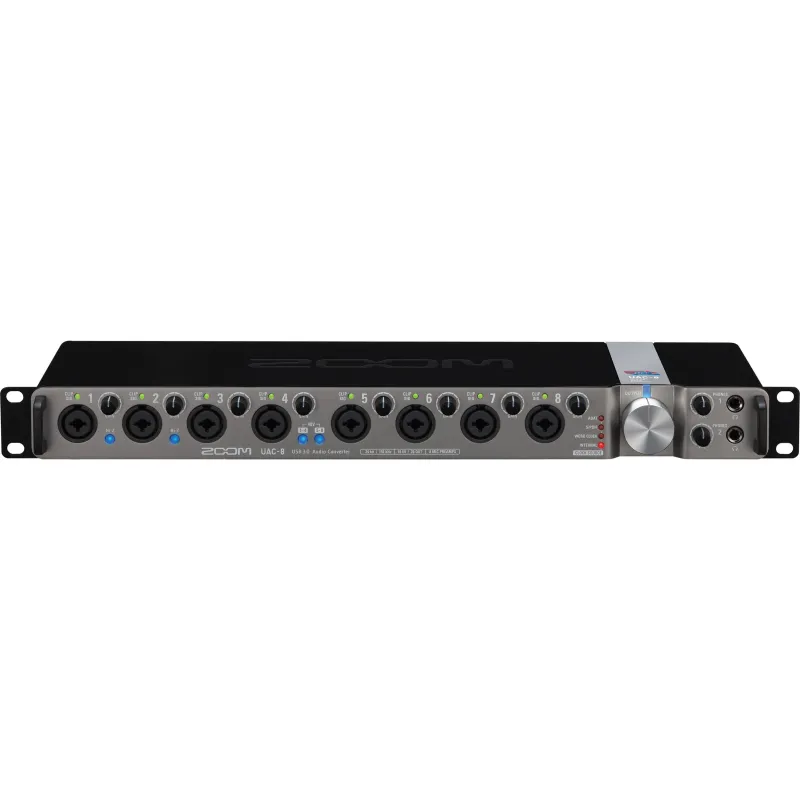

The UAC-8 from Zoom is an 18x20 USB 3.0 audio interface that offers near zero latency and up to 24-bit/192 kHz resolution. The robust housing makes the interface perfect for studio and field recording of microphones and instruments, for onstage playback and audio streaming, and with its dedicated MIDI input and output connectors, it can even serve as a stable MIDI interface.
The unit features eight XLR/TRS combo inputs with microphone preamps and ten balanced 1/4" outputs. Phantom power is available for use with condenser microphones. The UAC-8 also offers a full complement of digital I/O, including ADAT, S/PDIF, and word clock. Additionally, inputs 1 and 2 offer a Hi-Z instrument input for guitars and bass. The two headphone outputs have dedicated volume controls and a free Mac application is available for setting mix parameters and adding effects such as reverb and echo. The UAC-8 ships with a power supply, USB 3.0 cable, and a Steinberg Cubase LE software license card.
- 18-in/20-out USB 3.0 High-Speed audio interface
- Record and play back 8 tracks simultaneously
- Support for up to 24-bit/192 kHz high‐definition audio
- Ultra-low latency audio streaming (2.0ms roundtrip @ 96 kHz / 32 samples)
- 8 combo balanced XLR/TRS analog input connectors accept both mic and line-level signal
- High‐performance mic preamps with up to +60dB of amplification
- Hi-Z switches allow direct connection of electric guitar or bass (INPUT1, INPUT2)
- Independent gain controls and clip LEDs for each input
- Switchable +48V phantom power (INPUTS 1‐4, INPUTS 5‐8)
- 10 balanced TRS output jacks for connection to mixers, amplifiers, self-powered speakers, or effects devices
- Dual front-panel 1/4" headphone outputs with dedicated volume controls
- Large knob output volume control
- 4x upsampling during A/D and D/A conversion for reduced noise and enhanced fidelity
- Asynchronous transfer system unaffected by computer jitter
- Robust metal housing ensures roadworthiness
- S/PDIF IN/OUT: 2IN / 2OUT, up to 24‐bit/192 kHz audio resolution
- ADAT Optical IN/OUT: 2 IN / 2 OUT at 192/176.4 kHz (S/MUX4 compatible), 4 IN/4 OUT at 96/88.2 kHz (S/MUX compatible), 8 IN / 8 OUT at 48/44.1 kHz
- Word Clock in/out
- Clock source indicator
- MIDI in/out
- Rack-mountable (1U space)
- Works with all USB 2.0 and 3.0-equipped computers and iPads*
- Steinberg Cubase LE software download
* Optional power adapter and Apple Camera Connection kit or Lightning to USB Camera Adapter required
| Connections | Analog Input 1-8: 8 x Combo XLR/1/4" / 6.35 mm TRS (XLR: 2 hot, TRS: Tip hot) Instrument (Input 1 & 2): 2 x 1/4" / 6.35 mm TRS (disables Input 1 & 2 when in use) Output 1-8 and Main Output: 10 x 1/4" / 6.35 mm TRS (balanced) Phones: 2 x 1/4" / 6.35 mm TRS stereo phone jack Digital ADAT Optical (lightpipe) Input: 1 x ADAT optical S/DIF Input: 1 x RCA (coaxial) Word Clock Input: 1 x BNC ADAT Optical (lightpipe) Output: 1 x ADAT optical S/DIF Output: 1 x RCA (coaxial) Word Clock Output: 1 x BNC |
| Input Gain | 0 to 60 dB (1 dB steps) |
| Input Impedance | XLR/TRS: 5 kOhms Instrument (Hi-Z On): 1 MOhm |
| Maximum Input Level | XLR: +13 dBu (＠ 0 dBFS) TRS: +21 dBu (＠ 0 dBFS) |
| Phantom Power | +48 V |
| Maximum Output Level | TRS Output: +14 dBu at 0 dBFS Phones: +10 dBu at 0 dBFS |
| Output Impedance | TRS Output: 150 ohms Phones: 33 ohms Word Clock: 75 ohms |
| Headphone Output Power | 20 mW + 20 mW (into 32 ohm load) |
| Frequency Response | -1.0 dB: 20 Hz to 60 kHz @ 192 kHz setting -1.0 dB: 20 Hz to 40 kHz @ 96 kHz setting -1.0 dB: 20 Hz to 20 kHz @ 44.1 kHz setting |
| Signal to Noise Ratio (SNR) | 125 dB(IHF-A) @ 60 dB, 150 ohm input |
| Dynamic Range | A/D: 120 dB typical (IHF-A) D/A: 120 dB typical (IHF-A) |
| Channels of I/O | At 44.1 kHz and 48 kHz Sampling Recording: 18 channels (Analog: 8, S/PDIF: 2, ADAT: 8) Playback: 20 channels (Analog: 10, S/PDIF: 2, ADAT: 8) At 88.2 kHz and 96 kHz Sampling Recording: 14 channels (Analog: 8, S/PDIF: 2, ADAT: 4) Playback: 16 channels (Analog: 10, S/PDIF: 2, ADAT: 4) At 176.4 kHz and 192 kHz Sampling Recording: 12 channels (Analog: 8, S/PDIF: 2, ADAT: 2) Playback: 14 channels (Analog: 10, S/PDIF: 2, ADAT: 2) Class Compliant Mode Recording: 8 channels (Analog: 8) Playback: 10 channels (Analog: 10) |
| Sampling Frequencies | System: 192, 176.4, 96, 88.2, 48, 44.1 kHz S/PDIF: 192, 176.4, 96, 88.2, 48, 44.1 kHz Word Clock: 192, 176.4, 96, 88.2, 48, 44.1 kHz ADAT: 8 In/8 Out @44.1 kHz/48 kHz 4 In/ 4 Out @88.2 kHz/96 kHz, S/MUX compatible 2 In/ 2 Out @176.4 kHz/192 kHz, S/MUX4 compatible |
| Bit Depth | 24-bit |
| Interface | USB 3.0 / 2.0 |
| MIDI | In / Out (5 pin DIN jack) |
| Power | AC Adapter： 12 VDC 2 A (AD-19) |
| Dimensions (D x W x H) | 6.2 x 19.0 x 1.8" / 15.8 x 48.3 x 4.6 cm |
| Weight | 4.9 lb / 2.2 kg |
