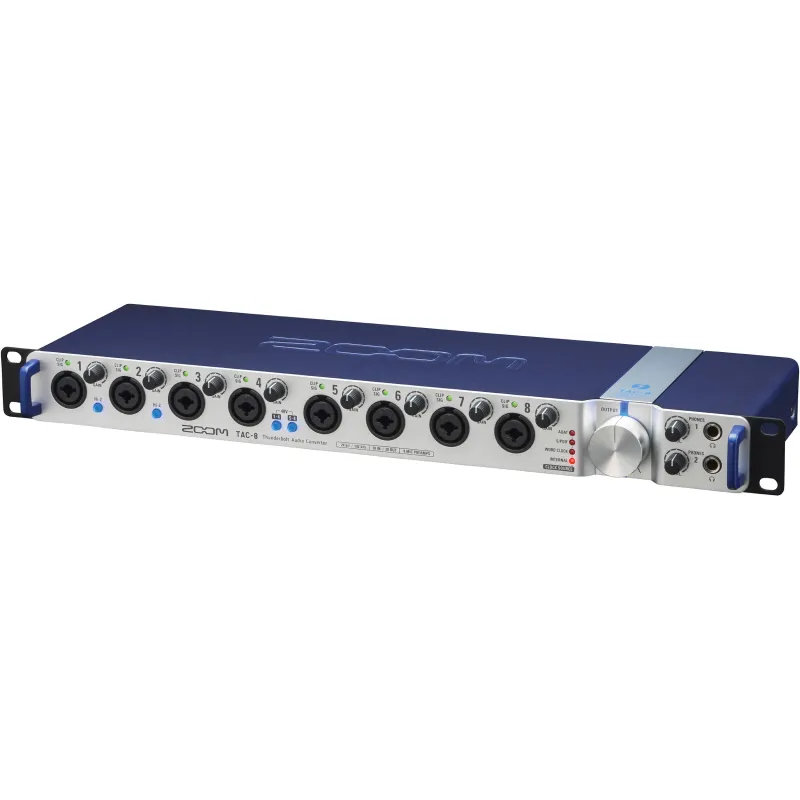

The rack-mountable TAC-8 from Zoom is an 18-input / 20-output Thunderbolt interface designed to form the central hub to any professional or home studio environment. The unit offers 8 analog inputs, 10 analog outputs, and 10 digital inputs and outputs via ADAT optical and S/PDIF connections. Additional I/Os include Word Clock and MIDI. The high-performance Thunderbolt connection provides 8 channels of simultaneous recording and playback with ultra-low latency at 24-bit / 192 kHz.
The front panel offers 8 XLR/TRS combo jacks which work with microphone- and line-level signals. Additionally, inputs 1 & 2 offer Hi-Z instrument inputs, while all channels offer +48V phantom power switchable in two banks of four (1-4 and 5-8). A large knob controls the main output levels, while two independent volume controls are provided for the 1/4" headphone outputs. The rear panel offers dual balanced analog TRS main outputs with an additional 8 TRS outputs for multi-channel monitoring or external effects processing.
The TAC-8 can operate as a stand-alone microphone preamp and ADDA converter without being connected to a computer. The included MixEfx software provides a comprehensive onscreen mixer with independent level, phase reversal, and panning controls for each channel. The software allows you to route any input to all outputs and create custom mixes for each pair of outputs. Three mixes can be saved to the memory slots for instant and total recall. The TAC-8 ships with a Thunderbolt cable and power adapter.
Analog Inputs | Inputs 1-8 XLR/TRS combo jacks (XLR: 2 hot, TRS: TIP hot) Input Gain: 0 to 60 dB (1 dB steps) Input Impedance: 5 kOhms, 1 MOhm (when Hi-Z on) Maximum Input Level: +13 dBu (@ 0 dBFS / XLR), +21 dBu (@ 0 dBFS / TRS) Phantom Power: +48 V |
Analog Outputs | Master L/R & Outputs 1-8 1/4" TRS phone jack (balanced) Maximum Output Level: +14 dBu (@ 0 dBFS) Output Impedance: 150 ohms Phones 1/2 1/4" stereo phone jack 20 mW + 20 mW (into 32 ohms load) Maximum Output Level: +10 dBu (@ 0 dBFS) Output impedance: 33 ohms |
Digital In/Out | ADAT Optical (Lightpipe) RCA (coaxial) 8 In/8 Out @ 44.1 kHz/48 kHz 4 In/4 Out @ 88.2 kHz/96 kHz, S/MUX compatible 2 In/2 Out @ 176.4 kHz/192 kHz, S/MUX4 compatible S/PDIF Supported Sampling Frequencies: 44.1/48/88.2/96/176.4/192 kHz Word Clock BNC Supported Sampling Frequencies: 44.1/48/88.2/96/176.4/192 kHz Output Impedance: 75 ohms |
Frequency Characteristics | -1.0 dB: 20 Hz to 60 kHz (@ 192 kHz) -1.0 dB: 20 Hz to 40 kHz (@ 96 kHz) -1.0 dB: 20 Hz to 20 kHz (@ 44.1 kHz) |
Input Noise | Measured EIN: 125 dB (IHF-A), @ 60 dB, 150 ohms input |
Dynamic Range | A/D: 120 dB typical (IHF-A) D/A: 120 dB typical (IHF-A) |
Channels | Recording Channels / Playback Channels At 44.1 kHz and 48 kHz Sampling Recording: 18 channels (Analog: 8, S/PDIF: 2, ADAT: 8) Playback: 20 channels (Analog: 10, S/PDIF: 2, ADAT: 8) At 88.2 kHz and 96 kHz Sampling Recording: 14 channels (Analog: 8, S/PDIF: 2, ADAT: 4) Playback: 16 channels (Analog: 10, S/PDIF: 2, ADAT: 4) At 176.4 kHz and 192 kHz Sampling Recording: 12 channels (Analog: 8, S/PDIF: 2, ADAT: 2) Playback: 14 channels (Analog: 10, S/PDIF: 2, ADAT: 2) |
Sampling Frequencies | 192, 176.4, 96, 88.2, 48, 44.1 kHz |
Bit Depth | 24-bit |
Interface | Thunderbolt |
Supported OS | Mac OS X 10.8.5 or later |
MIDI | In / Out (5-pin DIN jacks) |
Power | AC Adapter: 12 VDC, 2.0 A (AD-19) |
Dimensions (D x W x H) | 6.2 x 19.0 x 1.8" / 15.8 x 48.3 x 4.6 cm |
Weight | 4.4 lb / 2.0 kg |
