Canare L-3C2VS RED

Canare L-3C2VS is a very lightweight and super flexible 75 ohm 5.5mm HD/SD-SDIcoaxial cable with a stranded center conductor and a tightly woven shielded outer conductor. The L-3C2VS cable remains flexible even at low temperatures.

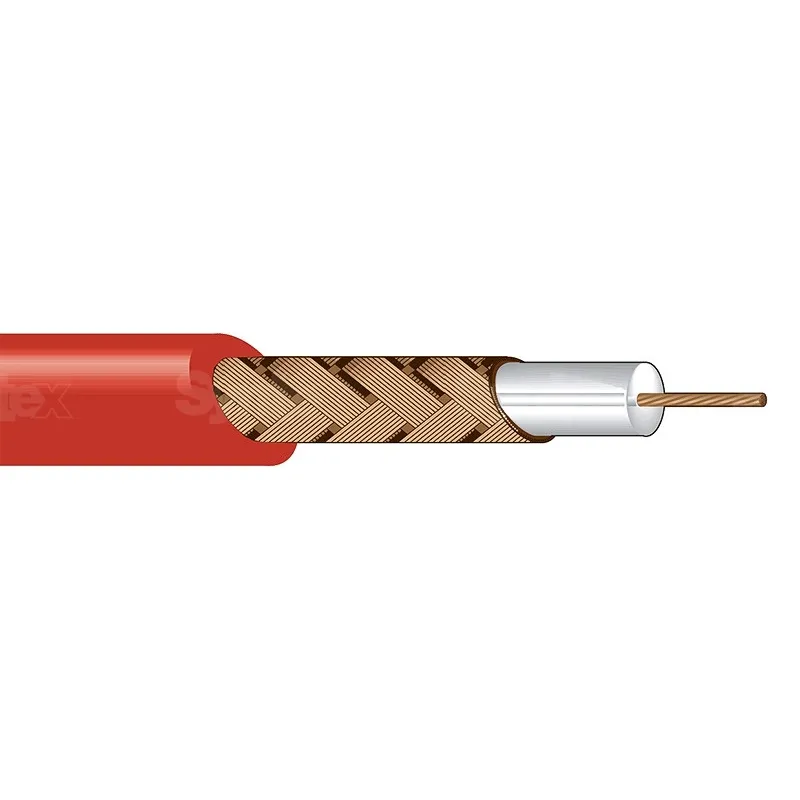

Canare L-3C2VS RED Video Cable 75 Ohm 5.5mm

Rated 4.4/5 based on 1 customer reviews

345 tax incl.

Delivery in 5 - 7 business days

Available from supplier: 700 Items

52848
CNRL3C2VSRED
Canare

New product

Delivery Instore
25.12 - 03.01.2025
Pickup in store
Free
Delivery Postbox
26.12 - 04.01.2025
Postbox (Omniva, DPD, Venipak)
from 3 €
Delivery
26.12 - 04.01.2025
Courier (Omniva, DPD)
from 10 €
Delivery Bycicle
25.12 - 03.01.2025
Bike delivery (in Riga only)
from 7 €


Usage:

  • HD/SD-SDI video
  • PAL & NTSC analog video
  • Satellite applications
  • TELCO
  • Test equipment
  • Rack cabling
  • Video Patch Cables

Cable Specifications:

  • Sheath diameter (overall diameter) in mm:5.5
  • Cable weight in kg/100m: 4.5
  • Central conductor - number and diameter of strands in mm: 7/0,18
  • Total diameter of central conductor in mm: 0.54
  • Foam dielectric - diameter in mm: 3.1
  • Resistance of the central conductor in ?/100m:10.5
  • Outer conductor clearance in ?/100m:1.9
  • Static capacitance in pF/m:67
  • Attenuation in dB/100m:4.5
  • Impedance in ?: 75

Connector Specifications:

  • Cable pull in kg:>24.9
  • Insulation resistance at 500V DC in ?:>1000M
  • Rated voltage for 1min: 1500V AC (rms)
  • Resistance of central contact:<6m ohm
  • Resistance of outer contact:<3m ohm
  • Impedance in ? : 75
  • Connector body - material/surface : Brass / Nickel
  • Central contact - material/surface:Brass / Gold
  • External contact - material: Beryllium Copper
  • Dielectric - material: PTFE polytetrafluoroethylene
  • Crimp sleeve - material/surface: Copper / Tin
Type of ProductCables
LCD monitorsHDMI adapter
ConnectionsBNC to BNC
