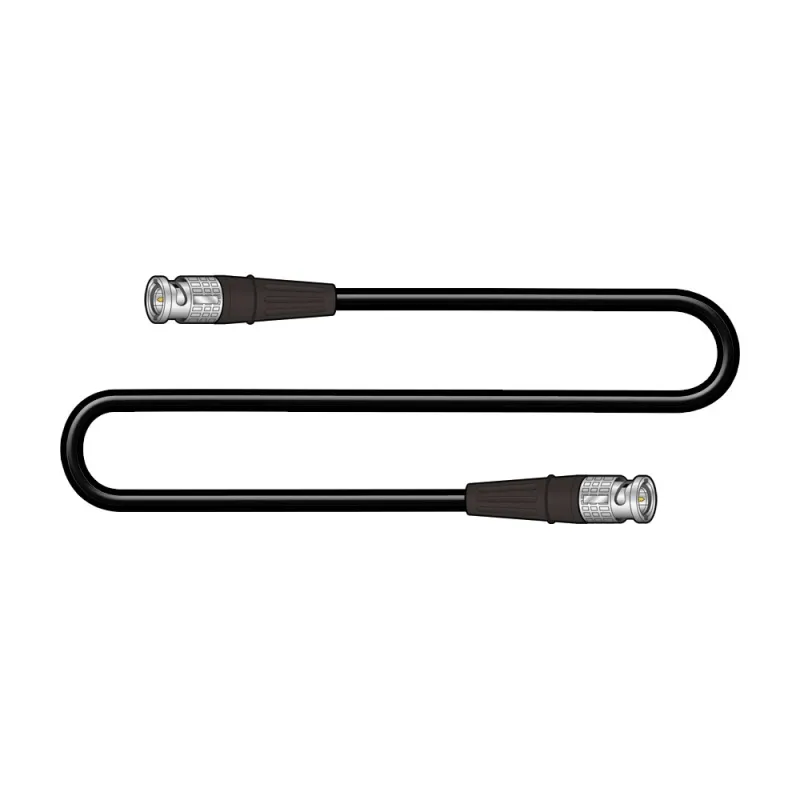

Canare L-4.5CHWS Flexible 4K UHD, 12G-SDI Cable, BNC-BNC 1m CV-45W-M/M-BLK-1

Name: Canare L-4.5CHWS Flexible 4K UHD, 12G-SDI Cable, BNC-BNC 1m CV-45W-M/M-BLK-1
Brand: Canare
SKU: 20703
Price: 19.44 EUR
Availability: OutOfStock

SKU: 2821

Model: CV-45W-M/M-BLK-1

Ean: 0000000000000

Manufacturer: Canare

Condition: New product

Delivery options

07.05 - 16.05.2025

Pickup in store

Free

08.05 - 17.05.2025

Postbox (Omniva, DPD, Venipak)

from 4 €

08.05 - 17.05.2025

Courier (Omniva, DPD)

from 10 €

07.05 - 16.05.2025

Bike delivery (in Riga only)

from 9 €

Add to my wishlist

Discover related products

Canare L-4.5CHWS flexible and durable 75 ohm 4,2 mm Low Loss koaxial SD/HD/3G/12G-SDI cable, ideal for mobile applications.

Use of flexible 12G/3G/HD-SDI cable Canare L-4.5CHWS:

compliant with SMPTE 424M and SMPTE 292M, SMPTE ST 344M and SMPTE ST 2082-1 specifications
HDTV
4K/HD/SD-SDI video
PAL & NTSC analog video
Satellite applications
TELCO
Test equipment

Specifications:

Standard manufactured lengths: 100/200m
Sheath diameter (overall diameter) in mm:7.2
Cable weight in kg/100m: 6.6
Central conductor - number and diameter of stranded wire in mm: 7/0,34
Total diameter of central conductor in mm: 1.02
Foam dielectric - diameter in mm: 4,57
Resistance of central conductor in /100m:3,3
Resistance of outer conductor in /100m:0,8
Temperature range: -30C ~ +60C
Static capacitance in pF/m:53
Attenuation in dB/100m:22.8

Maximum transmission distance depending on video format:

Maximum transmission distance of Canare L-4.5CHWS depending on video format
Data transfer rate:	143 Mbps	177 Mbps	270 Mbps	360 Mbps	540 Mbps	1.5 Gb/s	3 Gb/s
Specification:	SMPTE 259M	SMPTE 259M	SMPTE 259M	SMPTE 259M	SMPTE ST 344M	SMPTE ST 292M	SMPTE ST 424M
Application:	nTSC composite	pAL composite	components 4:2:2	4:2:2 16x9 components	SDI	HD-SDI 1080i	3G-SDI 1080p
Maximum cable length:	447m	405m	322m	280m	225m	87m	90m

Type of Product	Wires, cables for video
LCD monitors	HDMI adapter
Connections	BNC to BNC
Lenght, m	1
