Canare L-3C2VS YEL BNC 0,3m CV-3-M/M-YEL-03

Canare L-3C2VS YEL BNC (M-male) / BNC (M-male) 0,3m

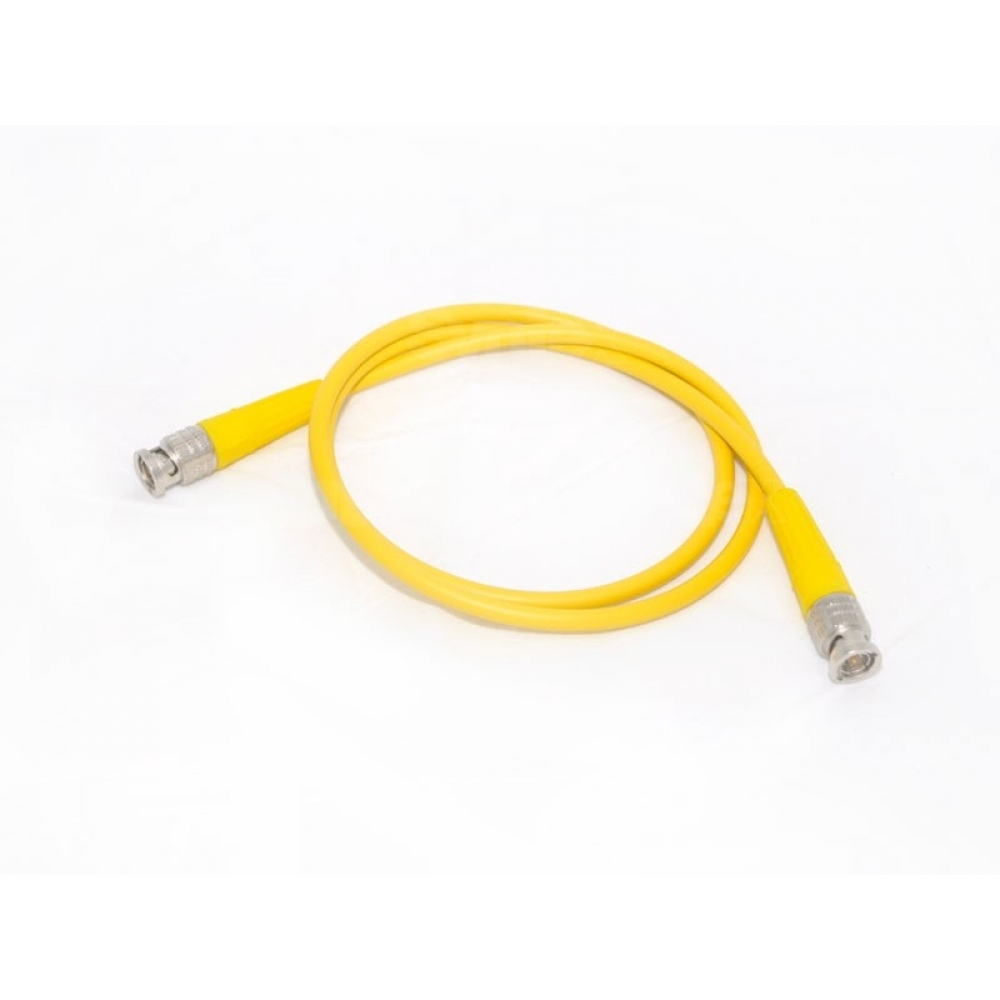

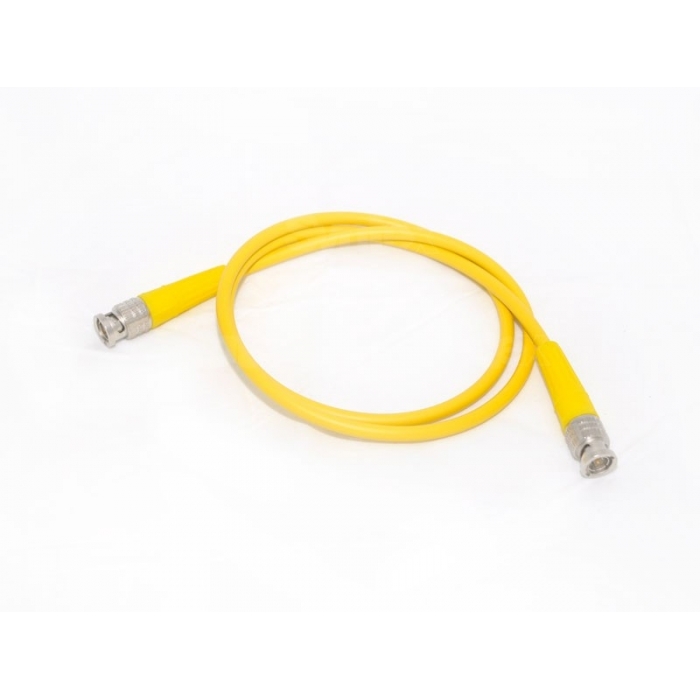

Canare L-3C2VS is a very lightweight and extremely flexible 5.5 mm HD/SD-SDI coaxial cable with a braided center conductor and a tightly woven shielded outer conductor. The L-3C2VS cable remains flexible even at low temperatures. Both ends have crimp-on BNC (M) connectors type BCP-A3.

Application:

• HD/SD-SDI video
• PAL and NTSC analog video
• Satellite applications
• TELCO
• Test equipment
• Rack cabling
• Patch cables for video

Cable Specifications:

• Sheath diameter (overall diameter) in mm: 5.5
• Cable weight in kg/100 m: 4.5
• Medium conductor - number and diameter of cores in mm: 7/0.18
• Total diameter of the middle conductor in mm: 0.54
• Foam dielectric - diameter in mm: 3.1
• Resistance of the middle conductor in ohms/100 m: 10.5
• Resistance of the outer conductor in Ohm/100m: 1.9
• Static capacitance in pF/m: 67
• Attenuation in dB/100m: 4.5
• Impedance in ohms: 75

Connector specifications: - mains connector, - mains connector:

• Tensile strength in kg: >24.9
• Insulation resistance at 500 V DC in Ohms: 24.5 mm: >1000M
• Rated voltage for 1 min: 1500 V AC (effective value)
• Center contact resistance: 1.5 mm: <6m ohms
• External contact resistance: contact strength: <3m ohm
• Impedance in ohms: 75
• Connector body - material/surface : brass/nickel
• Center contact - material/surface: brass/gold
• Outer contact - material : Beryllium copper
• Dielectric - Material : PTFE polytetrafluoroethylene
• Crimp sleeve - material/surface: copper/tin
