CanareL-5CFWFlexible3GHD-SDIcableBNC30mCV-5W-MM-BLK-30

Canare L-5CFW Flexible 3G/HD-SDI cable BNC 30m CV-5W-M/M-BLK-30

Rated 4.3/5 based on 1 customer reviews

14545 tax incl.

Pre-order. Delivery time from 3 weeks.

18996
CV-5W-M/M-BLK-30
0000000000000
Canare

New product

Delivery Instore
possibly after 13.12.2024
Pickup in store
Free
Delivery Postbox
possibly after 13.12.2024
Postbox (Omniva, DPD, Venipak)
Free
Delivery
possibly after 13.12.2024
Courier (Omniva, DPD)
from 10 €
Delivery Bycicle
possibly after 13.12.2024
Bike delivery (in Riga only)
from 7 €

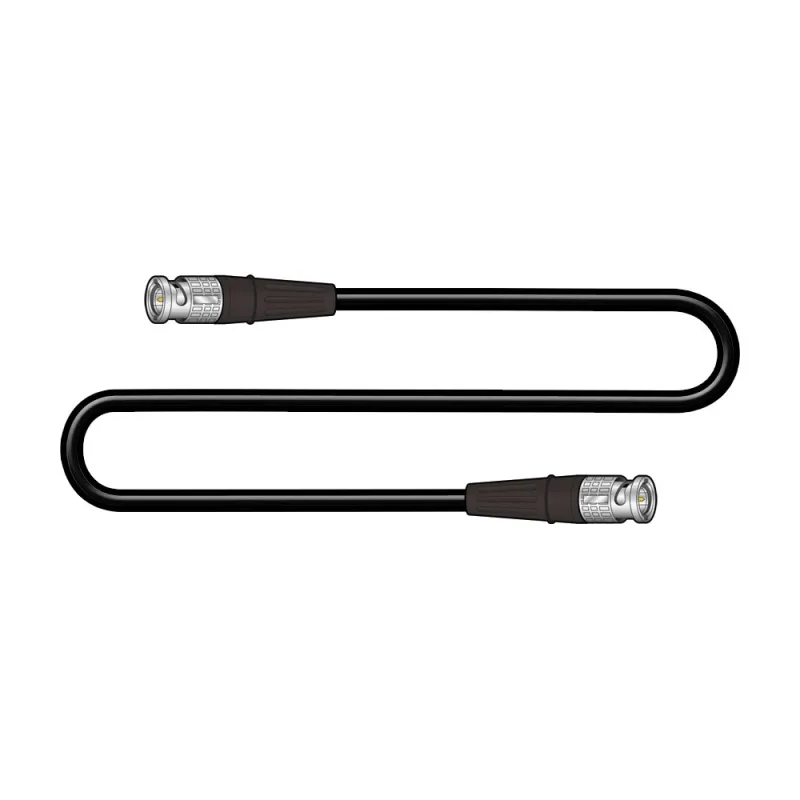

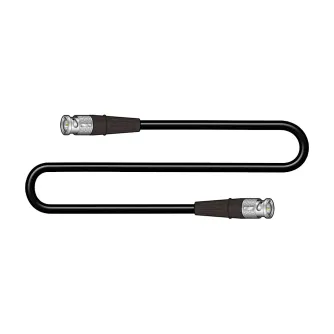

Canare L-5CFW BNC (M-male) / BNC (M-male)

Specifications:

  • Standard manufactured lengths: 100/200m
  • Sheath diameter (overall diameter) in mm: 7.7
  • Cable weight in kg/100m: 8.1
  • Central conductor - number and diameter of cores in mm: 1/1.05
  • Total diameter of central conductor in mm: 1.05
  • Foam dielectric - diameter in mm: 5,00
  • Resistance of the central conductor in /100m: 2,3
  • Resistance of outer conductor in /100m: 0,5
  • Static capacitance in pF/m: 55
  • Attenuation in dB/100m: 19.4

Maximum transmission distance depending on video format

Distance in (m) 535m483m384m333m267m103m105m56m
Transmission speed143 Mbps177 Mbps270 Mbps360 Mbps540 Mb/s1.5 Gb/s3.0 Gb/s12.0 Gb/s
SpecificationsSMPTE 259MITU-R BT.601SMPTE 259MSMPTE 259MSMPTE 344MSMPTE ST-292SMPTE ST-424SMPTE ST 2082-1
Use NTSC compositePAL composite525/625 (4:3)525/625 (16:9)525/625 (4:3) p60 SDIHD-SDI 1080iHD-SDI 1080p4K UHD



Type of ProductWires, cables for video
LCD monitorsHDMI adapter
ConnectionsBNC to BNC
