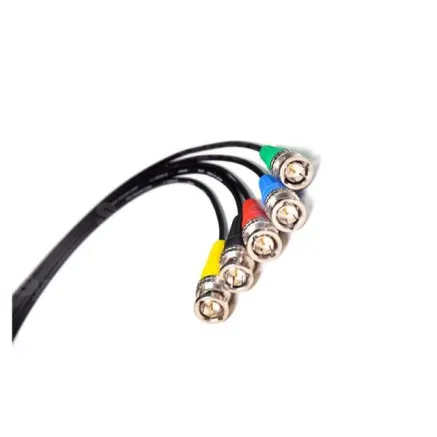

Canare L-1.5C2VS YEL BNC 0,5m CV-15-M/M-YEL-05

L-1.5C2VS YEL BNC (M) / BNC (M) lenght 0,5m

Canare L-1.5C2VS

is our thinnest ultra-lightweight and super flexible 75 ohm 2.9 mm coaxial cable with a stranded center conductor is the ideal choice for short rack cabling. The L-1.5C2VS cable remains flexible even at low temperatures. There are crimp-on BNC (M) connectors type BCP-C1 at both ends.

Parameters

• Standard manufactured lengths: 200m
• Sheath diameter (overall diameter) in mm: 2.9
• Cable weight in kg/100m: 1.3
• Central conductor - number and diameter of stranded wire in mm: 7/0,09
• Total diameter of central conductor in mm: 0.27
• Foam dielectric - diameter in mm: 1,6
• Resistance of central conductor in /100m:41,9
• Resistance of outer conductor in /100m:3,3
• Static capacitance in pF/m: 69
• Attenuation in dB/100m: 8,7
• Impedance in : 75
