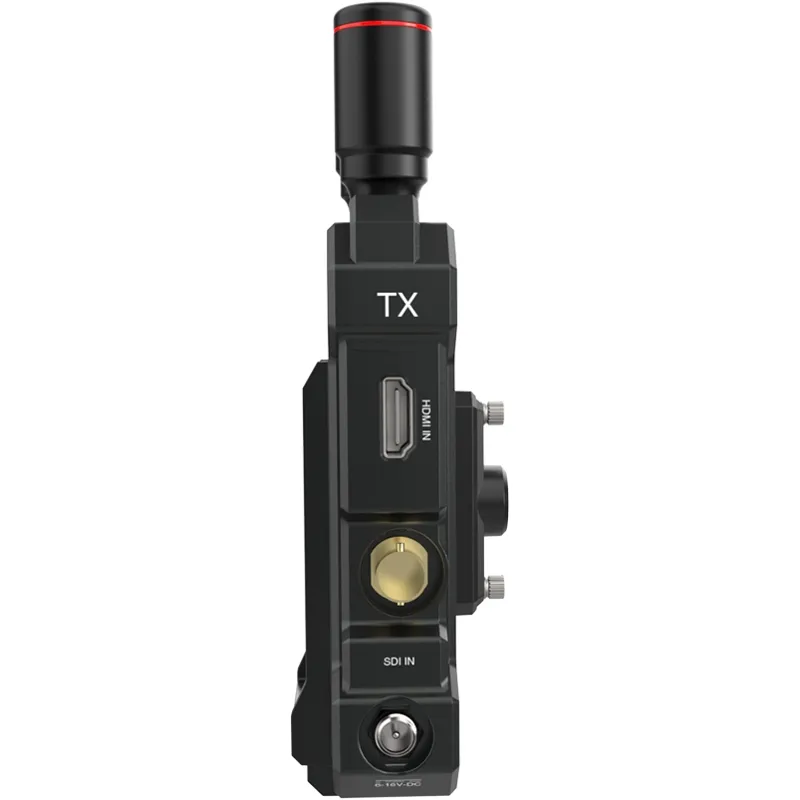

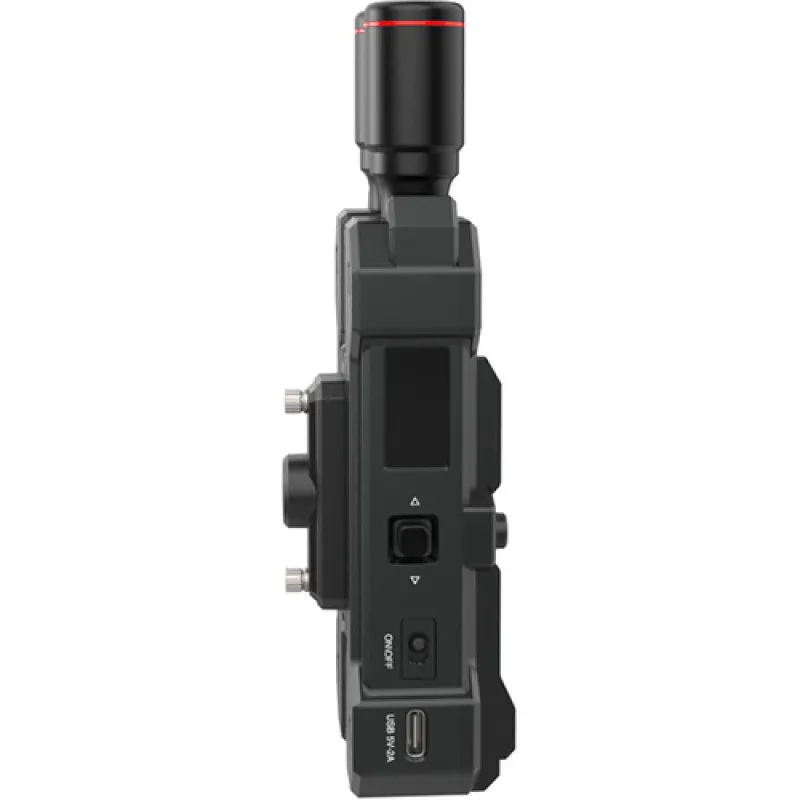

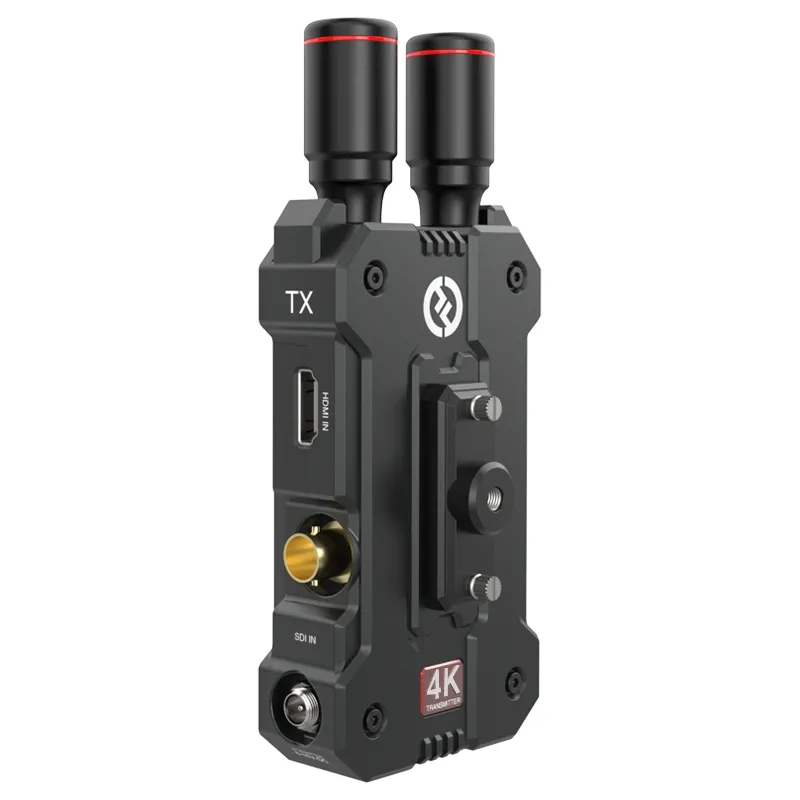

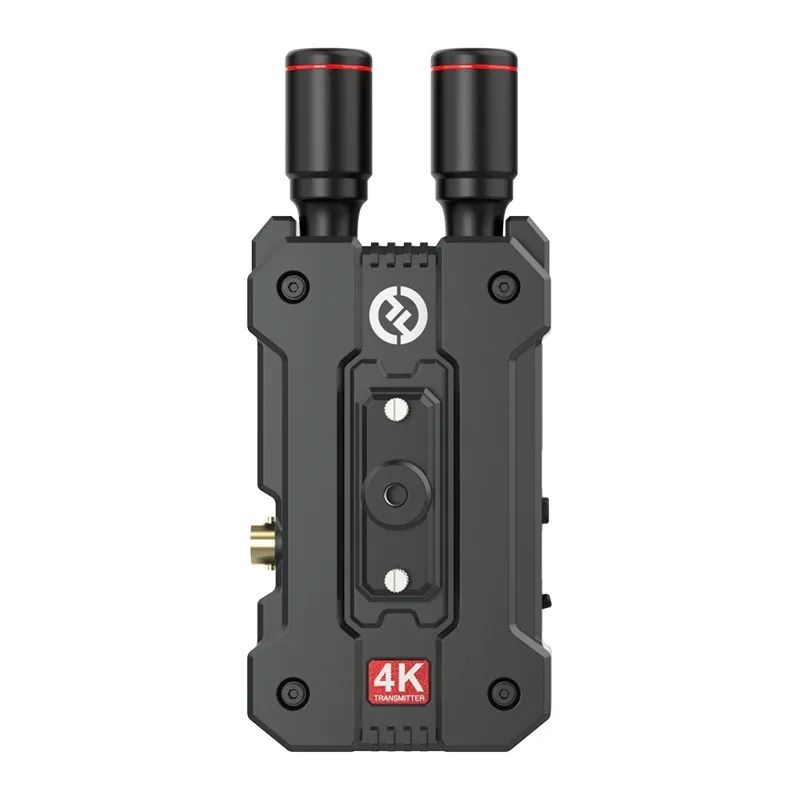

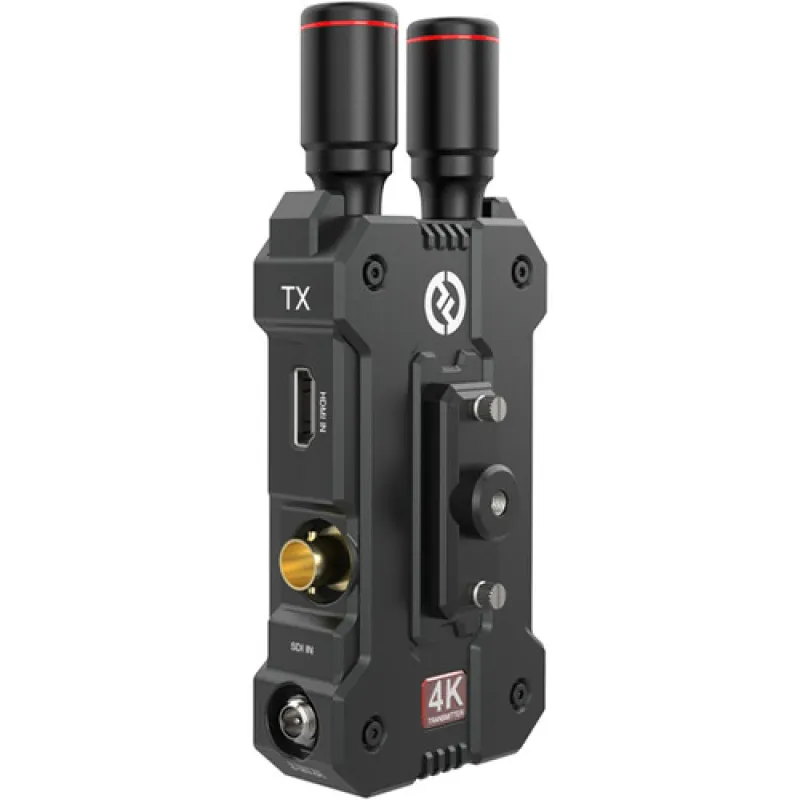

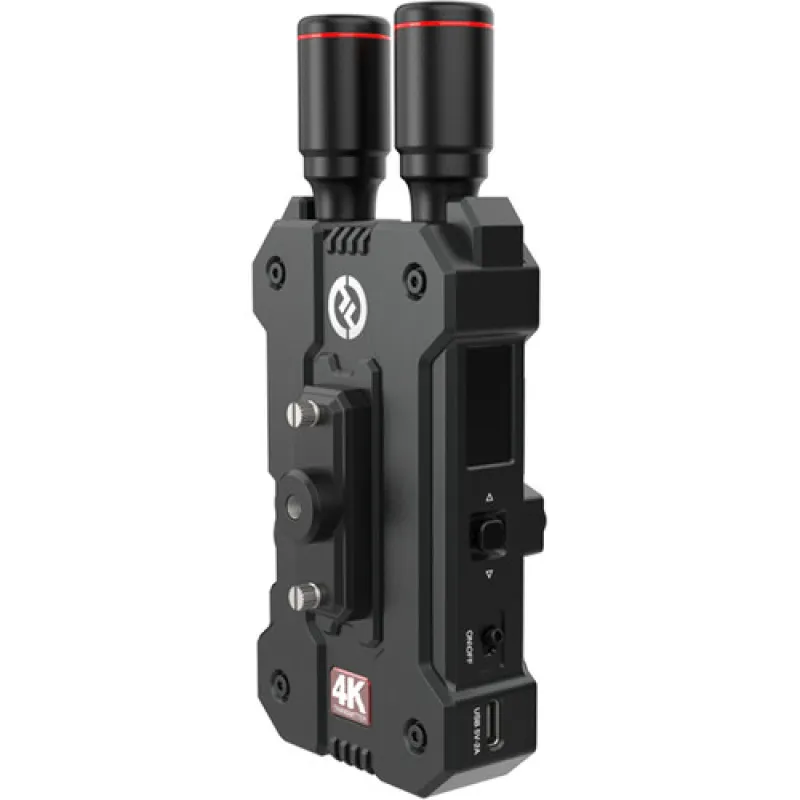

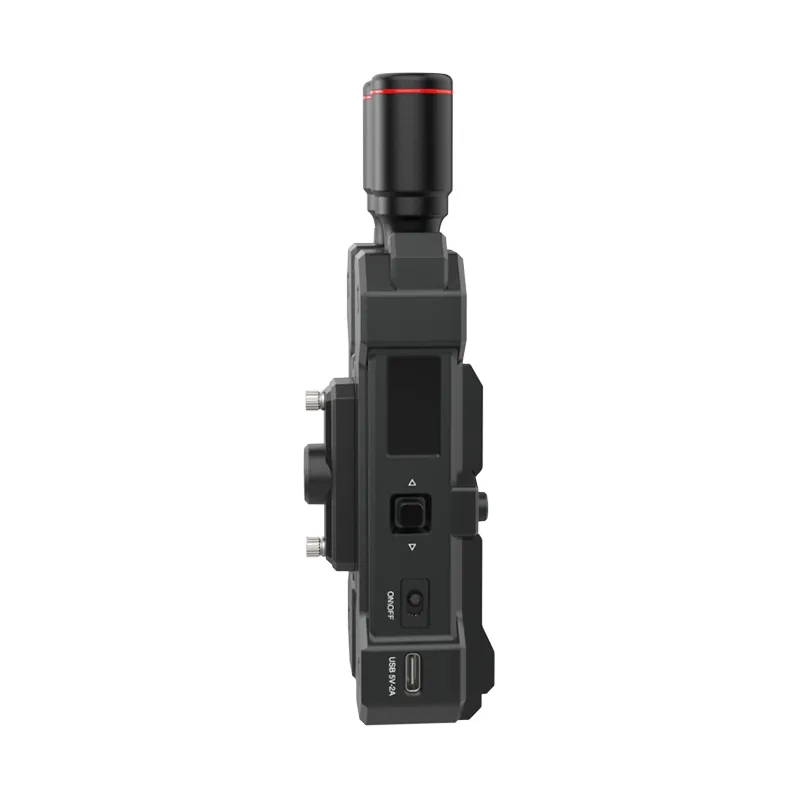

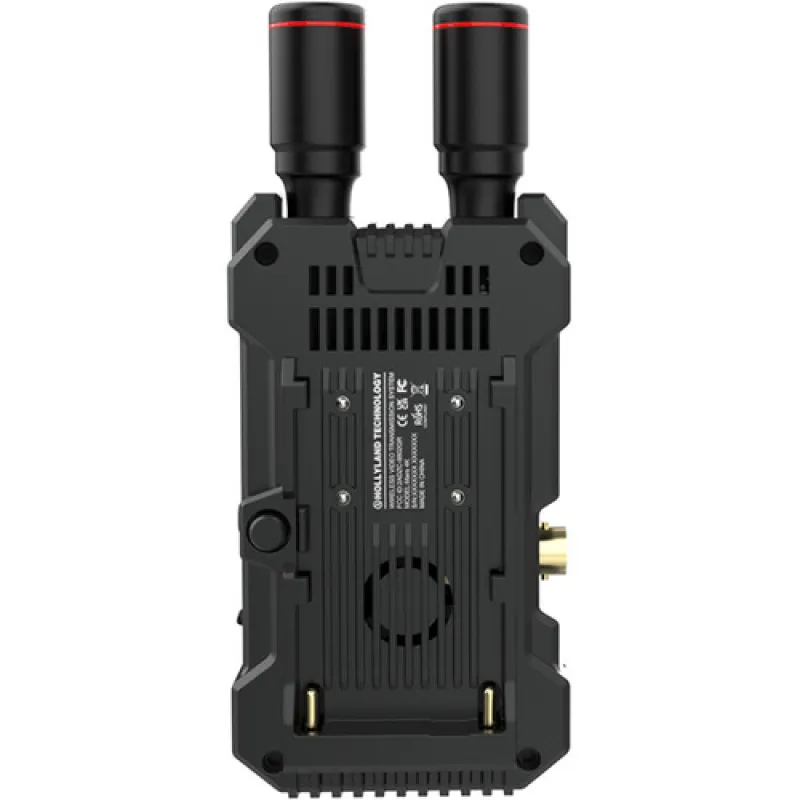

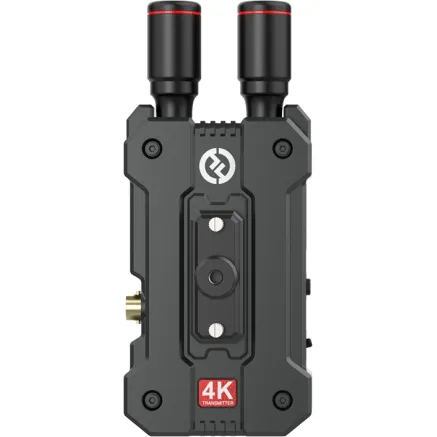

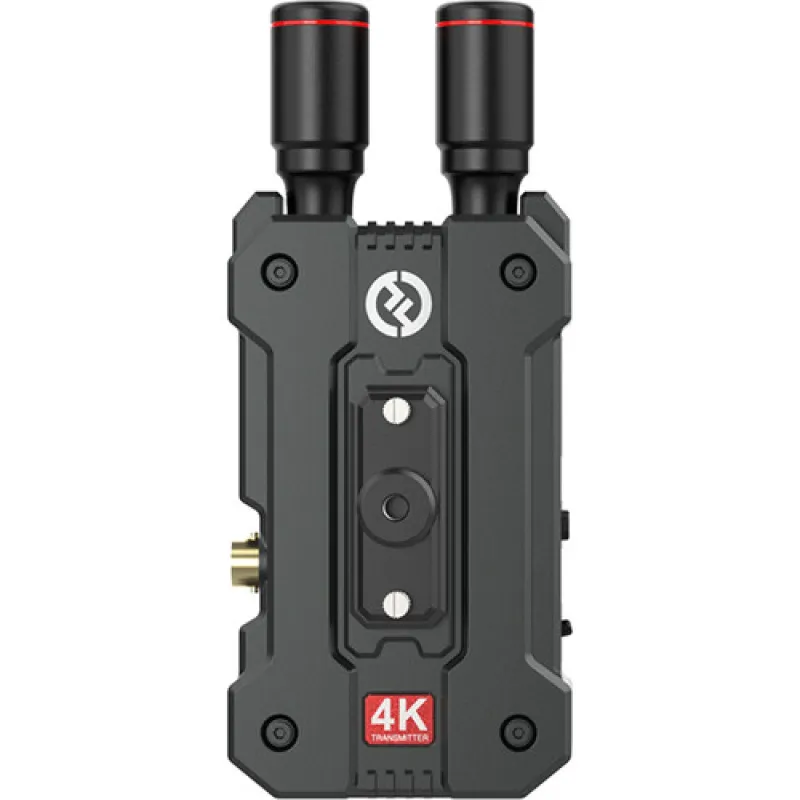

Hollyland MARS 4K Single Transmitter for wireless 4K video transmission system
The new Hollyland Mars 4K wireless video transmission system is capable of a 150m LOS range and ultra-low latency of 0.06s. The Mars 4K is designed to combine high performance and reliable quality at an affordable price.
- 4K UHD
- 450ft (150m) LOS Range
- 06s Low Latency (1080p60 Signal)
- SDI & HDMI Support
- Broadcast & Production Frame Rate
- Flexible Monitoring Options
- Smart Channel Scan & Selection
- Multiple Power Supply Options
Specifications:
| Transmitter (Only Transmitter in this set) | Receiver |
Interface | Antenna (RP-SMA male) | Antenna (RP-SMA male) |
HDMI 1.4 b input (Type-A female) | HDMI 1.4 b output (Type-A female) | |
3G-SDI input | 3G-SDI output | |
DC input (2.0mm core sccket) | DC input (2.0mm core sccket) | |
USB Type-C (USB 2.0 OTG) | USB Type-C (USB 2.0 OTG) | |
Power supply | DC input: 6V–16V | DC input: 6V–16V |
USB Type-C: 5V/2.5A | USB Type-C: 5V/2.5A | |
(not supporting the QC and PD | (not supporting the QC and PD | |
protocols) | protocols) | |
NP-F battery: 6.8V–8.4V | NP-F battery: 6.8V–8.4V | |
Power consumption | <8.5W (typical) | <5W (typical) |
Weight | 223g (7.9oz) (excluding the antennas) | 223g (7.9oz) (excluding the antennas) |
Dimension | (LxWxH): 115x65x32mm (4.5x2.5x1.3) | (LxWxH): 115x65x32mm (4.5x2.5x1.3) |
Operating frequency | 5.1GHz–5.8GHz | 5.1GHz–5.8GHz |
Modulation mode | 802.11n | 802.11n |
TX power | 21dBm (max.) | 21dBm (max.) |
RX sensitivity | N/A | –90dBm |
Bit rate | 8Mbps–20Mbps | |
Latency | 0.06s (test data when 1080p60 signals are transmitted in a laboratory) | |
Range | 450ft (150m) (test data in an open, interference-free outdoor environment) | |
Bandwidth | 20MHz | |
Audio format | 2 audio channels for the 3G-SDI and 8 audio channels for the HDMI 1.4b | |
Operating temperature | –10 to 60 | |
Storage temperature | –40 to 60 | |
ESD protection | Contact discharge: ±6kV; air discharge: ±8kV (test data) | |
HDMI Input Format | HDMI Output Format | SDI Output Format |
720p50/59.94/60 | 720p50/60 | 720p50/60 |
1080i50/59.94/60 | 1080i50/60 | 1080i50/60 |
1080p23.98/24/25/29.97/30 | 1080p24/25/30 | 1080p24/25/30 |
1080p50/59.94/60 | 1080p50/60 | 1080p50/60 |
3840*2160 p24/25/30 | 3840*2160 p24/25/30 | 1080p24/25/30 |
SDI Input Format | HDMI Output Format | SDI Output Format |
1080p50/59.94/60 (Level A) | 1080p50/59.94/60 | 1080p50/59.94/60 (Level A) |
1080p50/59.94/60 (Level B) | ||
1080i50/59.94/60 | 1080i50/59.94/60 | 1080i50/59.94/60 |
1080p23.98/24/25/29.97/30 | 1080p23.98/24/25/29.97/30 | 1080p23.98/24/25/29.97/30 |
1080psf23.98/24 | 1080p23.98/24 | 1080p23.98/24 |
1080psf25/29.97/30 | 1080i50/59.94/60 | 1080i50/59.94/60 |
720p50/59.94/60 | 720p50/59.94/60 | 720p50/59.94/60 |
Content of delivery:
1x Transmitter
2x Antenna
1x Self-locking DC Adapter
1x Expansion Accessory
| Type of Product | Wireless Video Transmission Systems |
