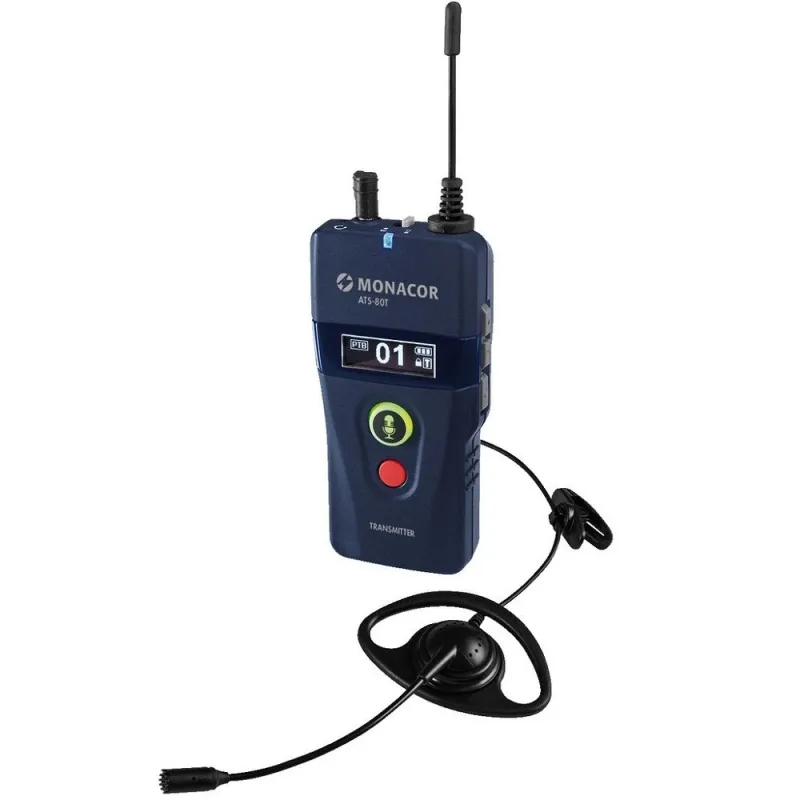

Monacor ATS-80T

42-channel digital PLL voice transmission system, 823-832 MHz and 863-865 MHz.
  • As a tour guide system also suitable for any other application in which a two-way communication is required, e.g. training sessions, lectures with questions and answers and group tours or factory tours
  • High resistance to interference due to digital transmission
  • High operating range
  • Frequency range optimised for voice transmissions
  • Interference-free parallel operation of up to 42 different channels possible
42-channel PLL transmitter, for microphone operation and audio line signals.

  • 3 different operating modes: guiding, lecturing and discussions for versatile applications
  • Integrated microphone, adjustable gain
  • Supplied with additional earphone microphone
  • Audio line input via 3.5 mm stereo jack
  • High-contrast OLED display
  • Battery status indication
  • Priority assignment
  • Alarm function
  • Talk/mute button
  • Call button
  • Channel lock
  • Full-duplex communication
  • Attendance monitoring
  • Belt clip
  • Lanyard
  • Adjustable transmitting power (high: ≤ 20 mW/low: ≤ 10 mW)
  • Operating range: approx. 100 m
  • Power supply via 2 x 1.2 V NiMH rech. battery AA size (not supplied)
  • Dimensions: 47 x 97 x 35 mm
  • Weight: 53 g



Technical Specifications

Description42-channel digital PLL transmitter
Carrier frequency range823-832 MHz, 863-865 MHz
Admiss. ambient temp.0-40 °C
Transmitting power≤ 20 mW/≤ 10 mW
Operating range100 m
Power supply transmitter2 x 1.2 V NiMH rech. batt. AA size
Width transmitter47 mm
Height transmitter97 mm
Depth transmitter35 mm
Weight transmitter53 g
Connections transmitter3.5 mm jack (microphone/headset),

3.5 mm jack (line in)

Connection typeWireless
Accessories for microphonesRaidītāji
Connector3,5mm
Headphone typeIntercom
