Sennheiser EW 100 G4-Ci1 Wireless Guitar System (G: 566 to 608 MHz) EW100-G4 CI1

The Sennheiser EW 100 G4-Ci1 is an easy-to-set-up rackmount wireless system that brings reliable high-quality, wireless sound to guitar and bass players performing in small to medium-sized venues including concert stages, houses-of-worship, theaters, and clubs.

The EW 100 G4-Ci1 features a true diversity, half-rack receiver housed in a rugged, full-metal chassis. The receiver's auto-scan function searches a wide 42 MHz UHF tuning range with 1680 selectable frequencies available, seeking out a clean, interference-free channel for your audio transmission. The onboard guitar tuner is an added convenience for musicians.

This system includes a Ci 1 cable that connects your instrument to the lightweight bodypack transmitter. The transmitter provides up to 8 hours of operation on two AA batteries, with a fixed 30mW RF power output and a transmission range up to 330'. Up to 12 wireless channels can operate simultaneously in the same space, with the receivers linked together for fast, multi-channel frequency setup.

The EW 100 G4-Ci1 is backward-compatible with previous evolution systems. You can mix and match G4/G3/G2/G1 receivers or bodypack, handheld, and plug-on transmitters. It is also compatible with EW 300/500 systems.

The receiver's auto-scan feature scans a wide 42 MHz UHF tuning range with 1680 available selectable frequencies and searches for a clear, interference-free channel for your audio transmission. A built-in guitar tuner is an added convenience for musicians.

This system includes a Ci 1 cable to connect your instrument to a lightweight bodypack transmitter. The transmitter provides up to 8 hours of operation on two AA batteries, with a solid 30mW RF output power and a transmission range of up to 330'. Up to 12 wireless channels can operate simultaneously in the same space, with receivers linked together for quick multi-channel frequency setup.

The EW 100 G4-Ci1 is backward compatible with previous evolution systems. You can combine G4/G3/G2/G1 receivers or bodypack, handheld and plug-in transmitters. It is also compatible with EW 300/500 systems.

Package Contents:

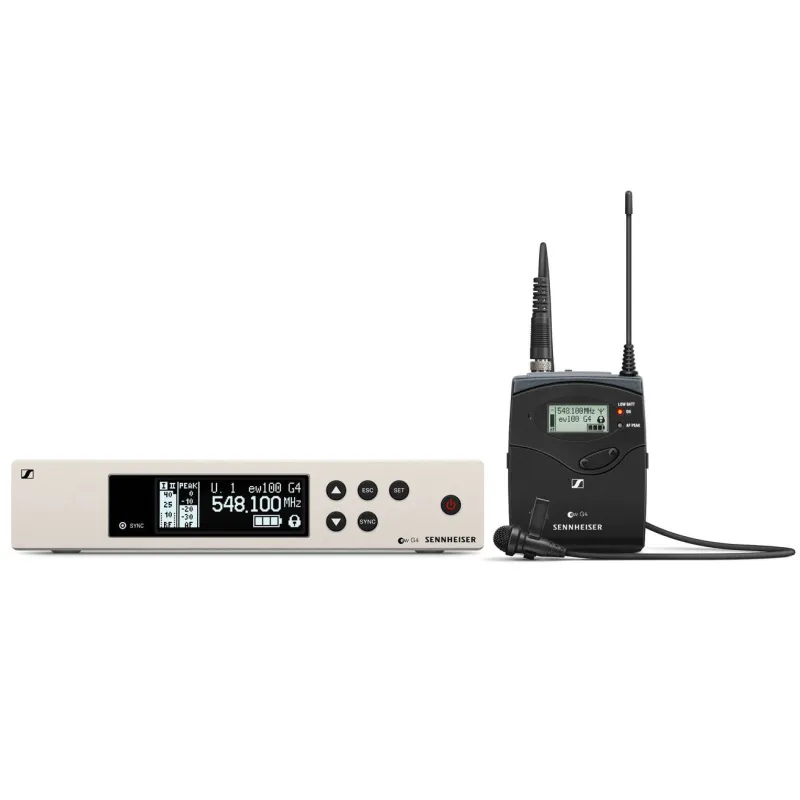

• EM 100 G4 true diversity receiver
• SK 100 G4 bodypack transmitter
• Ci 1 instrument cable
• rack mounting kit
• power supply
• 2 AA batteries
• 2 rod antennas
• rJ 10 cable

• Wireless transmission: analog UHF
• Number of RF channels: 1680
• Frequency band RF G: 566 to 608 MHz
• RF bandwidth: 42 MHz
• Frequency Step Size: 25 kHz
• Maximum working range: 330' / 100.6 m (line-of-sight)
• Maximum number of systems per setup: 20
• Number of audio channels: 1
• Network input/output 2 x RJ10
• Network protocols Manual IP
• Approximate RF sensitivity 2.5 µV
• Adjustable attenuation, 5 to 25 dBµV
• Adjacent channel isolation >65 dB
• Power requirements: AC/DC power adapter
• Power Adapter: AC/DC 12 V DC at 300 mA (included)
• AC input power 100 to 240 VAC, 50/60 Hz at 0.2 A
• Audio input level 3 V RMS
• Gain range 60 dB (3 dB increments)
• Frequency response 80 Hz to 18 kHz (microphone)
• Battery type 2 x AA (included)
• Approximate battery life 8 hours (alkaline)
• Operating temperature 14 to 131 °F / -10 to 55 °C
• Dimensions 2.5 x 3.2 x 0.9" / 64 x 82 x 24 mm
• Weight 5.6 oz / 160 g (with batteries)
