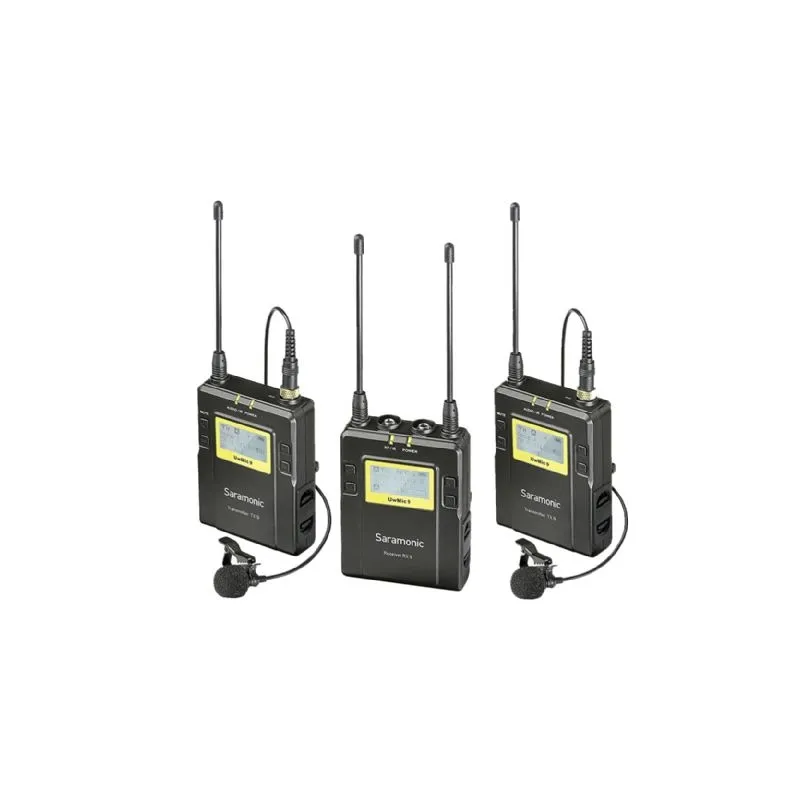

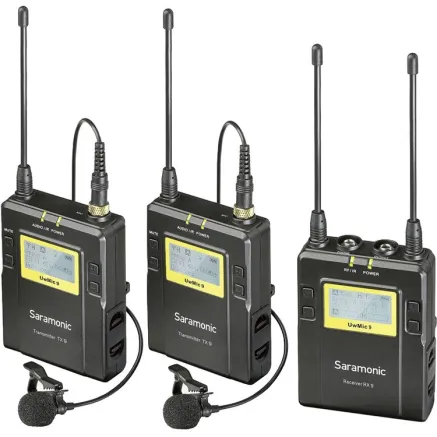

The Saramonic UwMic9 RX9+TX9+TX9 UHF Wireless Lavalier Microphone System provides stable, interference free audio in portable, compact and low cost package. UwMic9 RX9+TX9+TX9 could support two transmitters and one receiver working simultaneously. It is a perfect fit for DSLR videography, field recording and interviews, broadcast TV, ENG, providing dependable audio broadcasting and recording.

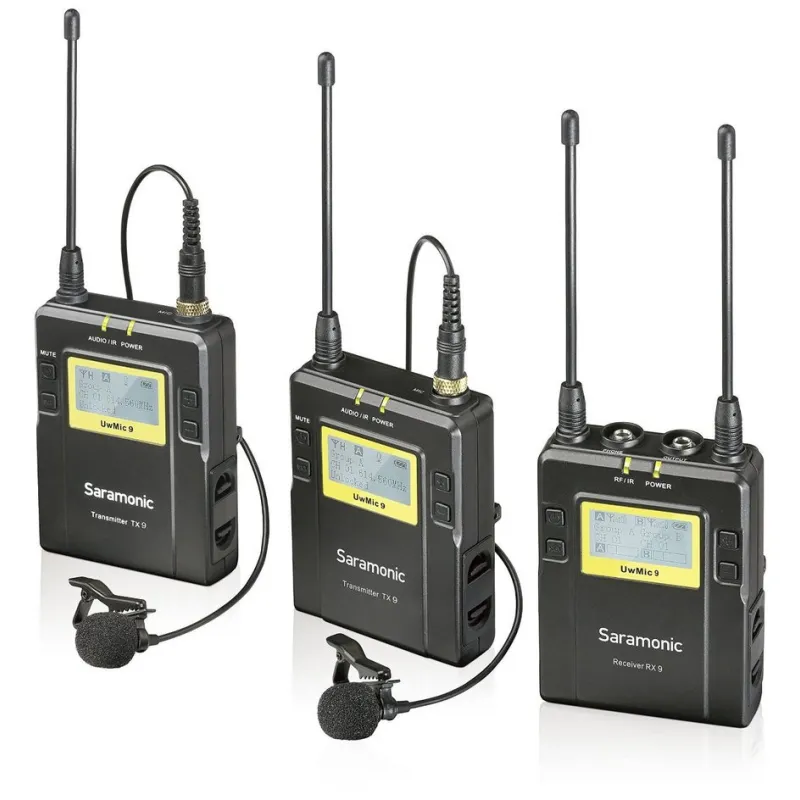

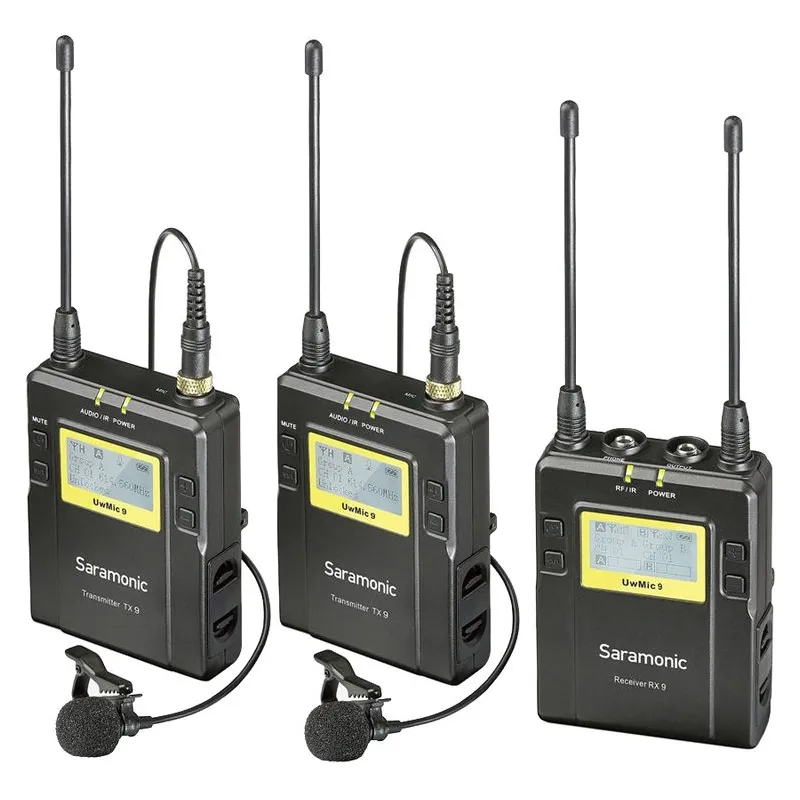

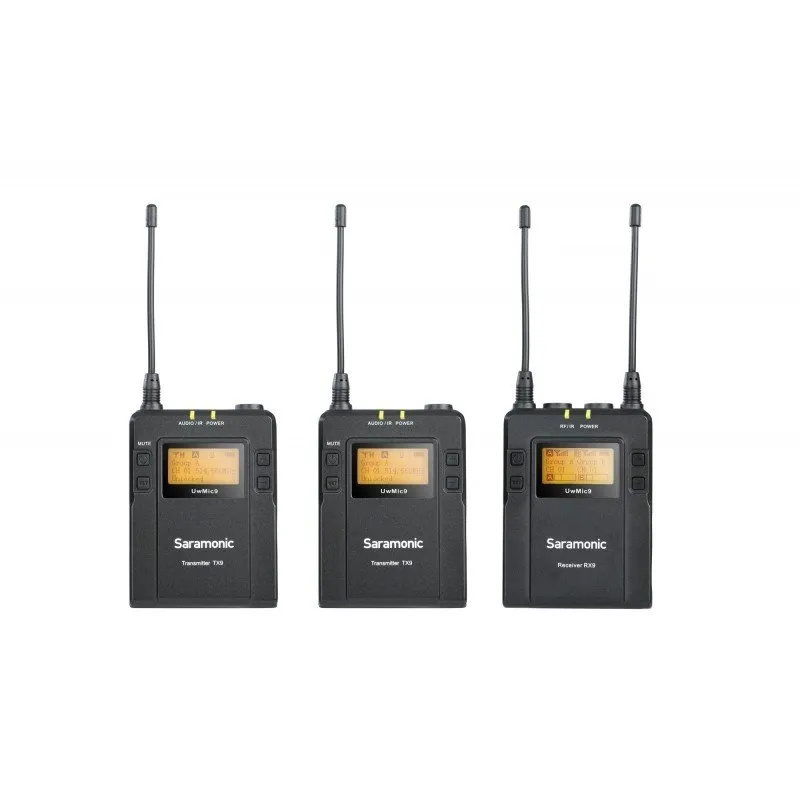

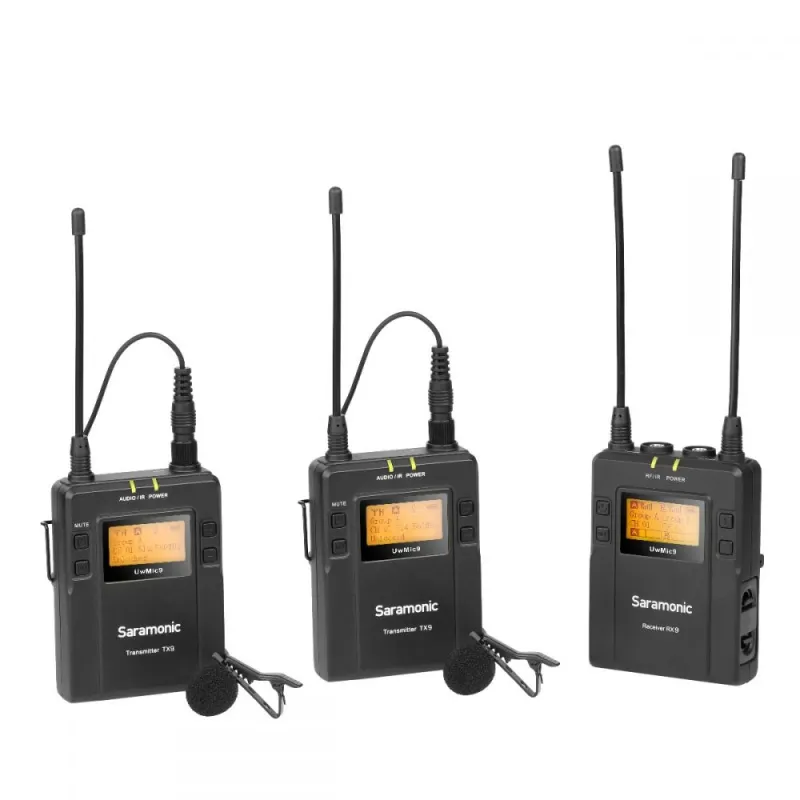

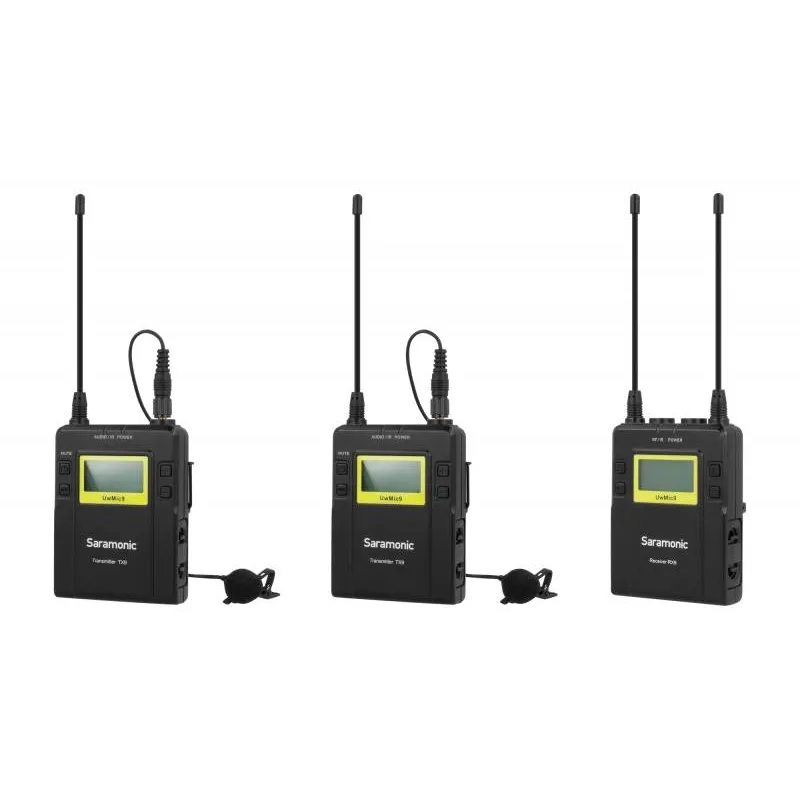

The system includes a camera-mountable wireless receiver, two wireless body-pack transmitters and clip-on lavalier mics.

Receiver (x1)

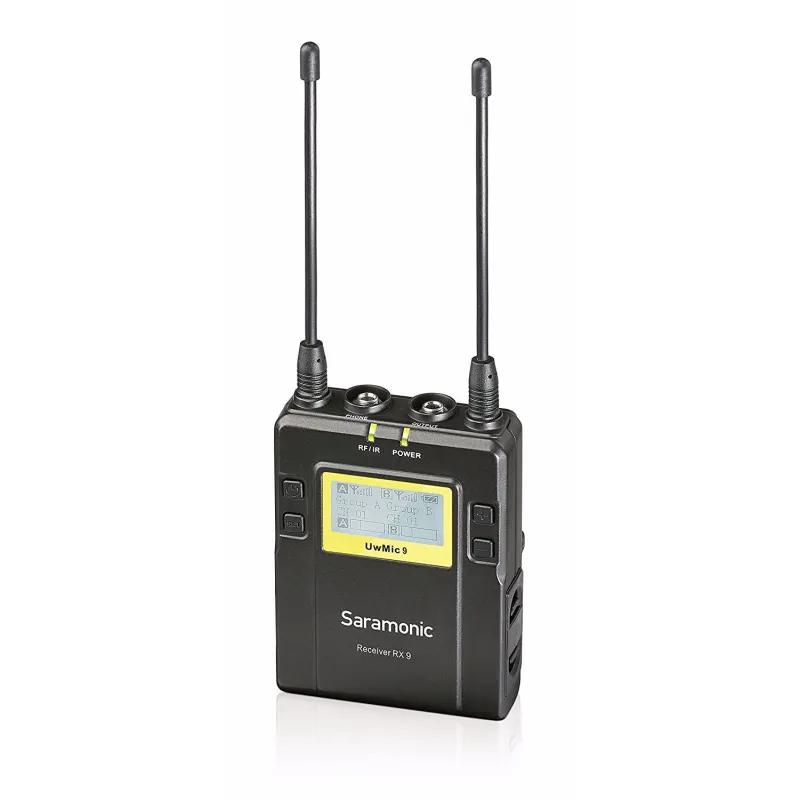

The Saramonic UwMic9 RX9 is a camera-mountable integrated wireless receiver. It features a wide switching RF bandwidth, an easy-to-read LCD display and infrared synchronization between transmitter and receiver.

Equipped with an auto-scan function, the RX9 can automatically search for an available transmission frequency. The headphone jack enables real-time monitoring or the receiver via headphones, especially useful for cameras that lack a monitor output.

Transmitter (x2)

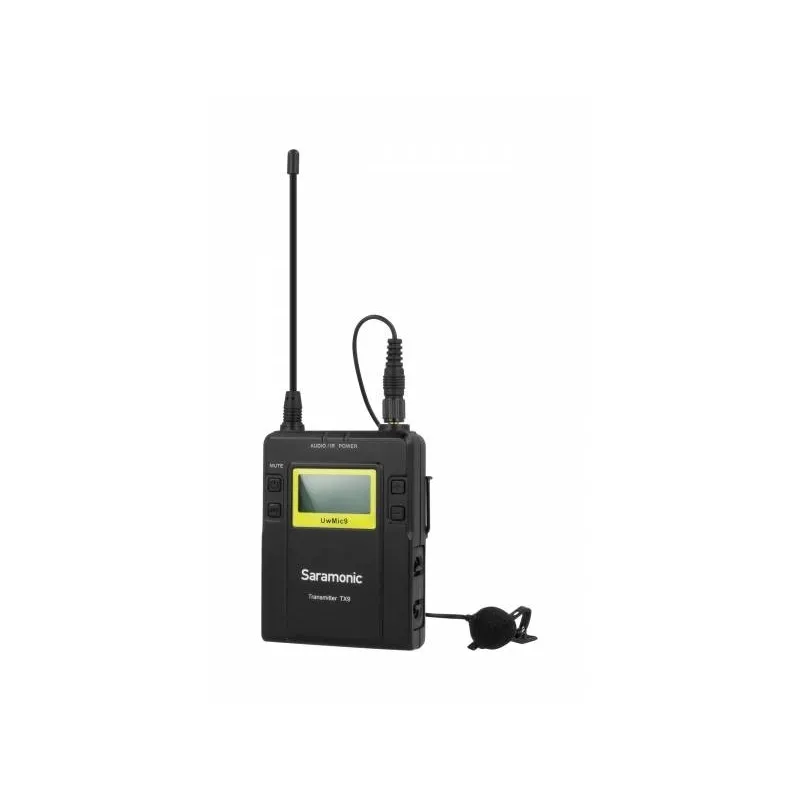

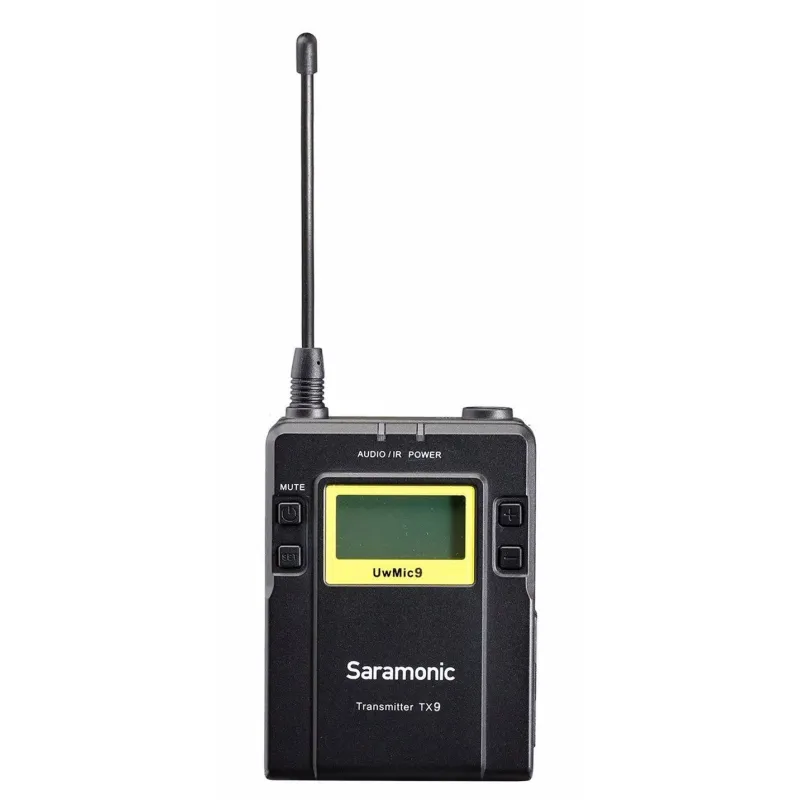

This compact transmitter UwMic9 TX9 employs a crystal-controlled PLL synthesizer. It is equipped with a muting function and a BMP-type mic input. The RF power output can be switched among high, middle and low.

Key Features

• Reliable, broadcast-quality audio
• Two transmitters could work simultaneously
• 514 MHz – 596 MHz
• 96 selectable channels in 2 groups
• Headphone monitoring
• Easy-to-read LCD displays
• Over 330-feet (100m) in open areas or 200-feet (60m) with obstacles

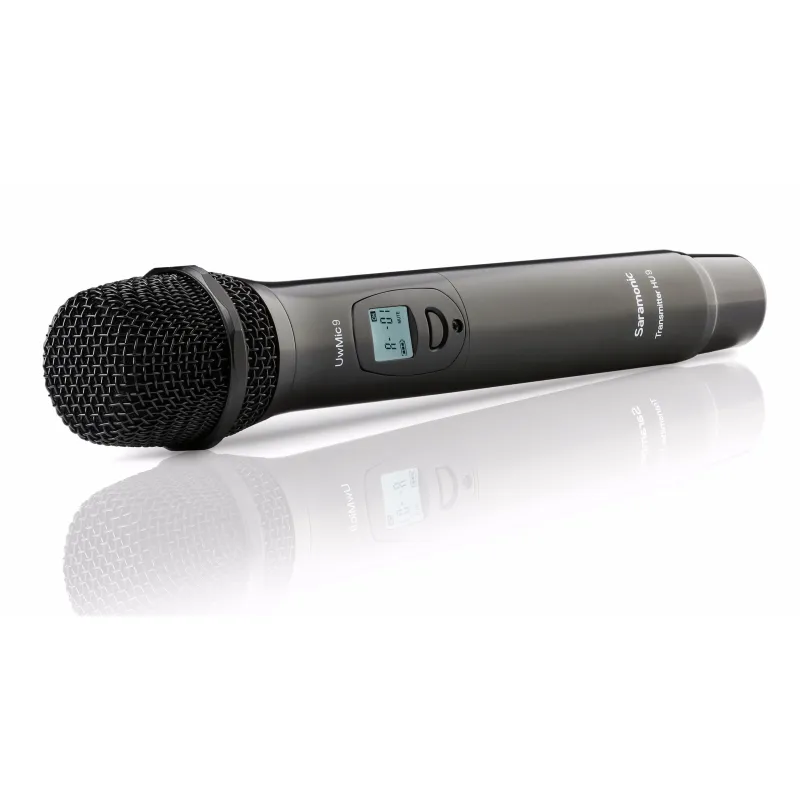

• Optional handheld and XLR transmitter for different applications

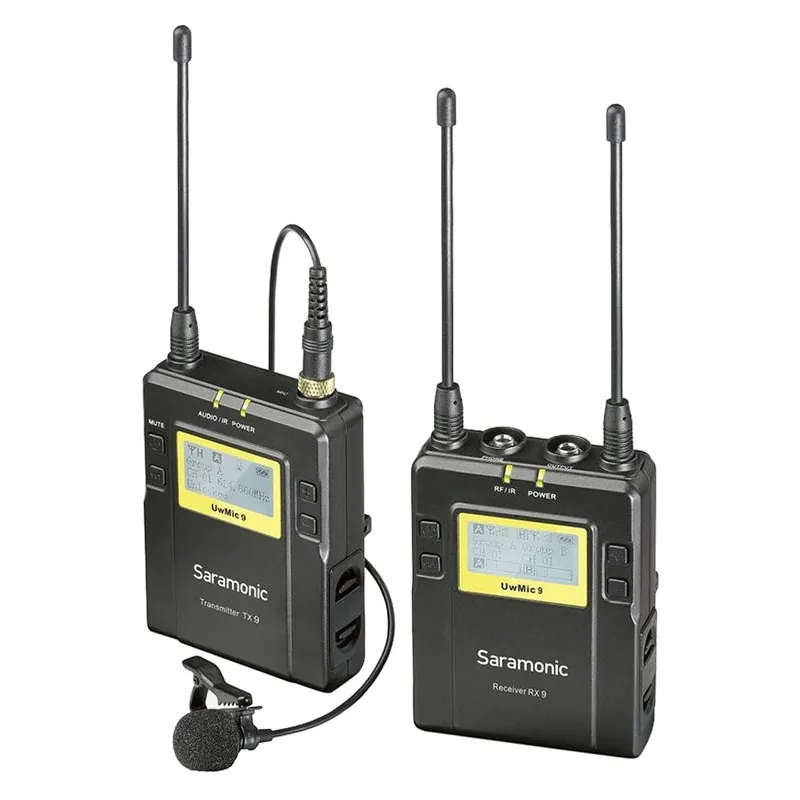

The TX9 and RX9 from Saramonic are a transmitter and receiver set from the UwMic9 system. The TX9 transmitter and two-channel RX9 receiver are easy to connect, because of the built-in infrared module, an automatic scan or on manual mode. With the TX9 comes a lavalier microphone, also named lapel microphone. You attach the microphone with a small clamp onto the tie or shirt of the person you want to interview. The included TX9 transmitter can be attached to the pocket, with one of the included clamps. The person you want to interview is now able to move freely, without worrying about a cable that s connected to the camera.

;

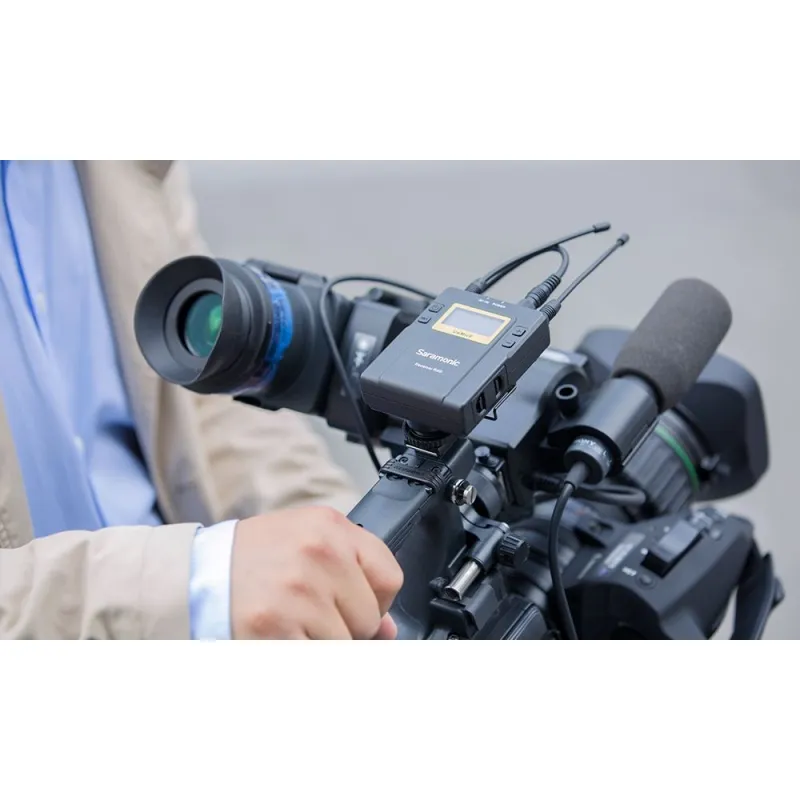

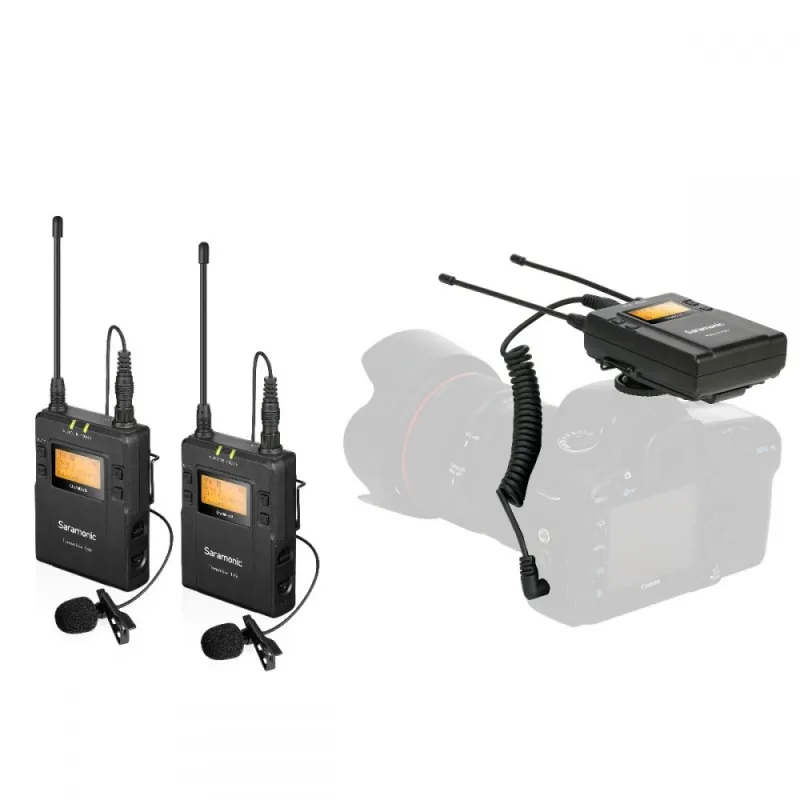

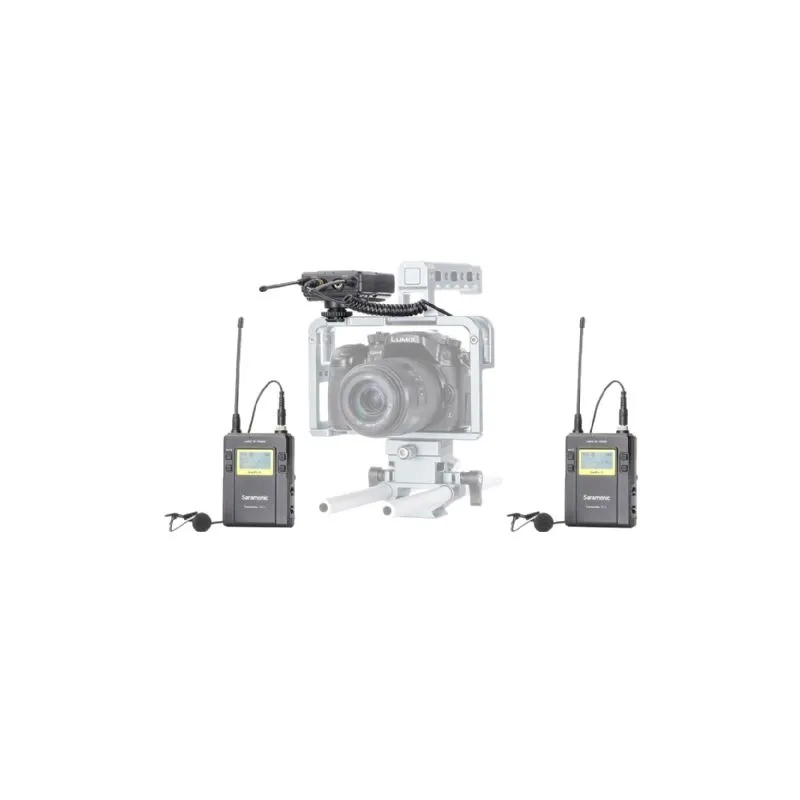

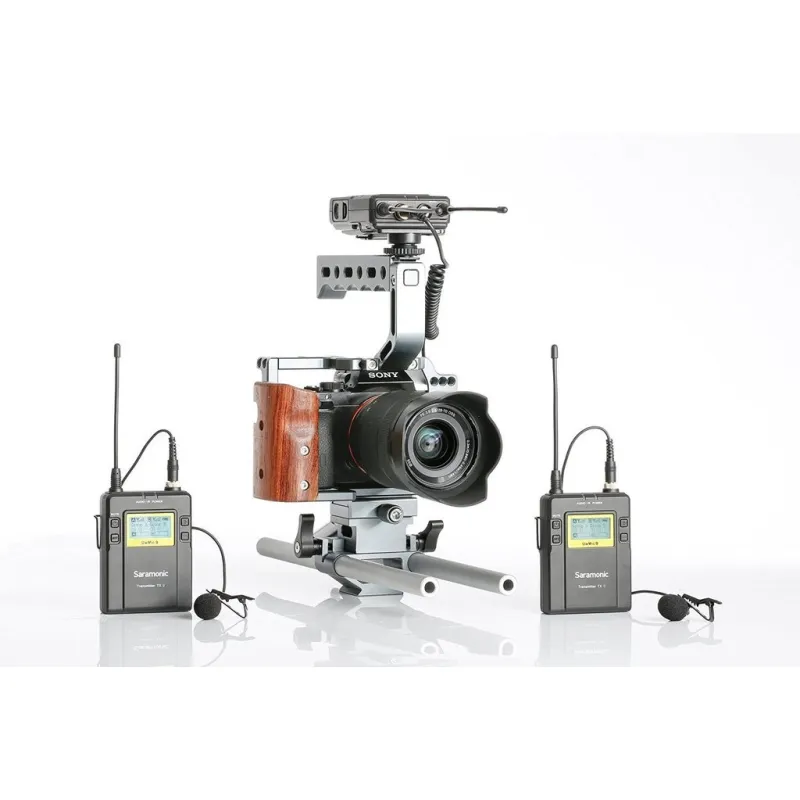

You can attach the RX9 receiver onto the hotshoe connector of your camera, with the included adapter and clamp. The adapter also features a 1/4 female screw thread, so there s an option to attach the RX9 receiver onto a tripod or camera cage. You connect the RX9 with you camera with one of the included cables. In the box you can find a 3.5mm male and XLR male cable, which makes the UwMic9 system a perfect choice for almost every (professional) camera. This can be a DSLR camera, camcorder, audio mixer or professional ENG camera.

;

Professional quality

;

The UwMic9 system produces a crystal clear sound and is made of high quality hardware. When you take the transmitter and receiver out of the packaging, you ll understand what we mean: a durable housing, good hardware and a detailed finish make this a high quality product.

;

Usage

;

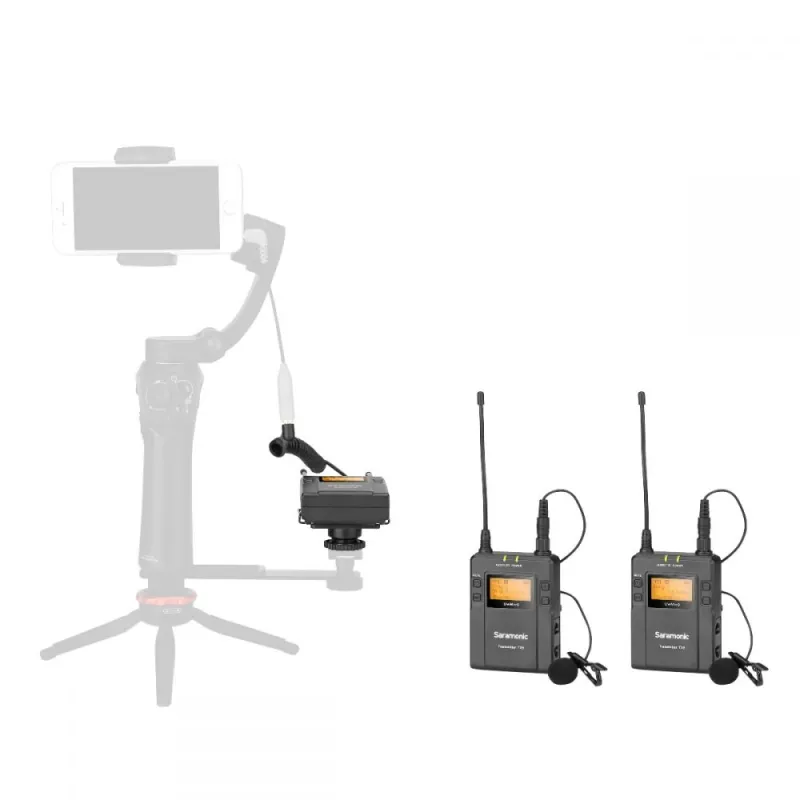

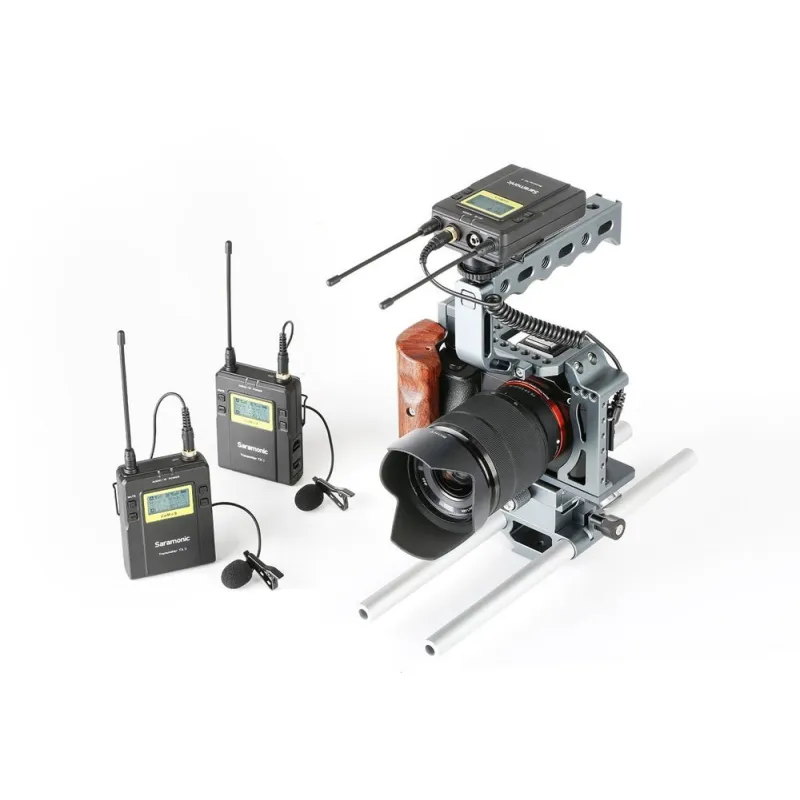

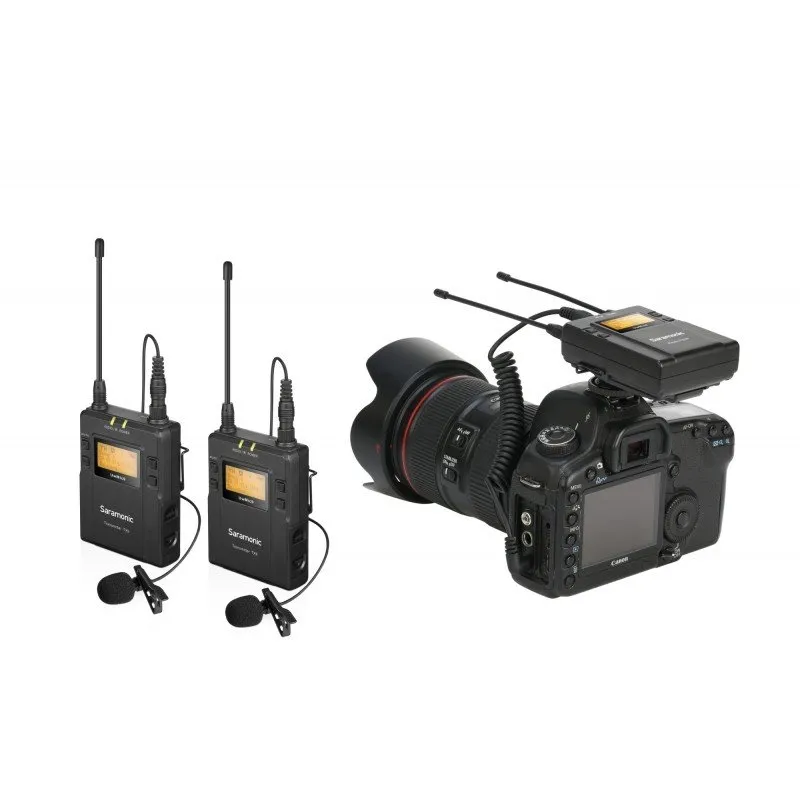

You can use the TX9 and RX9 in multiple ways. Here s an example: you want to capture an interview with your DSLR camera. You connect the RX9 to the hotshoe of your DSLR-camera with the included adapter. Next to that, you connect headphones to the phone port of your RX9. The person you want to interview wears a TX9 transmitter and microphone. You re now ready for the interview. With the headphones you can listen live if the sound reaches the receiver without any problems. There s an option to connect a second microphone at the same time. Please see below.

;

UwMic9 extension

;

The RX9 receiver from this kit has the ability to receive to input signals at the same time. There are multiple other transmitters available. Think about the HU9 handheld microphone (see optional accessories), an extra TX9 transmitter and a XLR9 XLR-transmitter. (Last two mentioned are available on request). You can control both channels individually. Please see the sentence technical specifications .

;

Difference with UwMic10

;

The Saramonic UwMic10 and UwMic9 are functional and are basically identical to each other. The only difference is the range of frequencies on which the systems run. The UwMic10 uses the frequencies 614 MHz - 696 MHz and the UwMic9 uses 514MHz - 596MHz instead.

;

Technical specifications

;

Both the TX9 transmitter and RX9 receiver are working on 96 different channels. You select the channel with the arrow keys. If you want, you can use the user-friendly menu to connect the TX9 and RX9 automatically. There s also a possibility to choose a channel (A or B) and you can turn on and off both channels individually on the receiver. The output volume is also adjustable for both channels individually. In the menu of the RX9 receiver you can select a lock function, which prevents that the receiver will be turned off accidently. You can also select the options stereo or mono . When you use one microphone, we advise you to select mono. When you use two microphones, we advise stereo. The sound of both channels will now be recorded on two separate channels in your camera (A and B / left and right). With this option it s easy to adjust the audio levels and to divide the sound of both channels.

;

Also for the TX9 transmitter are some handy options adjustable. Think about a lock, mute function, and RF function. You can set the latter on low (10mW), medium (20mW) and high (30mW).

Saramonic set RX9 + + TX9 TX9 receiver and two transmitters with microphones krawatowymi included in the system of wireless audio transmission UwMic9.
UwMic9 system is characterized by versatility and reliability. The possibility of wireless transmission of audio signals between devices will appreciate the wide range of cameramen, reporters and vlogerzy. The system allows operation of the devices in two groups, the 96 transmission frequencies.
The common element of the system is a receiver for receiving a Saramonic RX9 both soundtracks of the two channels. The receiver is equipped with two output mini-jack (3.5 millimeters) with a safety lock to prevent accidental unplugging of the cable. The receiver can be connected to the recording device and headphones for listening to the transmitted signal.
Each transmitter has one input standard mini jack (3.5 millimeters) to connect a microphone or other sound source. The entrance is equipped with a safety lock to prevent accidental unplugging of the cable.
transmitters and receiver housings are made of high quality aluminum. Easy to read LCD display and control buttons allow for convenient use of the device even when wearing gloves. Intuitive menus and synchronization features make it easy to use and faster to work with the system. Devices are supplied with two sets of AA batteries.
The set outside the transmitter and receivers are:
- three mounting allowing for suspension of the transmitter and the receiver on the bar


Saramonic set RX9 + + TX9 TX9 receiver and two transmitters with microphones krawatowymi included in the system of wireless audio transmission UwMic9.
UwMic9 system is characterized by versatility and reliability. The possibility of wireless transmission of audio signals between devices will appreciate the wide range of cameramen, reporters and vlogerzy. The system allows operation of the devices in two groups, the 96 transmission frequencies.
The common element of the system is a receiver for receiving a Saramonic RX9 both soundtracks of the two channels. The receiver is equipped with two output mini-jack (3.5 millimeters) with a safety lock to prevent accidental unplugging of the cable. The receiver can be connected to the recording device and headphones for listening to the transmitted signal.
Each transmitter has one input standard mini jack (3.5 millimeters) to connect a microphone or other sound source. The entrance is equipped with a safety lock to prevent accidental unplugging of the cable.
transmitters and receiver housings are made of high quality aluminum. Easy to read LCD display and control buttons allow for convenient use of the device even when wearing gloves. Intuitive menus and synchronization features make it easy to use and faster to work with the system. Devices are supplied with two sets of AA batteries.
The set outside the transmitter and receivers are:
- three mounting allowing for suspension of the transmitter and the receiver on the bar

The Saramonic UwMic9 RX9+TX9+TX9 is a portable, dual-channel, camera-mountable UHF wireless system that provides stellar, broadcast-quality sound and enables you to use clip-on lavalier mics on two separate people while only requiring you to attach a single ultra-compact receiver to your camera. The Saramonic UwMic9 RX9+TX9+TX9 is a powerful and portable, dual-channel, camera-mountable UHF wireless system that provides stellar, broadcast-quality sound. It enables you to use clip-on lavalier mics on two separate people while only requiring you to attach a single ultra-compact receiver to your camera. This system is perfect for DSLRs, Mirrorless, Pro Video and all types of cameras or portable audio recorders with either 3.5mm, or XLR microphone input. Ideal for capturing interviews, film dialog, field recording, broadcast TV, news gathering, vlogging, YouTube videos and so much more. Every component features sturdy metal construction and delivers excellent sound quality in a low-cost package.

New features and functions

The UwMic9 RX9+TX9+TX9 is the new generation of the immensely successful UwMic9 system. It now features 12-step input level control on the TX9 transmitters, an updated operating system, and an updated black trim around the LED displays, for an even more sleek, professional look and now includes the 3.5mm to Dual XLR output cable for professional cameras. The UwMic9 RX9+TX9+TX9 is a high-quality system with professional features, excellent sound quality, and an unbeatable budget-friendly price.

Simple to use, but with the professional features you need

The UwMic9 is remarkably easy to use and it works right out of the box. You just plug in the mics, turn on the power and go. It utilizes the UHF (Ultra High Frequency) spectrum, which helps you avoid interference, and its 514-596 MHz range is not impacted by the FCC’s ban of the 600 MHz frequencies. An automatic-scan feature locates the best available channel for you and the infrared synchronization makes the process a snap. There are 2 banks of 96 channels available, which enables you to run multiple sets of UwMic9 systems at the same time without issues. Easy-to-read backlit LCD displays on both transmitters and the receiver let you make quick adjustments to the intuitive menus in the brightest or darkest environments. The RX9 receiver also includes a headphone output, enabling real-time audio monitoring which is vital if your camera lacks a headphone output.

Power, Range, Flexibility and Function

Offering features and capabilities that are unheard of for a wireless system in this price range. The system has an impressive operating range of up to 100m, giving users the range, and power they need for professional applications. The TX9 belt pack transmitters features a 12-step input level control, allowing users to dial in the gain level for their needs and can also be used to transmit line-level audio, such as an output from a mixer. They also feature a High/Medium/Low RX transmission power output setting, allowing users to conserve batteries in controlled recording environments. Because the TX9s are wired with the standard 3.5mm TRS pin-out, allowing for use with hundreds of lavalier, headset, instrument and gooseneck microphones. Including the premium-quality Saramonic DK3 Lavalier, water-proof DK5 Lavalier, DK6 low-profile headset mic, or the UMIC-M2 mini-gooseneck mic. The TX9s also feature a handy muting feature if the person wearing the clip-on lavalier microphone needs privacy, and a flashing red LED reminds you to unmute it afterward. And the TX9 transmitters and RX9 receiver both have a power-locking feature to prevent them from accidentally being turned off when in use.

Versatility for any camera, or any set-up

Locking 3.5mm mini-plug and Dual XLR output cables are both included so you can use the UwMic9 system with DSLRs, mirrorless cameras, cinema cameras, camcorders, professional video cameras, action cameras, audio recorders, mixers and much more. If your recording device has either a 3.5mm or XLR microphone input, you are ready to go out of the box. And the system can be easily adapted to be used with smartphones, tablets, computers, and even more with one of Saramonic’s inexpensive and innovative audio adapters and cables.

Expandable and Backwards Compatible

Another great benefit is that the UwMic9 system is expandable and backwards compatible. Optional transmitters and output cables (sold separately) are available, giving you unrivaled flexibility. Additional transmitters make it possible to add a wireless handheld microphone with the HU9 Handheld Microphone transmitter, or the TX-XLR9 wireless Plug-On XLR transmitter allows you to use any XLR microphone wirelessly, condenser or dynamic. Saramonic also has an expansive series of adapters and cables to connect the included RX9 receiver to smartphones, tablets, computers, and so much more. And if you have an older UwMic9 component, transmitter or system with the yellow trim, no need to worry, the UwMic9 series is complete backwards compatible. Allowing you to seamlessly add a UwMic9 system to your existing older UwMic9 system, transmitter or components.

• Complete two-person UHF wireless lavalier microphone kit with a single, dual-channel camera-mountable receiver that provides reliable broadcast-quality sound

• New updated system design now features input level controls on transmitters, dual XLR output cable included, newest operating system and sleek, professional new look

• Easy-to-use, right out of the box with plug-and-play operation, durable all-metal construction and easy-to-read backlit LCD displays

• Compact receiver features a built-in headphone output so you can always monitor your sound — even when your camera lacks a headphone jack

• Offers up to 100m operating distance with auto-scan feature finds the best channels for you and infrared makes it easy to sync channels



Specifications RX9 Receiver

• Channels: 96 selectable channels in 2 groups (A and B)
• Wireless Frequency Range: 514MHz - 596MHz
• Oscillator Type: PLL synthesizer
• Output: Locking 3.5mm TRS mini-jack
• Antenna: 1/4 λ wire antenna
• Audio Output Level: -60dBV
• Headphone Output Level: 30mW (16 ohm)
• Sensitivity: -95dBm
• Signal to Noise Ratio: 70dB or more
• Voice Delay: 12ms
• Reference Deviation: ±5 kHz (-60dBV, 1kHz input)
• Frequency Response: 40Hz to 18kHz (±3dB)
• Distortion: 0.5% or less
• Spur Suppression: -60dB
• Batteries: 2 LR6/AA size batteries
• Dimensions: 170.9 x 63.5 x 30.0mm
• Weight: 218.7g (without batteries)

Specifications TX9 Transmitters

• Channels: 96 selectable channels in 2 groups (A and B)
• Wireless Frequency Range: 514MHz - 596MHz
• Oscillator Type: PLL synthesizer
• Input: Locking 3.5mm TRS mini-jack
• Reference audio input level: –60dBV (MIC input 0dB attenuation)
• Antenna: 1/4 λ wire antenna
• Signal to Noise Ratio: 70dB or more
• Voice Delay: 12ms
• Reference Deviation: ±5 kHz (-60dBV, 1kHz input)
• Frequency Response: 40Hz to 18kHz (±3dB)
• Distortion: 0.5% or less
• Spur Suppression: -60 B
• Batteries: 2 LR6/AA size batteries
• Dimensions: 170.9 x 63.5 x 30.0mm
• Weight: 211.4g (without batteries)

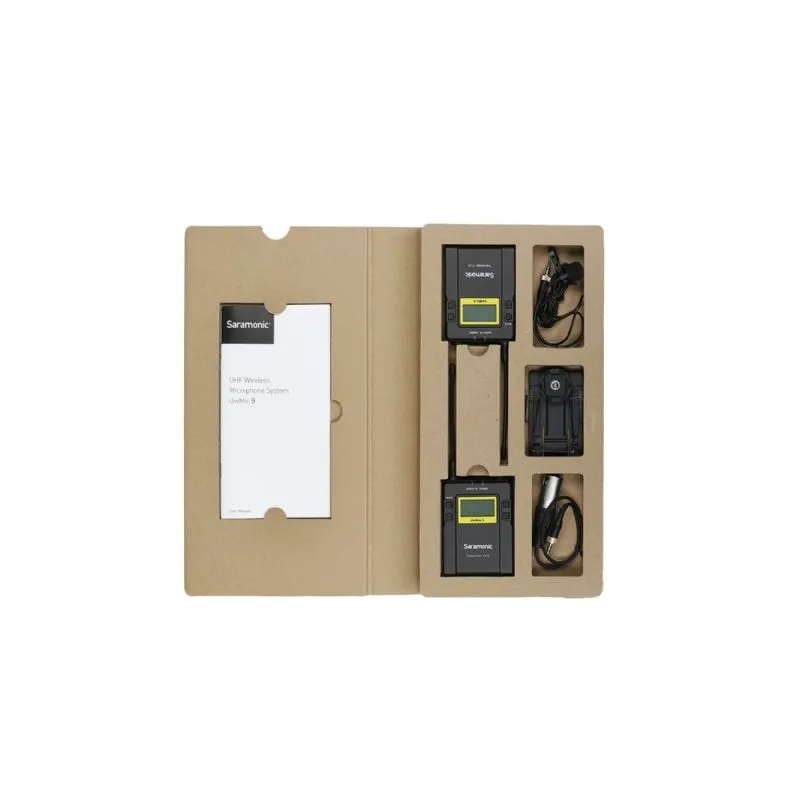

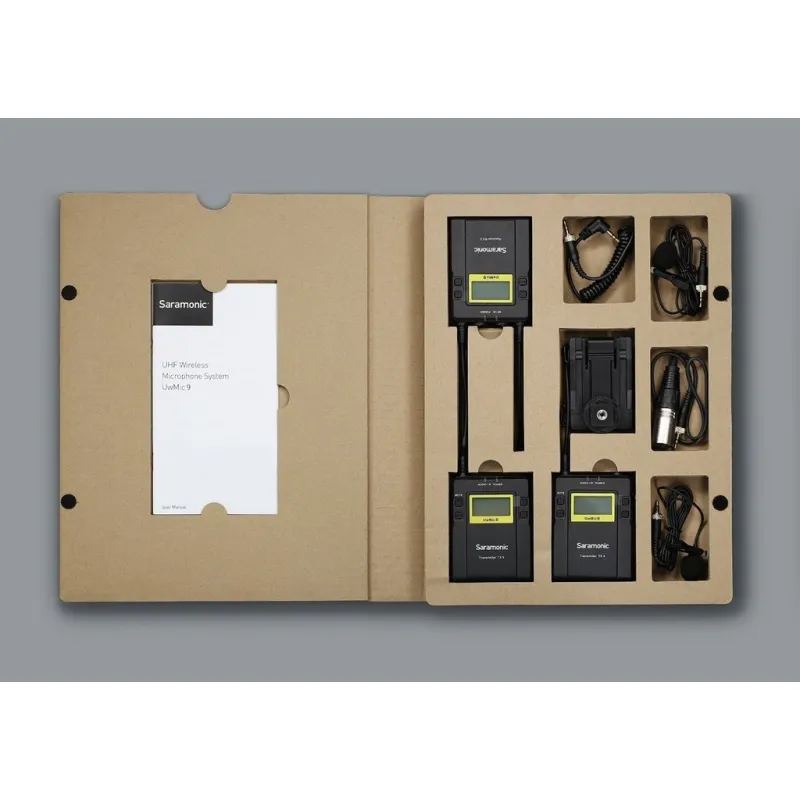

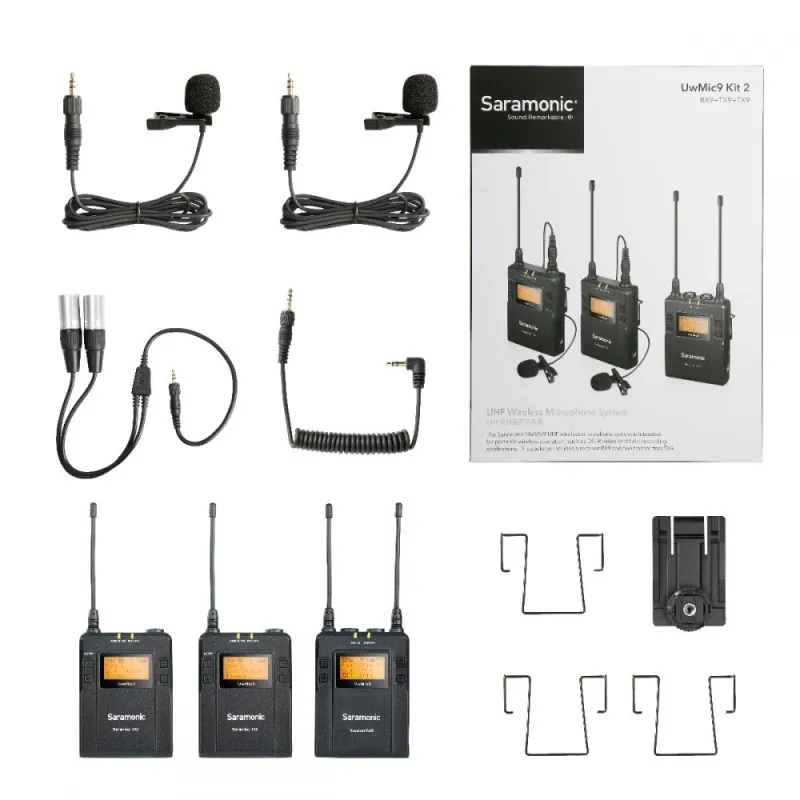

In the box

• 1 x RX9 dual-channel portable UHF wireless receiver
• 2 x TX9 UHF wireless belt-pack transmitters

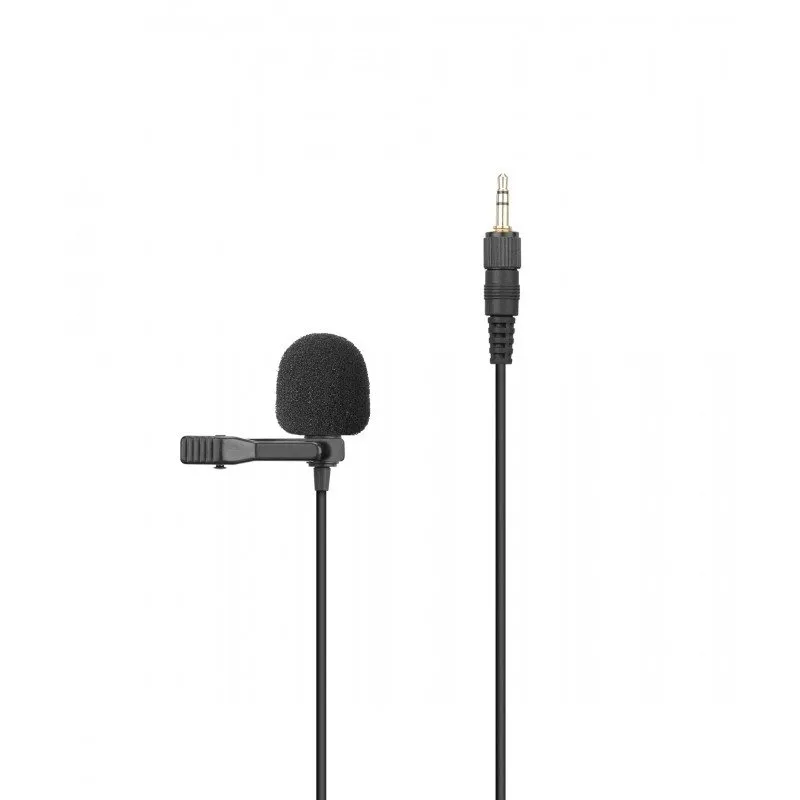

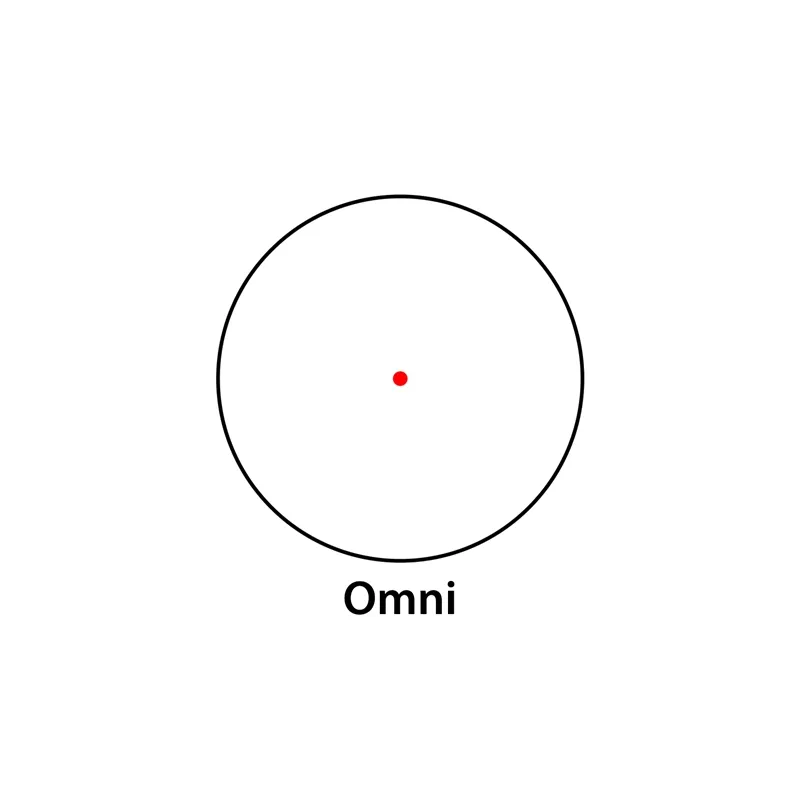

• 2 x SR-M1 omnidirectional lavalier microphones
• 2 x Alligator-style lavalier mic clips
• 1 x Short coiled locking mini-plug output cable with gold-plated connectors

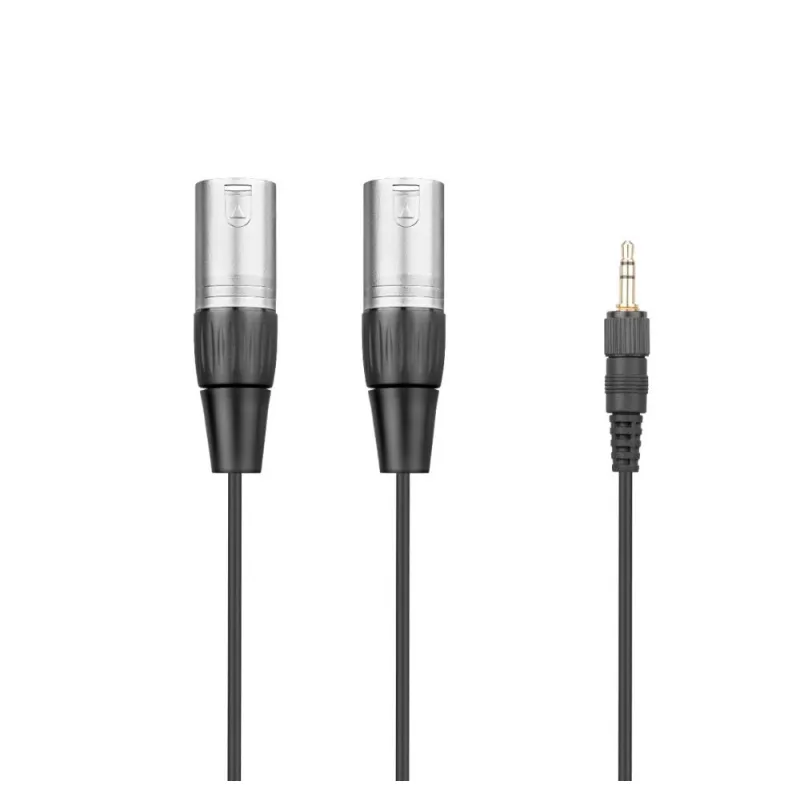

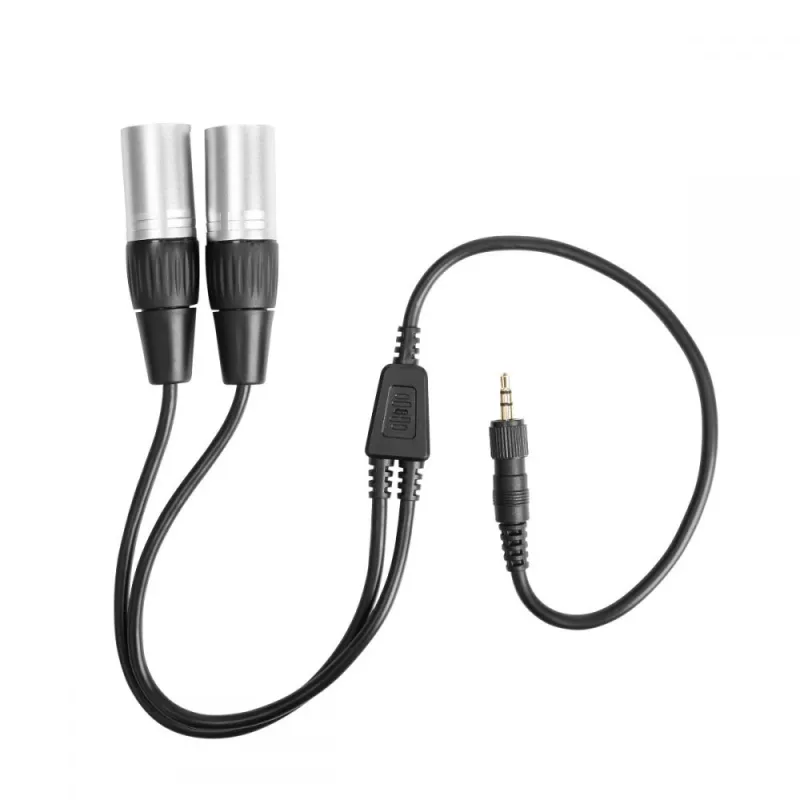

• 1 x Short locking gold-plated mini-plug to XLR male output cable
• 1 x Camera shoe mount with an integrated 1/4 20 tripod thread
• 3 x Removable belt clips
• 3 x SR-UMBC1 battery compartments
• 1 x Printed manual
• 1 x Warranty card

SARAMONIC UwMic9-DE Kit 2 (TX9+TX9+RX9)

• Reliable, broadcast-quality audio
• Two transmitters could work simultaneously
• 514 MHz – 596 MHz
• 96 selectable channels in 2 groups
• Headphone monitoring
• Easy-to-read LCD displays
• Over 330-feet (100m) in open areas or 200-feet (60m) with obstacles
• Optional handheld and XLR transmitter for different applications.

The Saramonic UwMic9 Kit2 UHF Wireless Lavalier Microphone System provides stable, interference free audio in portable, compact and low cost package. UwMic9 RX9+TX9+TX9 could support two transmitters and one receiver working simultaneously. It is a perfect fit for DSLR videography, field recording and interviews, broadcast TV, ENG, providing dependable audio broadcasting and recording.

The system includes a camera-mountable wireless receiver, two wireless body-pack transmitters and clip-on lavalier mics.

Delivery Content
1x Portable receiver RX9
2x Body-pack transmitter TX9
2x Omni directional lavalier microphone
1x 3,5mm locking-type plug audio cable
3x belt clip
2x wind screen
1x XLR to 3,5mm locking typeplug audio cable
2x microphone holder clip

Specifications

UwMic9-RX9 Receiver

Channel Number

13

Channel Group

A and B

Oscillator type

PLL synthesizer

Audio output connector

3,5mm mini jack

Receive frequencies

823-832 MHz; 863-865 MHz

Receive sensitivity

-95 dBm

Signal to noise ratio

70db or more

Reference deviation

+/- 5 kHz (-60 dBV, 1 kHz input)

Frequency response

40 Hz to 18 kHz (+/- 3dB)

Battery

2 AA size batteries

UwMic9-TX9 Transmitter

Channel Number

13

Channel Group

A or B

Oscillator type

PLL synthesizer

Audio input connector

3,5mm mini jack

Carrier frequencies

823-832 MHz; 863-865 MHz

Signal to noise ratio

70db or more

Battery

2 AA size batteries

The Saramonic UwMic9 RX9+TX9+TX9 is a portable, dual-channel, camera-mountable UHF wireless system that provides stellar, broadcast-quality sound and enables you to use clip-on lavalier mics on two separate people while only requiring you to attach a single ultra-compact receiver to your camera. This system is perfect for DSLRs, video cameras or portable audio recorders for capturing interviews, film dialog, field recording, broadcast TV, news gathering, vlogging, YouTube videos and more.Every component features sturdy metal construction and delivers excellent sound quality in a low-cost package. The entire kit is ultra-compact, lightweight, and easy to bring with you on every shoot.

The UwMic9 is remarkably easy to use. It works right out of the box. You just plug in the mics, turn on the power and go. It utilizes the UHF (Ultra High Frequency) spectrum, which helps you avoid interference, and its 514-596 MHz range is not impacted by the FCC’s ban of the 600 MHz frequencies. An automatic-scan feature locates the best available channel for you and the infrared synchronization makes the process a snap. There are 96 channels available, which enables you to run multiple sets of UwMic9 systems at the same time without issues. Easy-to-read backlit LCD displays on both of the transmitters and the receiver let you make quick adjustments to the intuitive menus in the brightest or darkest environments. The RX9 receiver also includes a headphone output, enabling real-time audio monitoring if your camera lacks a headphone output.

Locking 1/8” (3.5mm) mini-plug and XLR output cables are both included so you can use the UwMic9 with DSLRs, mirrorless cameras, cinema cameras, camcorders, professional video cameras, audio recorders and more.This flexible system can also be used to transmit line-level audio, such as an output from a mixer. This can be useful at weddings and other events where you need to wirelessly record crystal-clear audio from a soundboard in addition to running a wireless mic.

• Complete two-person UHF wireless lavalier microphone kit with a single, dual-channel camera-mountable receiver that provides reliable broadcast-quality sound
• Easy-to-use and works right out of the box with plug-and-play operation
• Built-in headphone output so you can always hear your sound — even when your camera lacks a headphone jack
• Durable all-metal construction with easy-to-read backlit LCD displays
• Offers up to 330-foot (100m) operating distance with auto-scan feature finds the best channels for you and infrared makes it easy to sync channels

The Saramonic UwMic9 Kit 2 (RX9 + TX9 + TX9) is a receiver and two transmitters with tie microphones that form part of a UHF wireless transmission system in the analogue frequency range from 514 MHz to 596 MHz. Key features of the system UwMic9 features a long range of up to 100 metres in free space. The ability to transmit audio wirelessly between a wide range of devices will be appreciated by camera operators, reporters and vloggers. The system enables operation in two transmitter groups (A and B), with a choice of 96 radio frequency channels. The main advantage of the system is the ability to split the signal into two mono paths. Intuitive menus and "Auto Scan" or infrared (RF) synchronisation functions make use of the system much easier and faster. All Kit 2 transmission components are powered by a set of two AA batteries. Input types UwMic9 allows connection to a wide range of cameras, VDSLRs, camcorders, smartphones, recorders or mobile devices, using cables with specific input types: - Cameras, camcorders, recorders: mini Jack 3.5 mm TRS (supplied) - Cameras, audio mixers: XLR (mini Jack 3.5 mm / 2 x XLR included) - IOS devices: Lightning (optional LC-C35 cable) - Android system devices: USB-C (UTC-C35 cable optional) - Mobile devices: mini Jack 3.5 mm TRRS (optional adapter SR-UC201 or cables SR-PMC2 or SR-PMC1) - PC | MAC: (optional USB-CP30 cable) RX9 receiver The common element of the system and the brains of the whole operation is the Saramonic RX9 receiver, which allows the signal to be received simultaneously from two microphones. The receiver is equipped with two mini Jack (3.5 millimetre) outputs with a safety lock to prevent unplugging and a headphone output to monitor the transmitted signals. Transmitter TX9 The new version of the transmitter features adjustable microphone sensitivity from 0 to 12 decibels. Each transmitter has one input in the 3.5 mm TRS mini jack standard for connecting a microphone or other sound source. The input is equipped with a lock to prevent accidental cable disconnection. We can also use the Saramonic DK6A head microphones for the transmitter, which will find their practical application for conferences, television, theatres or houses of worship. Durable and metal casing The receiver and transmitter housings are made of high-quality, durable aluminium. The easy-to-read LCD displays and control buttons allow comfortable use of the devices even when wearing gloves. The orange displays make it easier to use the devices in difficult weather conditions such as strong sunlight or night-time aura. Accessories included In addition to the transmitter and receivers, the kit includes: - three mounts allowing the transmitters and receiver to be suspended from the belt - adapter with 1/4" tripod mount and cold shoe to allow installation of the transmitter or receiver on a photographic tripod or in the camera flash bay - a mini Jack - 2x XLR cable enabling the receiver to be connected to a professional standard recorder - mini Jack - mini Jack connection cable for camera or camcorder - two omnidirectional tie microphones with mini Jack connectors Specification - two microphones with omnidirectional characteristics with mini jack connectors - number of transmission channels: 96 - number of groups: 2 - operating frequencies: 514 MHz - 596 MHz - usable sensitivity: - 95 dBm - signal-to-noise ratio: 70 dB - reference deviation: ±5 kHz (-60 dBV, 1 kHz) - frequency response: 40 Hz - 18 kHz (± 3 dB) - range: up to 100 m in free space - power supply: o transmitter: 2 AA batteries o receiver: 2 AA batteries - weight: o transmitter: 260 g o receiver: 275 g - dimensions: o transmitter: 6.4 x 8.7 (+ antenna 10.5 cm) x 2.5 cm o receiver: 6.4 x 8.7 (+ antenna 10.5 cm) x 2.5 cm Contents of the set - RX9 receiver - 2x TX9 transmitters - 2x SR-UM10-M1 tie microphones - 3x belt-pack mounts - adapter for mounting on tripod / camera - mini Jack 3.5 mm TRS cable / mini Jack 3.5 mm TRS cable - mini Jack cable / 2 x XLR cable
