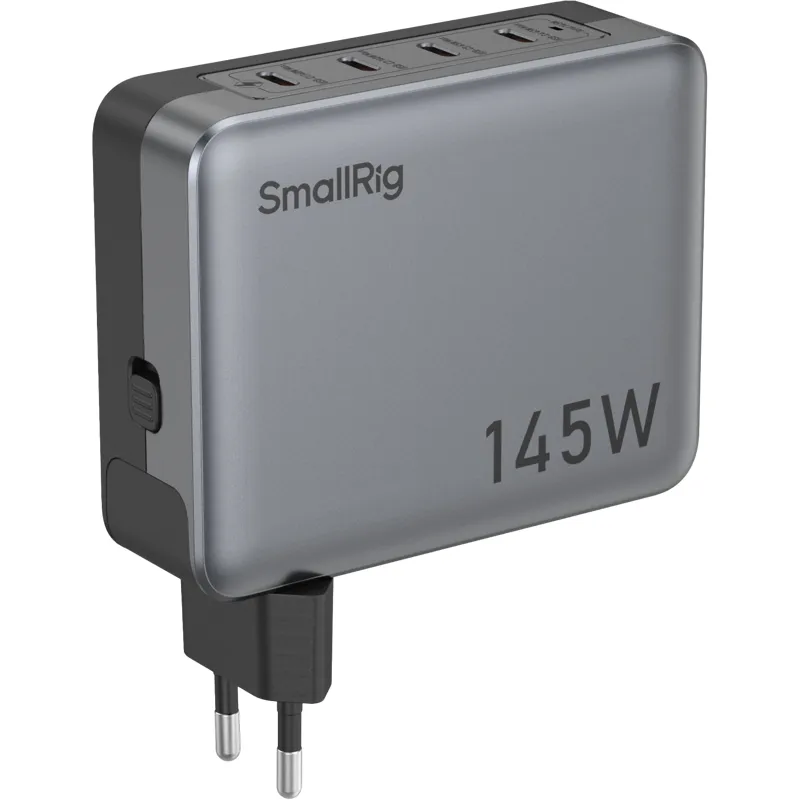

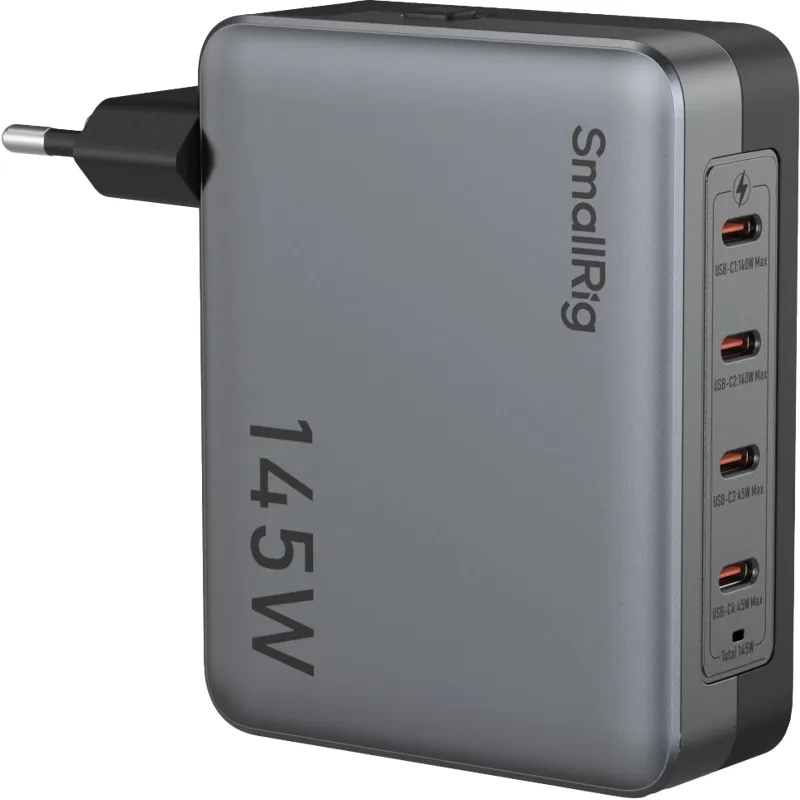

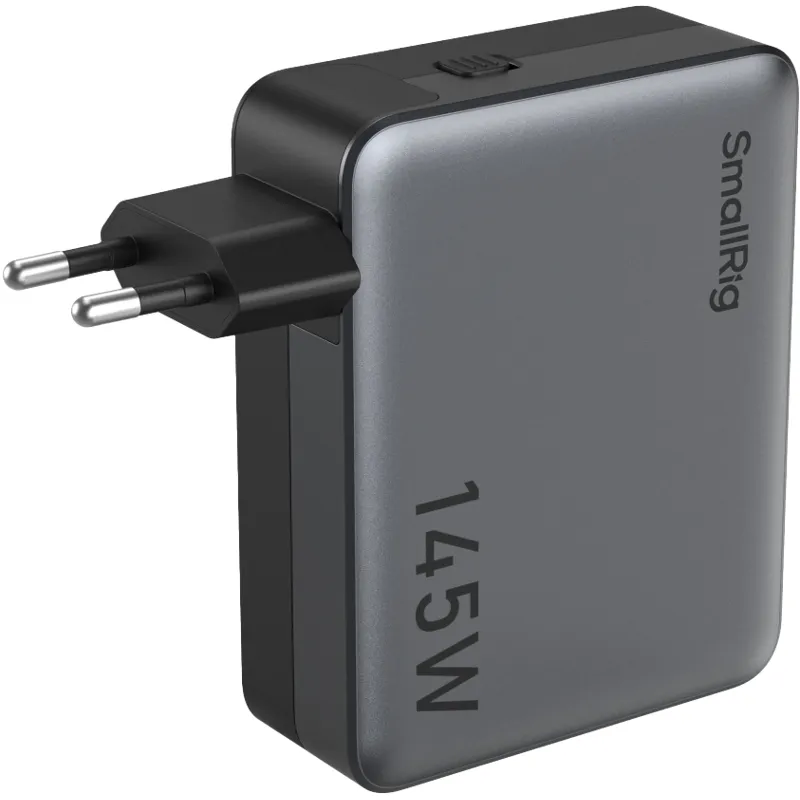

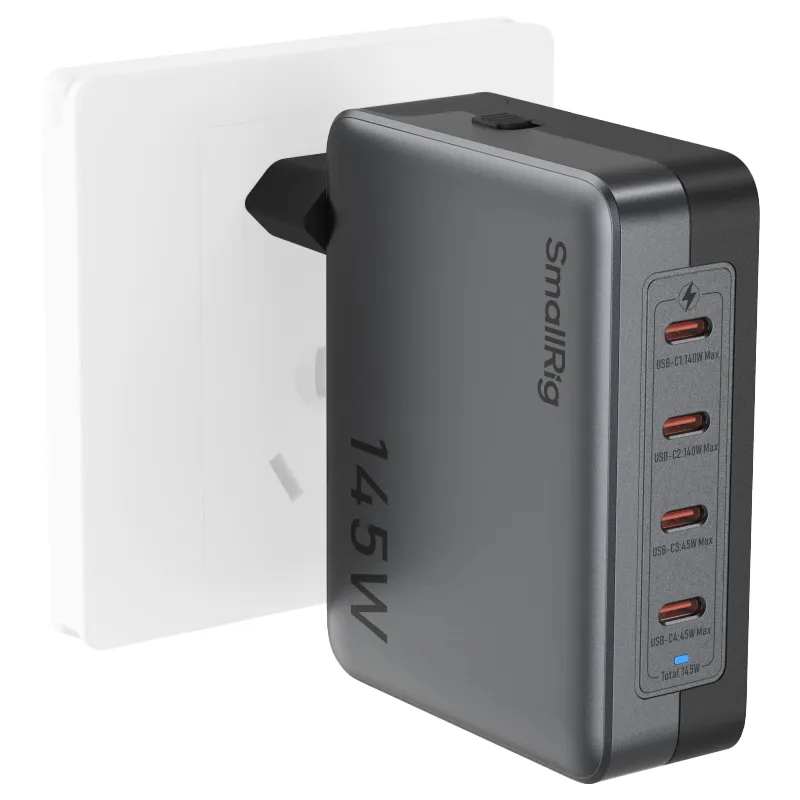

SMALLRIG 4748 145W 4-PORT PD POWER ADAPTER 4748

Compact and convenient for travel and everyday use
The SmallRig 4748 145W 4 Port PD Power Adapter (EU Standard) is a highly efficient and versatile charging device with a total output power of 145W. With four USB C ports, this charger supports simultaneous charging of multiple devices such as V mount batteries, NP F batteries, rechargeable camera batteries, smartphones, computers, etc., making it suitable for different usage scenarios.


Highlights

High output power of 145W
Fast charging
Compatible with multiple devices

Fast charging

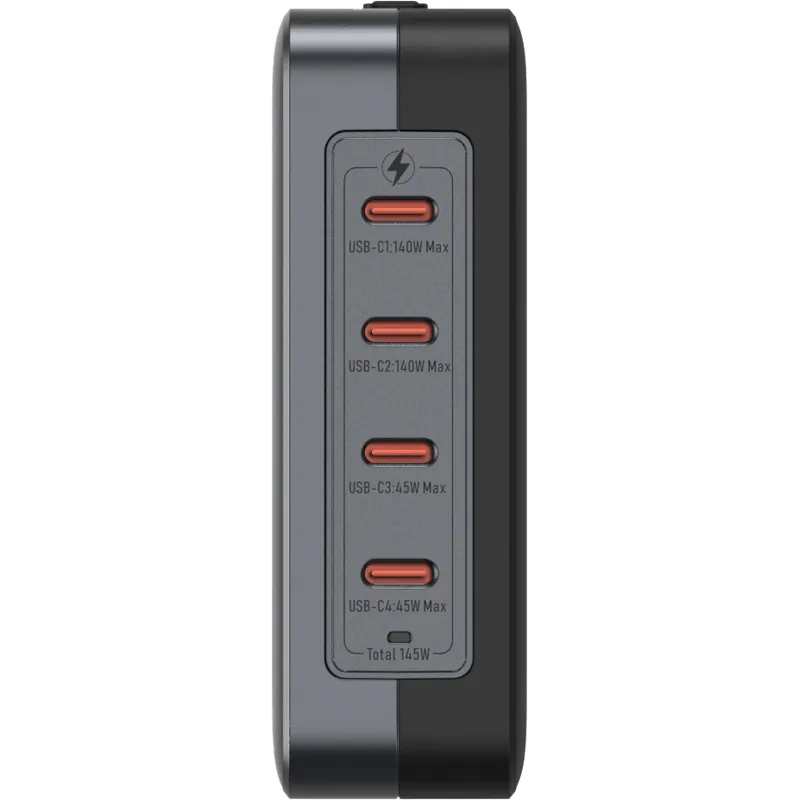

All ports support fast charging, with USB C1/C2 supporting a maximum single port output of 140W via PD3.1, and USB C3/C4 supporting a maximum output of 45W, providing powerful support for high power devices and significantly improving charging efficiency.


Power protection
Each output port is equipped with short circuit and over current protection for safe use. Moreover, the chargers compact size makes it convenient for travel and daily use. The power status indicator light lights up when the charger is connected to the power supply and turns off when the charger is disconnected, giving you a clear overview of the charging status. ,

Weight: 350 g
Dimensions: 97.0 x 76.0 x 31.0 mm
Material: PC
Total output power: 145W
Input voltage: 100 240VAC 50/60Hz 2.2A

Single port mode:

USB C1 / C2: 28V5A (140W) Max.
USB C3 / C4: 20V2.25A (45W) Max.
Total: 140W Max.
Dual port mode:
C1 + C2 / C3 + C4:
USB C1 / C2: 20V5A Max.
USB C3 / C4: 20V2.25A Max.
C1 + C2:
USB C1 / C2: 20V3.25A Max.
C3 + C4:
USB C3 / C4: 9V2.22A Max
Total: 145W Max

Three port mode:

C1 + C2 + C3 / 4:
USB C1: 20V3.25A Max.
USB C2: 20V1.5A Max.
USB C3 / C4: 20V2.25A max.
C1 / C2 + C3 + C4:
USB C1 / C2: 20V5A max.
USB C3 / USB C4: 9V2.22A Max.
Total: 145W Max

Quadruple port mode:

USB C1: 20V 3.25A Max.
USB C2: 20V 1.5A Max.
USB C3: 9V 2.22A Max.
USB C4: 9V 2.22A Max.
Total: 145W Max.
,

1 x  SmallRig 4748 145W 4 Port PD Power Adapter (EU Standard)
